330104-07-12-10-11-00 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330104-07-12-10-11-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

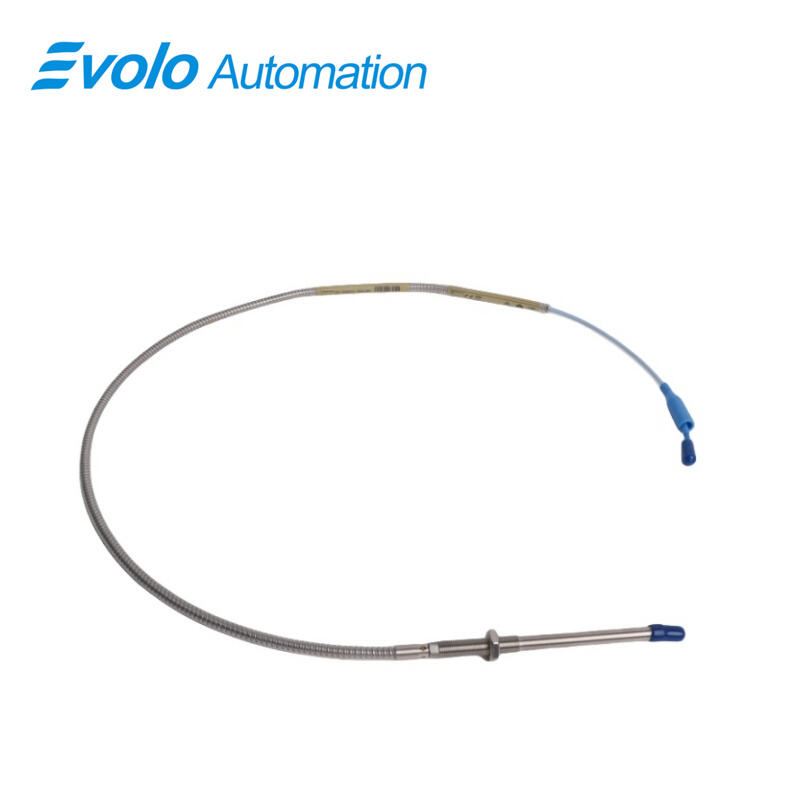

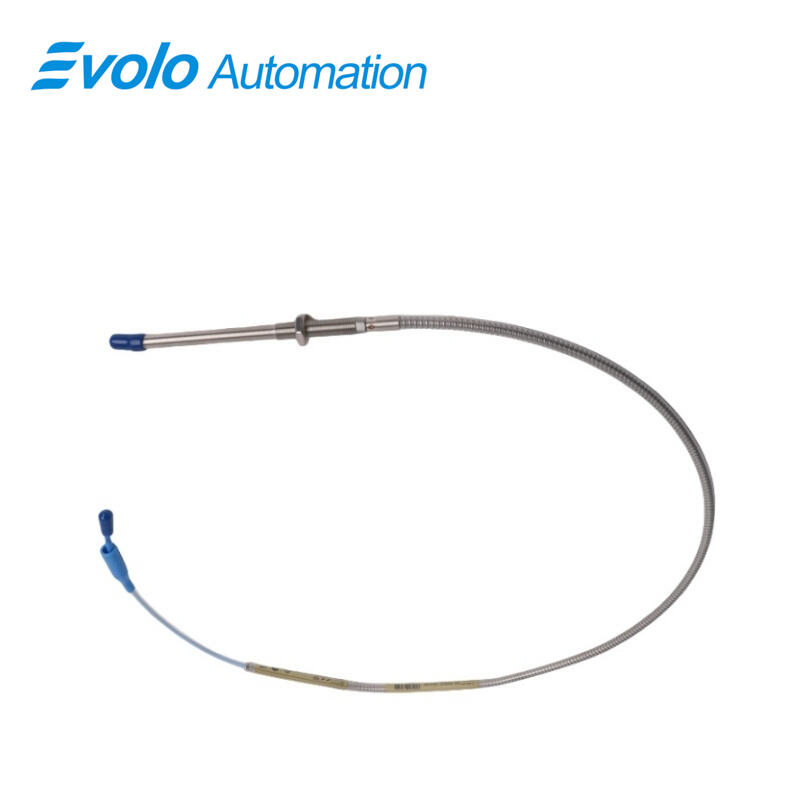

The 330104-07-12-10-11-00 3300 XL 8 mm Proximity Probe is a high-precision eddy current transducer designed for non-contacting measurement of vibration and displacement in industrial automation systems. With a compact 8 mm probe tip and a linear range of 2 mm (80 mils), the 330104-07-12-10-11-00 3300 XL 8 mm Proximity Probe delivers highly accurate position and vibration measurements on fluid-film bearing machinery. Its robust design includes an M10x1 threaded probe case with a maximum thread engagement of 15 mm, enabling secure installation in tight mechanical spaces. The probe comes with a 1.0-meter (3.3-foot) standard cable featuring a Miniature coaxial ClickLoc connector, connector protector, and optional FluidLoc design to prevent oil leakage, ensuring long-term reliability in harsh industrial environments.

The 330104-07-12-10-11-00 3300 XL 8 mm Proximity Probe operates over a wide temperature range of -52°C to +177°C (-62°F to +350°F), with an output resistance of 50 Ω and supply sensitivity of less than 2 mV per volt input change. Extension cables for the 330104-07-12-10-11-00 exhibit typical capacitance of 69.9 pF/m (21.3 pF/ft) and support field wiring from 0.2 to 1.5 mm² (16 to 24 AWG). Backward compatibility ensures that the 330104-07-12-10-11-00 3300 XL 8 mm Proximity Probe can seamlessly integrate with legacy 3300 series transducer systems, offering easy upgrades without recalibration. Patented TipLoc and CableLoc designs further enhance mechanical strength, securing the probe tip and cable with up to 330 N (75 lbf) pull strength for reliable industrial operation.

Applications

Vibration and Dynamic Measurement on Fluid-Film Bearings
The 330104-07-12-10-11-00 3300 XL 8 mm Proximity Probe provides precise non-contacting vibration measurements with a linear range of 2 mm (80 mils). This allows industrial plants to detect misalignments and unbalances in turbines and pumps, reducing machinery failure by up to 15% and increasing predictive maintenance accuracy.

Position Monitoring and Rod Displacement
In reciprocating compressors and other rotating machinery, the 330104-07-12-10-11-00 3300 XL 8 mm Proximity Probe monitors static position and rod drop with millimeter-level accuracy. Its 50 Ω output resistance ensures consistent signal transmission over standard cables, supporting automated monitoring systems.

Keyphasor and Tachometer Signal Generation
The 330104-07-12-10-11-00 3300 XL 8 mm Proximity Probe enables generation of Keyphasor signals for phase reference and rotor speed monitoring. With less than 2 mV change per volt of input variation, this probe ensures high-fidelity phase measurement, crucial for synchronizing high-speed equipment in petrochemical and power generation plants.

Compact Industrial Installations
Thanks to its 8 mm probe tip and M10x1 mounting thread, the 330104-07-12-10-11-00 3300 XL 8 mm Proximity Probe can be installed in compact or confined spaces where larger probes are impractical. This versatility allows integration in modern automated machinery without sacrificing measurement precision.

Specifications

Competitive Advantage

High Precision and Linear Accuracy
The 330104-07-12-10-11-00 3300 XL 8 mm Proximity Probe provides a linear measurement range of 2 mm with output proportional to displacement. This precision supports advanced vibration analysis and predictive maintenance strategies, reducing downtime by up to 20%.

Durable and Harsh-Environment Ready
Operating from -52°C to +177°C (-62°F to +350°F), the 330104-07-12-10-11-00 3300 XL 8 mm Proximity Probe withstands extreme industrial environments. Optional FluidLoc cables and connector protectors prevent fluid ingress, enhancing reliability in oil-lubricated or high-humidity applications.

Robust Mechanical Design
Patented TipLoc and CableLoc technologies in the 330104-07-12-10-11-00 3300 XL 8 mm Proximity Probe provide a 330 N (75 lbf) pull strength, securing both the probe tip and cable. This ensures stable installation in high-vibration environments and reduces the risk of accidental disconnection.

Seamless Integration and Backward Compatibility
The 330104-07-12-10-11-00 3300 XL 8 mm Proximity Probe is fully compatible with existing 3300 series probes, extension cables, and Proximitor sensors. This backward compatibility allows easy replacement or upgrades without recalibration, streamlining integration in industrial automation systems.

Optimized Signal Fidelity
With 50 Ω output resistance and extension cable capacitance of 69.9 pF/m, the 330104-07-12-10-11-00 3300 XL 8 mm Proximity Probe maintains high-fidelity signals for precise measurement in automated machinery, ensuring reliable performance in predictive maintenance and process monitoring.
