Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330104-06-14-05-02-05 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
60 mm |
|
Overall Case Length Option(Minimum case length): |
140 mm |
|
Total Length Option: |
0.5 meter (1.6 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option: |
CSA, ATEX, IECEx Approvals |
|
Probe Case Thread: |
M10x1 |
|
Maximum Length of Thread Engagement: |
15 mm |
|
Dimension: |
20.5x22.4x3.3cm |
|
Weight: |
0.2 kg |
Description

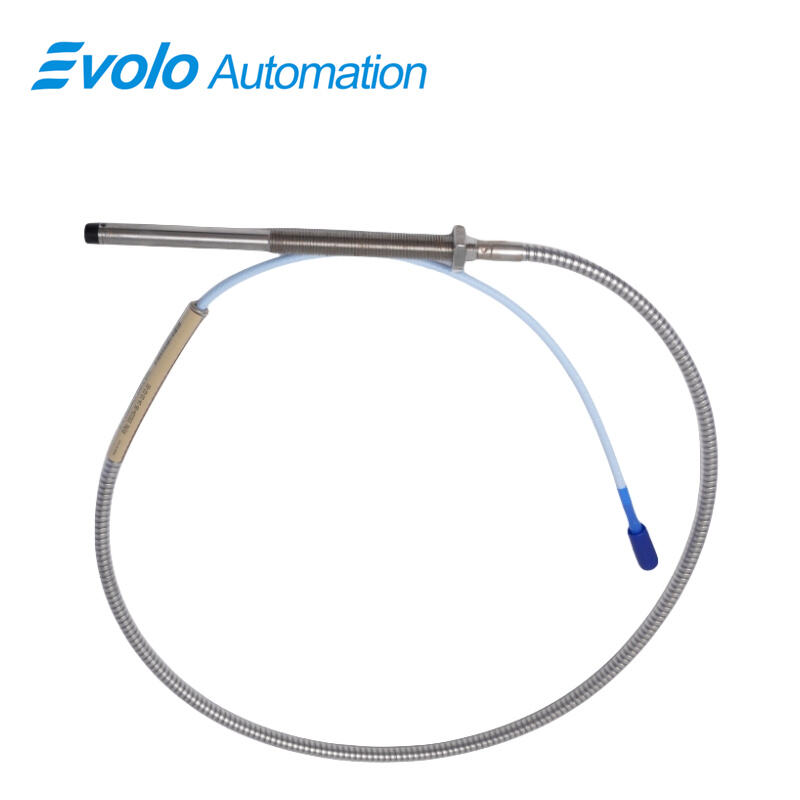

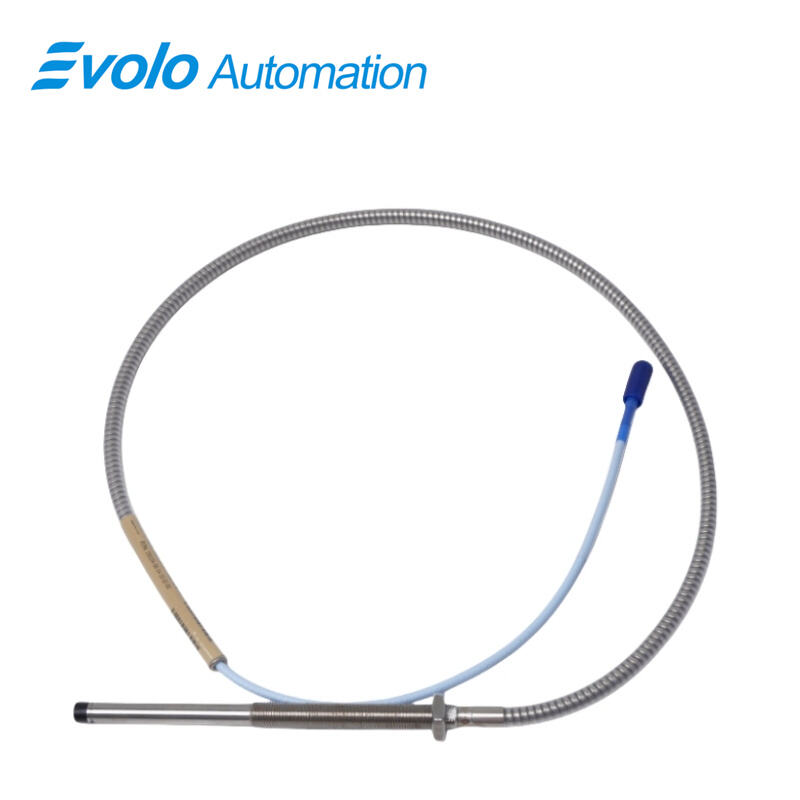

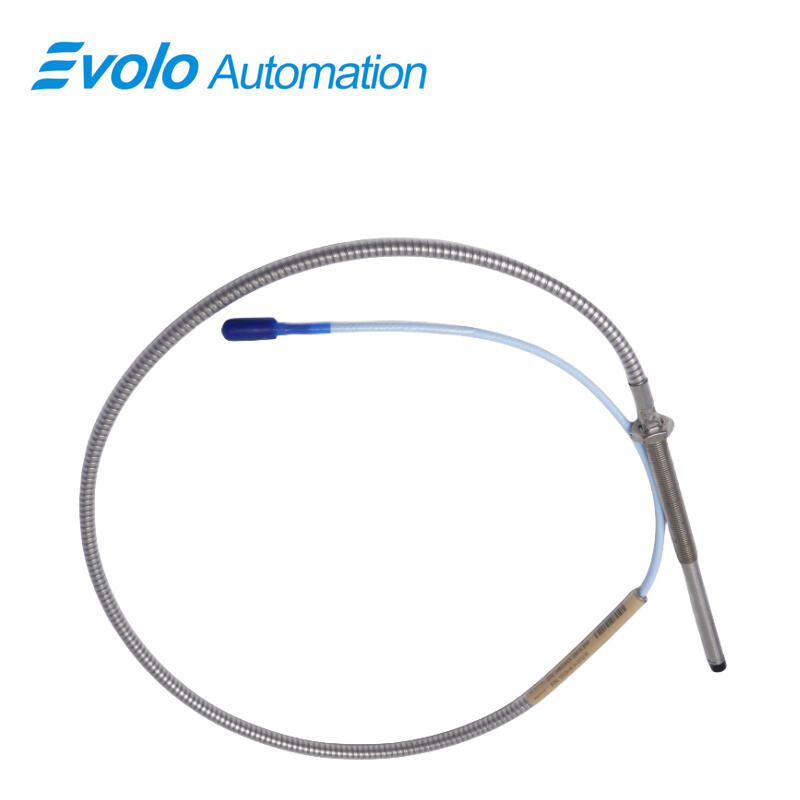

The 330104-06-14-05-02-05 3300 XL 8 mm Proximity Probe is a high-precision sensor designed for automated industrial systems, enabling accurate monitoring of both static position and dynamic vibration in critical rotating machinery. As part of the 3300 XL eddy-current proximity transducer system, this 8 mm probe produces an output voltage proportional to the distance between the probe tip and the conductive target, delivering precise gap and vibration data. Optimized for fluid-film bearing machines, compressors, turbines, and motors, it operates reliably across extreme temperatures from −52°C to +177°C and is approved for hazardous locations with CSA, ATEX, and IECEx certifications. Featuring an M10×1 threaded probe body, 0.5-meter standard cable, and miniature ClickLoc connectors, the probe incorporates patented TipLoc and CableLoc technologies for enhanced probe tip bonding and cable retention up to 330 N. Optional FluidLoc cabling prevents oil or fluid ingress, ensuring dependable performance in lubrication-intensive environments. Fully backward compatible with 3300 series 5 mm and 8 mm probes, it supports easy integration, retrofits, and maintenance in modern automated systems.
Applications
Shaft Displacement and Vibration Monitoring
The 330104-06-14-05-02-05 precisely measures axial and radial shaft movements, detecting misalignment, imbalance, or wear in turbines, motors, and compressors to reduce mechanical failures.
Compact Medium-Depth Installations
With a 140 mm case length and 0.5-meter cable, the 330104-06-14-05-02-05 is suited for equipment layouts where probes must fit into tighter or intermediate spaces without sacrificing accuracy.
Reliable Operation in Harsh Conditions
CSA, ATEX, and IECEx certifications, combined with a -52°C to +177°C operating range, ensure the 330104-06-14-05-02-05 performs reliably in extreme or hazardous industrial environments.
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Competitive Advantage
High Accuracy with 2 mm Linear Range
Delivers reliable static and dynamic measurement for critical machinery, ensuring precision in vibration monitoring and API 670 compliance.
Extreme Temperature Operation (−52°C to +177°C)
Provides consistent output across severe temperature ranges, supporting harsh industrial environments.
Global Hazardous Location Certification
CSA, ATEX, and IECEx approvals enable safe deployment in explosive or flammable environments, meeting international automation safety standards.
Robust Mechanical Bonding (TipLoc & CableLoc, 330 N)
Patented technologies enhance probe tip integrity and cable retention, reducing maintenance frequency and minimizing operational risk.
Backward Compatibility with 3300 Series
Supports integration with 5 mm and 8 mm non-XL 3300 series probes and extension cables, simplifying system upgrades, spare parts management, and automation retrofits.
