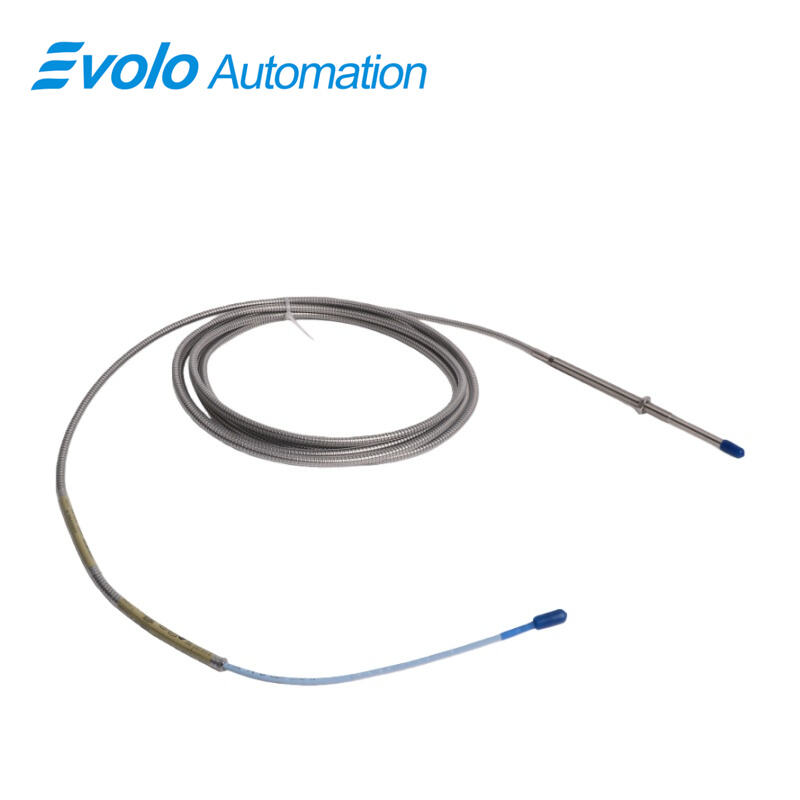

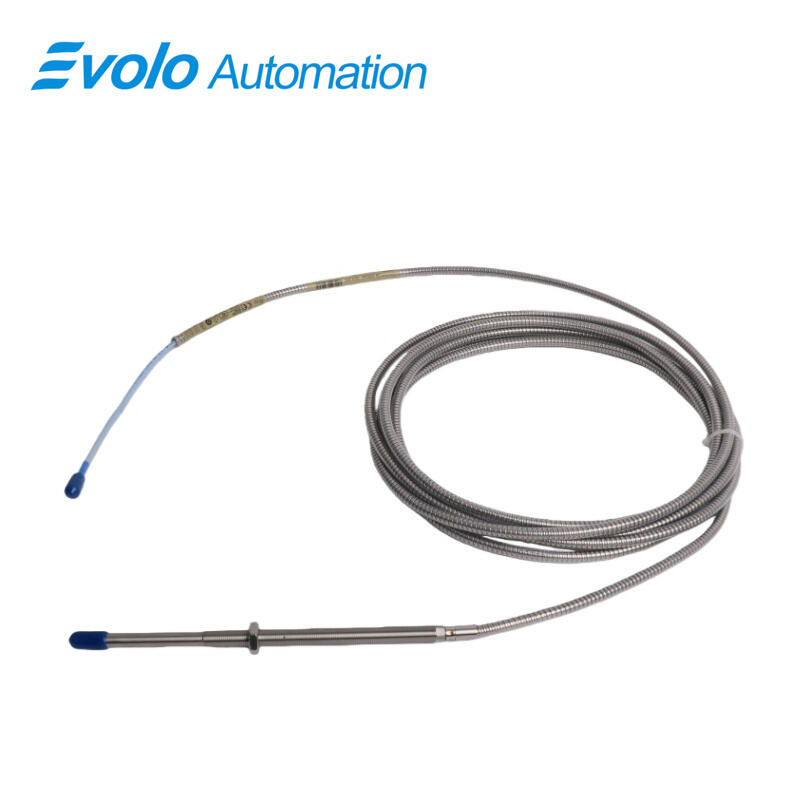

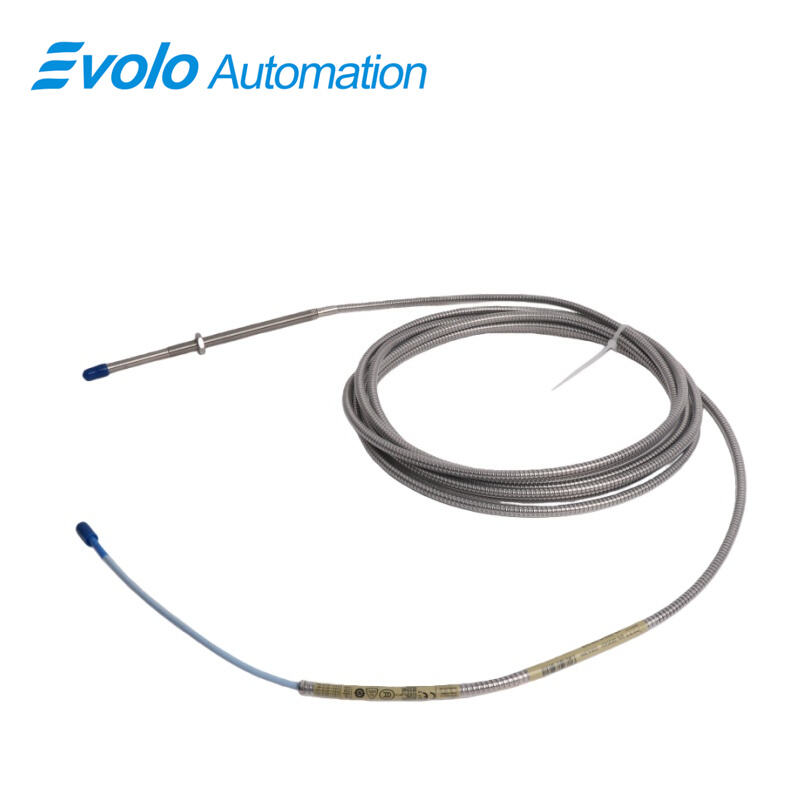

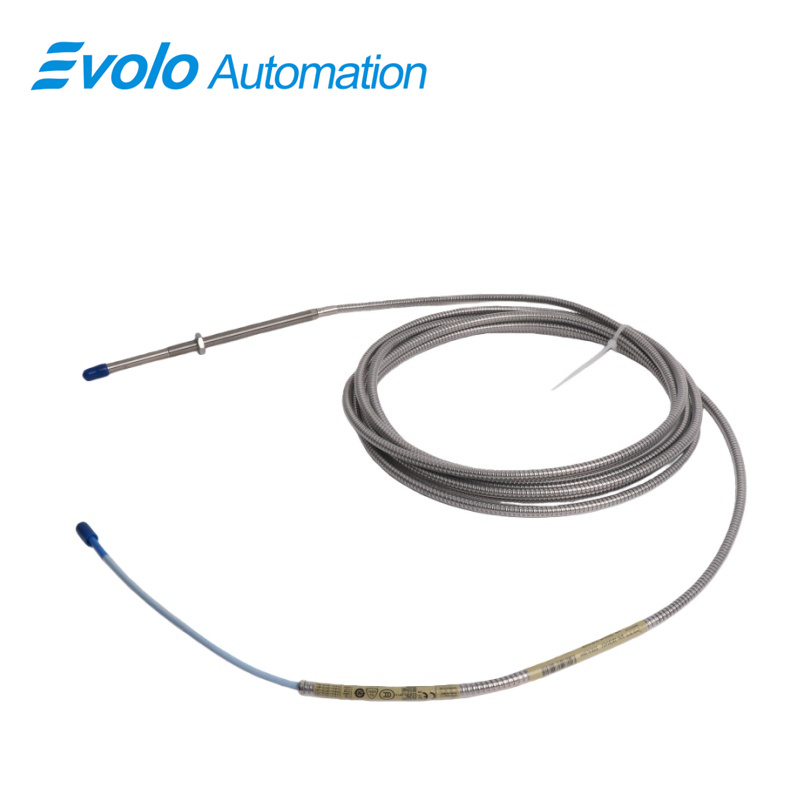

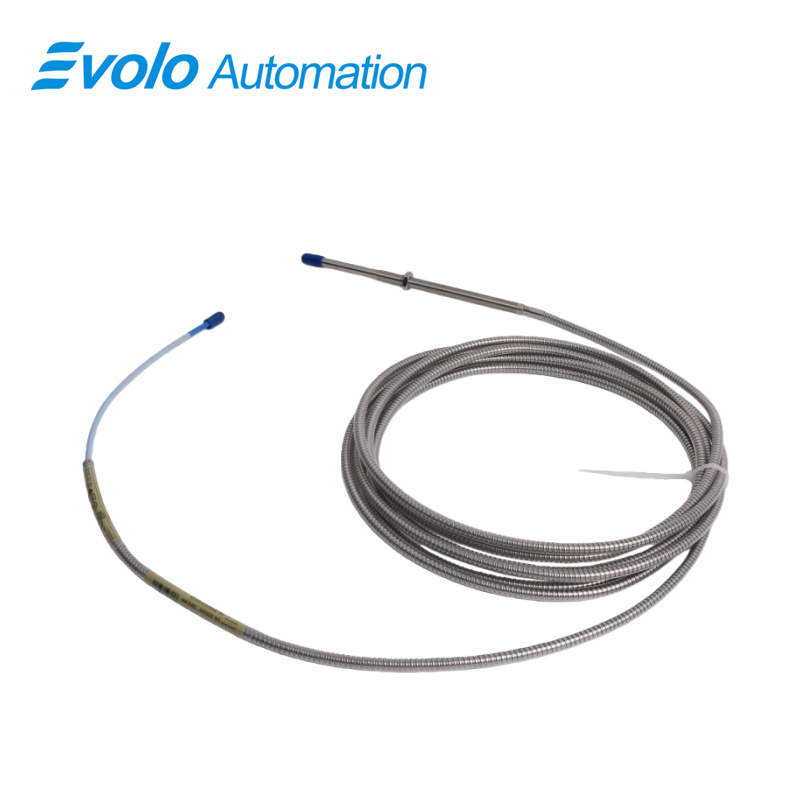

330104-05-18-50-02-CN 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330104-05-18-50-02-CN
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330104-05-18-50-02-CN 3300 XL 8 mm Proximity Probe provides precise measurement of shaft position and vibration in automated machinery. The 330104-05-18-50-02-CN features 50 mm unthreaded length, 180 mm overall case length, and 5.0 m standard cable with miniature coaxial ClickLoc connector. Its 2 mm linear range, 1.0 mm recommended gap, and 50 Ω output resistance deliver accurate signals for fluid-film bearing machines. The 330104-05-18-50-02-CN operates from -52°C to +177°C and supports field wiring of 0.2–1.5 mm² (16–24 AWG), while optional FluidLoc cables prevent leakage of oil or other liquids. Supplied with M10x1 probe thread and 15 mm maximum engagement, the 330104-05-18-50-02-CN 3300 XL 8 mm Proximity Probe integrates seamlessly with 3300 XL monitoring systems for Keyphasor signals, speed detection, and automated vibration control.

Applications

Measure Radial Shaft Vibration with the 330104-05-18-50-02-CN
Install the 330104-05-18-50-02-CN 3300 XL 8 mm Proximity Probe on rotating shafts to monitor radial vibration. Its 2 mm linear range and 50 Ω output resistance provide precise feedback for automated control loops.

Monitor Axial Shaft Position Using the 330104-05-18-50-02-CN
The 330104-05-18-50-02-CN measures axial displacement with a 1.0 mm recommended gap, enabling automated adjustment and real-time position tracking.

Generate Keyphasor Signals with the 330104-05-18-50-02-CN
Integrate the 330104-05-18-50-02-CN 3300 XL 8 mm Proximity Probe into automation systems to generate Keyphasor signals for speed and phase monitoring without separate Proximitor housings.

Detect Zero-Speed Events Using the 330104-05-18-50-02-CN
The 330104-05-18-50-02-CN outputs zero-speed signals to control systems, enabling immediate automated responses to machine rotation stoppage.

Specifications

Competitive Advantage

High-Precision Shaft Measurement with the 330104-05-18-50-02-CN
The 330104-05-18-50-02-CN 3300 XL 8 mm Proximity Probe provides 2 mm linear range and 1.0 mm recommended gap for accurate radial and axial shaft readings.

Operate Across Wide Temperature Range Using the 330104-05-18-50-02-CN
With -52°C to +177°C operation, the 330104-05-18-50-02-CN maintains precise measurement under extreme heat or cold for automated machinery monitoring.

Simplify Installation and Wiring with the 330104-05-18-50-02-CN
The 330104-05-18-50-02-CN features 5.0 m miniature coaxial ClickLoc cable and 0.2–1.5 mm² field wiring support, allowing fast connection to monitoring systems.

Prevent Liquid Leakage with the 330104-05-18-50-02-CN
Optional FluidLoc cable for the 330104-05-18-50-02-CN 3300 XL 8 mm Proximity Probe prevents oil or other fluids from entering the cable interior, maintaining accurate automated signal output.

Support Compact Mounting Spaces with the 330104-05-18-50-02-CN
The 330104-05-18-50-02-CN has 50 mm unthreaded length, 180 mm case length, and 15 mm maximum thread engagement, allowing installation in tight mechanical layouts without compromising measurement.
