Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330104-04-10-10-02-05 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
40 mm |
|
Overall Case Length Option(Minimum case length): |
100 mm |
|
Total Length Option: |
1.0 meter (3.3 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option: |
CSA, ATEX, IECEx Approvals |
|
Probe Case Thread: |
M10x1 |
|
Maximum Length of Thread Engagement: |
15 mm |
|
Dimension: |
1.8x1.5x68cm |
|
Weight: |
0.1kg |
Description

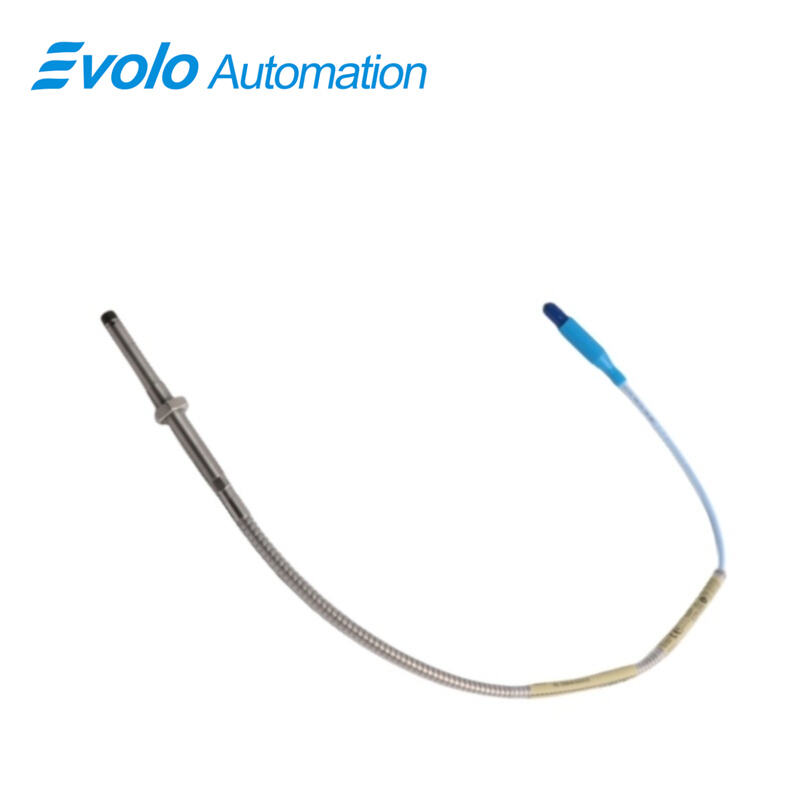

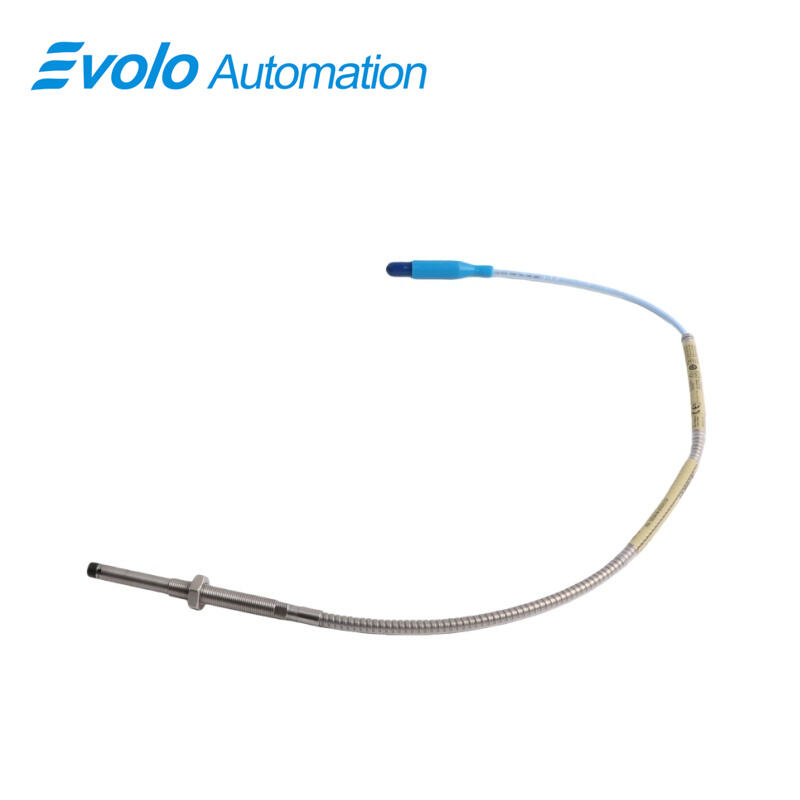

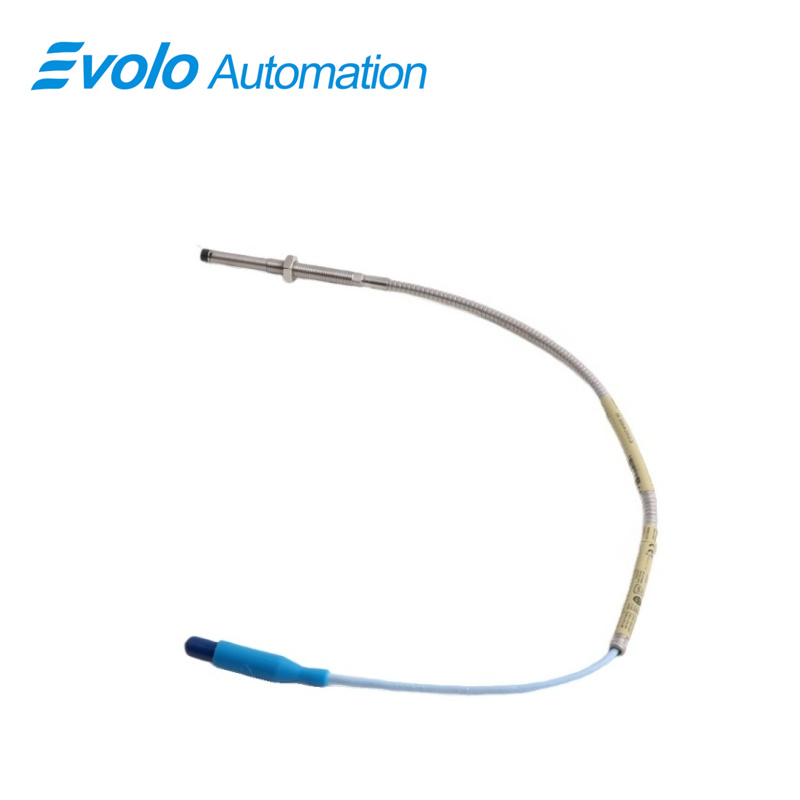

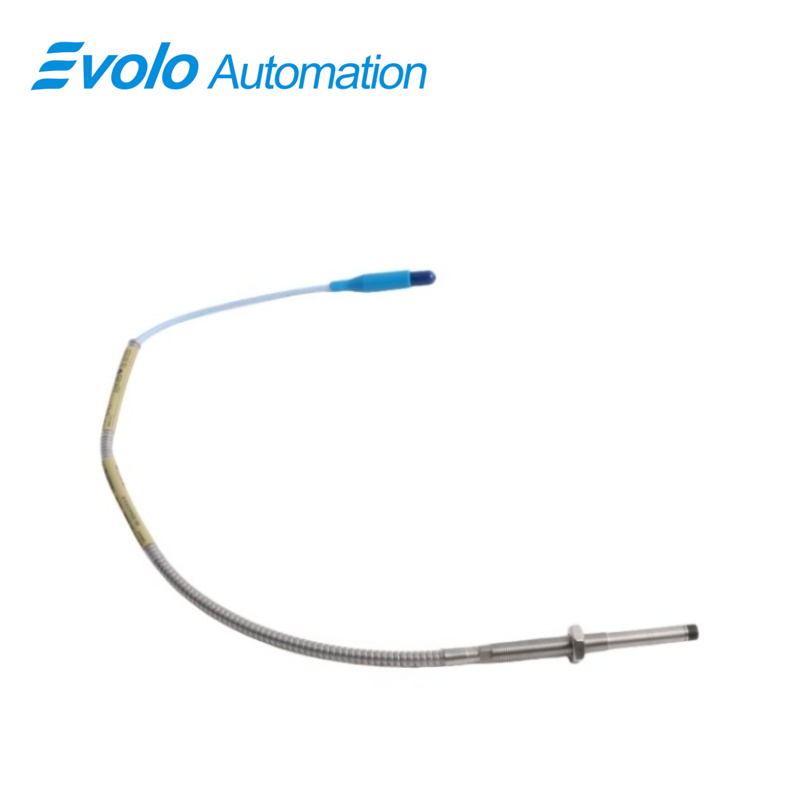

The 330104-04-10-10-02-05 3300 XL 8 mm Proximity Probe is an eddy current probe designed for automated vibration and shaft position monitoring on fluid-film bearing machines, compressors, and turbines. With a minimum case length of 100 mm and M10x1 threaded stainless steel body, the 330104-04-10-10-02-05 3300 XL 8 mm Proximity Probe mounts securely in industrial automation systems.
The 330104-04-10-10-02-05 3300 XL 8 mm Proximity Probe provides a 2 mm (80 mils) linear range for accurate radial and axial displacement measurement. Its 1.0 meter standard cable with miniature coaxial ClickLoc connector ensures precise signal transfer, while output resistance of 50 Ω and supply sensitivity below 2 mV per volt maintain consistent signal delivery to Proximitor sensors and automated monitoring racks.
Operating from -52 °C to +177 °C, the 330104-04-10-10-02-05 3300 XL 8 mm Proximity Probe meets CSA, ATEX, and IECEx approvals. It is ideal for automated applications including vibration monitoring, shaft position measurement, Keyphasor reference signal generation, and rotational speed tracking in high-performance rotating machinery.
Applications
Measure radial vibration on rotating shafts
The 330104-04-10-10-02-05 3300 XL 8 mm Proximity Probe captures radial vibration on turbines, compressors, and pumps. Its 2 mm linear range and 50 Ω output provide precise data for automated condition monitoring systems.
Monitor axial shaft position on thrust bearings
The 330104-04-10-10-02-05 3300 XL 8 mm Proximity Probe measures axial displacement on thrust collars and flat targets. The 100 mm case length and M10x1 threaded body allow secure mounting in automation panels and machinery frames.
Generate Keyphasor signals for speed and phase detection
The 330104-04-10-10-02-05 3300 XL 8 mm Proximity Probe delivers Keyphasor outputs to track rotational speed and phase, supporting automated vibration and position analysis.
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Competitive Advantage
Supports medium-depth shaft installations
The 330104-04-10-10-02-05 3300 XL 8 mm Proximity Probe features a 100 mm case length, allowing installation in machinery with limited mounting depth while maintaining accurate measurements.
Maintains clean signal under supply changes
With 50 Ω output resistance and supply sensitivity below 2 mV per volt, the 330104-04-10-10-02-05 3300 XL 8 mm Proximity Probe delivers precise and repeatable signals to Proximitor sensors and monitoring systems.
Secures probe tip and cable under mechanical stress
The 330104-04-10-10-02-05 3300 XL 8 mm Proximity Probe uses TipLoc and CableLoc designs, providing 330 N pull strength and preventing detachment during operation.
Approved for hazardous location installations
The 330104-04-10-10-02-05 3300 XL 8 mm Proximity Probe meets CSA, ATEX, and IECEx approvals, supporting safe deployment in automated systems exposed to regulated or explosive conditions.
