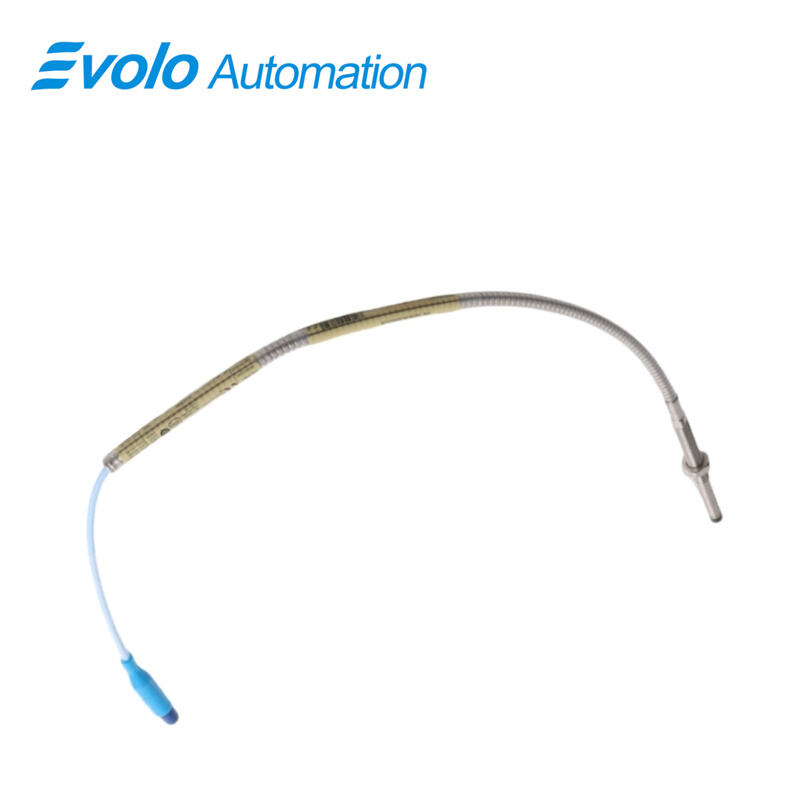

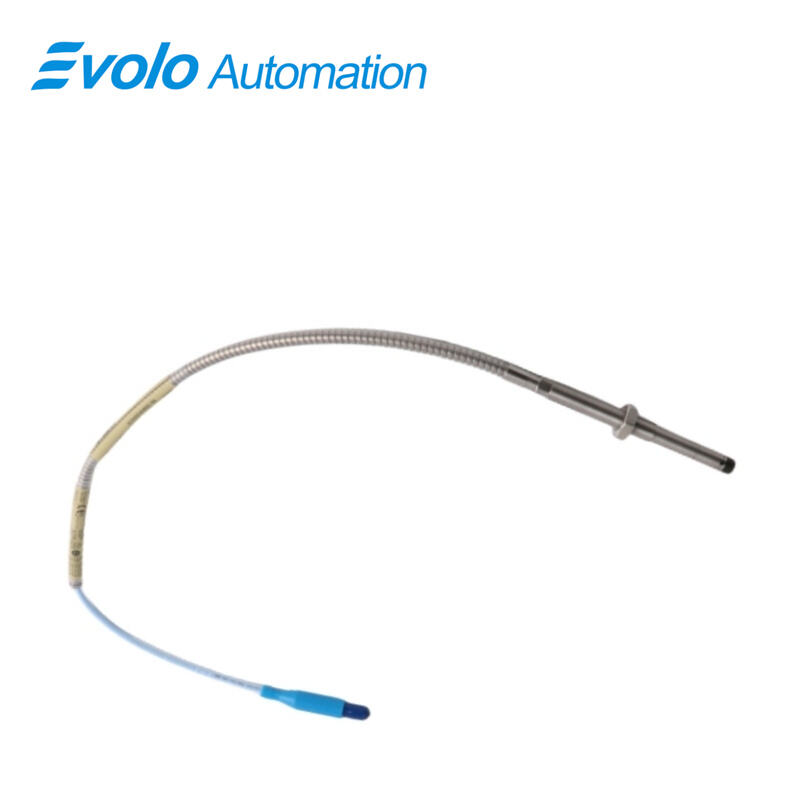

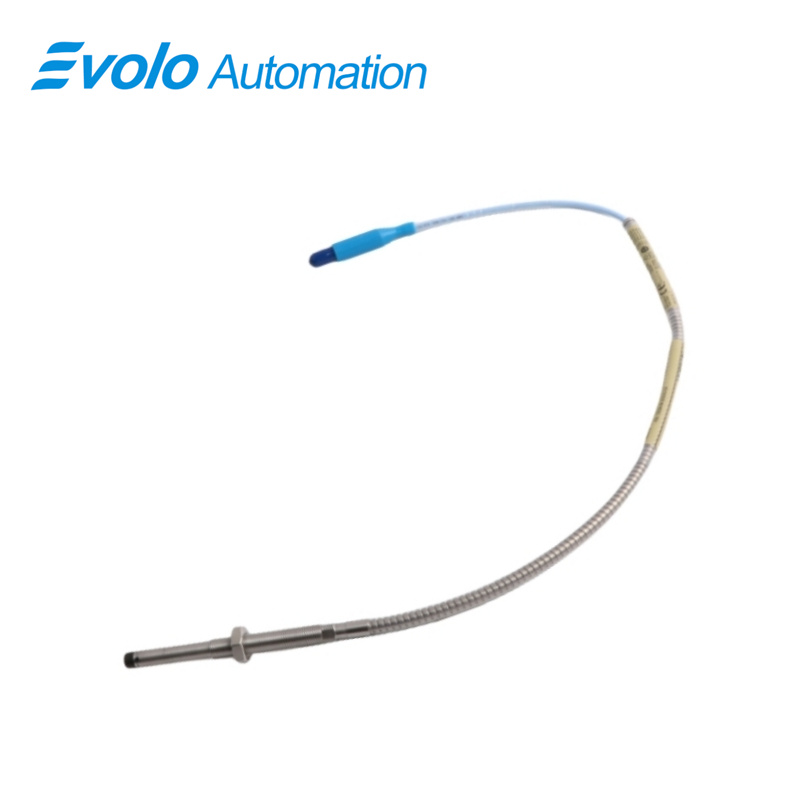

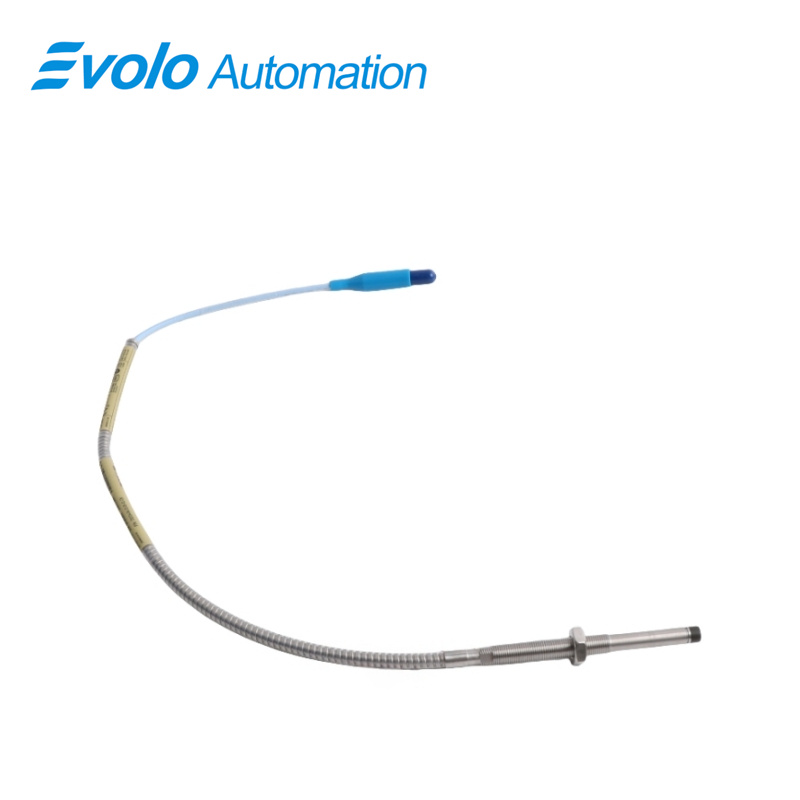

330104-04-10-05-01-CN 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330104-04-10-05-01-CN
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330104-04-10-05-01-CN 3300 XL 8 mm Proximity Probe is a high-precision eddy current sensor designed for advanced industrial automation and machinery monitoring. It delivers an output voltage directly proportional to the distance between the probe tip and the observed conductive surface, enabling both static (position) and dynamic (vibration) measurements. With a 100 mm overall case length and M10x1 threaded mount, this probe offers a 2 mm (80 mils) linear range and supports automated monitoring of fluid-film bearings, motors, compressors, and pumps. Its operating temperature range from -52°C to +177°C (-62°F to +350°F) ensures reliable performance in extreme industrial environments. The ClickLoc miniature coaxial connector with protector, patented TipLoc and CableLoc designs, and 330 N pull strength secure mechanical connections, while optional FluidLoc cables prevent oil or fluid leaks in automation systems. CSA, ATEX, and IECEx approvals make it suitable for hazardous areas. Fully backward-compatible with other 3300 XL and standard 3300 series components, this probe integrates seamlessly into existing automated monitoring networks, providing precise and reliable data for predictive maintenance and control.

Applications

Radial Vibration Monitoring on Industrial Shafts
330104-04-10-05-01-CN measures radial vibration on turbines, compressors, and pumps. With a linear range of 2 mm (80 mils) and 50 Ω output, 330104-04-10-05-01-CN provides precise signals for predictive maintenance, reducing unplanned downtime in rotating machinery.

Axial Shaft Displacement Measurement
330104-04-10-05-01-CN tracks axial (thrust) movement on shafts using its 100 mm overall case length, 40 mm unthreaded length, and M10x1 probe threads with 15 mm maximum thread engagement. Signals from 330104-04-10-05-01-CN ensure accurate alignment and safe operation of motors, gearboxes, and pumps.

Direct Integration with Automation Systems
Equipped with a miniature coaxial ClickLoc connector with connector protector and standard cable, 330104-04-10-05-01-CN transmits high-fidelity vibration and displacement signals to industrial control systems. Supply sensitivity under 2 mV per volt ensures consistent output for precise automated monitoring.

Operation in Extreme Temperatures and Hazardous Areas
330104-04-10-05-01-CN operates from -52°C to +177°C (-62°F to +350°F) and is CSA, ATEX, and IECEx approved. This allows 330104-04-10-05-01-CN to function safely in petrochemical, offshore, and power generation facilities.

Flexible Field Wiring and Extension Options
330104-04-10-05-01-CN supports field wiring from 0.2 to 1.5 mm² (16–24 AWG) and extension cables with typical capacitance of 69.9 pF/m (21.3 pF/ft). Using 330104-04-10-05-01-CN, operators can extend probe reach while maintaining precise measurements in tight or hard-to-access locations.

Specifications

Competitive Advantage

1. High Measurement Accuracy
2 mm linear range and less than 2 mV/V supply sensitivity ensure precise readings for automated process and condition monitoring.

2. Superior Mechanical Reliability
Patented TipLoc and CableLoc designs provide 330 N pull strength, maintaining secure connections in vibration-prone automated systems.

3. Extreme Temperature Compatibility
Supports operating temperatures from -52°C to +177°C (-62°F to +350°F), ensuring continuous performance in challenging industrial environments.

4. Hazardous Area Certifications
CSA, ATEX, and IECEx approvals allow safe deployment in explosive and flammable environments within automated industrial facilities.
