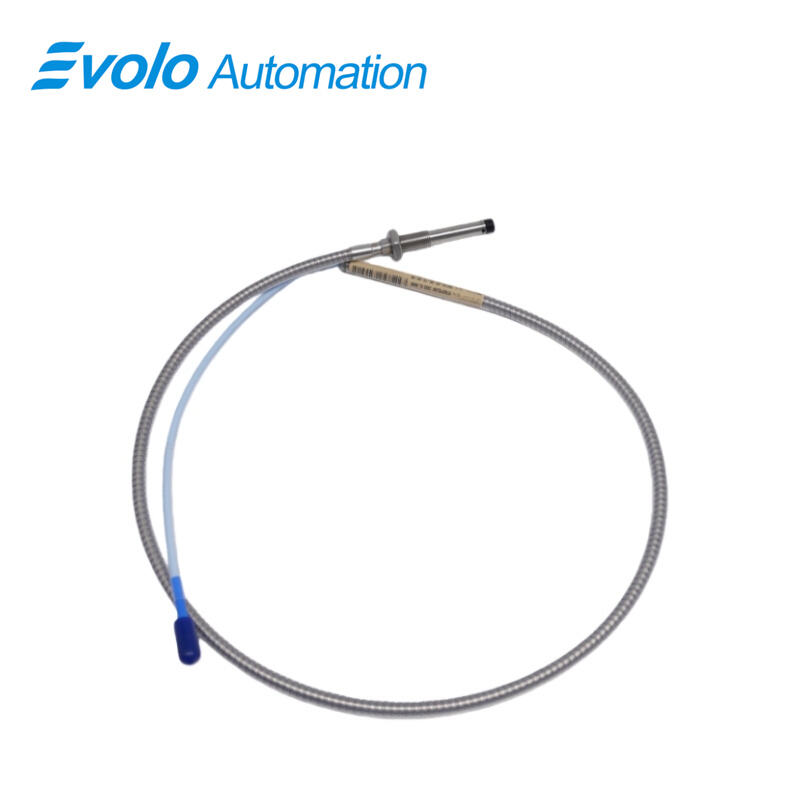

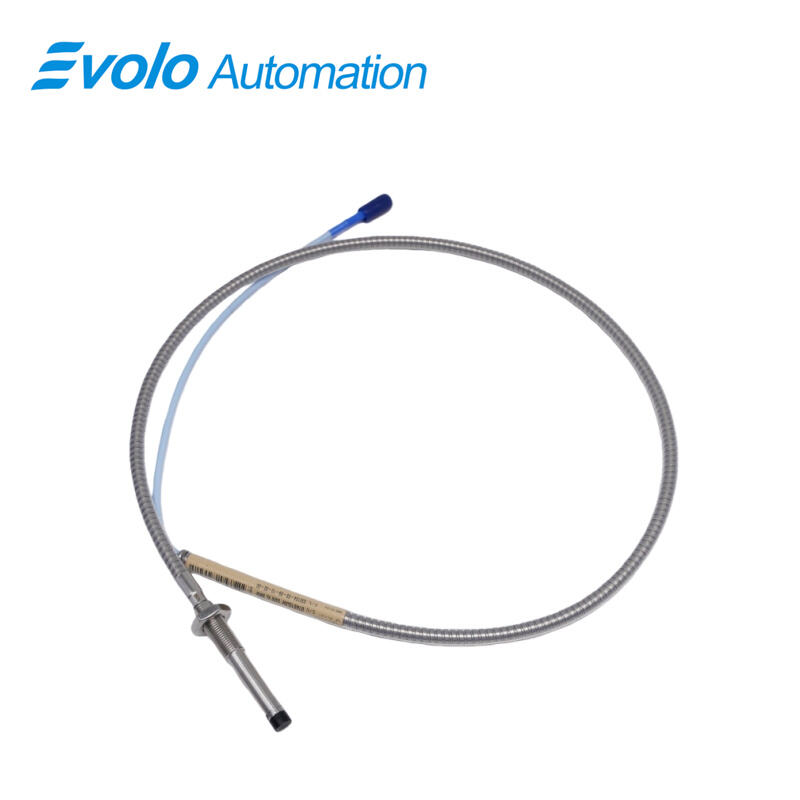

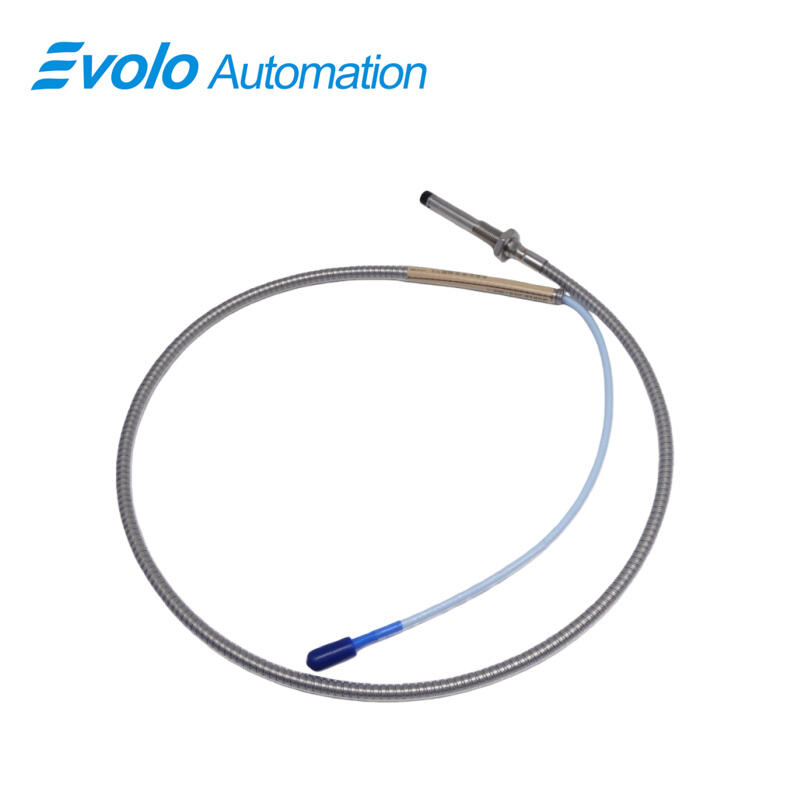

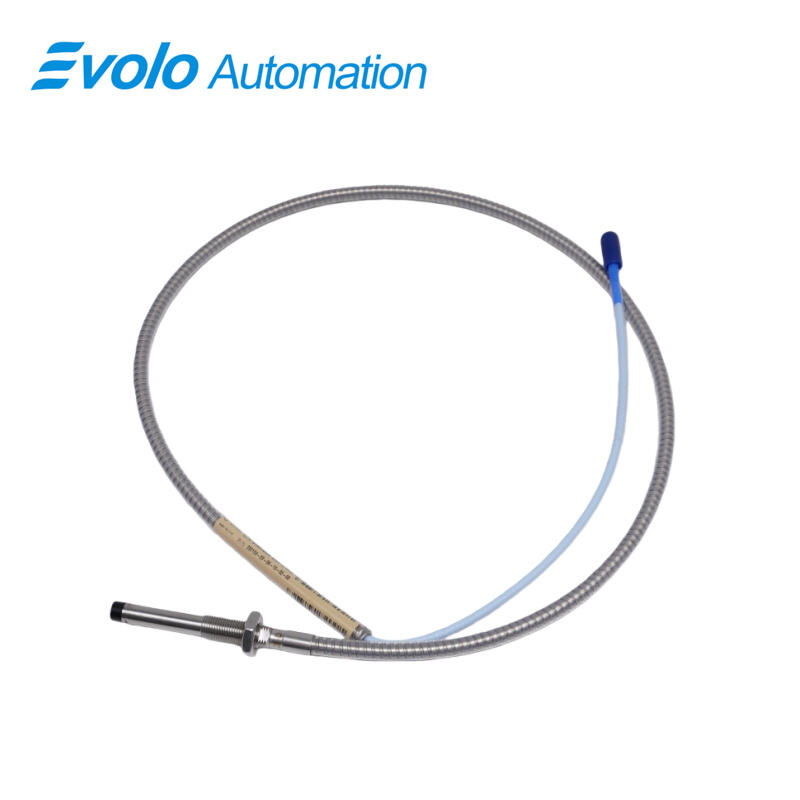

330104-03-07-05-02-05 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330104-03-07-05-02-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330104-03-07-05-02-05 3300 XL 8 mm Proximity Probe is a high-precision eddy current transducer engineered for demanding industrial automation applications. This probe delivers an output voltage directly proportional to the distance between its tip and the target conductive surface, allowing accurate measurement of both static positions and dynamic vibrations. With a linear range of 2 mm (80 mils), output resistance of 50 Ω, and supply sensitivity under 2 mV per volt, it ensures exceptional measurement stability. Designed with an M10x1 threaded probe case and maximum 15 mm thread engagement, it provides robust installation and enhanced reliability. Its patented TipLoc molding and CableLoc design offer secure probe-to-cable bonding with 330 N (75 lbf) pull strength, while optional FluidLoc cables prevent fluid ingress. Capable of operating between -52°C and +177°C (-62°F to +350°F), this probe meets CSA, ATEX, and IECEx standards and is fully compatible with the 3300 series system, enabling backward interchangeability and compliance with API 670 standards. The 330104-03-07-05-02-05 is ideal for vibration monitoring, shaft position measurement, and Keyphasor reference applications in turbines, compressors, and rotating machinery under extreme industrial conditions.

Applications

1. Rotating Machinery Vibration Analysis
Monitors high-speed turbines, compressors, and generators with precise vibration detection down to 2 μm amplitude, improving predictive maintenance and reducing unplanned downtime.

2. Shaft Alignment and Position Control
Provides accurate shaft displacement measurements within a 2 mm linear range, ensuring optimal alignment in pumps and gearboxes to reduce wear and extend equipment lifespan.

3. Speed Sensing and Keyphasor Signal Detection
Generates reliable output for rotational speed and Keyphasor reference signals, supporting automation and control systems at rotational frequencies up to 10 kHz.

4. Harsh Environment Industrial Monitoring
Suitable for extreme conditions (-52°C to +177°C), offshore, petrochemical, and power generation facilities, ensuring continuous monitoring even under thermal and chemical stress.

Specifications

Competitive Advantage

1. Enhanced Durability and Mechanical Strength
TipLoc and CableLoc technologies provide robust probe-to-cable attachment, ensuring long-term stability in high-vibration environments.

2. Exceptional Measurement Accuracy
Low supply sensitivity and 50 Ω output resistance guarantee stable and precise readings, maintaining API 670 compliance.

3. Flexible Integration and Interchangeability
Backward compatibility with other 3300 series components simplifies upgrades and reduces the need for calibration or component matching.

4. Extreme Temperature and Fluid Resistance
Operates reliably across a wide temperature range and supports optional FluidLoc cables, preventing oil or liquid leaks from machinery.

5. Certified for Hazardous Locations
CSA, ATEX, and IECEx approvals enable safe deployment in explosive or high-risk industrial areas, supporting automation in critical facilities.
