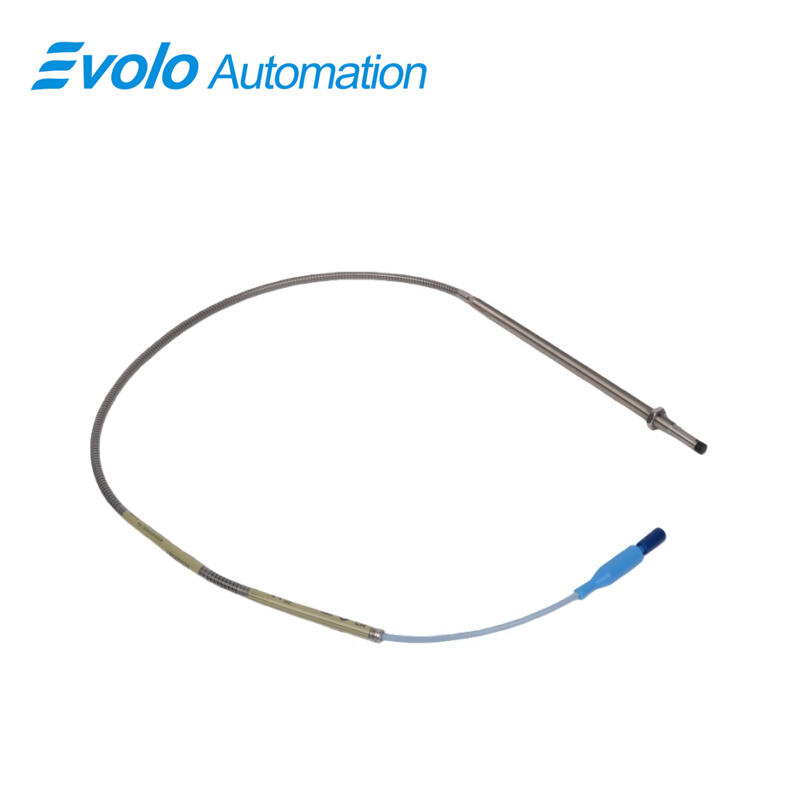

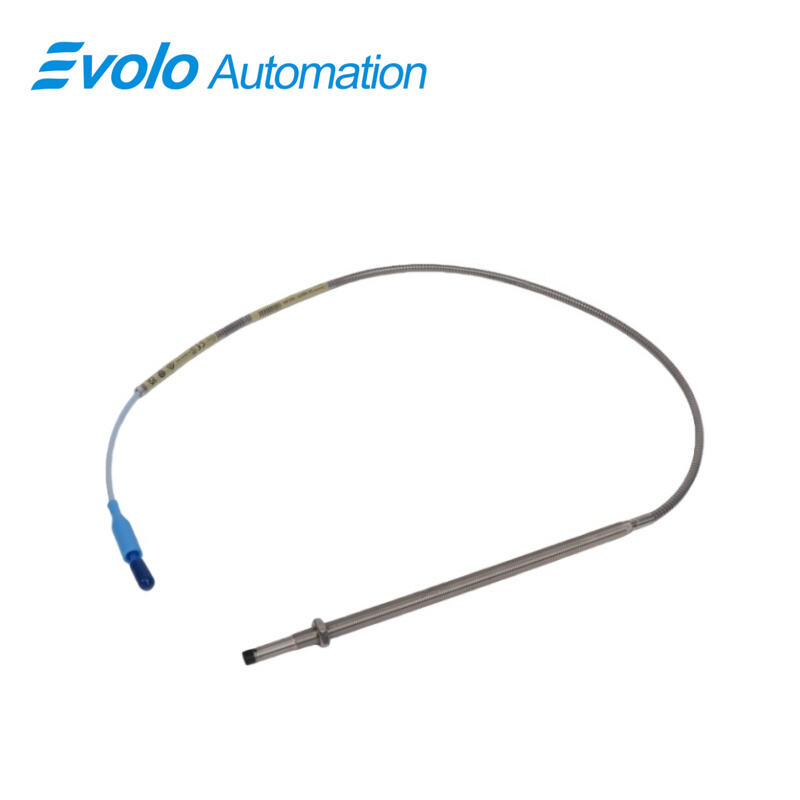

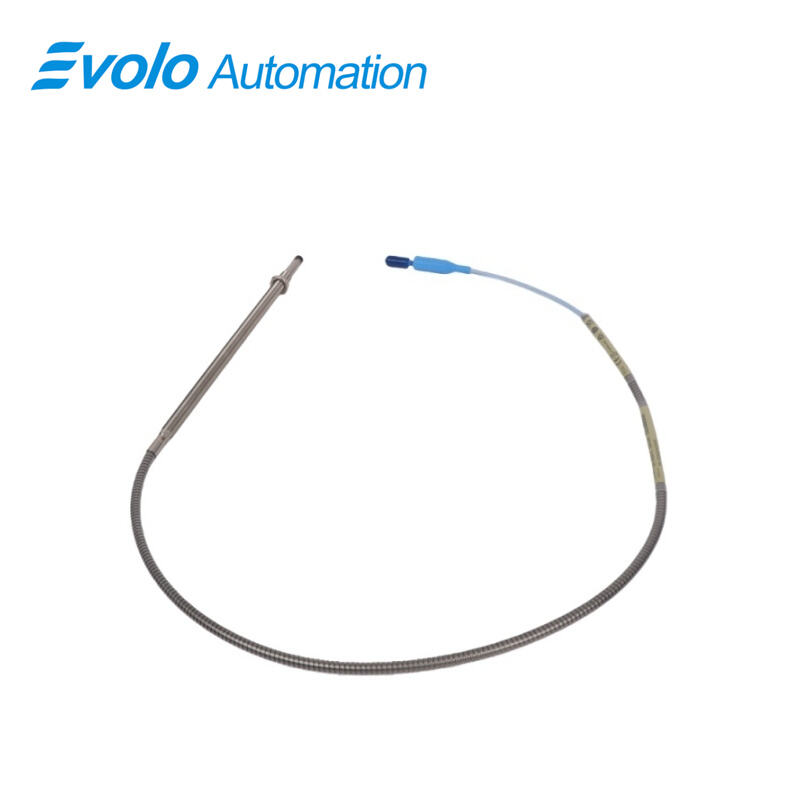

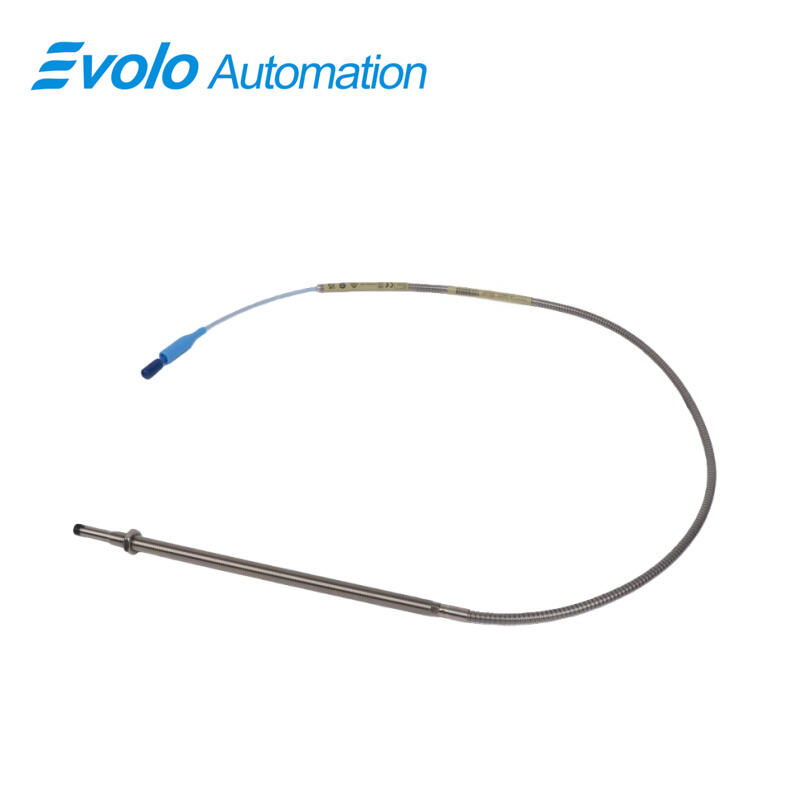

330104-02-25-10-01-00 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330104-02-25-10-01-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330104-02-25-10-01-00 3300 XL 8 mm Proximity Probe is a high-precision eddy current transducer designed for automated machinery monitoring. This probe provides an output voltage directly proportional to the distance between the probe tip and the observed conductive surface, accurately measuring both static (position) and dynamic (vibration) values. The 330104-02-25-10-01-00 3300 XL 8 mm Probe features a linear range of 2 mm (80 mils), a maximum thread engagement of 15 mm, and an operating temperature range from -52°C to +177°C (-62°F to +350°F), making it suitable for harsh industrial environments. Its miniature coaxial ClickLoc connector with protector and 1.0-meter total cable length ensure reliable integration into automation control systems while reducing signal interference. The 330104-02-25-10-01-00 3300 XL 8 mm Probe is fully compatible with existing 3300 series probes, extension cables, and Proximitor sensors, allowing seamless replacement and system upgrades. Patented TipLoc and CableLoc designs enhance mechanical durability, providing 330 N (75 lbf) pull strength for secure probe and cable connections. Optional FluidLoc cable configurations prevent leakage of oils or other liquids, further ensuring uninterrupted operation in automated systems. With compliance to API 670 standards and backward compatibility with 5 mm and 8 mm 3300 series components, the 330104-02-25-10-01-00 3300 XL 8 mm Probe delivers reliable, high-performance measurement for industrial automation applications, including vibration monitoring, shaft position detection, and Keyphasor speed reference measurements.

Applications

Vibration Monitoring on Fluid-Film Bearings
The 330104-02-25-10-01-00 3300 XL 8 mm Probe measures radial and axial vibrations on fluid-film bearing machines with high precision. Its linear range of 2 mm (80 mils) and supply sensitivity of less than 2 mV per volt enable accurate monitoring of machinery vibrations for automated predictive maintenance systems, reducing unexpected downtime.

Shaft Position Measurement
With a maximum thread engagement of 15 mm and operating temperature range from -52°C to +177°C (-62°F to +350°F), the 330104-02-25-10-01-00 3300 XL 8 mm Probe provides reliable static and dynamic shaft position data. It integrates seamlessly into automated control systems for continuous position tracking and speed reference measurements.

Keyphasor Speed Reference Signal
The 330104-02-25-10-01-00 3300 XL 8 mm Probe supports phase reference (Keyphasor) signals for real-time rotor speed monitoring in high-speed industrial machinery. Its 1.0-meter miniature coaxial ClickLoc cable with connector protector ensures stable signal transmission in automated systems, even under high-vibration conditions.

Specifications

Competitive Advantage

Robust Mechanical Design
Equipped with patented TipLoc and CableLoc designs, the 330104-02-25-10-01-00 3300 XL 8 mm Probe delivers 330 N (75 lbf) pull strength, securing the probe tip and cable under high-stress industrial environments. Optional FluidLoc cables prevent oil or liquid leakage, ensuring continuous automated operation.

High-Precision Signal Output
With an output resistance of 50 Ω and less than 2 mV change per volt of supply fluctuation, the 330104-02-25-10-01-00 3300 XL 8 mm Probe ensures highly accurate displacement measurements. This precision supports automation software for predictive maintenance and machinery protection logic.

Wide Environmental Tolerance
The 330104-02-25-10-01-00 3300 XL 8 mm Probe operates reliably in extreme conditions from -52°C to +177°C (-62°F to +350°F). Its durable AISI 304 stainless steel case and chemically resistant probe tip provide long-term reliability in automated industrial environments.
