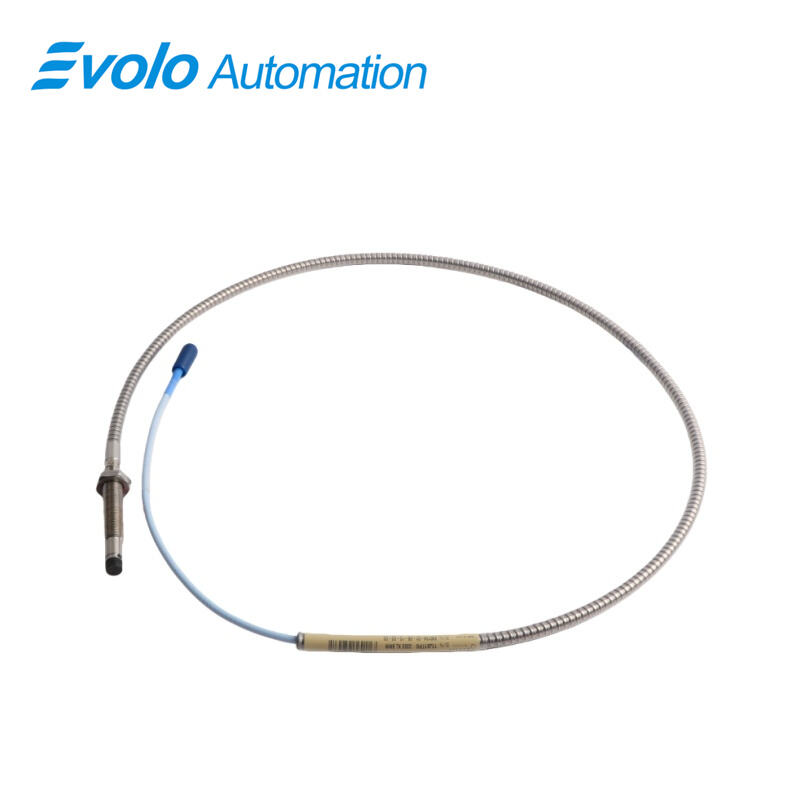

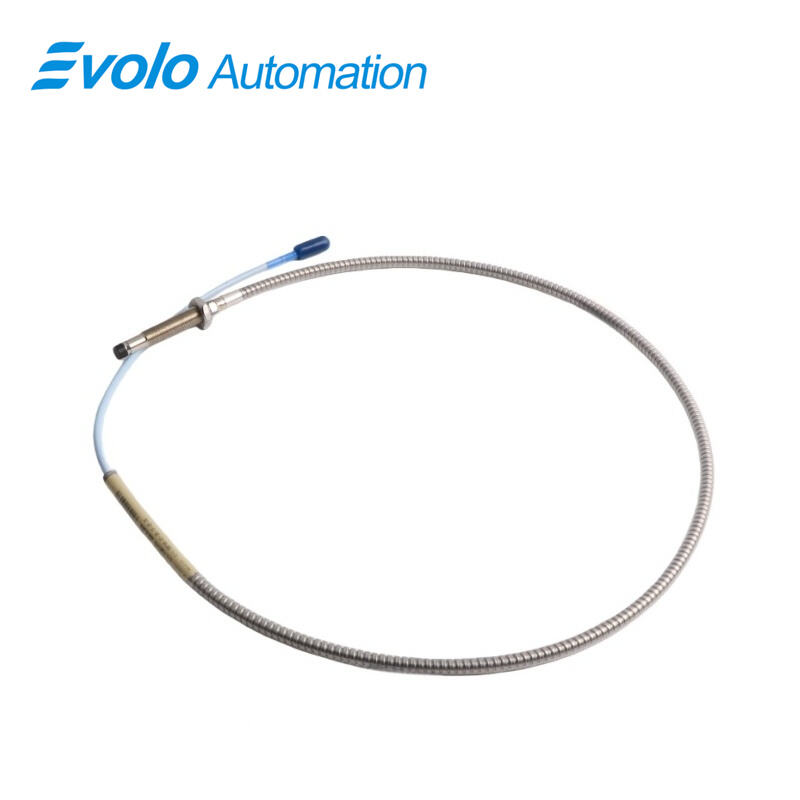

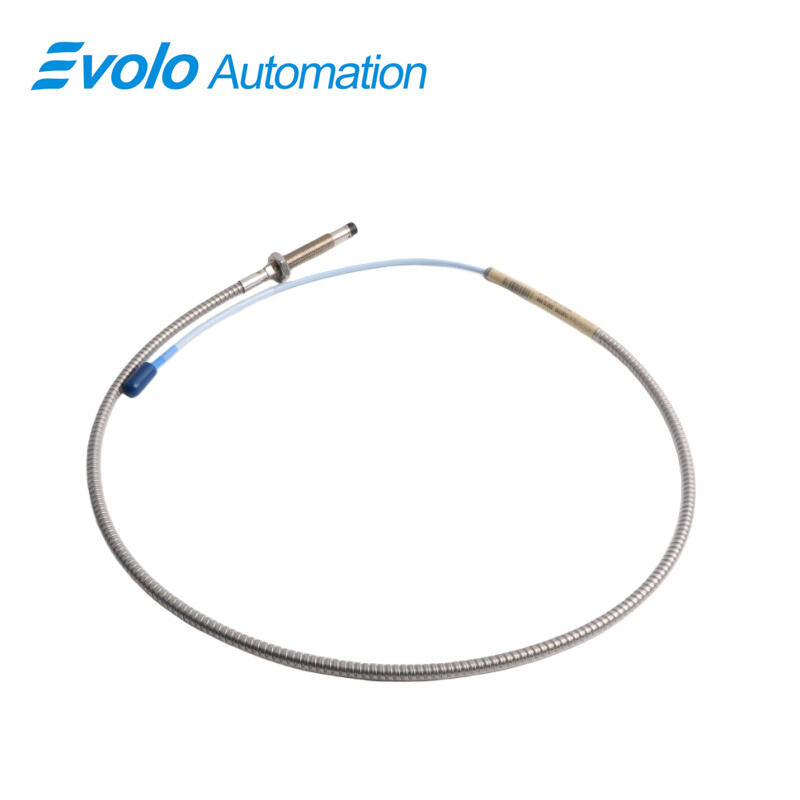

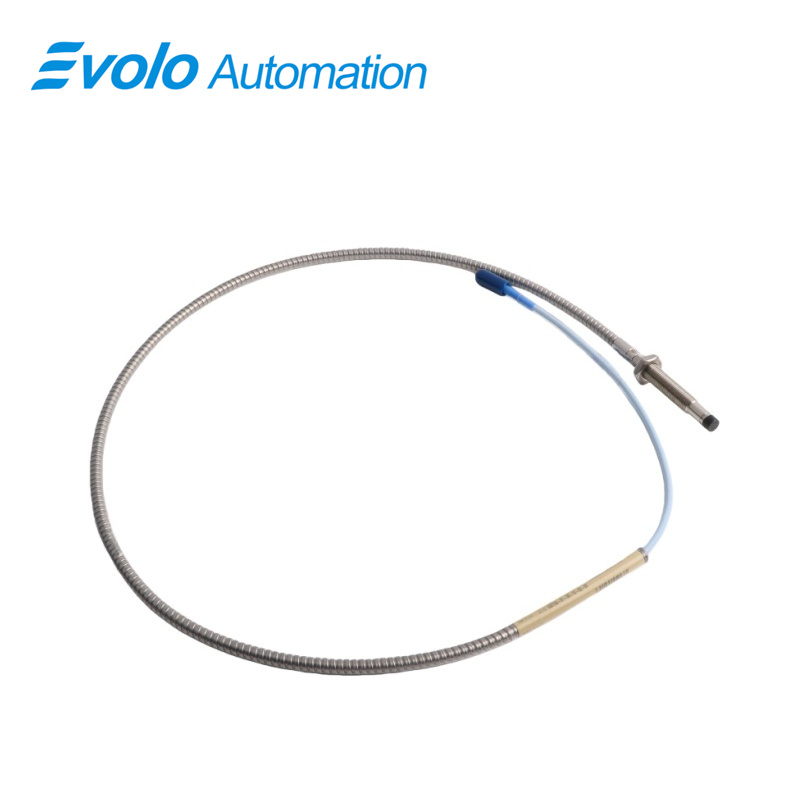

330104-01-09-10-12-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330104-01-09-10-12-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330104-01-09-10-12-05 3300 XL 8 mm Proximity Probe delivers precise, non-contacting measurements of shaft position and vibration for automated machinery. With a 2 mm linear range and 3.94 V/mm output, the 330104-01-09-10-12-05 3300 XL 8 mm accurately monitors fluid-film bearings, turbine shafts, and reciprocating compressors. Its 1.0 meter total length, 50 Ω output resistance, and 69.9 pF/m extension cable capacitance ensure consistent signal transmission to automated monitoring systems. The probe uses a Miniature coaxial ClickLoc connector with a FluidLoc cable option to prevent fluid ingress, while the M10x1 thread with 15 mm engagement supports secure mounting. Operating from -52°C to +177°C, the 330104-01-09-10-12-05 3300 XL 8 mm performs reliably in extreme temperature conditions. Field wiring accommodates 16–24 AWG (0.2–1.5 mm²), allowing easy integration into automated vibration and speed measurement systems. All components comply with CSA, ATEX, and IECEx approvals, providing a fully interchangeable solution within 3300 XL series systems. The patented TipLoc and CableLoc designs strengthen probe-cable connections, enabling robust, continuous operation in industrial automation environments.

Applications

Measure Shaft Vibration on Fluid-Film Bearings
Use the 330104-01-09-10-12-05 3300 XL 8 mm to capture vibration amplitudes up to 2 mm on fluid-film bearings. Its 3.94 V/mm sensitivity converts small shaft movements into measurable voltage changes, enabling automated control systems to detect misalignment or eccentricity.

Track Axial Shaft Position in Turbines
The 330104-01-09-10-12-05 3300 XL 8 mm provides continuous axial displacement measurements on shafts ranging from 50 mm to 76 mm in diameter. Automated systems can use this data to adjust turbine loading, preventing over-travel and enhancing operational accuracy.

Monitor Rod Position in Reciprocating Compressors
With its 1 meter cable and 50 Ω output resistance, the 330104-01-09-10-12-05 3300 XL 8 mm can transmit precise rod travel data directly to automation controllers, supporting real-time feedback for stroke adjustments or shutdown triggers.

Specifications

Competitive Advantage

High-Fidelity Signal Transmission
The 50 Ω output resistance and 69.9 pF/m extension cable capacitance of the 330104-01-09-10-12-05 3300 XL 8 mm maintain signal integrity over long cable runs, allowing precise automated measurements without voltage loss or phase shift.

Reinforced Probe-Cable Bond
Patented TipLoc and CableLoc designs provide 330 N pull strength, securing the probe tip and cable against vibration, fluid contact, and mechanical strain during automated operations.

Fluid and Dust Protection
Optional FluidLoc cable prevents oil ingress, and IP67-rated housing protects the 330104-01-09-10-12-05 3300 XL 8 mm from water and dust exposure, ensuring uninterrupted signal output in lubricated or dusty environments.

Broad Operating Range
Operating from -52°C to +177°C, the 330104-01-09-10-12-05 3300 XL 8 mm supports automated measurement in extreme temperature environments without recalibration or signal deviation.
