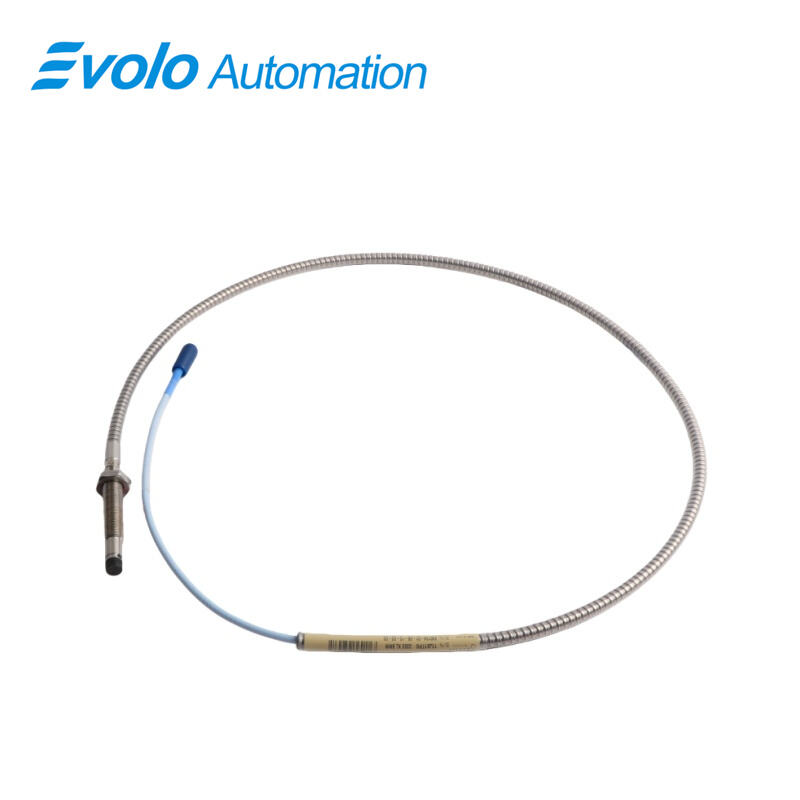

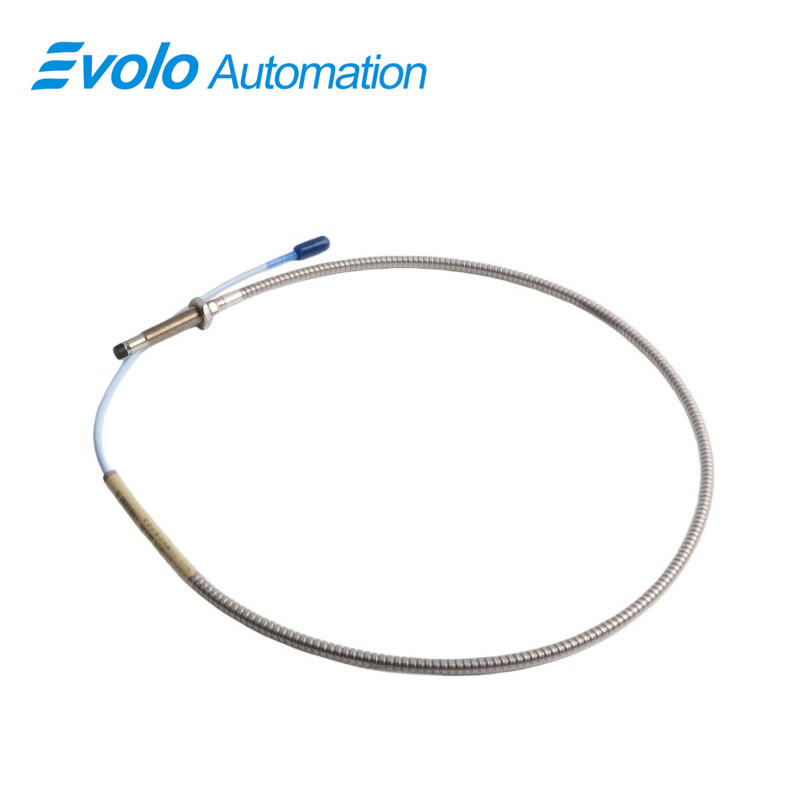

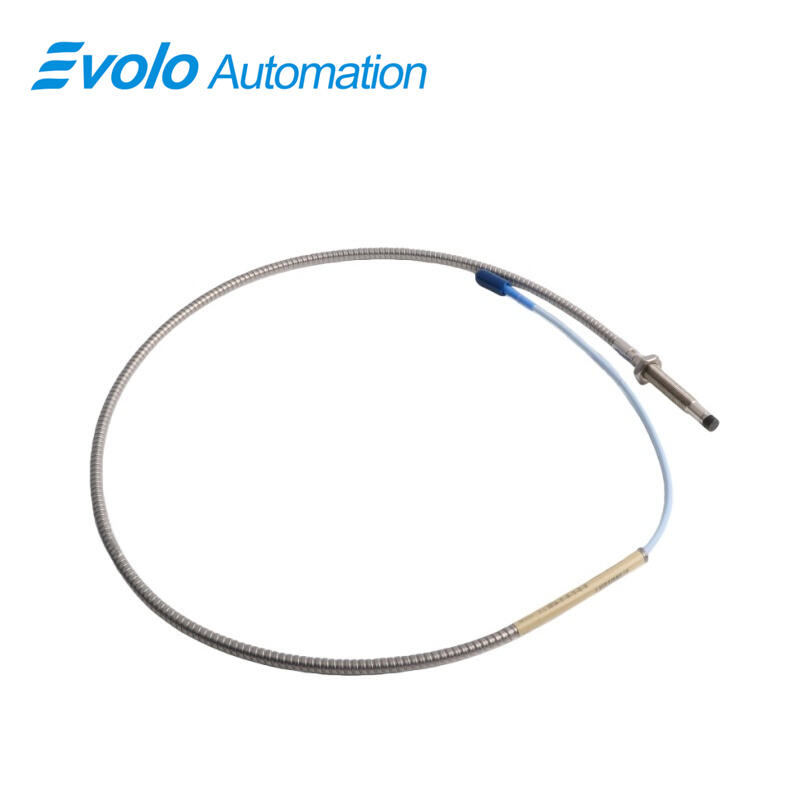

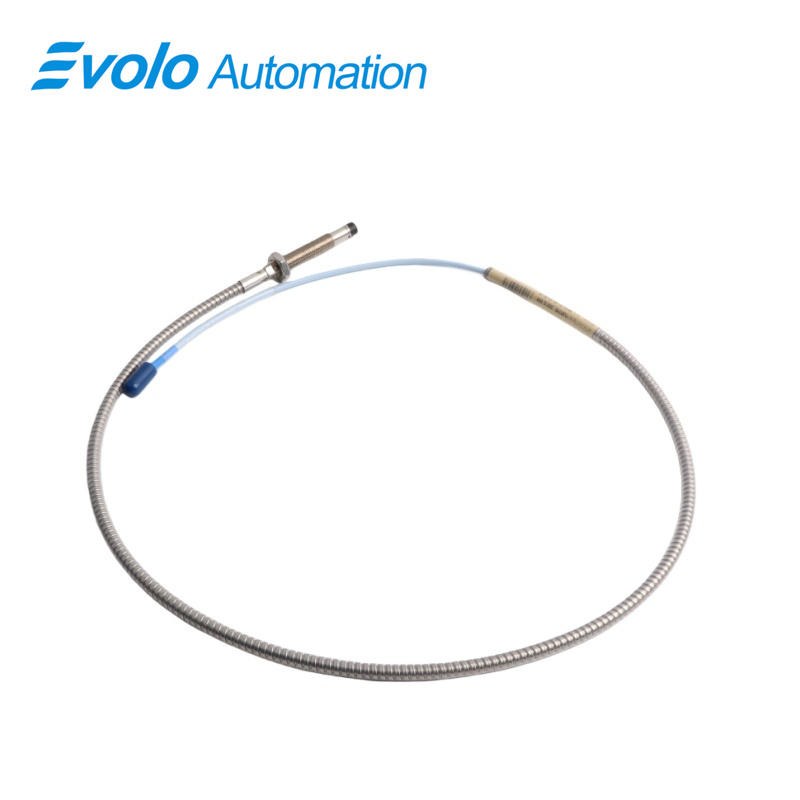

330104-01-09-10-11-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330104-01-09-10-11-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330104-01-09-10-11-05 3300 XL 8 mm Proximity Transducer outputs 3.94 V/mm (100 mV/mil) for precise non-contacting vibration and shaft position measurements on fluid-film bearing machines. Featuring a 2 mm linear range, 50 Ω output resistance, and 1.0 m (3.3 ft) total length with M10×1 probe thread, the 330104-01-09-10-11-05 3300 XL 8 mm ensures accurate signal transmission through miniature coaxial ClickLoc connectors and 69.9 pF/m extension cable capacitance. Operating temperatures range from -52°C to +177°C, supporting both dynamic and static measurements. The probe integrates TipLoc-molded tips and CableLoc design with 330 N pull strength, while optional FluidLoc cables prevent fluid leakage. The 330104-01-09-10-11-05 3300 XL 8 mm allows direct connection to automated monitoring systems, eliminating the need for additional extensions and providing reliable data for speed, Keyphasor, and position monitoring in industrial automation.

Applications

Axial Shaft Position Measurement
The 330104-01-09-10-11-05 3300 XL 8 mm measures axial (thrust) shaft displacement with a 2 mm linear range and 3.94 V/mm output, feeding real-time data into automated control systems for steam and gas turbines.

Rod Drop Detection in Reciprocating Compressors
Using the 330104-01-09-10-11-05 3300 XL 8 mm, operators can monitor rod positions or detect rod drop, leveraging the probe’s 50 Ω output and 69.9 pF/m cable capacitance to ensure precise signal transmission for automation systems.

Keyphasor and Tachometer Signal Generation
The 330104-01-09-10-11-05 3300 XL 8 mm provides accurate Keyphasor reference and zero-speed signals through its Miniature coaxial ClickLoc connectors, supporting automated vibration and speed monitoring.

Vibration Monitoring on Fluid-Film Bearings
Deploy the 330104-01-09-10-11-05 3300 XL 8 mm to measure dynamic vibration on bearings, utilizing the probe’s extended operating temperature range (-52°C to +177°C) to provide continuous automated condition monitoring.

Specifications

Competitive Advantage

Direct Connection to Monitoring Systems
The 330104-01-09-10-11-05 3300 XL 8 mm features ClickLoc connectors with 1 m total cable length, enabling direct integration into automated monitoring platforms without additional extensions.

High Mechanical Security
TipLoc probe tips and CableLoc design on the 330104-01-09-10-11-05 3300 XL 8 mm provide 330 N pull strength, securing connections in automated vibration and displacement systems.

Fluid Containment for Continuous Operation
Optional FluidLoc cables on the 330104-01-09-10-11-05 3300 XL 8 mm prevent oil or liquids from entering the probe and cable, ensuring uninterrupted automation signal quality.

Wide Temperature Operation
Operating from -52°C to +177°C, the 330104-01-09-10-11-05 3300 XL 8 mm maintains accurate measurements in extreme environments, supporting industrial automation processes in harsh conditions.
