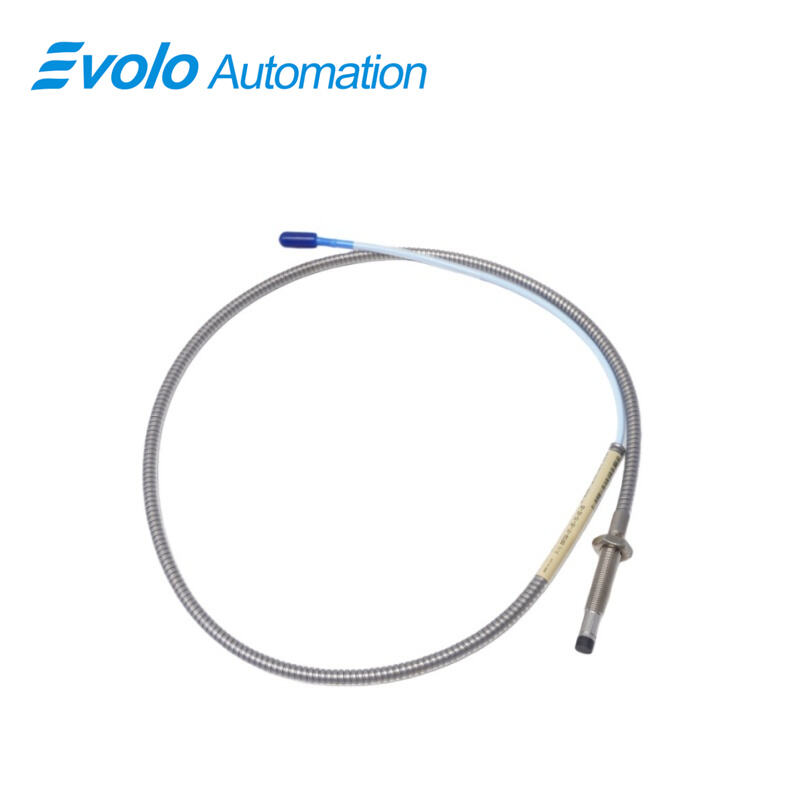

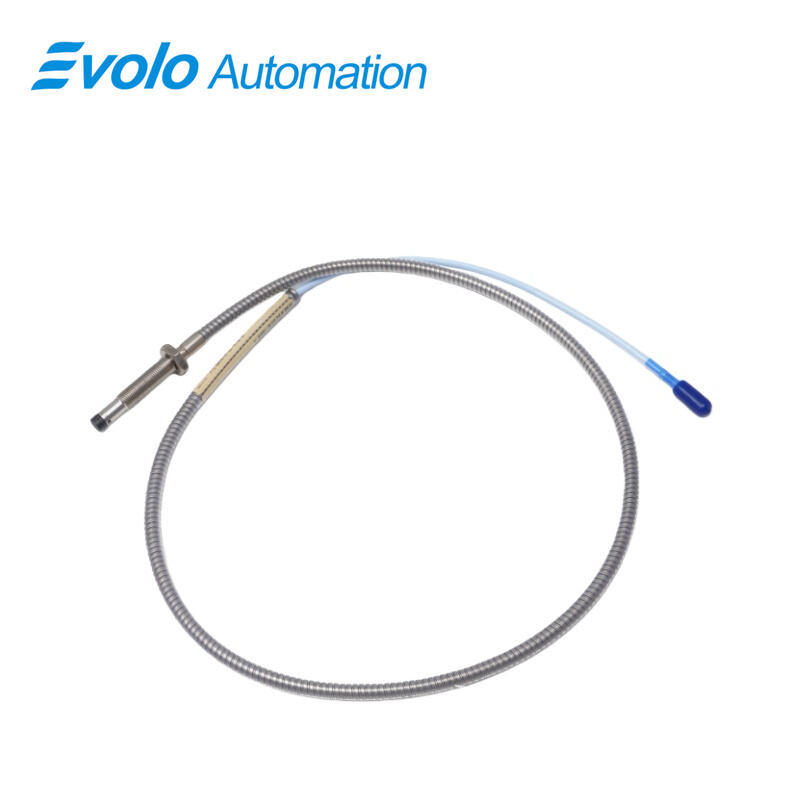

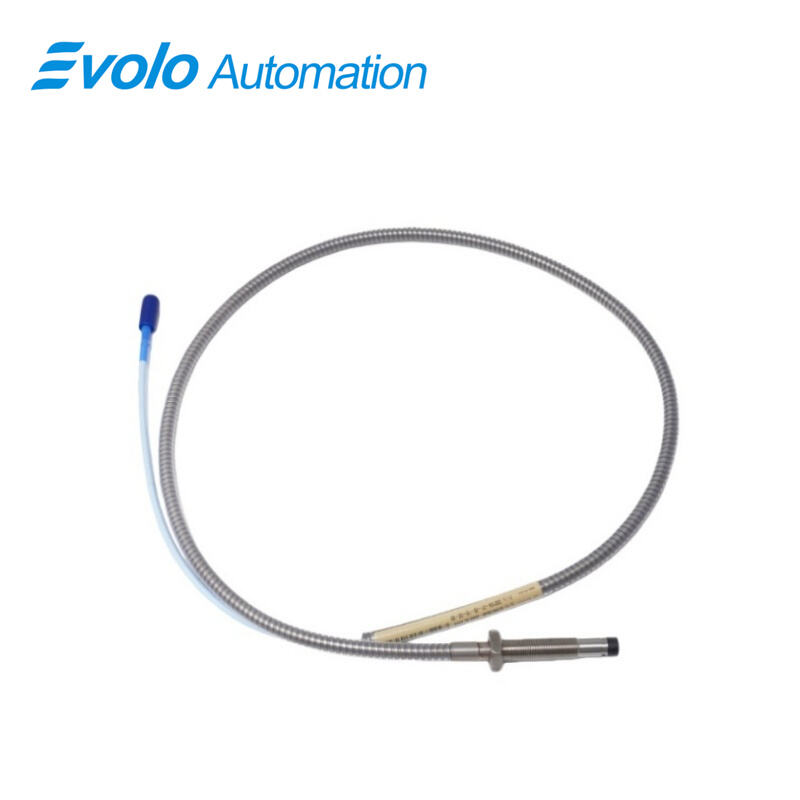

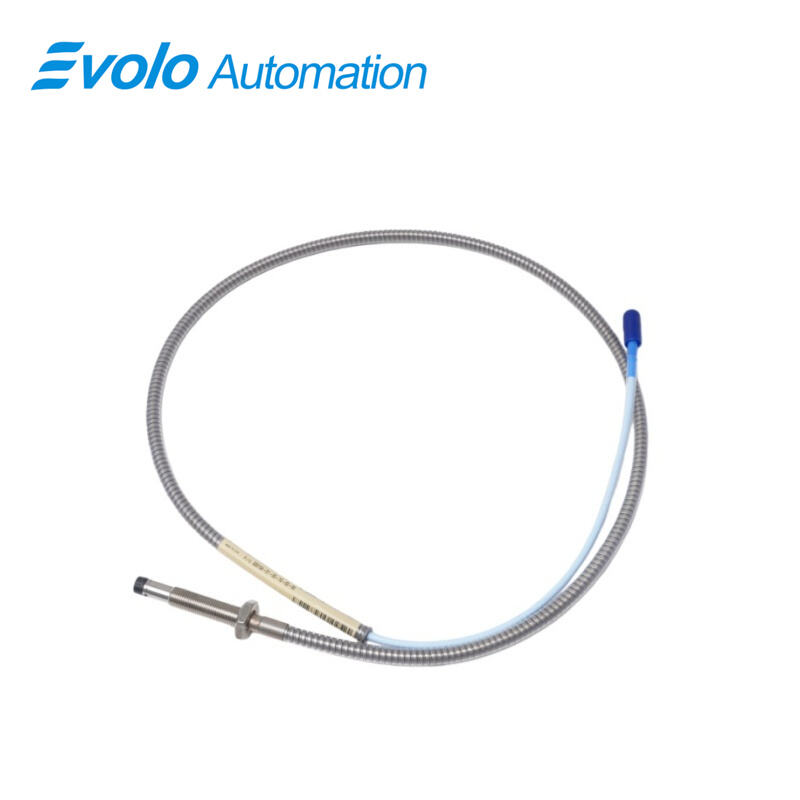

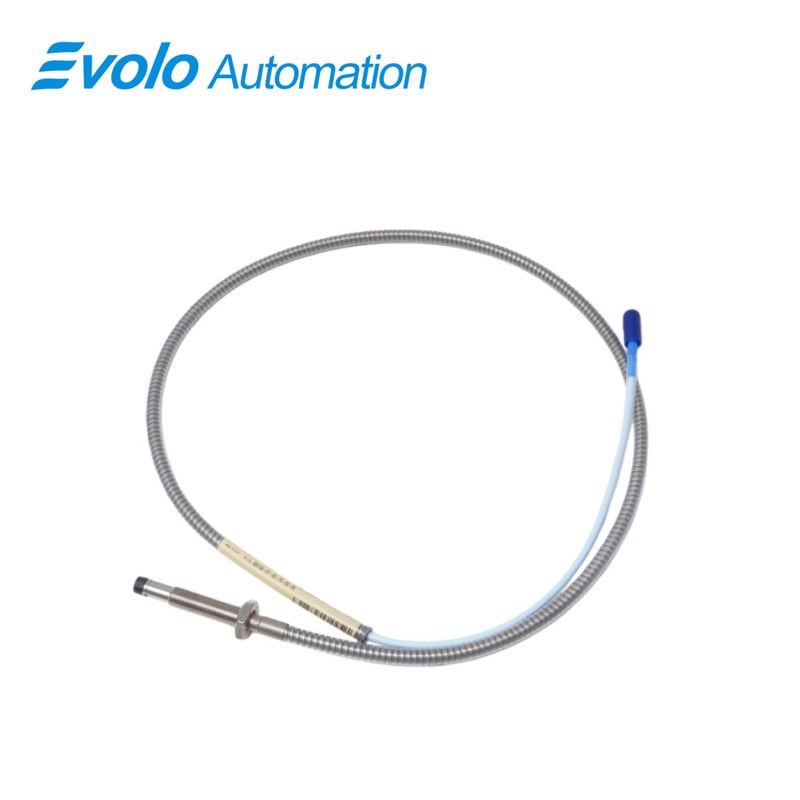

330104-01-05-10-02-00 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330104-01-05-10-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330104-01-05-10-02-00 3300 XL 8 mm Proximity Probe delivers precise position and vibration measurements for industrial automation systems. Featuring an M10x1 thread with 15 mm maximum engagement and a 10 mm unthreaded length, the 330104-01-05-10-02-00 3300 XL 8 mm Proximity Probe measures static and dynamic motion over a 2 mm linear range. It operates from -52°C to +177°C (-62°F to +350°F) and provides a 50 Ω voltage output with less than 2 mV change per volt input. The probe connects via miniature coaxial ClickLoc connector, supports field wiring from 0.2 to 1.5 mm² (16–24 AWG), and extends up to 1.0 meter (3.3 feet) with 69.9 pF/m cable capacitance. Designed for Keyphasor reference, shaft position, and rotational speed measurement, the 330104-01-05-10-02-00 3300 XL 8 mm Proximity Probe integrates easily into automation systems, enabling accurate monitoring without recalibration. Optional FluidLoc cable prevents oil leaks during operation.

Applications

Measure Shaft Vibration on Fluid-Film Bearings
The 330104-01-05-10-02-00 3300 XL 8 mm probe tracks dynamic vibration over a 2 mm linear range, converting shaft movement into a 50 Ω voltage output for fluid-film bearing monitoring.

Detect Shaft Position in Rotating Machinery
With a 10 mm unthreaded length, M10x1 thread, and 15 mm thread engagement, the 330104-01-05-10-02-00 3300 XL 8 mm probe monitors real-time shaft position for alignment and automation control.

Generate Keyphasor Reference Signals
The 330104-01-05-10-02-00 3300 XL 8 mm provides accurate phase and speed signals for automation systems, supporting predictive maintenance on pumps, turbines, and compressors.

Measure Rotational Speed in High-Temperature Environments
Operating from -52°C to +177°C (-62°F to +350°F), the 330104-01-05-10-02-00 3300 XL 8 mm probe measures rotational speed in boilers, turbines, and other high-temperature machinery.

Extend Measurement Range in Confined Spaces
With 1.0 meter total length, miniature coaxial ClickLoc connector, and 69.9 pF/m cable capacitance, the 330104-01-05-10-02-00 3300 XL 8 mm probe fits tight machinery layouts without recalibration.

Specifications

Competitive Advantage

Direct Voltage Output with Minimal Input Sensitivity
The 330104-01-05-10-02-00 3300 XL 8 mm probe converts target displacement into a 50 Ω voltage output with less than 2 mV change per volt input, ensuring precise distance measurement over its 2 mm linear range, suitable for both position and vibration detection in automation systems.

Quick Field Installation with Defined Thread and Wiring
With an M10x1 probe case thread, 15 mm maximum thread engagement, and field wiring support from 0.2 to 1.5 mm² (16–24 AWG), the 330104-01-05-10-02-00 3300 XL 8 mm probe can be mounted and wired efficiently, reducing installation time in industrial machinery.

High-Temperature Operation Capability
Operating from -52°C to +177°C (-62°F to +350°F), the 330104-01-05-10-02-00 3300 XL 8 mm probe maintains measurement accuracy in extreme environments, enabling automated monitoring of turbines, boilers, and high-temperature rotating equipment.

Flexible Cable and Extension Integration
With 1.0 meter total length and miniature coaxial ClickLoc connector, plus 69.9 pF/m extension cable capacitance, the 330104-01-05-10-02-00 3300 XL 8 mm probe allows long-distance sensor placement and tight installation layouts without recalibration.
