330104-00-25-05-02-00 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330104-00-25-05-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

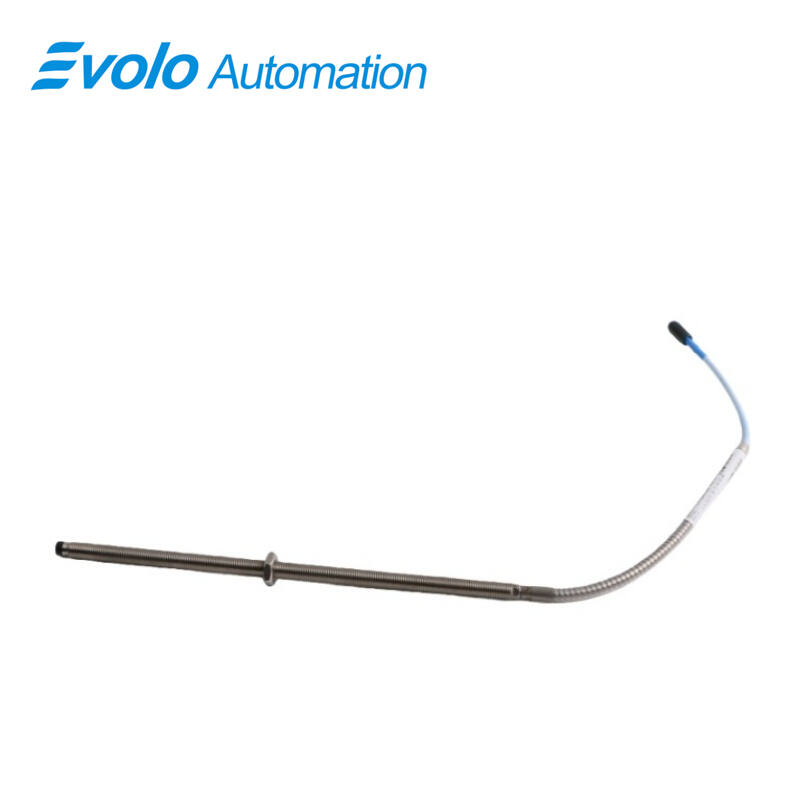

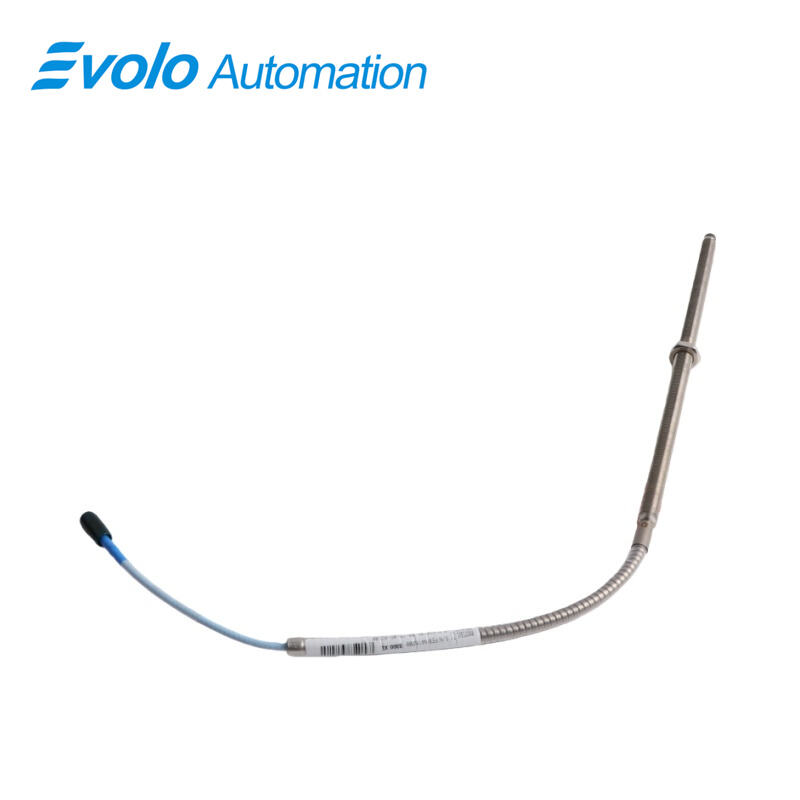

The Bently Nevada 330104-00-25-05-02-00 3300 XL 8 mm Proximity Probe is designed for precision vibration and displacement measurement within industrial automation and turbomachinery protection systems. With an M10x1 threaded housing, a 250 mm case length, and a 0.5-meter integrated coaxial ClickLoc cable assembly, this proximity probe provides accurate radial vibration, axial thrust, and Keyphasor reference signals for fluid-film bearing equipment. The 3300 XL 8 mm Proximity Probe maintains a 2 mm linear range and complies with API 670 requirements for linearity, temperature stability, and mechanical performance, making it suitable for compressors, steam turbines, gas turbines, and large process fans. The model 330104-00-25-05-02-00 features a broad operating temperature range from -52°C to +177°C, low sensitivity to supply voltage variations, and robust chemical resistance, supporting long-term deployment under demanding process environments. Its patented TipLoc and CableLoc construction improves mechanical durability, ensuring up to 330 N cable pull strength for reliable field operation. Widely used in predictive maintenance strategies, OEM automation upgrades, and monitoring retrofits, the 3300 XL 8 mm probe enables condition-based diagnostics and enhances machinery protection logic in complex industrial process systems.

Applications

Rotating Machinery Monitoring
The 330104-00-25-05-02-00 monitors shaft displacement and vibration with a 2 mm linear range, detecting misalignment or imbalance in turbines, motors, and compressors to prevent mechanical failures.

Extended Probe Installations
With a 250 mm overall case length and 0.5-meter cable, the 330104-00-25-05-02-00 enables measurements in installations where long probe reach is required without compromising signal integrity.

Harsh Environment Operation
Operating from -52°C to +177°C, the 330104-00-25-05-02-00 performs reliably under extreme temperature, electrical, and mechanical stress conditions.

Specifications

Competitive Advantage

Long-Reach Design
The 330104-00-25-05-02-00 features an extended 250 mm case for measurements in deep or hard-to-reach machinery locations, while maintaining compact cabling and high accuracy.

High-Precision Measurement
With a 2 mm linear range, low output resistance (50 Ω), and supply sensitivity below 2 mV/V, the 330104-00-25-05-02-00 delivers reliable displacement and vibration readings.

Reliable Performance in Extreme Conditions
The 330104-00-25-05-02-00 operates consistently in temperatures from -52°C to +177°C (-62°F to +350°F) and withstands mechanical stress in industrial environments.

Flexible Integration
Equipped with a Miniature coaxial ClickLoc connector and compatible with 16–24 AWG field wiring, the 330104-00-25-05-02-00 integrates easily into monitoring and automated control systems.

Durable Construction
The 330104-00-25-05-02-00 combines robust M10 × 1 mounting with low-capacitance cable (69.9 pF/m), ensuring long-term reliability in industrial operations.
