Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330103-02-10-05-02-05 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
00 mm |
|
Overall Case Length Option(Minimum case length): |
200 mm |
|
Total Length Option: |
1.5 meter (4.9 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, FluidLoc cable |
|
Agency Approval Option: |
CSA, ATEX, IECEx Approvals |
|
Probe Case Thread: |
M10x1 |
|
Maximum Length of Thread Engagement: |
15 mm |
|
Dimension: |
1.8x1.6x121cm |
|
Weight: |
0.18 kg |
Description

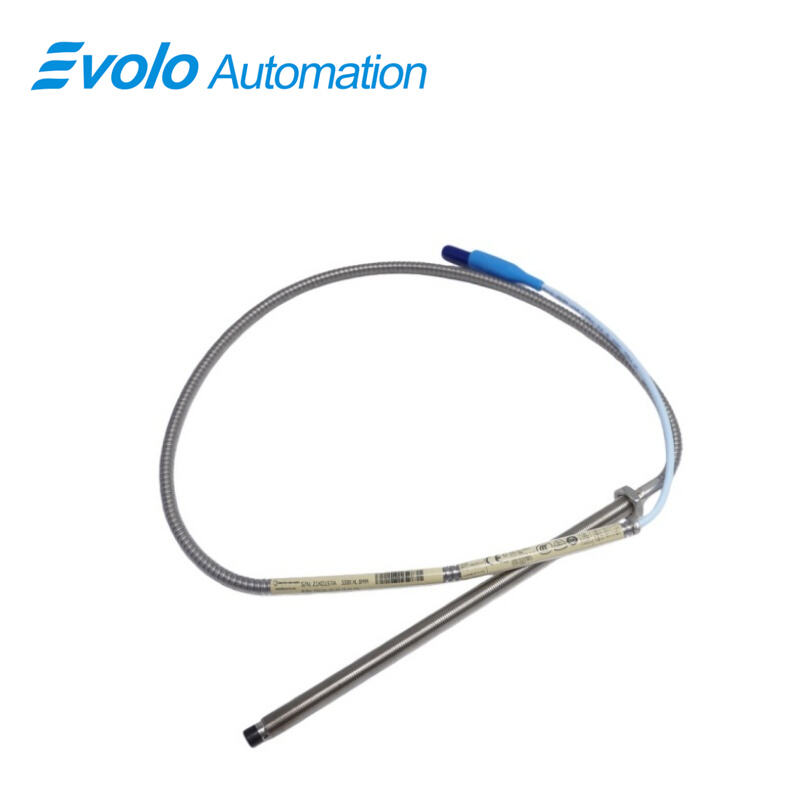

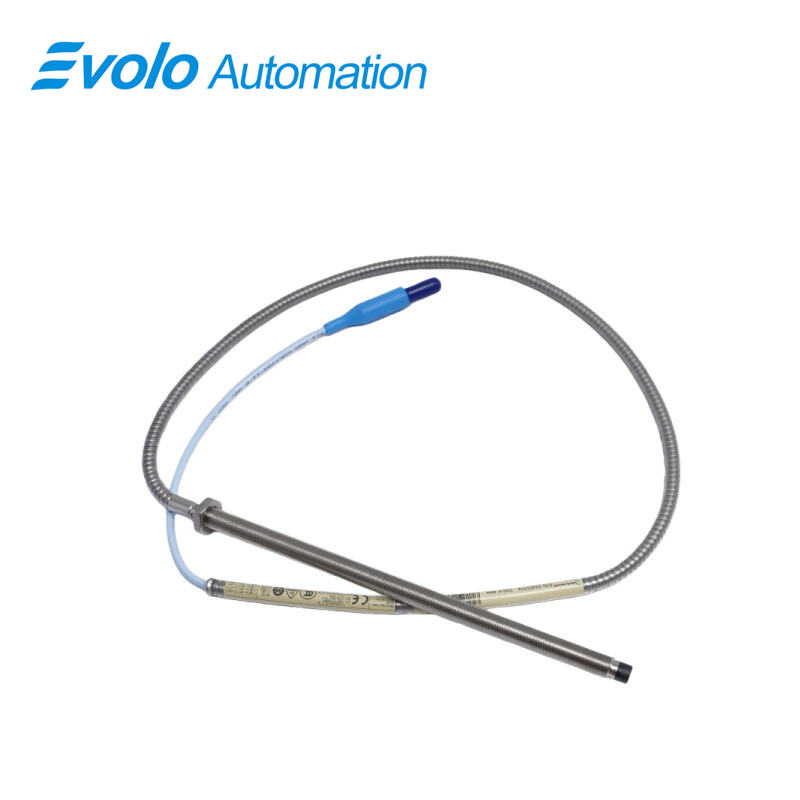

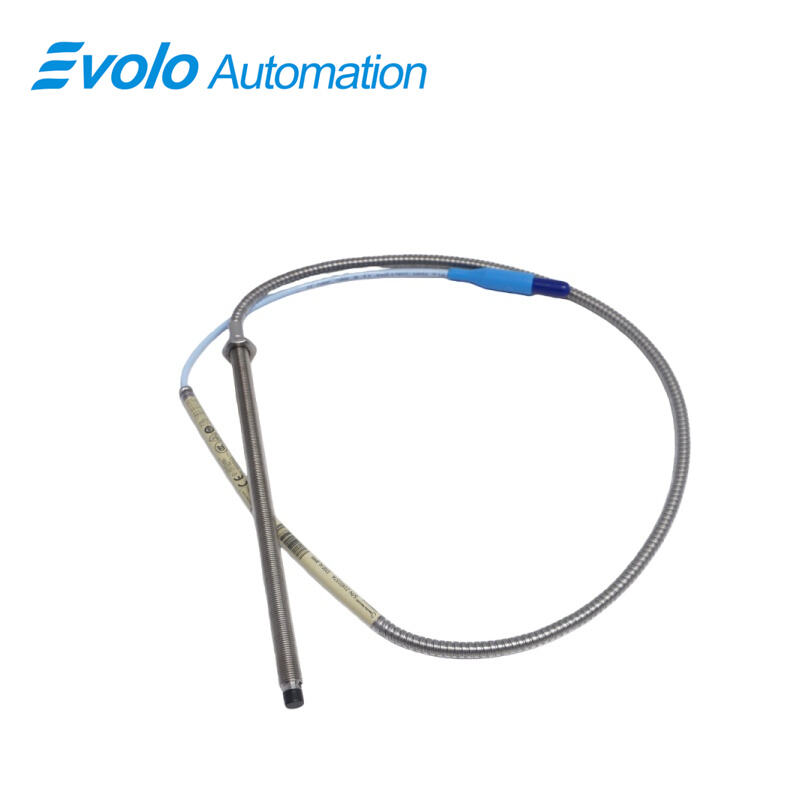

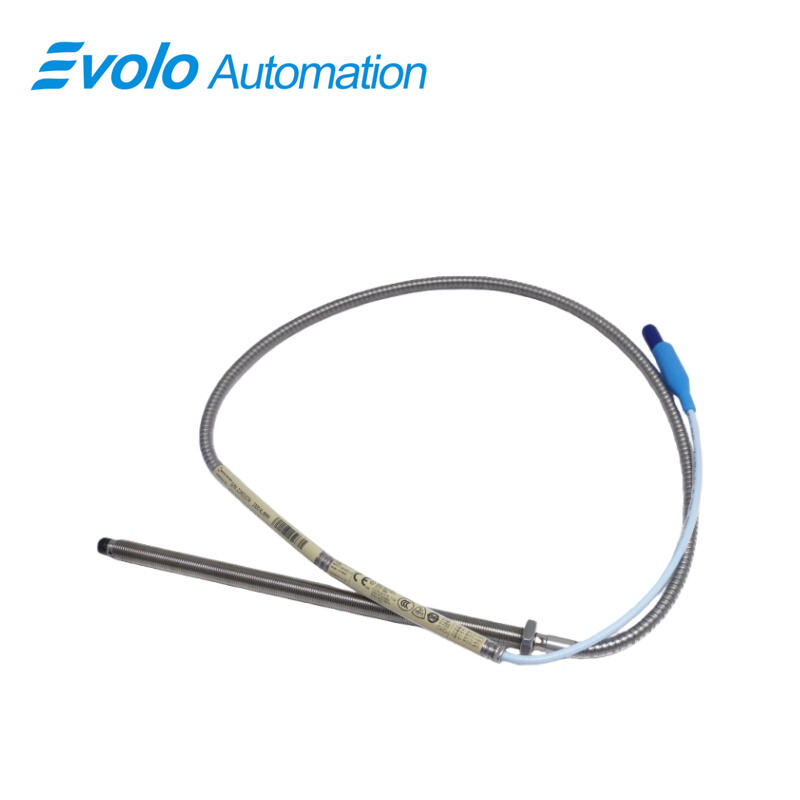

The 330104-00-20-15-12-05 3300 XL 8 mm Proximity Probe measures static shaft position and dynamic vibration on fluid-film bearing machines. The 330104-00-20-15-12-05 3300 XL 8 mm Proximity Probe features an M10x1 stainless steel case, 200 mm overall case length, and a 1.5-meter FluidLoc cable with miniature coaxial ClickLoc connector. Its 2 mm linear range, 50 Ω output resistance, and supply sensitivity under 2 mV per volt enable accurate automated monitoring. Operating from -52°C to +177°C, the 330104-00-20-15-12-05 3300 XL 8 mm Proximity Probe fits in tight mounting areas and supports small shaft or flat target measurements. Patented TipLoc and CableLoc designs secure the probe tip and cable with 330 N pull strength, while the FluidLoc cable prevents oil or liquid leakage, ensuring reliable automated signals in compressors, turbines, and other rotating equipment.
Applications
Measure Radial Shaft Vibration
The 330104-00-20-15-12-05 3300 XL 8 mm Proximity Probe detects radial vibration on shafts under 51 mm using its 2 mm linear range. Its precise tip positioning, 200 mm case length, and 1.5-meter cable allow automated monitoring of high-speed compressors and turbines with limited installation space.
Monitor Axial Shaft Displacement
The 330104-00-20-15-12-05 3300 XL 8 mm Proximity Probe measures axial displacement on flat targets under 15 mm. The probe’s PPS tip and side-view design support automated position tracking in fluid-film bearing machines, providing continuous data for machine control systems.
Provide Tachometer Speed Signals
The 330104-00-20-15-12-05 3300 XL 8 mm Proximity Probe outputs 50 Ω signals for speed and zero-speed monitoring. Its low supply sensitivity (<2 mV/V) ensures consistent automated feedback even under fluctuating power conditions in industrial machinery.
Generate Keyphasor Phase Signals
The 330104-00-20-15-12-05 3300 XL 8 mm Proximity Probe produces Keyphasor signals for rotor phase synchronization, enabling automated machinery to maintain precise rotational timing and phase monitoring.
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Competitive Advantage
Secure Probe Tip and Cable Attachment
Patented TipLoc and CableLoc designs on the 330104-00-20-15-12-05 3300 XL 8 mm Proximity Probe provide robust attachment for the PPS tip and 1.5-meter cable, maintaining accurate automated measurement under vibration and mechanical stress.
Chemical and Temperature Resistance
With a PPS tip and stainless steel case operating from -52°C to +177°C, the 330104-00-20-15-12-05 3300 XL 8 mm Proximity Probe delivers reliable automated measurements in high-temperature, fluid-exposed, and industrial process environments.
Enhanced Signal Consistency
The 330104-00-20-15-12-05 3300 XL 8 mm Proximity Probe linear range of 2 mm and 50 Ω output resistance ensures repeatable, automated measurement of shaft vibration and position across various industrial machines.
