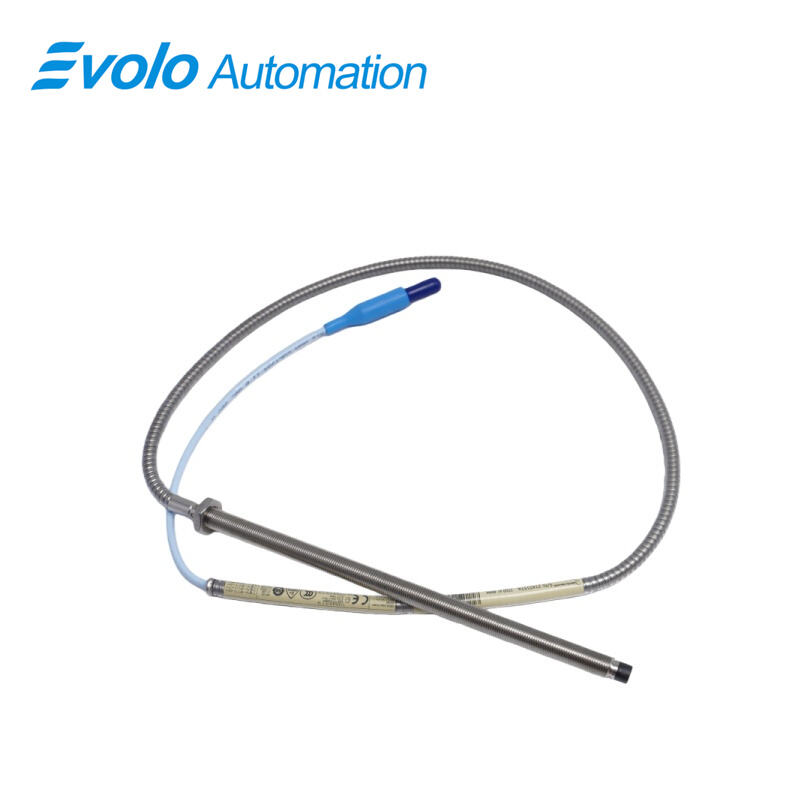

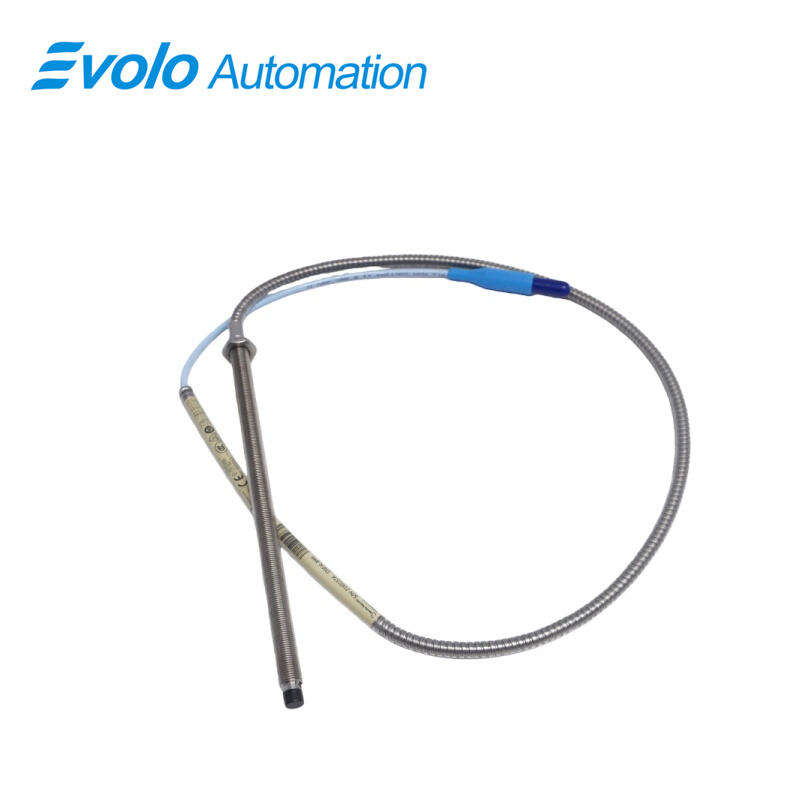

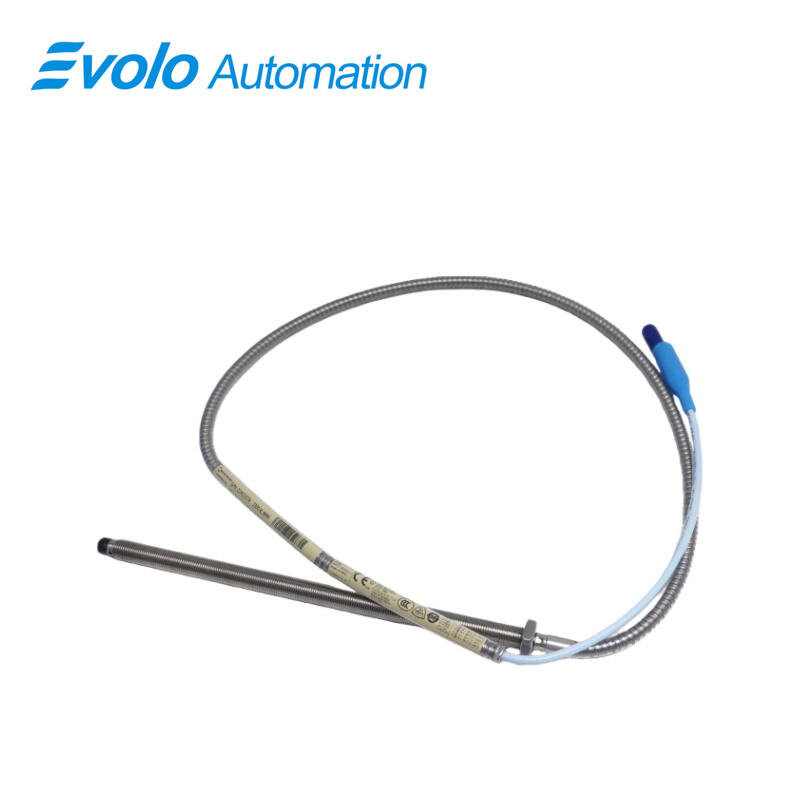

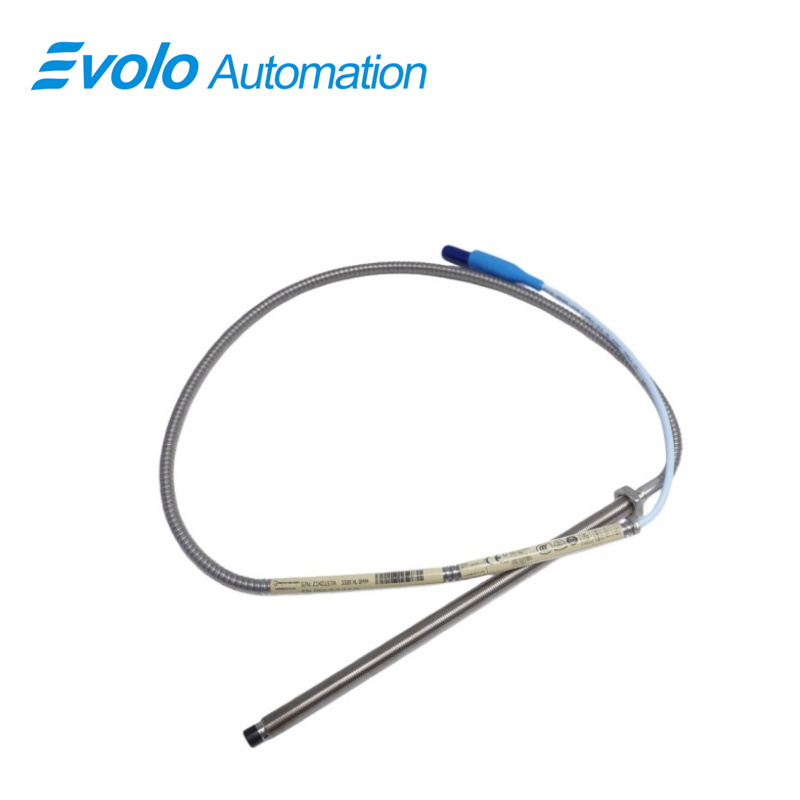

330104-00-19-10-01-05 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330104-00-19-10-01-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330104-00-19-10-01-05 3300 XL 8 mm Proximity Probe is a high-performance eddy current transducer designed for industrial automation and precision machinery monitoring. With a 190 mm overall case length and M10x1 threaded mount, it provides a 2 mm (80 mils) linear range, delivering precise static (position) and dynamic (vibration) measurements in demanding industrial environments. The probe operates reliably across an extreme temperature range of -52°C to +177°C (-62°F to +350°F) and features a ClickLoc miniature coaxial connector with protector to ensure secure connections. The patented TipLoc molding method and CableLoc design provide robust mechanical integrity with 330 N (75 lbf) pull strength, while the optional FluidLoc cable prevents leakage of oil or other liquids, enhancing automation system reliability. CSA, ATEX, and IECEx approvals make it suitable for hazardous areas. Fully compatible and interchangeable with other 3300 XL and standard 3300 series components, this probe supports automated predictive maintenance, vibration analysis, and rotational speed monitoring on fluid-film bearing machines, compressors, and motors.

Applications

Radial Vibration Monitoring in Large Industrial Shafts
330104-00-19-10-01-05 measures radial vibrations on turbines, compressors, and large pumps. With a linear range of 2 mm (80 mils) and 50 Ω output resistance, 330104-00-19-10-01-05 provides accurate vibration data for predictive maintenance and reduces unplanned equipment downtime.

Axial Shaft Displacement and Alignment Measurement
330104-00-19-10-01-05 tracks axial (thrust) movement using its 190 mm overall case length, M10x1 threads, and 15 mm maximum thread engagement. Signals from 330104-00-19-10-01-05 ensure precise shaft alignment in motors, gearboxes, and compressors, preventing mechanical wear and misalignment.

Integration with Automation and Control Systems
Equipped with a miniature coaxial ClickLoc connector with protector and standard cable, 330104-00-19-10-01-05 transmits consistent signals to control systems. Supply sensitivity under 2 mV per volt change ensures reliable readings for automated vibration and position monitoring.

Operation in Extreme Temperature and Hazardous Environments
330104-00-19-10-01-05 operates from -52°C to +177°C (-62°F to +350°F) and is CSA, ATEX, and IECEx approved. Using 330104-00-19-10-01-05, industrial facilities such as petrochemical plants, offshore platforms, and power generation units can safely monitor machinery under harsh conditions.

Flexible Field Wiring and Extension Options
330104-00-19-10-01-05 supports field wiring from 0.2 to 1.5 mm² (16–24 AWG) and extension cables with typical capacitance of 69.9 pF/m (21.3 pF/ft). Operators using 330104-00-19-10-01-05 can install probes in hard-to-reach locations while maintaining precise vibration and displacement measurements.

Specifications

Competitive Advantage

Long-Range Shaft Monitoring
330104-00-19-10-01-05’s 190 mm overall case length and 1.0 meter total cable length allow installation in large industrial machines. Using 330104-00-19-10-01-05, operators can monitor vibration and position on long shafts without signal degradation.

Accurate Measurement for Radial and Axial Positions
With a 2 mm linear range and 50 Ω output, 330104-00-19-10-01-05 delivers high-precision readings on radial and axial shaft movements. 330104-00-19-10-01-05 supports fine-tuned control and predictive maintenance of critical rotating machinery.

Secure Probe-to-Cable Bonding
330104-00-19-10-01-05 uses ClickLoc connectors with protective sleeves for robust attachment. Signals from 330104-00-19-10-01-05 remain consistent under high vibration, reducing maintenance and monitoring errors.

Extreme Temperature and Hazardous Environment Operation
330104-00-19-10-01-05 withstands -52°C to +177°C and meets CSA, ATEX, and IECEx standards. This allows 330104-00-19-10-01-05 to perform in chemical plants, offshore facilities, and power generation environments without performance loss.

Flexible Wiring and Signal Accuracy
Field wiring of 0.2–1.5 mm² (16–24 AWG) and extension cable capacitance of 69.9 pF/m make 330104-00-19-10-01-05 adaptable to different installation scenarios. Using 330104-00-19-10-01-05, precise measurement is maintained even with long cable runs or remote sensor placement.
