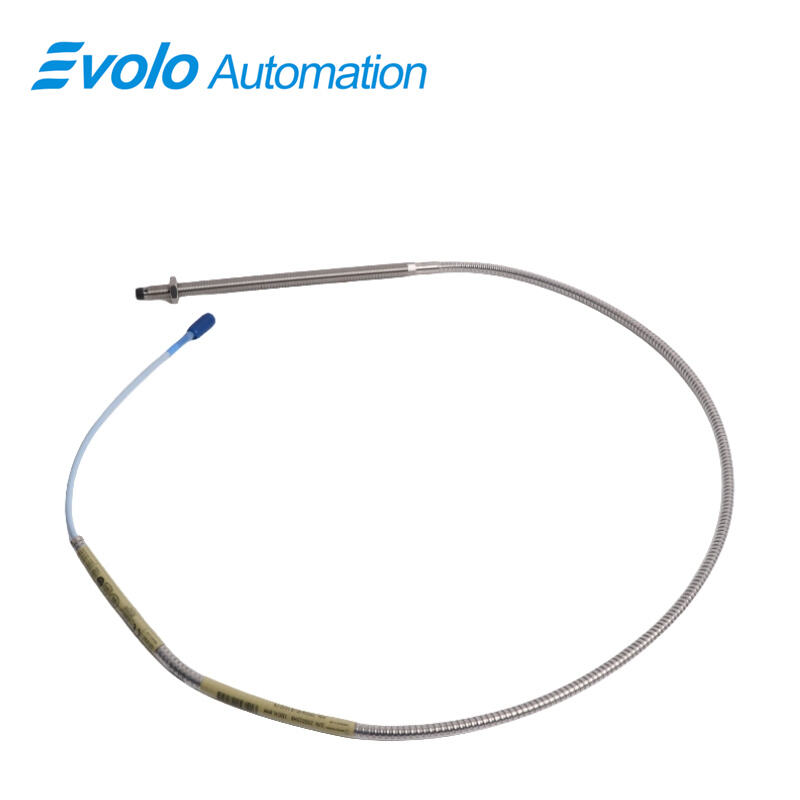

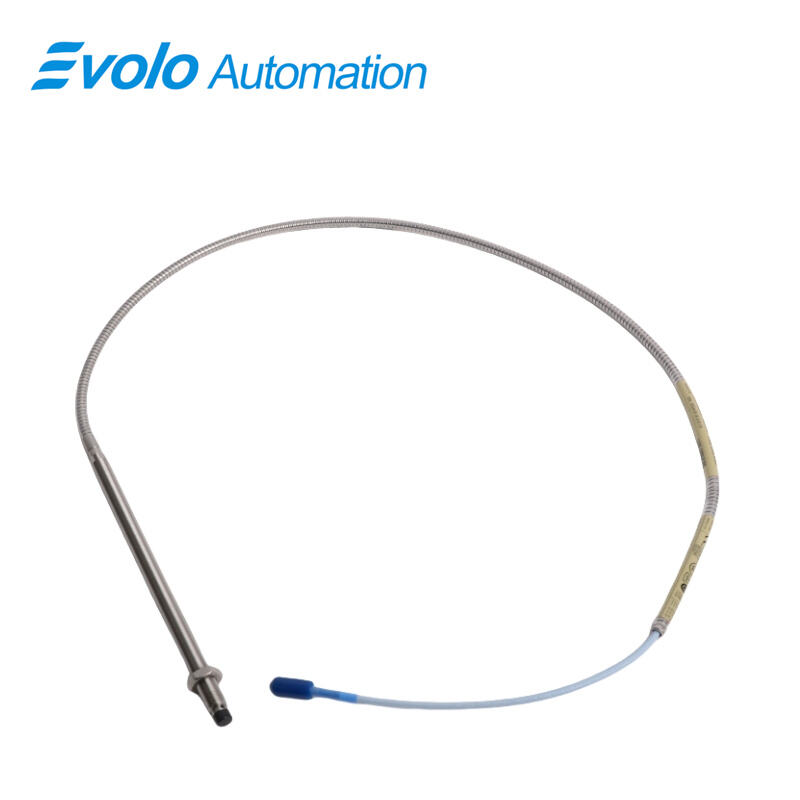

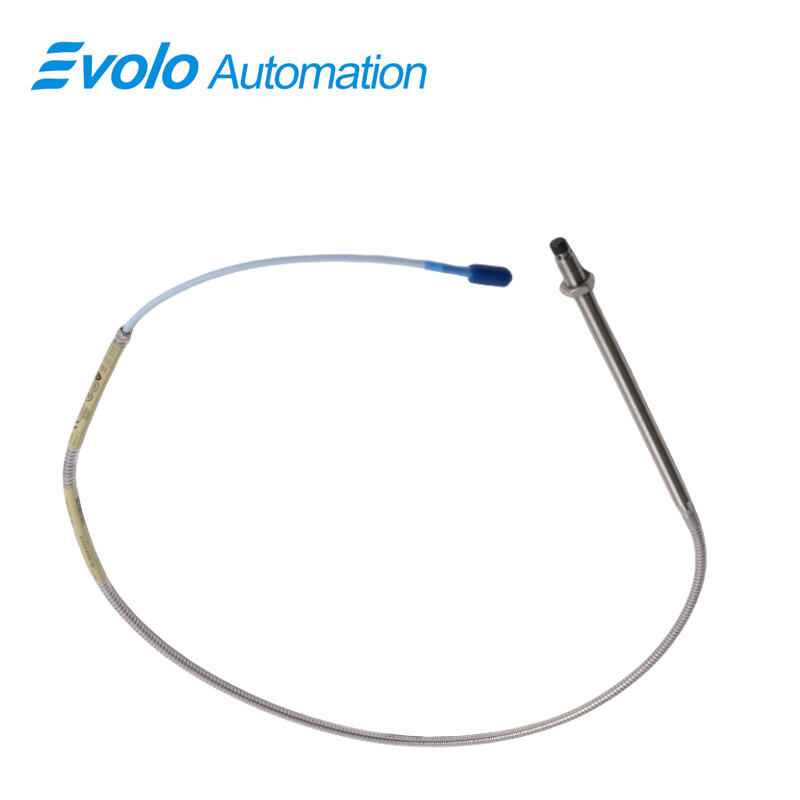

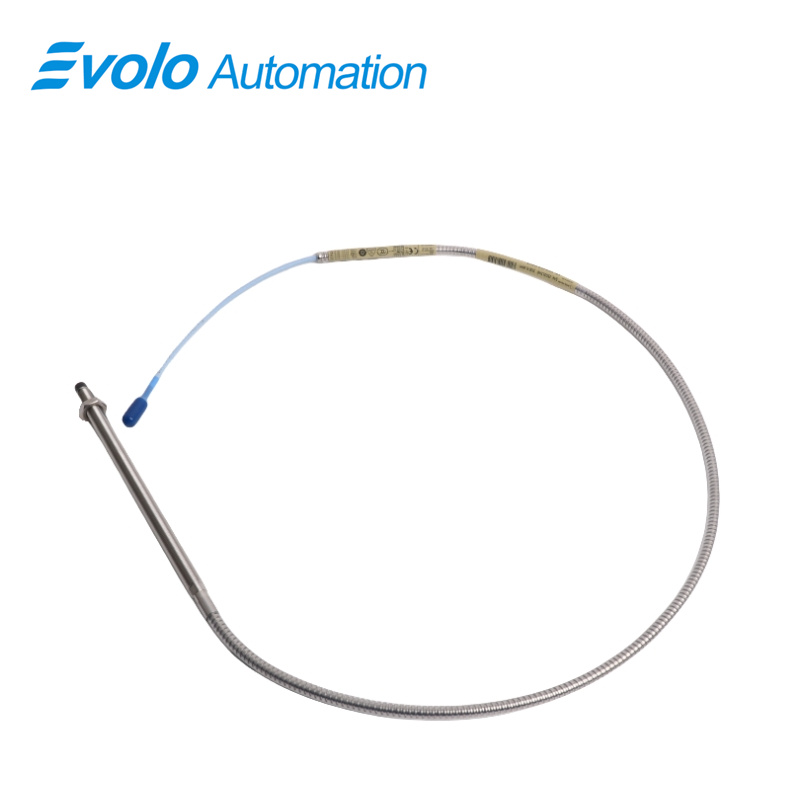

330104-00-18-10-01-00 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330104-00-18-10-01-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

330104-00-18-10-01-00 3300 XL 8 mm Proximity Probe is designed for automated machinery monitoring, delivering precise displacement and vibration measurements on fluid-film bearing machines, compressors, and turbines. 330104-00-18-10-01-00 features an M10×1 threaded probe case with a 180 mm overall case length and zero unthreaded section, enabling deep installation in tight ports or extended bearing housings.

The probe operates over a 2 mm (80 mils) linear range and provides a 50 Ω output resistance with supply sensitivity below 2 mV per volt, allowing controlled signal transmission to automated monitoring and control systems. The 1.0 meter standard cable with a miniature coaxial ClickLoc connector and connector protector on 330104-00-18-10-01-00 ensures secure electrical connection and predictable signal behavior. With an extension cable capacitance of 69.9 pF/m and an operating temperature range from -52°C to +177°C, 330104-00-18-10-01-00 supports reliable measurement in high-temperature compressor and turbine enclosures. 330104-00-18-10-01-00 is widely used for automated radial vibration tracking, axial position monitoring, speed measurement, and Keyphasor phase reference applications.

Applications

Application Radial Vibration Measurement on Turbine Shafts
330104-00-18-10-01-00 measures radial vibration on rotating shafts in turbines and compressors. The 2 mm linear range and 50 Ω output of 330104-00-18-10-01-00 enable precise vibration tracking for automated condition monitoring.

Application Axial Position Monitoring in Bearing Assemblies
330104-00-18-10-01-00 monitors axial movement on thrust collars and flat bearing surfaces. The 180 mm case length and M10×1 thread of 330104-00-18-10-01-00 allow placement deep in bearing housings while maintaining the recommended 1.0 mm gap.

Application Speed and Zero-Speed Detection
330104-00-18-10-01-00 detects shaft rotational speed and zero-speed events in automated control systems. Its low supply sensitivity ensures consistent pulse signals to Proximitor sensors.

Application Keyphasor Phase Reference Signal Generation
330104-00-18-10-01-00 captures rotational markers on shafts for Keyphasor and phase reference signals, transmitting stable signals through its 1.0 meter cable to automation monitoring modules.

Specifications

Competitive Advantage

Competitive Advantage Deep Mounting for Extended Bearing Housings
The 180 mm case length of 330104-00-18-10-01-00 allows installation in deep bearing housings and turbine ports without additional adapters or extension hardware.

Competitive Advantage Controlled Signal Output for Automation Loops
With a 2 mm linear range, 50 Ω output resistance, and supply sensitivity below 2 mV per volt, 330104-00-18-10-01-00 delivers repeatable and predictable signals for vibration, position, and speed monitoring channels.

Competitive Advantage High-Temperature Operation in Industrial Machinery
Operating from -52°C to +177°C, 330104-00-18-10-01-00 performs in high-temperature compressors, turbines, and bearing housings without thermal protection.

Competitive Advantage Secure Cable Connection Using ClickLoc Connector
The miniature coaxial ClickLoc connector with protector on 330104-00-18-10-01-00 ensures a secure attachment of the probe cable to the probe body, supporting reliable signal transmission in automated monitoring systems.
