330104-00-16-10-11-00 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330104-00-16-10-11-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

330104-00-16-10-11-00 3300 XL 8 mm Proximity Probe is designed for automated monitoring of vibration and shaft position in fluid-film bearing machinery. 330104-00-16-10-11-00 delivers a linear output proportional to the distance between probe tip and conductive target, with a 2 mm (80 mils) measurement range, supporting both static and dynamic measurements for automation systems.

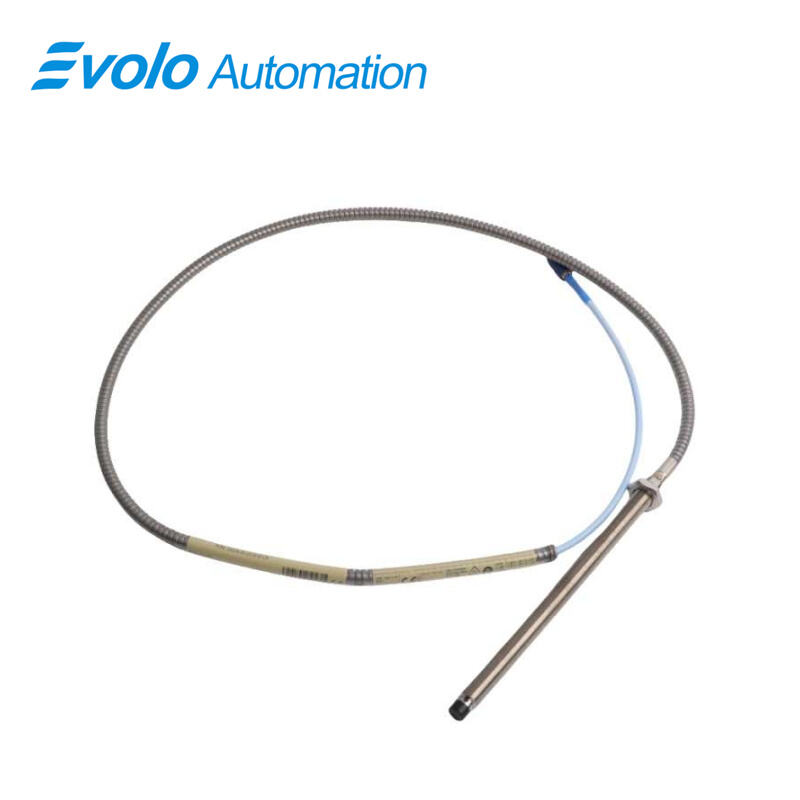

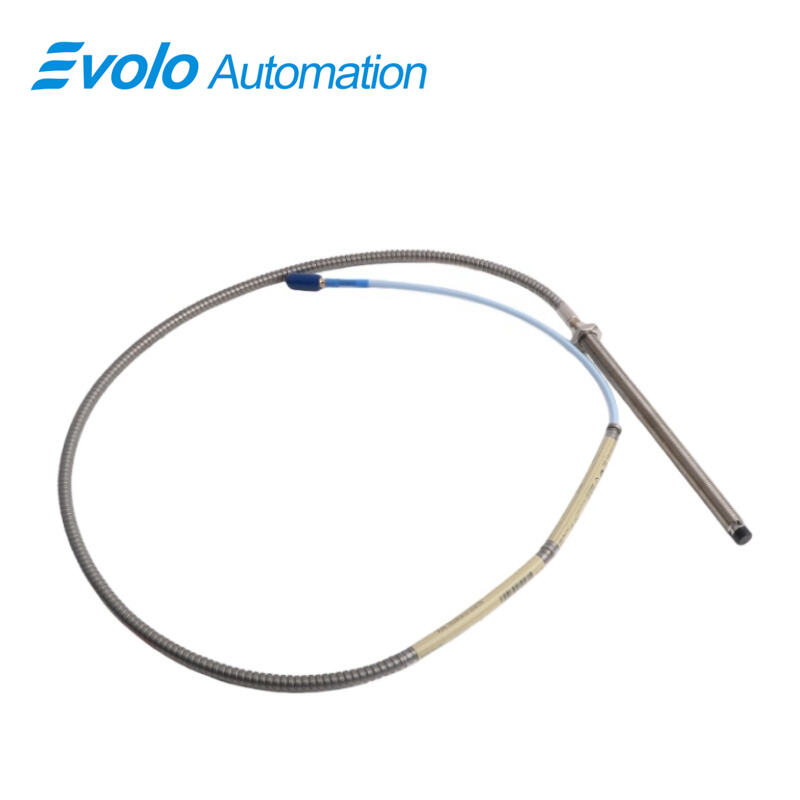

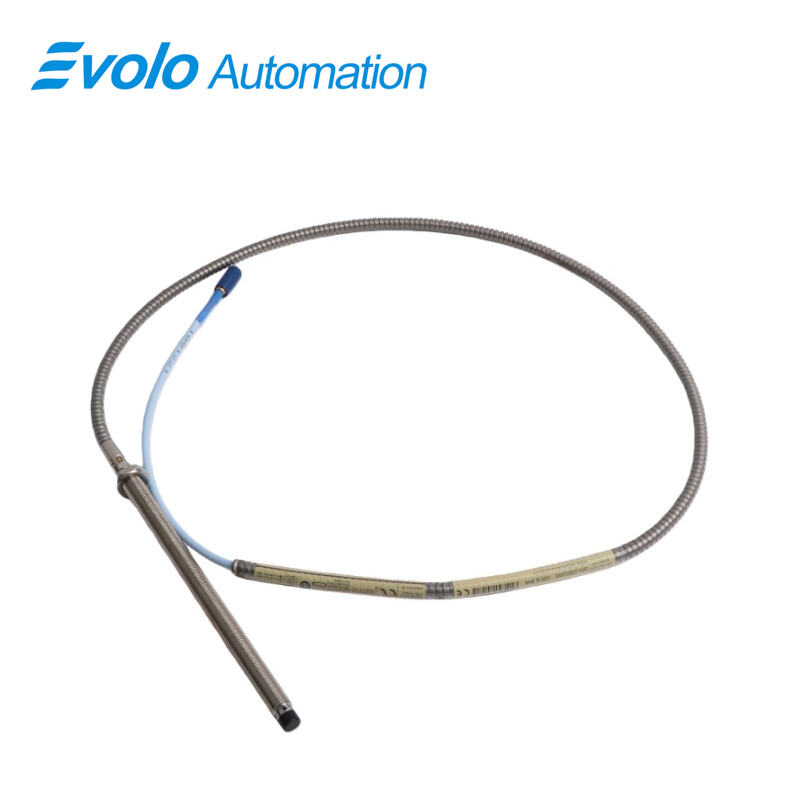

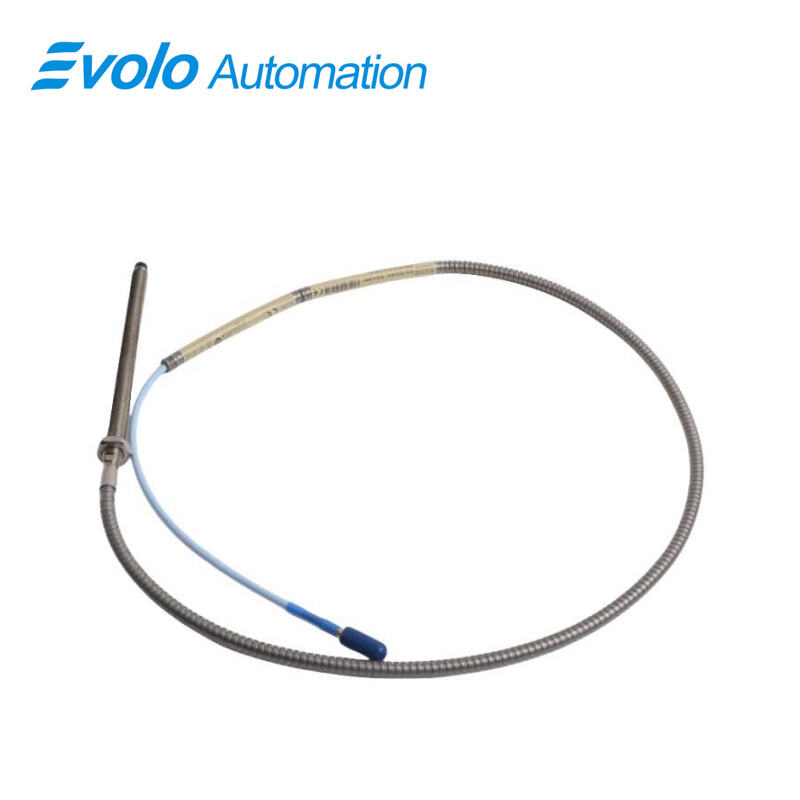

The 330104-00-16-10-11-00 probe features a 160 mm overall case, M10x1 threaded body with 15 mm maximum engagement, and a 1.0-meter FluidLoc cable with miniature coaxial ClickLoc connector and connector protector. Patented TipLoc and CableLoc designs provide 330 N (75 lbf) pull strength to secure the probe tip and cable under high-vibration conditions.

Operating from −52°C to +177°C, 330104-00-16-10-11-00 performs reliably in extreme industrial temperatures. Its 50 Ω output resistance, <2 mV/V supply sensitivity, and 69.9 pF/m extension cable capacitance maintain accurate signal transmission through field wiring of 16–24 AWG. 330104-00-16-10-11-00 is ideal for automation applications including Keyphasor reference, speed measurement, axial shaft position, and rotor vibration monitoring on turbines, compressors, and pumps.

Applications

Monitor Shaft Vibration in Turbines and Pumps
The 330104-00-16-10-11-00 3300 XL 8 mm Proximity Probe captures radial and axial shaft vibrations on turbines, compressors, and pumps. With a 2 mm (80 mils) linear range and output directly proportional to probe-to-target distance, 330104-00-16-10-11-00 provides precise data for automation systems to detect rotor imbalance or misalignment.

Measure Axial Shaft Position
330104-00-16-10-11-00 transmits accurate axial displacement signals from fluid-film bearings to PLCs or DCS systems. Its 160 mm overall case, M10x1 thread, and 1.0-meter FluidLoc cable with ClickLoc connector ensure secure installation and consistent measurement in automated monitoring setups.

Provide Keyphasor Reference Signals
The 330104-00-16-10-11-00 probe supports real-time rotor speed and phase reference measurements. Its 50 Ω output resistance, <2 mV/V supply sensitivity, and 69.9 pF/m cable capacitance maintain signal integrity for automation controllers.

Operate in Extreme Temperatures
330104-00-16-10-11-00 functions from −52°C to +177°C, enabling continuous automated monitoring of rotating machinery in harsh industrial environments.

Specifications

Competitive Advantage

Robust Tip and Cable Attachment
330104-00-16-10-11-00 features TipLoc and CableLoc designs providing 330 N (75 lbf) pull strength, securing probe tip and cable in high-vibration conditions.

Reliable Signal Transmission
The 330104-00-16-10-11-00 probe maintains accurate output over field wiring (16–24 AWG) with 50 Ω output resistance and <2 mV/V supply sensitivity, ensuring precise automation measurements.

Quick Installation in Automated Systems
330104-00-16-10-11-00 includes ClickLoc connector with protector and 1.0-meter cable, reducing setup time and allowing flexible placement in tight industrial spaces.

Supports Real-Time Vibration and Position Monitoring
330104-00-16-10-11-00 delivers both static and dynamic data to PLCs, DCS, and vibration monitoring systems for automated machine protection and performance tracking.
