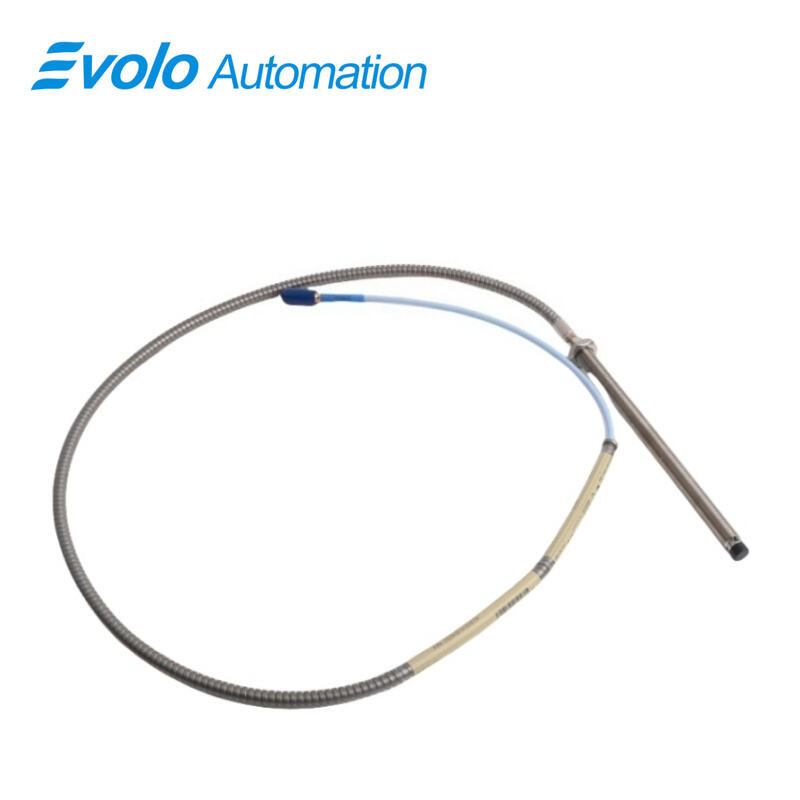

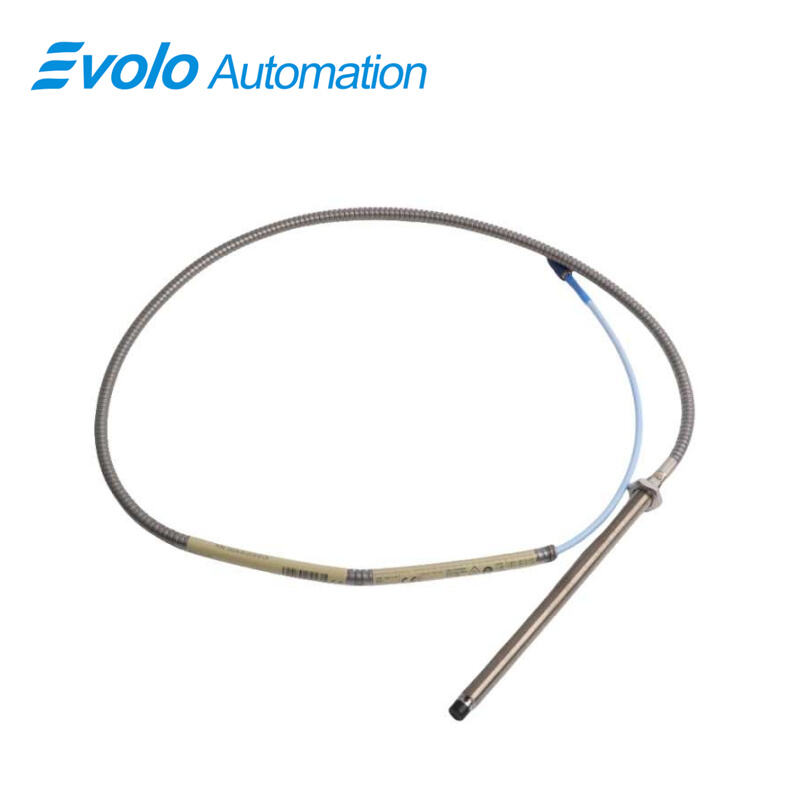

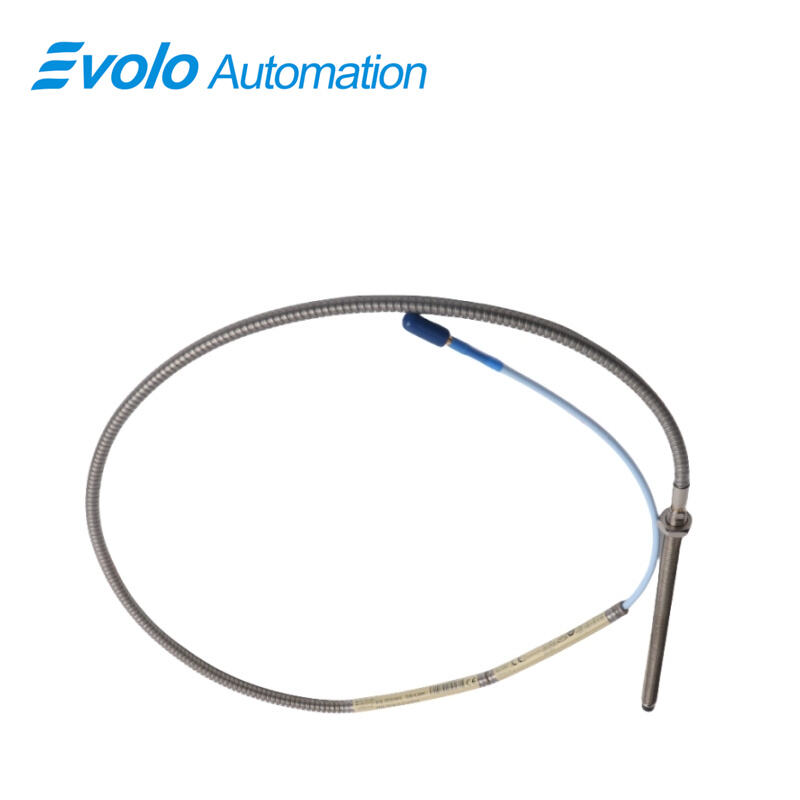

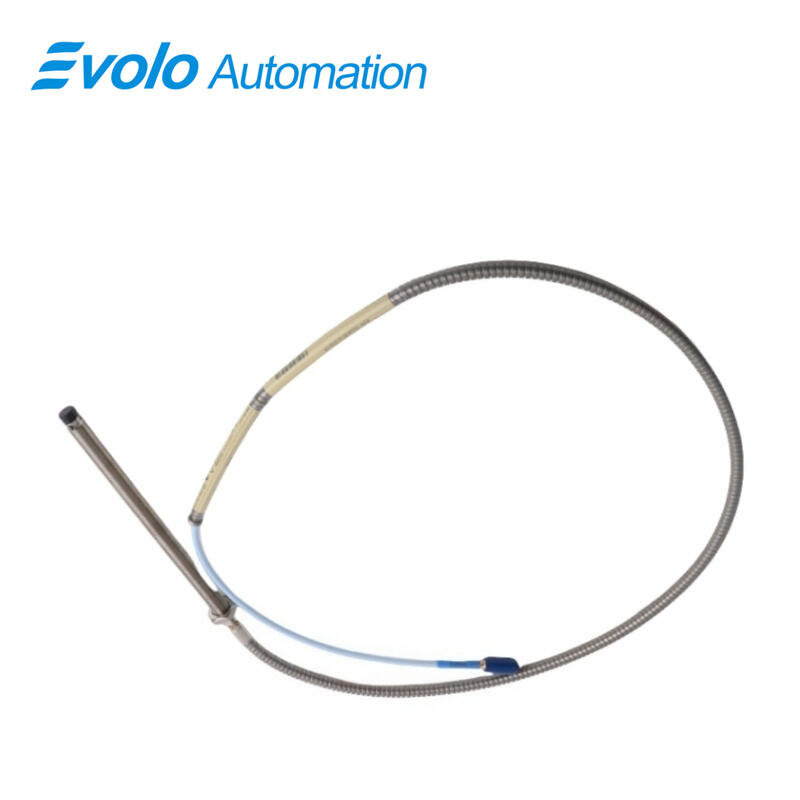

330104-00-16-05-02-00 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330104-00-16-05-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330104-00-16-05-02-00 3300 XL 8 mm Proximity Probe is a high-precision eddy current transducer designed for advanced industrial automation and machinery condition monitoring. It converts the displacement between the probe tip and a conductive surface into a proportional voltage output, enabling highly accurate measurement of both static shaft positions and dynamic vibrations. Featuring a 2 mm (80 mils) linear range, 50 Ω output resistance, and supply sensitivity below 2 mV per volt, the probe delivers stable and reliable readings even in extreme industrial environments. Its 160 mm overall case length and M10x1 threaded case with maximum 15 mm thread engagement ensure robust mechanical mounting. Patented TipLoc molding strengthens the bond between probe tip and body, while the CableLoc design secures the cable with 330 N (75 lbf) pull strength. Optional FluidLoc cables prevent leakage of oil or other fluids, ensuring safe operation. Operating from -52°C to +177°C (-62°F to +350°F), the probe is fully compatible with other 3300 series 5 mm and 8 mm components, enabling easy system upgrades, maintenance, and adherence to API 670 standards for vibration and position monitoring in turbines, compressors, and rotating machinery.

Applications

Vibration Monitoring in Turbines, Compressors, and Pumps
330104-00-16-05-02-00 measures dynamic vibrations on turbines, compressors, and pumps. With an 8 mm probe and 50 Ω output, 330104-00-16-05-02-00 provides accurate data for automated predictive maintenance, reducing unplanned downtime in rotating machinery.

Shaft Displacement Measurement within 2 mm Range
330104-00-16-05-02-00 delivers static and dynamic shaft displacement readings up to 2 mm for motors and gearboxes. By maintaining precise shaft alignment, 330104-00-16-05-02-00 minimizes contact wear and extends the operating life of critical components.

Keyphasor Output and Rotational Speed Signals
330104-00-16-05-02-00 generates Keyphasor reference outputs and rotational speed signals for high-speed equipment. Automated control systems use data from 330104-00-16-05-02-00 to monitor shaft phase and rotational speed, enabling real-time process adjustments.

Real-Time Journal Bearing Monitoring
Installed near fluid-film bearings, 330104-00-16-05-02-00 tracks shaft movements continuously. Variations detected by 330104-00-16-05-02-00 indicate misalignment, imbalance, or lubrication loss, allowing maintenance teams to intervene before bearing damage occurs.

Operation in Extreme Temperatures with FluidLoc Cable
330104-00-16-05-02-00 functions from -52°C to +177°C. When paired with FluidLoc cable options, 330104-00-16-05-02-00 prevents fluid ingress along the probe path, enabling safe installation in petrochemical, offshore, and power generation facilities for continuous automated monitoring.

Specifications

Competitive Advantage

Probe-to-Cable Locking with 330 N Pull Force
330104-00-16-05-02-00 uses TipLoc and CableLoc designs to attach the probe and cable with a 330 N pull force. This ensures 330104-00-16-05-02-00 remains securely connected on turbines, compressors, and motors exposed to continuous vibration, reducing signal loss in automated monitoring systems.

50 Ω Output for Precise Shaft Measurement
The 330104-00-16-05-02-00 delivers a 50 Ω output signal with low supply sensitivity. By providing proportional readings under varying voltage conditions, 330104-00-16-05-02-00 supports linear shaft displacement measurement and meets API 670 requirements for automated vibration and position monitoring.

Direct Replacement of 3300 Series 5 mm and 8 mm Probes
330104-00-16-05-02-00 can replace other 3300 series probes using existing extension cables without bench calibration. This allows 330104-00-16-05-02-00 to restore vibration monitoring systems quickly during maintenance or equipment upgrades.

Operation from -52°C to +177°C with FluidLoc Cable Option
330104-00-16-05-02-00 functions in extreme temperatures from -52°C to +177°C. When paired with FluidLoc cable options, 330104-00-16-05-02-00 prevents fluid migration along the cable path, enabling long-term operation near oil, chemical, or gas process equipment.
