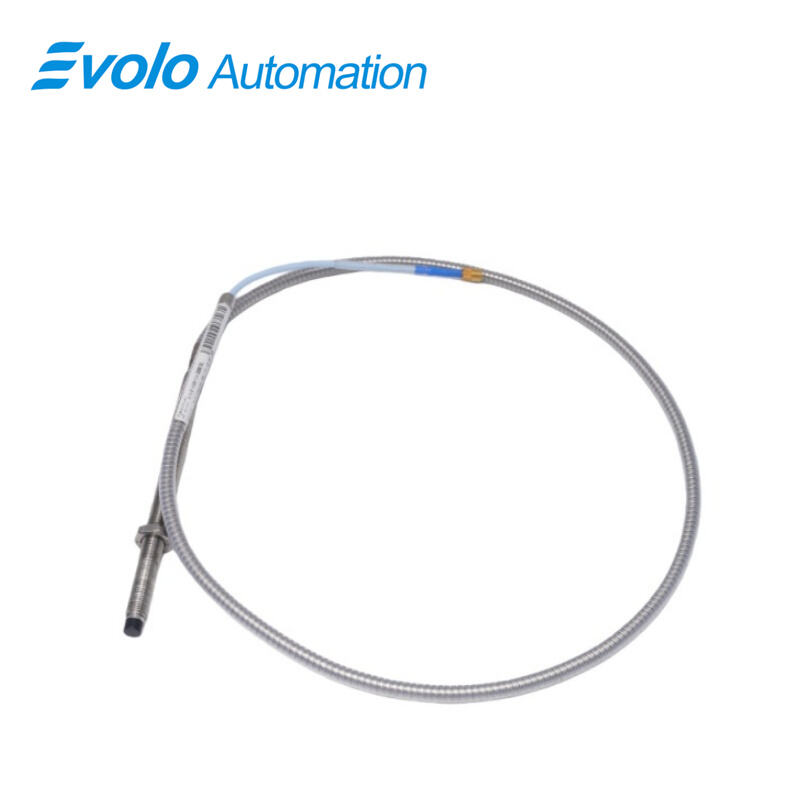

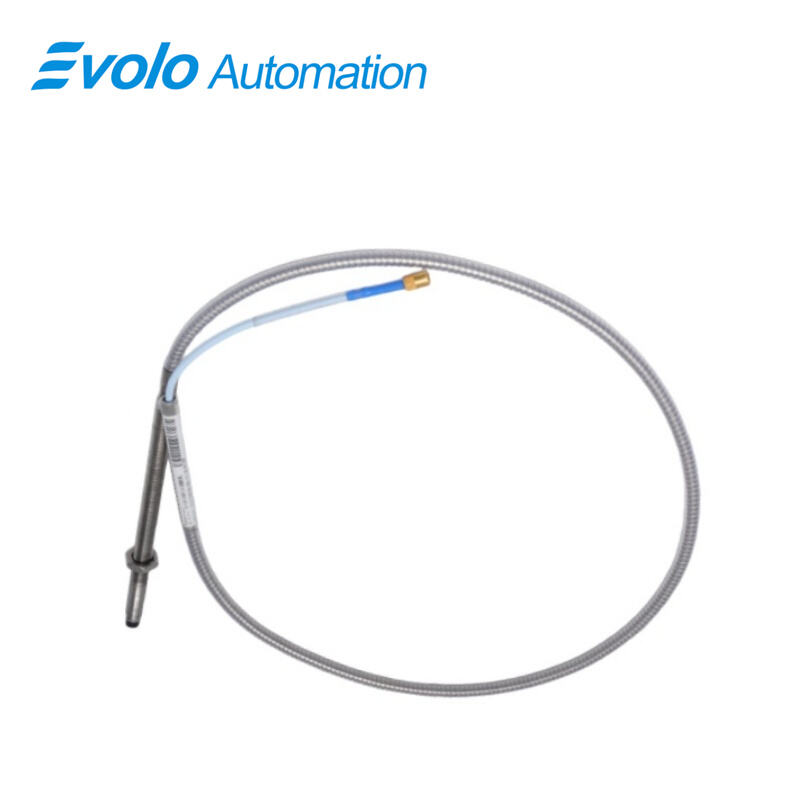

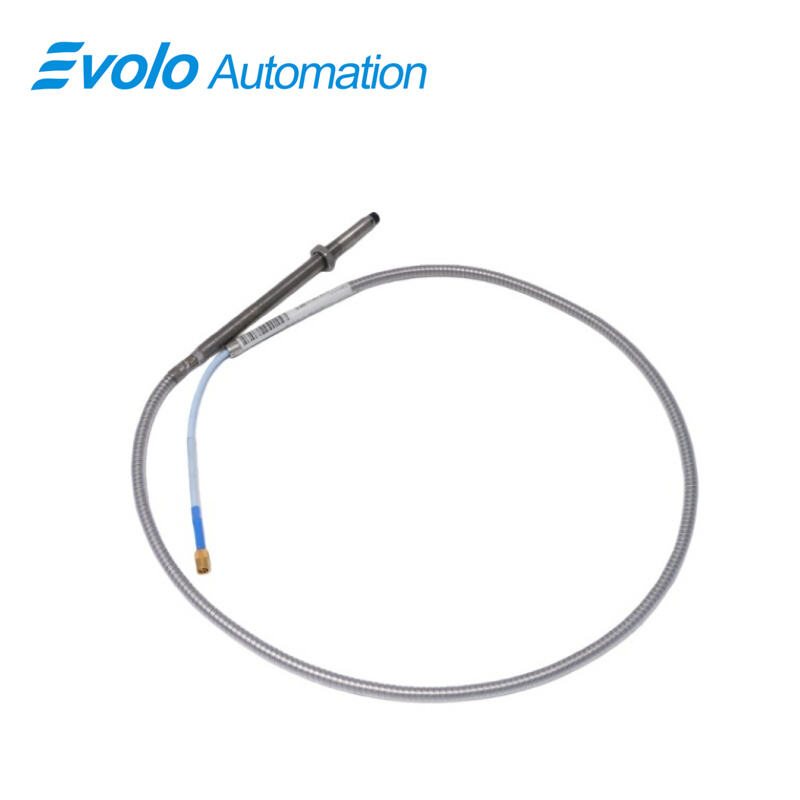

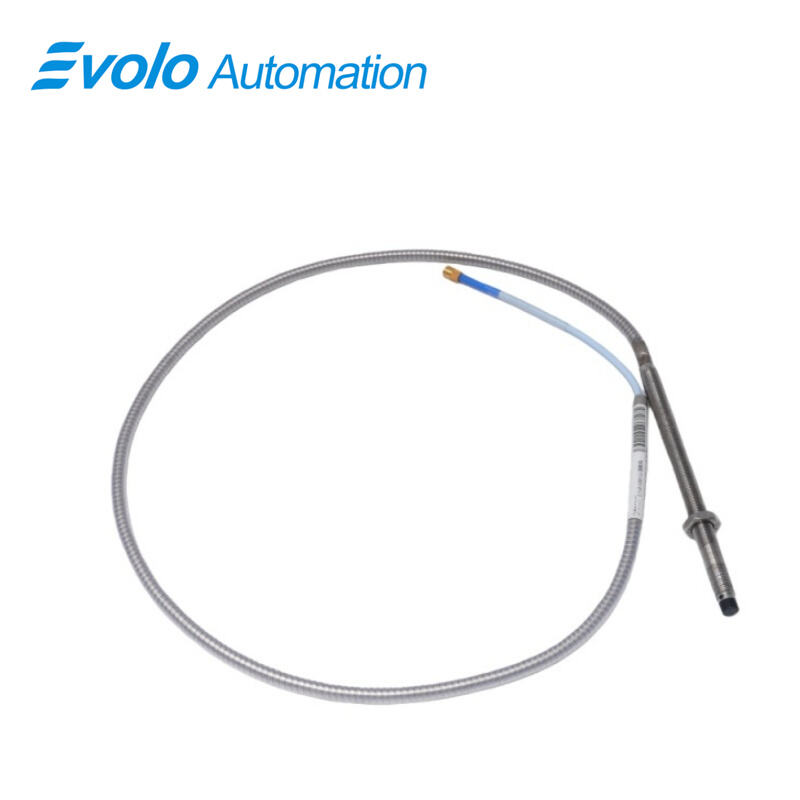

330104-00-15-10-02-00 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330104-00-15-10-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330104-00-15-10-02-00 3300 XL 8 mm Proximity Probe is a high-precision eddy-current transducer system designed for both static position and dynamic vibration measurements on fluid-film bearing machinery. With a total length of 1.0 meter (3.3 feet) and overall case length of 150 mm, this probe accommodates installations requiring extended reach while maintaining linear accuracy across its 2 mm (80 mils) measurement range. The system features a M10x1 probe thread, a Miniature ClickLoc connector, and standard extension cable, ensuring mechanical stability and electrical integrity under harsh industrial conditions. Its operating temperature range from -52°C to +177°C (-62°F to +350°F) and supply sensitivity below 2 mV per volt change guarantee high performance in extreme environments. The probe integrates patented TipLoc and CableLoc designs for robust tip attachment and cable pull strength of 330 N (75 lbf), reducing maintenance needs. Optional FluidLoc cables prevent oil and fluid leakage through the probe cable. Fully compliant with API 670 standards, the 3300 XL 8 mm system supports complete interchangeability with 3300 XL, non-XL 3300 series, and 5 mm probes, enabling flexible upgrades and replacements. This advanced design delivers superior reliability, precise measurements, and long-term durability in critical machinery monitoring applications.

Applications

1. Vibration Monitoring on Large Bearings
Ideal for fluid-film bearing machines, the probe captures high-fidelity vibration data across its 2 mm linear range, enabling early fault detection and predictive maintenance.

2. Position Sensing on Rotating Shafts
Provides accurate static position measurements on shafts with tight mounting requirements, supporting machinery alignment and rotor clearance control.

3. Keyphasor Reference and Speed Measurement
Generates precise Keyphasor signals for phase reference in rotordynamics analysis and high-speed rotating equipment monitoring.

4. Harsh Environment Installations
Operates in temperatures from -52°C to +177°C (-62°F to +350°F), suitable for extreme industrial environments including compressors, turbines, and pumps.

5. Retrofitting and Component Interchange
Backward compatible with other 3300 series probes and extension cables, facilitating system upgrades without requiring full component replacement.

Specifications

Competitive Advantage

1. Extended Reach Design
The 150 mm overall case and 1-meter system length allow installation in deep or obstructed machinery housings without compromising accuracy.

2. High Mechanical Reliability
TipLoc and CableLoc patented designs ensure the probe tip remains securely bonded and the cable withstands 330 N (75 lbf) pull forces, reducing maintenance frequency.

3. Extreme Temperature and Environmental Tolerance
Rated for -52°C to +177°C (-62°F to +350°F), the probe maintains linearity and output stability even in severe industrial conditions.

4. API 670 Compliance and Interchangeability
Supports standardized vibration and position measurement protocols, and full interchangeability with XL and non-XL 3300 series components, simplifying inventory and maintenance.

5. Optional Fluid-Loc Cable Protection
Prevents fluid leakage through the cable interior, ensuring operational reliability in oil-laden or fluid-exposed machinery environments.
