330104-00-14-10-11-00 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330104-00-14-10-11-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

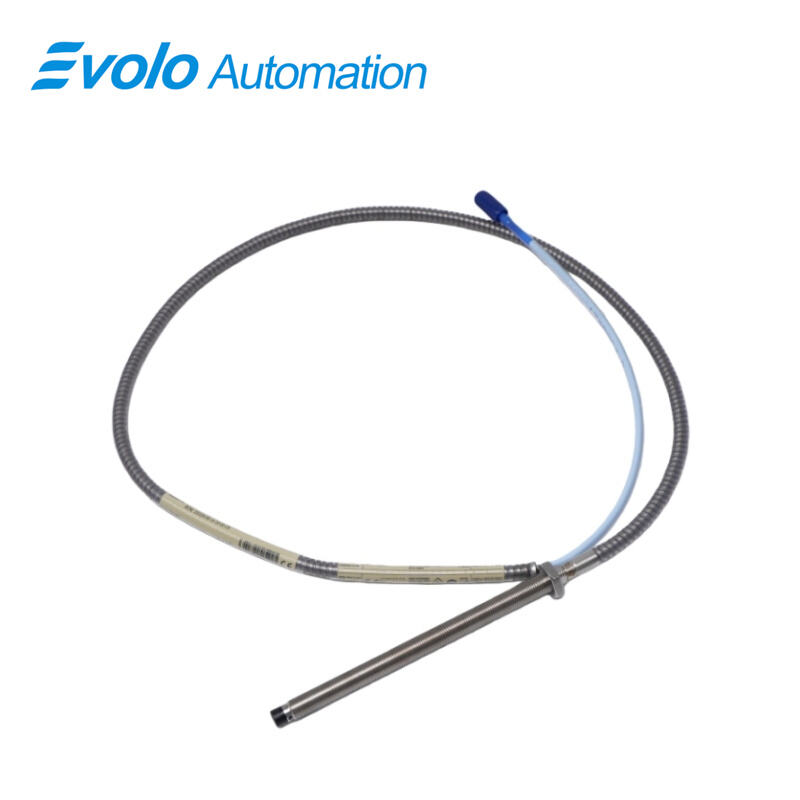

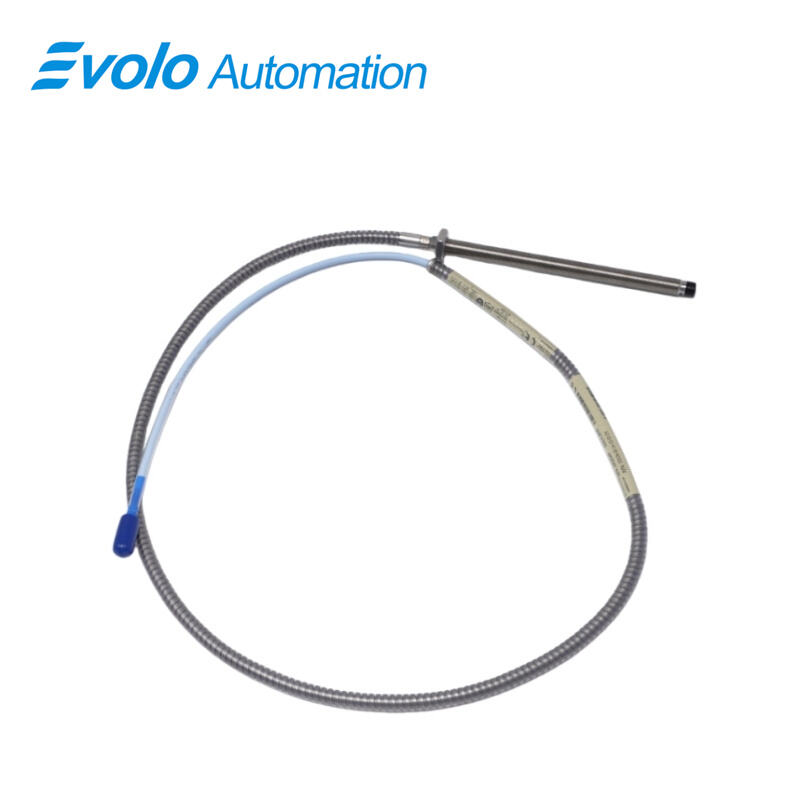

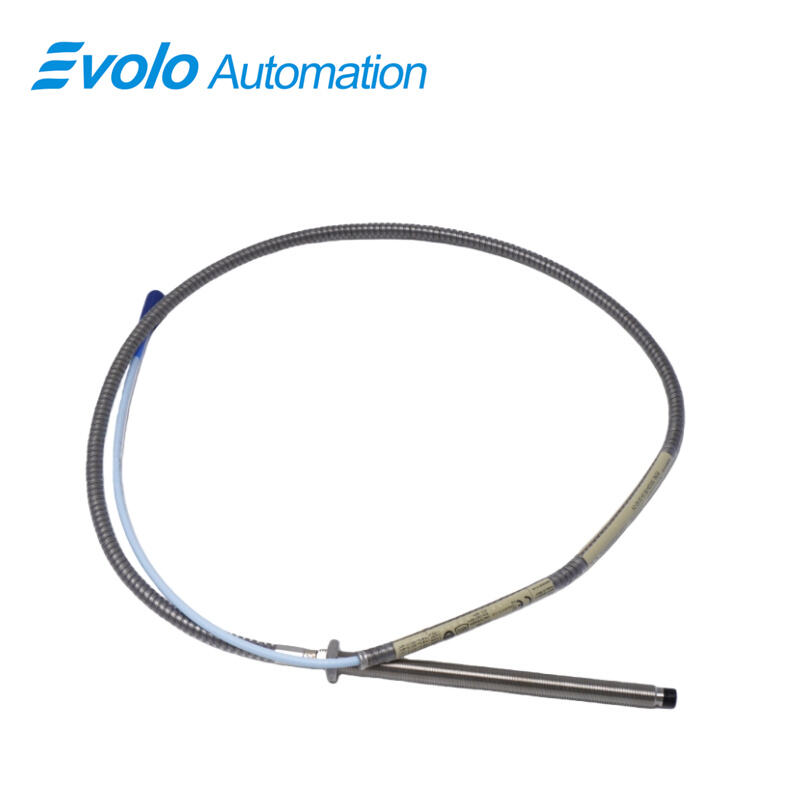

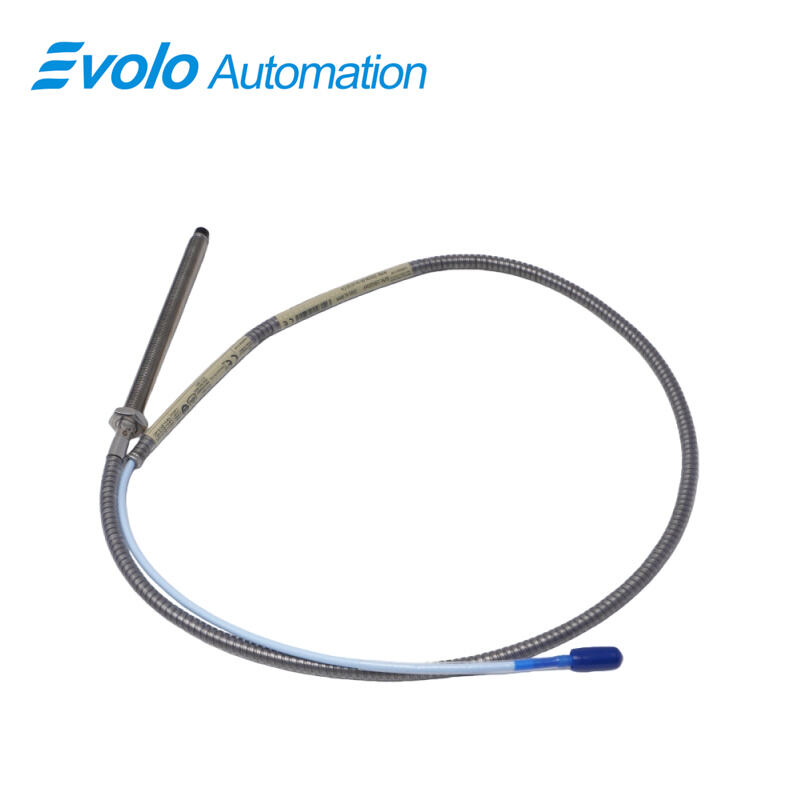

330104-00-14-10-11-00 3300 XL 8 mm Proximity Probe is an eddy current transducer designed for automated vibration and position monitoring on fluid-film bearing machinery. 330104-00-14-10-11-00 provides a linear output proportional to probe-to-target distance, with a 2 mm (80 mils) measurement range, enabling precise detection of static shaft position and dynamic vibration signals for automation systems.

The 330104-00-14-10-11-00 probe has a 140 mm overall case length, M10x1 threaded body with 15 mm maximum engagement, and a 1.0-meter FluidLoc cable with miniature coaxial ClickLoc connector and connector protector. Patented TipLoc and CableLoc designs secure the probe tip and cable with 330 N pull strength, preventing loosening in high-vibration environments.

Operating from −52°C to +177°C, 330104-00-14-10-11-00 supports extreme industrial temperatures. Its 50 Ω output resistance, less than 2 mV/V supply sensitivity, and 69.9 pF/m cable capacitance ensure accurate signal transmission over field wiring from 16–24 AWG. 330104-00-14-10-11-00 is ideal for automated shaft monitoring, Keyphasor reference, and speed measurement in turbines, compressors, pumps, and other rotating industrial equipment.

Applications

Measure Radial Vibration on Turbines and Pumps
The 330104-00-14-10-11-00 3300 XL 8 mm Proximity Probe captures radial shaft vibration on turbines, compressors, and pumps. With a 2 mm (80 mils) linear range and an output directly proportional to probe-to-target distance, 330104-00-14-10-11-00 delivers precise dynamic data to automation systems for detecting rotor imbalance, misalignment, or shaft motion.

Monitor Axial Shaft Position on Rotating Equipment
330104-00-14-10-11-00 measures axial displacement in fluid-film bearings. Its M10x1 threaded probe with 15 mm maximum engagement and 1.0-meter FluidLoc cable provides accurate position data to PLCs or DCS systems, enabling automated shaft position monitoring.

Generate Keyphasor Reference Signals
The 330104-00-14-10-11-00 probe outputs signals suitable for rotor speed and phase reference applications. Its 50 Ω output resistance and less than 2 mV/V supply sensitivity allow automation controllers to calculate real-time rotor speed and phase alignment.

Operate in High-Temperature Industrial Zones
330104-00-14-10-11-00 performs in extreme temperatures from −52°C to +177°C, allowing continuous automated monitoring of rotating machinery without downtime or sensor replacement.

Specifications

Competitive Advantage

Robust Tip and Cable Attachment
330104-00-14-10-11-00 features TipLoc and CableLoc designs, providing 330 N pull strength to secure the probe tip and cable in high-vibration environments.

Accurate Signal Transmission
The 330104-00-14-10-11-00 probe maintains precise output with 50 Ω resistance, <2 mV/V supply sensitivity, and 69.9 pF/m cable capacitance, ensuring clean signals to automation and monitoring systems.

Fast Installation in Automation Systems
330104-00-14-10-11-00 has a 140 mm overall case, M10x1 thread, and ClickLoc connector with protector, enabling quick installation in tight spaces and reducing setup time.

Supports Real-Time Shaft and Vibration Monitoring
330104-00-14-10-11-00 delivers both static and dynamic measurements to PLCs, DCS, and vibration monitoring systems, enabling automated machine protection and performance tracking in industrial rotating equipment.
