330104-00-12-10-11-00 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330104-00-12-10-11-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

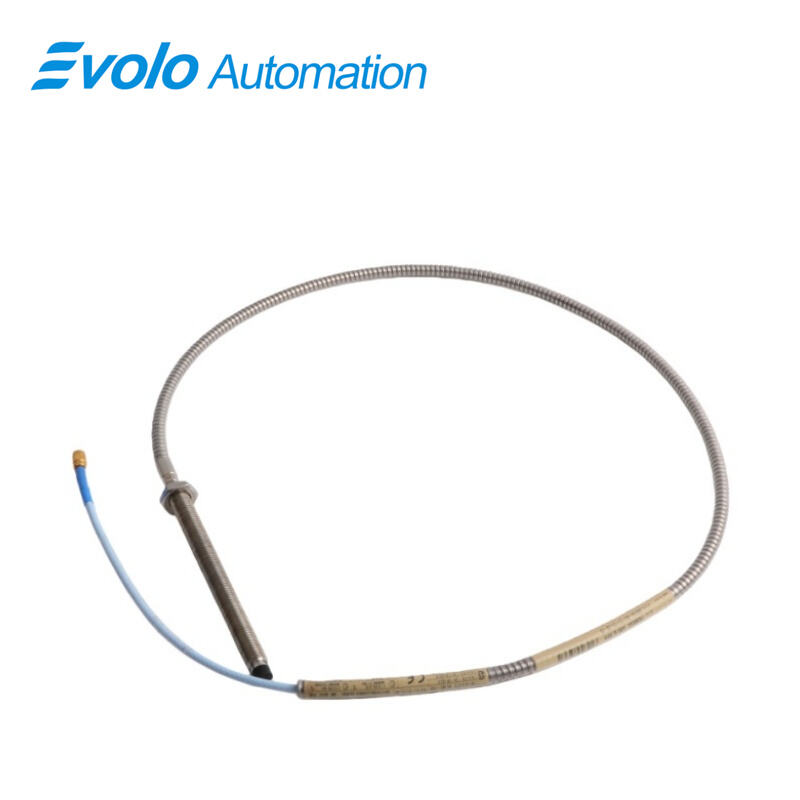

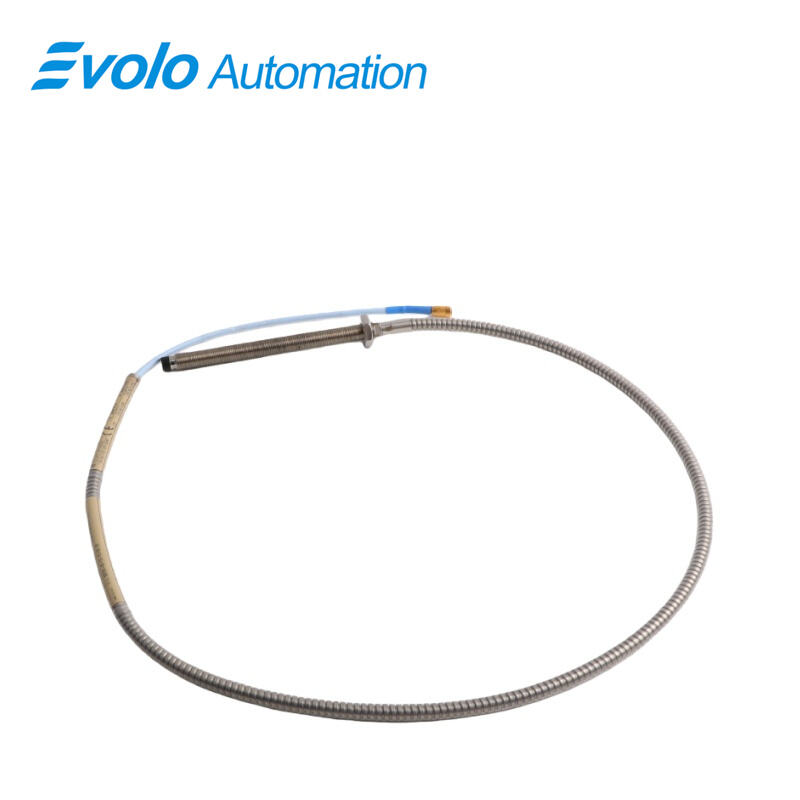

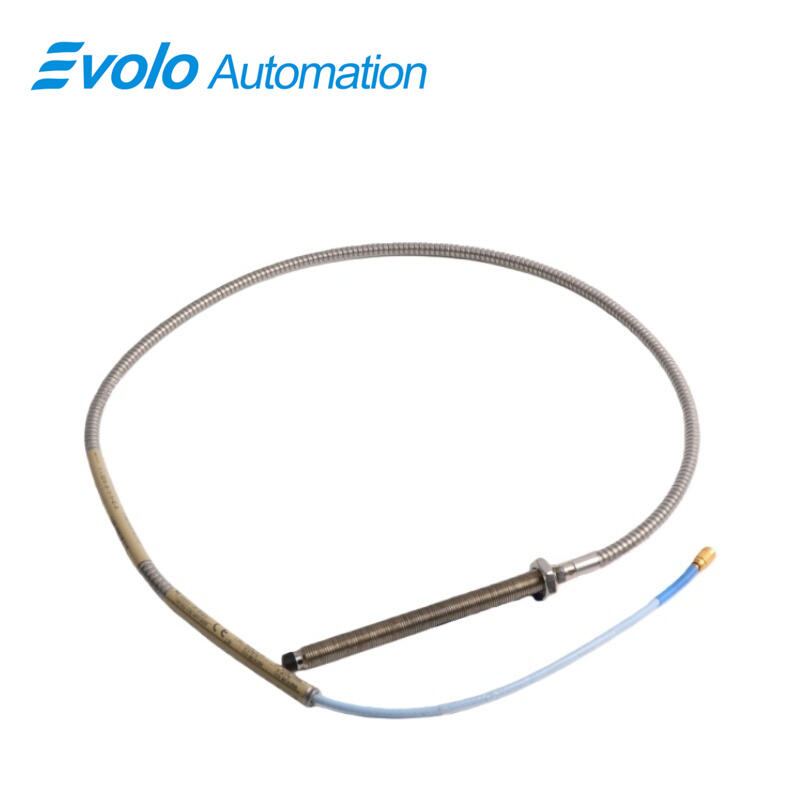

330104-00-12-10-11-00 3300 XL 8 mm Proximity Probe is an eddy current transducer designed for automated vibration and position monitoring on fluid-film bearing machinery. 330104-00-12-10-11-00 delivers a linear output proportional to the probe-to-target distance, with a 2 mm (80 mils) range, enabling precise measurement of static shaft position and dynamic vibration signals for automation systems.

The 330104-00-12-10-11-00 probe has a 120 mm overall case length, M10x1 threaded body with 15 mm maximum engagement, and a 1.0-meter FluidLoc cable with miniature coaxial ClickLoc connector and connector protector. Patented TipLoc and CableLoc designs secure the probe tip and cable with 330 N pull strength, preventing loosening in high-vibration environments.

Operating from −52°C to +177°C, 330104-00-12-10-11-00 supports extreme temperature applications, while its 50 Ω output resistance and less than 2 mV/V supply sensitivity maintain accurate signal transmission. The probe’s 69.9 pF/m cable capacitance and field wiring compatibility from 16–24 AWG make 330104-00-12-10-11-00 ideal for automated monitoring, Keyphasor reference, and speed measurement in turbines, compressors, pumps, and motor-driven industrial equipment.

Applications

Measure Shaft Radial Vibration on Rotating Machinery
The 330104-00-12-10-11-00 3300 XL 8 mm Proximity Probe monitors radial vibration on turbines, compressors, and pumps. With a 2 mm (80 mils) linear range and an output directly proportional to probe-to-target distance, 330104-00-12-10-11-00 provides automation systems with precise dynamic data to detect imbalance, misalignment, or mechanical looseness.

Track Axial Position in Fluid-Film Bearings
330104-00-12-10-11-00 captures axial shaft displacement on pumps and motors. The M10x1 threaded probe and 15 mm maximum engagement ensure secure mounting, while the 1.0-meter FluidLoc cable and ClickLoc connector transmit accurate signals to DCS or PLC systems for automated position monitoring.

Generate Keyphasor Signals for Rotor Speed Measurement
The 330104-00-12-10-11-00 probe outputs signals suitable for Keyphasor and phase reference measurements. Its 50 Ω output resistance and less than 2 mV/V supply sensitivity allow automation controllers to calculate rotor speed and phase alignment in real time.

Monitor Dynamic Motion in High-Temperature Environments
Operating from −52°C to +177°C, 330104-00-12-10-11-00 supports extreme temperature applications. Automation systems can continuously track machinery motion without sensor replacement or downtime.

Specifications

Competitive Advantage

Rugged Probe and Cable Design
330104-00-12-10-11-00 features TipLoc and CableLoc designs, providing 330 N pull strength to secure the probe tip and cable, reducing field maintenance and ensuring reliable operation in high-vibration industrial environments.

High-Accuracy Signal Transmission
The 330104-00-12-10-11-00 probe maintains clean signal output with 50 Ω resistance, <2 mV/V supply sensitivity, and 69.9 pF/m cable capacitance, allowing precise vibration and position data delivery to automation monitoring systems.

Easy Installation in Automation Systems
With a 120 mm overall case length, M10x1 thread, and ClickLoc connector with protector, 330104-00-12-10-11-00 can be installed quickly in tight spaces, reducing automation setup time.

Supports Real-Time Condition Monitoring
330104-00-12-10-11-00 enables continuous dynamic and static measurements in rotating equipment, feeding real-time data to PLCs, DCS, and vibration monitoring systems for automated machine protection and performance tracking.
