330104-00-12-10-02-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330104-00-12-10-02-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

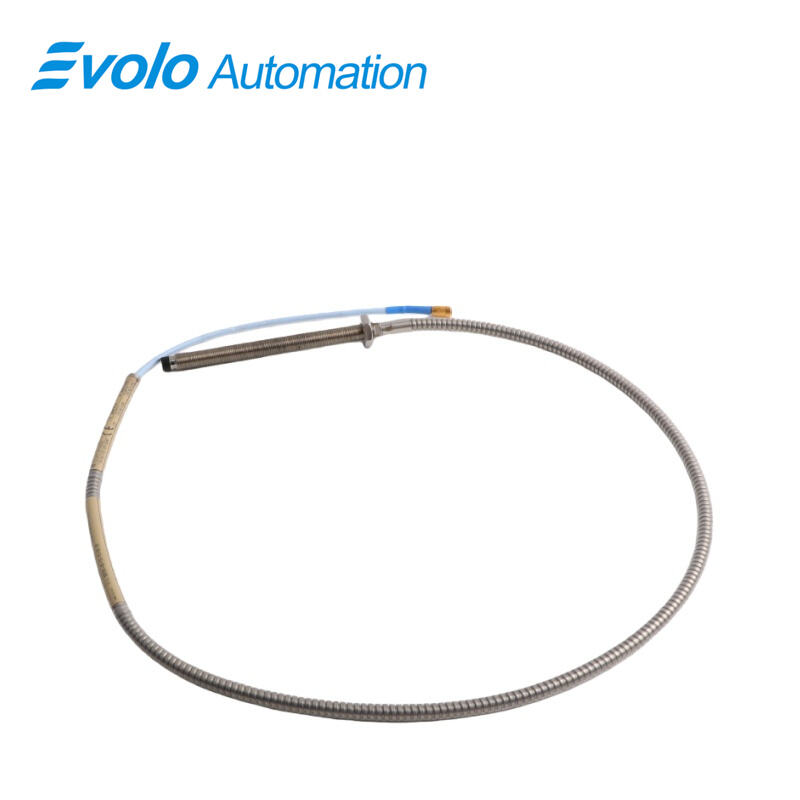

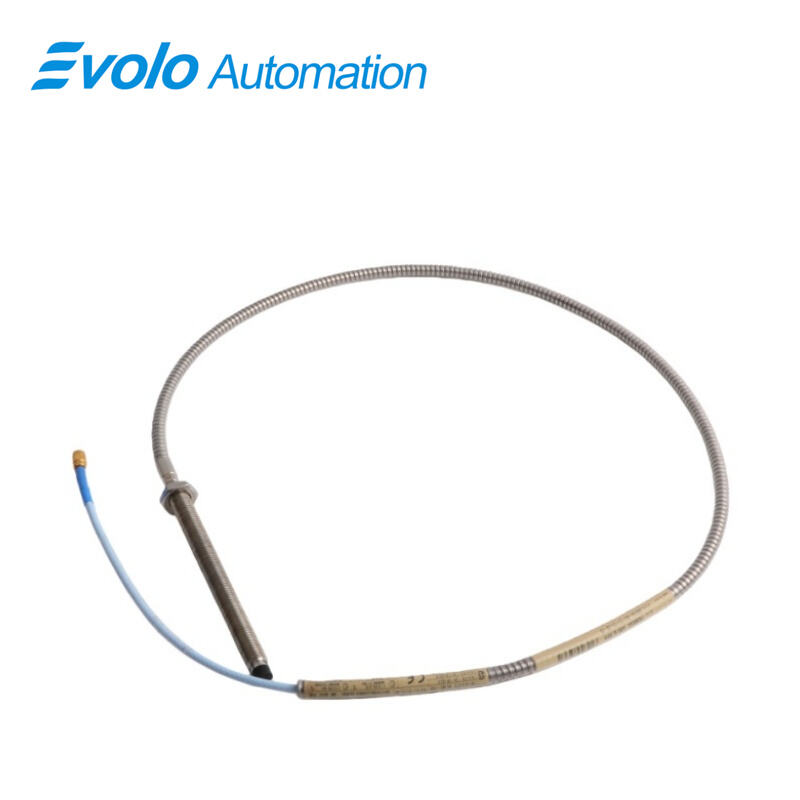

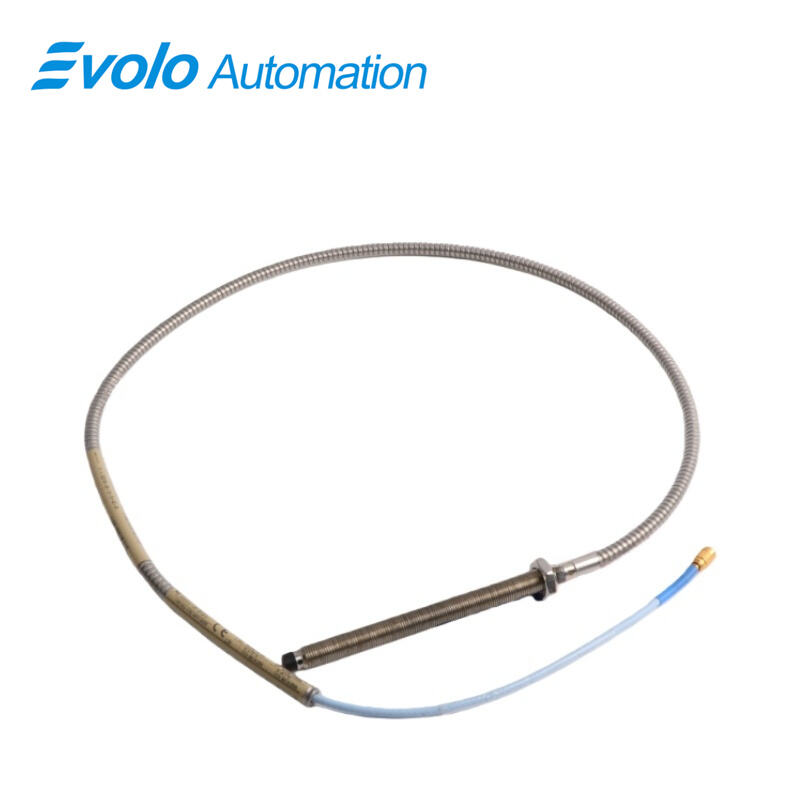

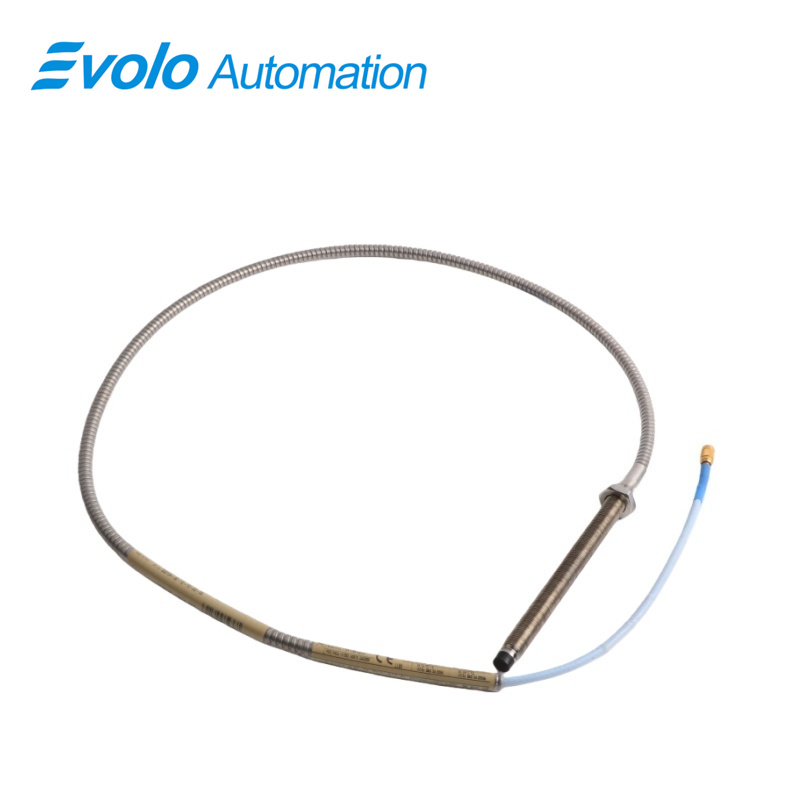

The 330104-00-12-10-02-05 3300 XL 8 mm Proximity Probe is an 8 mm diameter transducer for automated machinery monitoring. The 330104-00-12-10-02-05 features an M10 x 1 threaded case with 15 mm maximum engagement and 120 mm overall case length. Its 2 mm linear range and 50 Ω output resistance provide precise measurement of shaft position and vibration. The 330104-00-12-10-02-05 includes a 1.0 m miniature coaxial ClickLoc cable with 69.9 pF/m capacitance and supports 0.2–1.5 mm² field wiring. Operating from -52°C to +177°C, the 330104-00-12-10-02-05 3300 XL 8 mm Proximity Probe is ideal for fluid-film bearing machines, delivering Keyphasor signals, zero-speed detection, and axial or radial position measurement. CSA, ATEX, and IECEx approvals allow safe use in industrial automation environments. The 330104-00-12-10-02-05 integrates seamlessly into 3300 XL systems, supporting precise vibration and position monitoring in tight mounting spaces.

Applications

Measure Radial Shaft Vibration with the 330104-00-12-10-02-05
Install the 330104-00-12-10-02-05 3300 XL 8 mm Proximity Probe on rotating shafts to monitor radial vibration. Its 2 mm linear range and 50 Ω output resistance enable precise detection for automated control loops.

Monitor Axial Shaft Position Using the 330104-00-12-10-02-05
The 330104-00-12-10-02-05 measures axial displacement on fluid-film bearings with a 1.0 mm recommended gap. The M10 x 1 threaded case with 15 mm maximum engagement ensures secure probe mounting in tight spaces.

Provide Keyphasor Signals with the 330104-00-12-10-02-05
Integrate the 330104-00-12-10-02-05 into automation systems to generate Keyphasor reference signals. Its miniature coaxial ClickLoc cable with 69.9 pF/m capacitance maintains signal accuracy over 1.0 m distance.

Detect Zero-Speed Events Using the 330104-00-12-10-02-05
The 330104-00-12-10-02-05 3300 XL 8 mm Proximity Probe outputs zero-speed signals, allowing control systems to monitor and react to machine rotation stoppage accurately, even in temperatures from -52°C to +177°C.

Specifications

Competitive Advantage

High-Precision Measurement with the 330104-00-12-10-02-05
The 330104-00-12-10-02-05 delivers 2 mm linear range and 50 Ω output, providing accurate radial and axial readings for automated monitoring systems.

Operate in Extreme Temperatures Using the 330104-00-12-10-02-05
The 330104-00-12-10-02-05 functions from -52°C to +177°C, allowing installation in high-heat or cold industrial environments.

Quick Integration into Automation Loops with the 330104-00-12-10-02-05
The 1.0 m miniature coaxial ClickLoc cable of the 330104-00-12-10-02-05 enables fast installation and secure connection to monitoring systems.

Use in Hazardous Areas with the 330104-00-12-10-02-05
CSA, ATEX, and IECEx approvals allow the 330104-00-12-10-02-05 to operate safely in flammable or humid environments.

Support Tight Installation Spaces with the 330104-00-12-10-02-05
The 120 mm overall case length and M10 x 1 thread of the 330104-00-12-10-02-05 allow installation in compact machinery and confined areas.
