Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330104-00-11-10-01-00 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
00 mm |
|
Overall Case Length Option(Minimum case length): |
110 mm |
|
Total Length Option: |
1.0 meter (3.3 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector with connector protector, standard cable |
|
Agency Approval Option: |
Not required |
|
Probe Case Thread: |
M10x1 |
|
Maximum Length of Thread Engagement: |
15 mm |
|
Dimension: |
1.8x1.6x121cm |
|
Weight: |
0.15kg |
Description

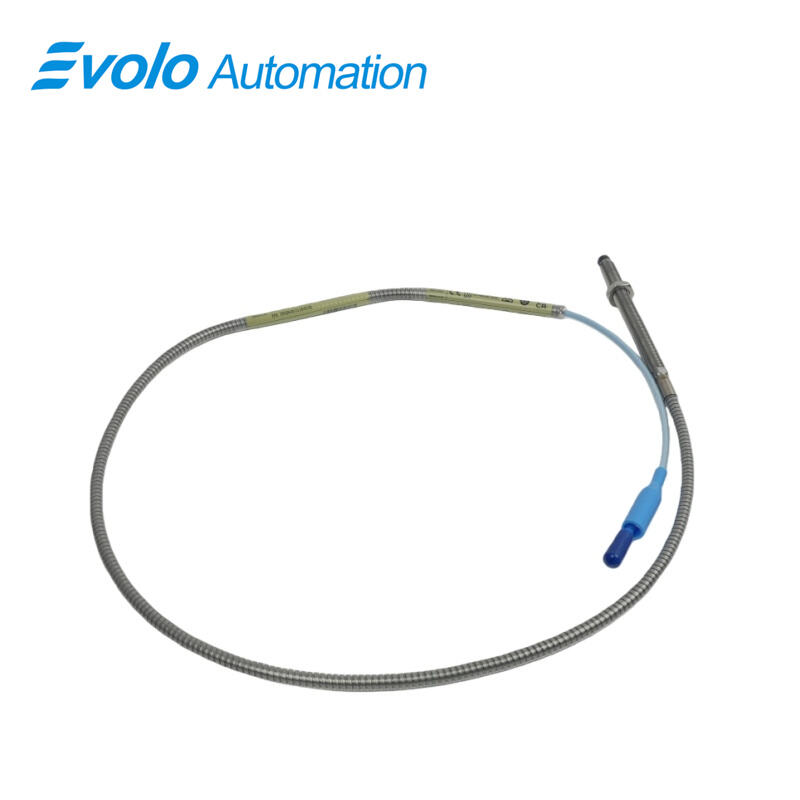

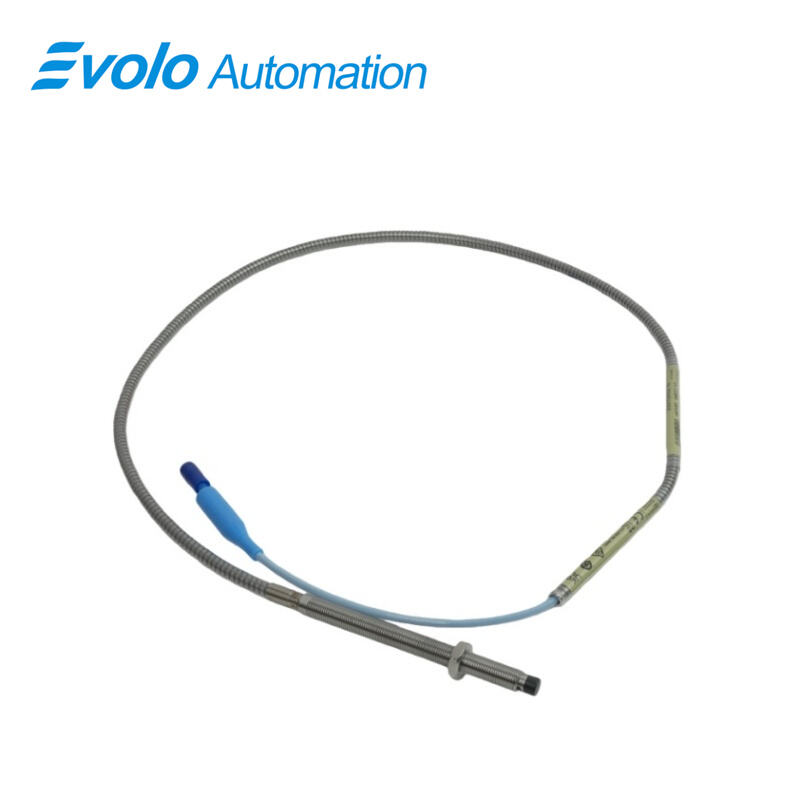

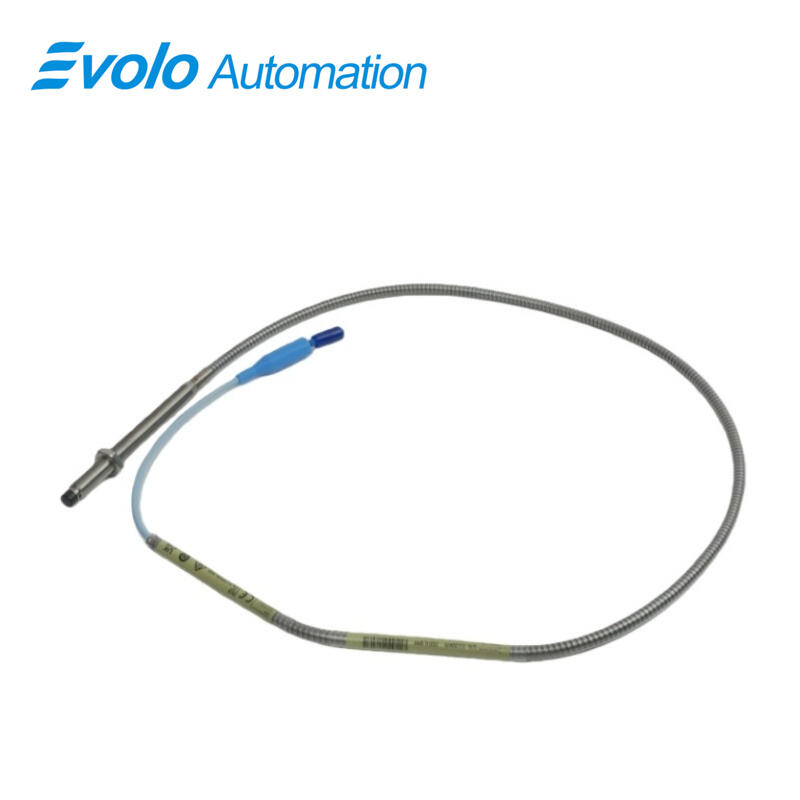

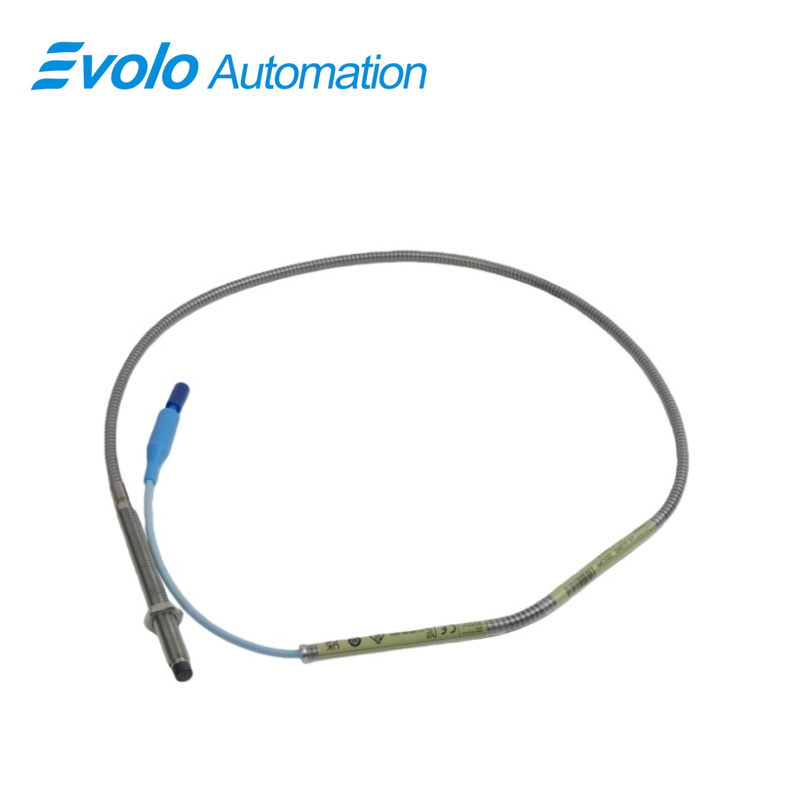

The 330104-00-11-10-01-00 3300 XL 8 mm Proximity Probe is a 1.0-meter (3.3 feet) eddy current probe with an M10x1 case thread and maximum thread engagement of 15 mm. The 330104-00-11-10-01-00 3300 XL 8 mm Proximity Probe uses a miniature coaxial ClickLoc connector with connector protector and standard cable, supporting field wiring from 0.2 to 1.5 mm² (16–24 AWG). Its linear range of 2 mm (80 mils) and output resistance of 50 Ω allow precise position and vibration measurements, while extension cable capacitance of 69.9 pF/m ensures accurate signal transmission. Operating from -52°C to +177°C (-62°F to +350°F), the 330104-00-11-10-01-00 3300 XL 8 mm Proximity Probe delivers reliable data for fluid-film bearing monitoring, Keyphasor speed measurement, and automated machinery diagnostics in industrial systems.
Applications
Measure shaft vibration in turbines and pumps
The 330104-00-11-10-01-00 3300 XL 8 mm Proximity Probe captures dynamic vibration signals with its 2 mm linear range and 50 Ω output, enabling precise monitoring of rotating equipment.
Detect shaft position and alignment
Use the 330104-00-11-10-01-00 3300 XL 8 mm Proximity Probe to measure shaft displacement in fluid-film bearings. Its M10x1 thread and 15 mm maximum engagement ensure secure mounting and accurate position readings.
Provide Keyphasor signals for speed measurement
The 330104-00-11-10-01-00 3300 XL 8 mm Proximity Probe delivers reliable Keyphasor pulses, supporting speed and phase monitoring in automated control systems.
Monitor compact machinery with field wiring flexibility
The 330104-00-11-10-01-00 3300 XL 8 mm Proximity Probe supports 16–24 AWG field wiring, enabling integration in tight or restricted installation spaces without compromising measurement accuracy.
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Competitive Advantage
Maintain accurate readings under extreme temperatures
The 330104-00-11-10-01-00 3300 XL 8 mm Proximity Probe operates from -52°C to +177°C (-62°F to +350°F), delivering precise position and vibration signals in high-temperature or low-temperature industrial environments.
Ensure secure probe installation
With M10x1 case thread and 15 mm maximum engagement, the 330104-00-11-10-01-00 3300 XL 8 mm Proximity Probe mounts firmly on machinery, preventing movement and maintaining signal accuracy.
Deliver high-fidelity signals with controlled cable parameters
The 330104-00-11-10-01-00 3300 XL 8 mm Proximity Probe features extension cable capacitance of 69.9 pF/m and output resistance of 50 Ω, ensuring minimal signal distortion over 1.0 m cable length.
Secure connections with ClickLoc connector and protector
The 330104-00-11-10-01-00 3300 XL 8 mm Proximity Probe uses a miniature coaxial ClickLoc connector with protector, preventing accidental disconnects during automated machinery operation.
