330104-00-10-10-11-00 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330104-00-10-10-11-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

330104-00-10-10-11-00 3300 XL 8 mm Proximity Probe is an eddy current sensor designed for automated vibration and position monitoring on fluid-film bearing machinery. 330104-00-10-10-11-00 provides a linear output directly proportional to probe-to-target distance, with a 2 mm (80 mils) measurement range, enabling precise detection of static shaft position and dynamic vibration for automation systems.

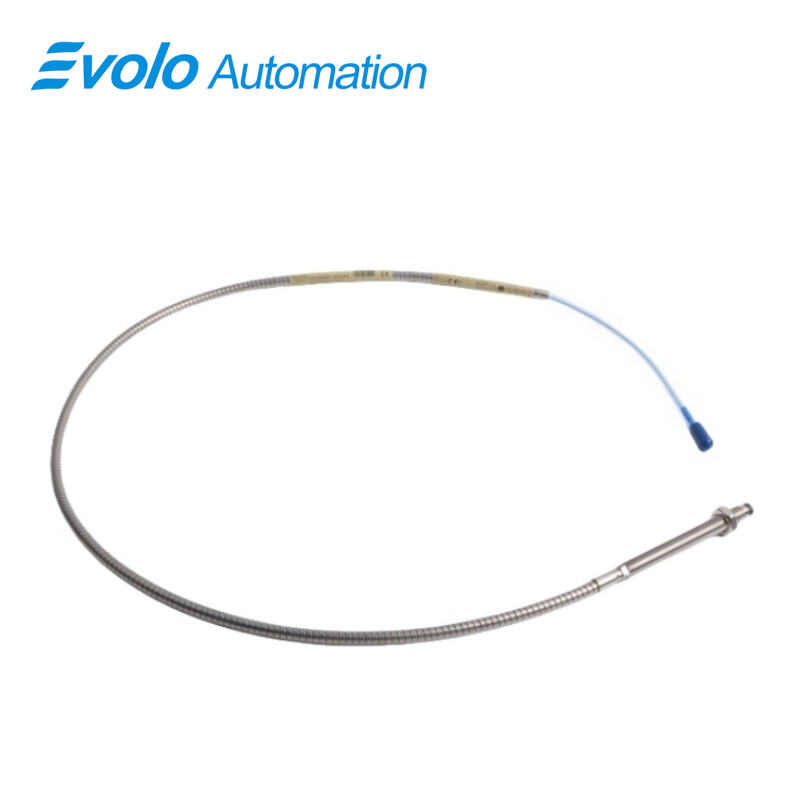

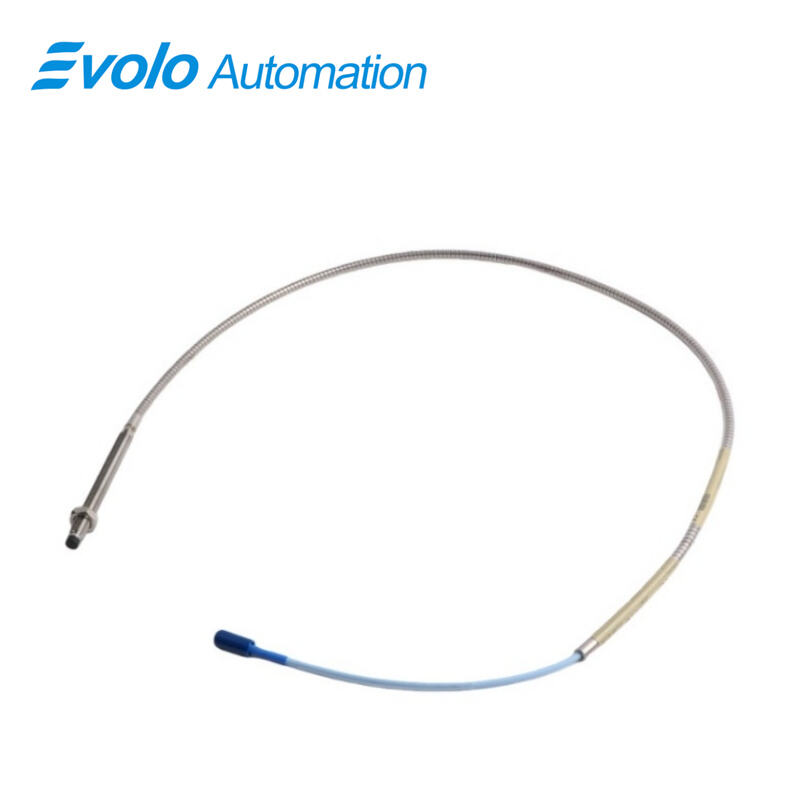

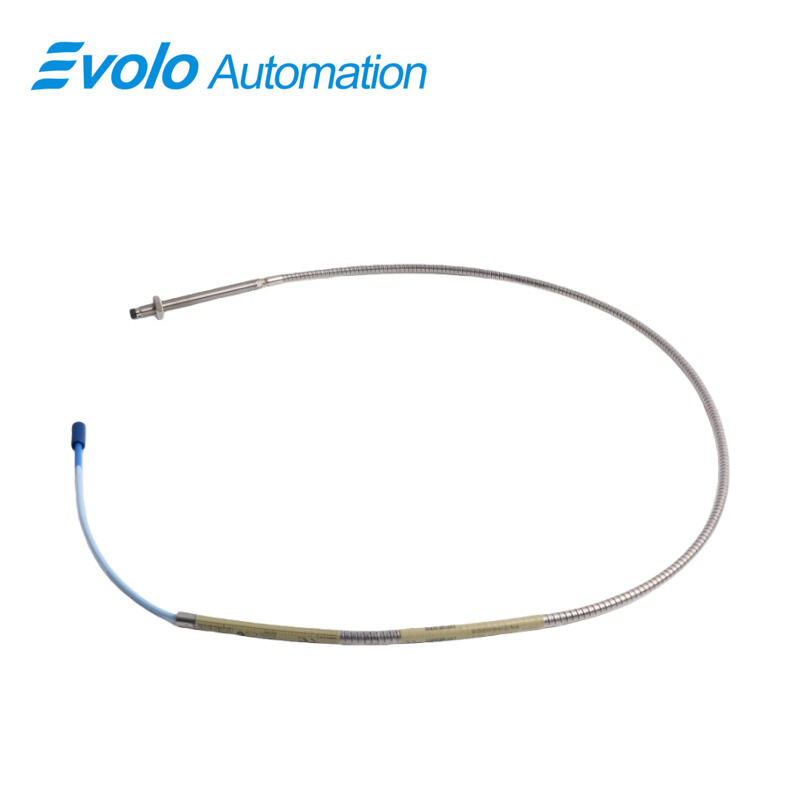

The 330104-00-10-10-11-00 probe features a 100 mm overall case length, M10x1 threaded body with 15 mm maximum engagement, and a 1.0-meter FluidLoc cable with miniature coaxial ClickLoc connector and connector protector. Patented TipLoc and CableLoc designs secure the probe tip and cable with 330 N pull strength, preventing loosening in high-vibration environments.

With operating temperatures from −52°C to +177°C, 330104-00-10-10-11-00 supports extreme temperature applications. Its 50 Ω output resistance, less than 2 mV/V supply sensitivity, and 69.9 pF/m cable capacitance ensure accurate signal transmission over field wiring from 16–24 AWG. 330104-00-10-10-11-00 is ideal for automated shaft monitoring, Keyphasor reference, and speed measurement in turbines, compressors, pumps, and other motor-driven industrial equipment.

Applications

Measure Radial Vibration on Rotating Machinery
The 330104-00-10-10-11-00 3300 XL 8 mm Proximity Probe monitors radial vibration on turbines, compressors, and pumps. With a 2 mm (80 mils) linear range and output directly proportional to probe-to-target distance, 330104-00-10-10-11-00 provides automation systems with accurate dynamic data for detecting imbalance, misalignment, or shaft motion.

Monitor Axial Shaft Position
330104-00-10-10-11-00 tracks axial displacement in pumps and motors. Its M10x1 threaded probe and 15 mm engagement allow precise mounting, while the 1.0-meter FluidLoc cable with ClickLoc connector transmits accurate signals to PLCs and DCS systems for automated shaft position monitoring.

Generate Keyphasor Reference Signals
The 330104-00-10-10-11-00 probe outputs clean signals suitable for rotor speed and phase monitoring. Its 50 Ω output resistance and <2 mV/V supply sensitivity allow automation controllers to calculate real-time rotor speed and phase alignment efficiently.

Operate in High-Temperature Industrial Zones
Operating from −52°C to +177°C, 330104-00-10-10-11-00 performs in extreme industrial environments. Automation systems can continuously monitor machinery without sensor replacement during start-up, operation, or shutdown cycles.

Specifications

Competitive Advantage

Robust Tip and Cable Attachment
330104-00-10-10-11-00 incorporates TipLoc and CableLoc designs, securing the probe tip and cable with 330 N pull strength to prevent loosening in high-vibration environments.

High-Accuracy Signal Delivery
The 330104-00-10-10-11-00 probe maintains precise output with 50 Ω resistance, <2 mV/V supply sensitivity, and 69.9 pF/m cable capacitance, ensuring clean signal transmission to automation and monitoring systems.

Quick Installation for Automated Systems
330104-00-10-10-11-00 features a 100 mm case, M10x1 thread, and ClickLoc connector with protector, enabling fast installation in confined spaces and reducing automation setup time.

Support Continuous Real-Time Monitoring
330104-00-10-10-11-00 delivers both static and dynamic measurements to PLCs, DCS, and vibration monitoring systems, allowing automated machine protection and performance tracking in rotating equipment.
