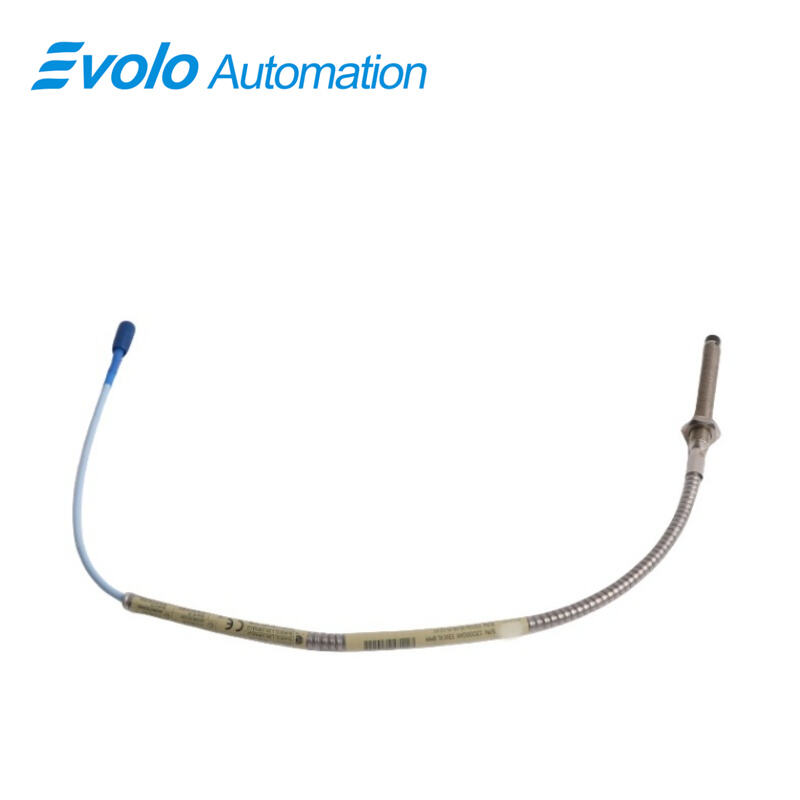

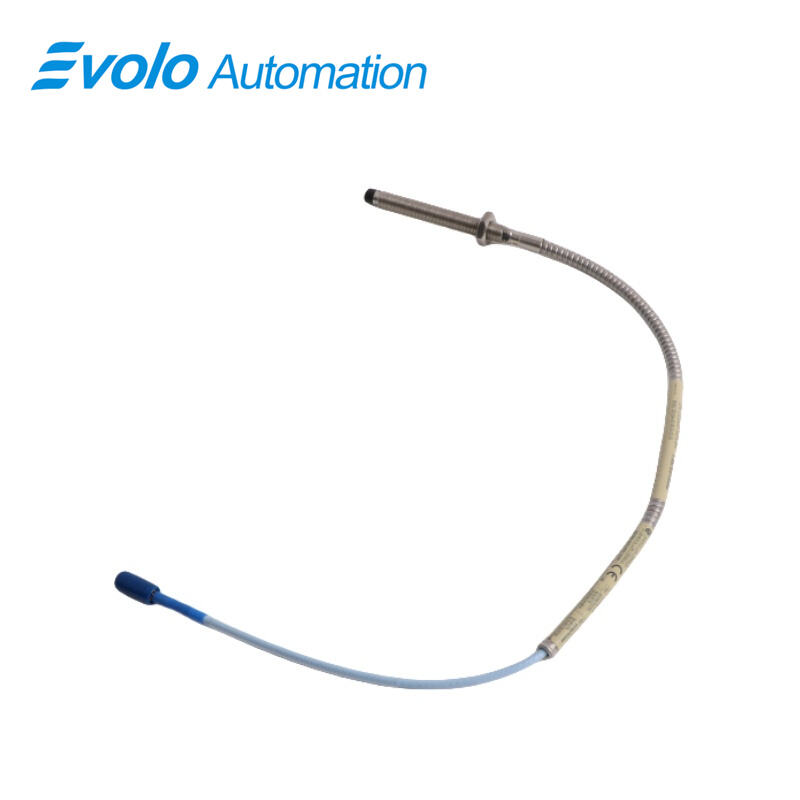

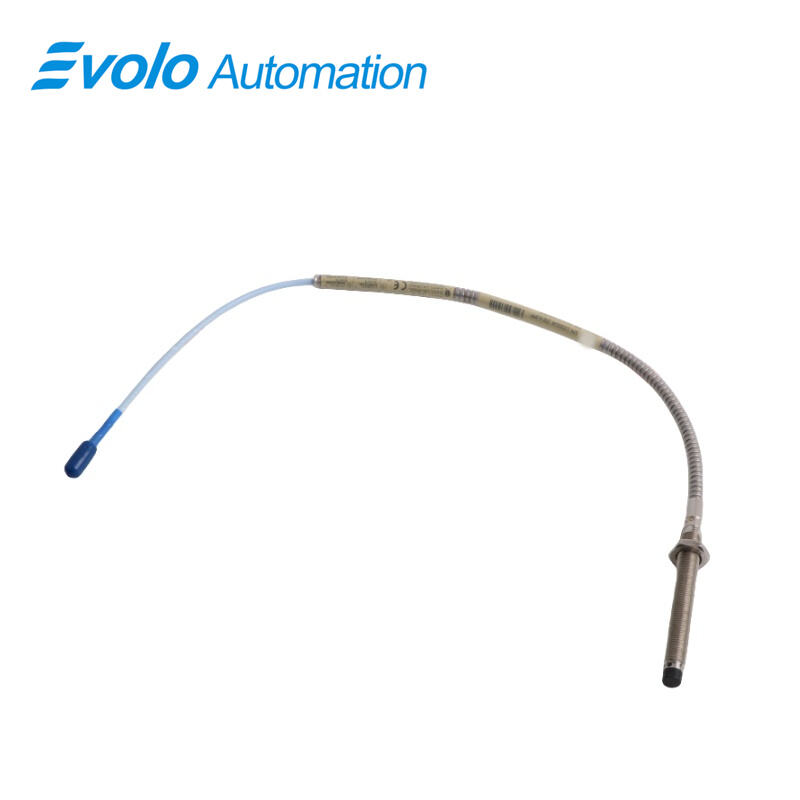

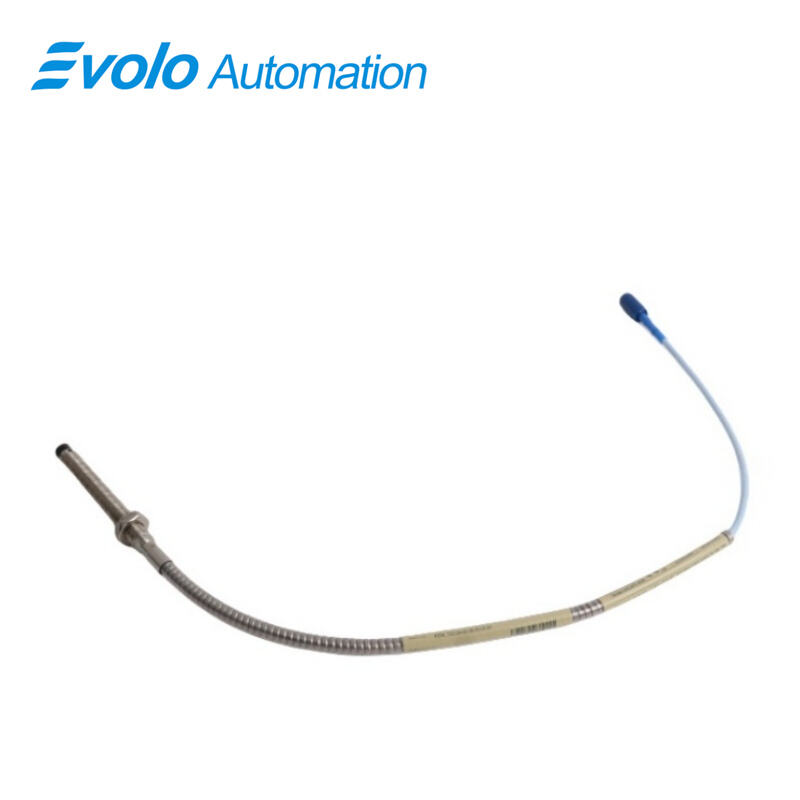

330104-00-08-05-02-00 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330104-00-08-05-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330104-00-08-05-02-00 3300 XL 8 mm Proximity Probe delivers precise distance measurement between the probe tip and conductive surfaces in automated systems. Featuring a 2 mm (80 mils) linear range, 50 Ω output resistance, and 69.9 pF/m extension cable capacitance, the 330104-00-08-05-02-00 provides reliable static position and dynamic vibration readings for fluid-film bearing machines. Its 0.5-meter standard cable and M10x1 threaded probe allow installation in compact spaces, while the miniature ClickLoc connector ensures secure attachment to automation monitoring units. Operating from -52°C to +177°C (-62°F to +350°F), the 330104-00-08-05-02-00 3300 XL 8 mm Proximity Probe supports Keyphasor reference and speed measurement applications. The probe’s TipLoc molded tip and CableLoc cable design deliver 330 N (75 lbf) pull strength, maintaining consistent signal transmission in automated machinery. Optional FluidLoc cables prevent fluid ingress, protecting automated monitoring circuits. With backward compatibility across 3300 XL 5 mm and 8 mm systems, the 330104-00-08-05-02-00 enables quick replacement or upgrades without recalibration, optimizing automated system uptime.

Applications

Measure Shaft Radial Vibration
The 330104-00-08-05-02-00 3300 XL 8 mm Proximity Probe uses its 2 mm (80 mils) linear range and 50 Ω output resistance to monitor radial vibration on fluid-film bearing shafts, capturing dynamic movements for automated condition monitoring systems.

Monitor Axial (Thrust) Position
With precise M10x1 probe threading and 0.5-meter cable, the 330104-00-08-05-02-00 measures axial displacement on flat targets smaller than 15 mm, supporting automated alignment and speed control in industrial machinery.

Keyphasor Reference & Speed Detection
Equipped with ClickLoc connectors and standard cable, the 330104-00-08-05-02-00 3300 XL 8 mm Proximity Probe provides reliable Keyphasor signals for rotational speed measurement and phase synchronization in automation systems.

Compact Installation in Restricted Spaces
The short overall case length of 80 mm and minimal unthreaded length enable the 330104-00-08-05-02-00 to be mounted in tight spaces where larger probes cannot fit, facilitating automated monitoring without major design changes.

Specifications

Competitive Advantage

High Pull-Strength Cable Attachment
The patented CableLoc design secures the probe cable to the probe tip with 330 N (75 lbf) pull strength, ensuring consistent electrical signal in automated machinery under vibration or movement.

Enhanced Probe Tip Bonding
TipLoc molding technology creates a robust bond between probe tip and probe body, maintaining accurate distance-to-voltage conversion in automation measurement systems.

Fluid-Resistant Cable Option
Optional FluidLoc cables prevent oil and liquid ingress, safeguarding automated sensors and data acquisition units from contamination.

Backward Compatibility
The 330104-00-08-05-02-00 3300 XL 8 mm Proximity Probe is interchangeable with other 3300 XL 5 mm and 8 mm systems, enabling upgrades or replacements without recalibration, streamlining automated system maintenance.

Wide Operating Temperature Range
Operating from -52°C to +177°C, the 330104-00-08-05-02-00 supports automation in extreme industrial environments without impacting signal quality.
