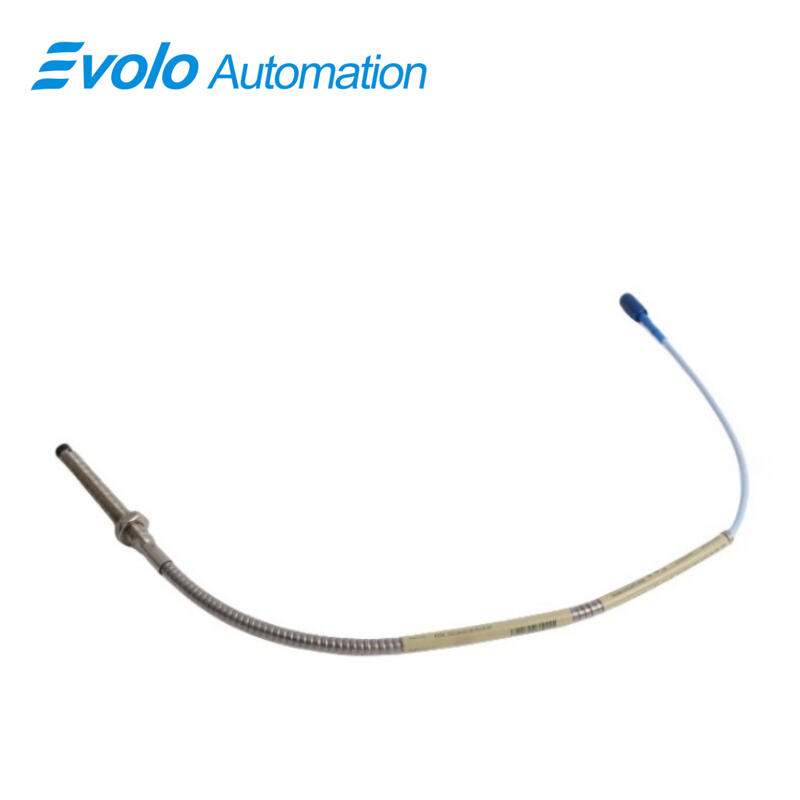

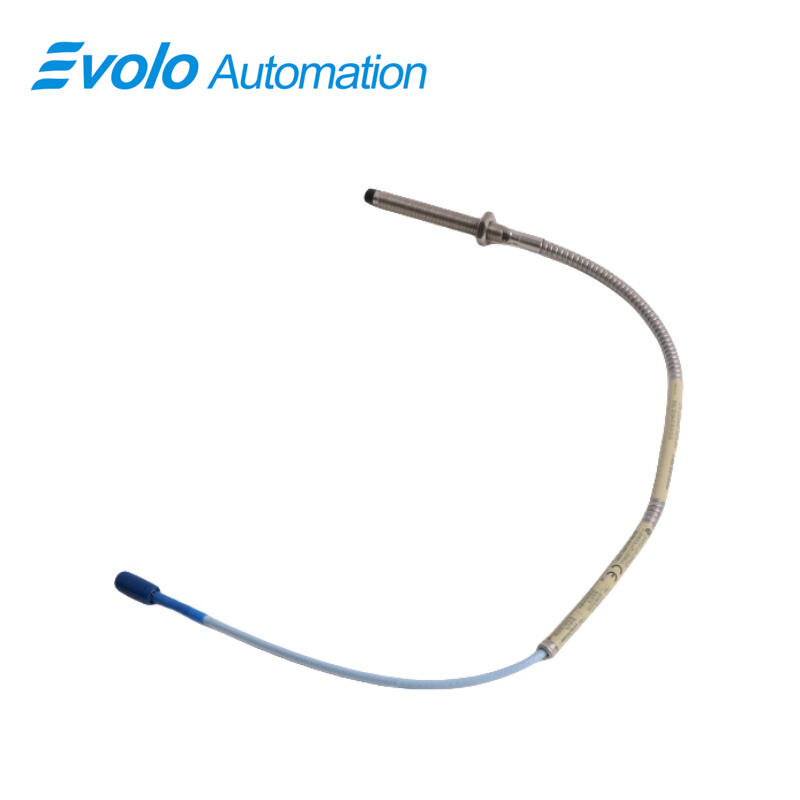

330104-00-08-05-01-05 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330104-00-08-05-01-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330104-00-08-05-01-05 3300 XL 8 mm Proximity Transducer provides a voltage output directly proportional to the distance between the probe tip and the observed conductive surface, supporting both static position and dynamic vibration measurements. With an overall case length of 80 mm, unthreaded length of 0 mm, and a total cable length of 0.5 meters, the 330104-00-08-05-01-05 3300 XL 8 mm is ideal for fluid-film bearing machines. Its M10x1 probe thread with 15 mm maximum engagement, 50 Ω output resistance, and 69.9 pF/m extension cable capacitance ensure precise signal transmission. Operating temperatures from -52°C to +177°C (-62°F to +350°F) and supply sensitivity under 2 mV per volt input change allow consistent performance in industrial conditions. The miniature coaxial ClickLoc connector with protector and standard cable, along with CSA, ATEX, and IECEx approvals, ensures reliable integration. The 330104-00-08-05-01-05 3300 XL 8 mm supports Keyphasor reference signals and speed measurements, offering complete interchangeability with other 3300 series probes and extension cables, and optional FluidLoc cables prevent oil leakage while enhancing operational safety.

Applications

Monitor Vibration on Fluid-Film Bearings
The 330104-00-08-05-01-05 3300 XL 8 mm measures vibrations on fluid-film bearing machines using its 2 mm linear range, 50 Ω output resistance, and 69.9 pF/m extension cable capacitance for precise signal capture.

Measure Shaft Position
The 330104-00-08-05-01-05 3300 XL 8 mm provides accurate static position data with voltage output directly proportional to the distance between the probe tip and the conductive surface, suitable for monitoring rotating shafts.

Capture Keyphasor Reference Signals
The 330104-00-08-05-01-05 3300 XL 8 mm supports Keyphasor signals for speed and phase reference, enabling precise synchronization with machinery.

Short-Range Dynamic Sensing
With a total cable length of 0.5 meters and miniature coaxial ClickLoc connector, the 330104-00-08-05-01-05 3300 XL 8 mm allows flexible short-range dynamic measurements without signal loss.

Specifications

Competitive Advantage

Interchangeable Components
The 330104-00-08-05-01-05 3300 XL 8 mm works with other 3300 series probes, extension cables, and Proximitor sensors, eliminating the need for individual bench calibration.

High Pull Strength Cable Attachment
The patented CableLoc design on the 330104-00-08-05-01-05 3300 XL 8 mm provides 330 N pull strength to secure the probe cable and tip for reliable installation.

Optional FluidLoc Cable Protection
The 330104-00-08-05-01-05 3300 XL 8 mm offers FluidLoc cable options that prevent oil and fluid leaks from machinery, enhancing safety and reducing maintenance.

Wide Temperature and Voltage Range
The 330104-00-08-05-01-05 3300 XL 8 mm operates from -52°C to +177°C and maintains less than 2 mV change per volt input variation, ensuring consistent measurement in harsh environments.

Compact and Precise Probe Design
With an 80 mm case length, 0 mm unthreaded section, and M10x1 thread, the 330104-00-08-05-01-05 3300 XL 8 mm fits limited spaces while providing high-accuracy outputs for automation monitoring.
