Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330104-00-07-90-02-00 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
00 mm |
|
Overall Case Length Option(Minimum case length): |
90 mm |
|
Total Length Option: |
9.0 meters (29.5 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option: |
Not required |
|
Probe Case Thread: |
M10x1 |
|
Maximum Length of Thread Engagement: |
15 mm |
|
Dimension: |
28x26x4cm |
|
Weight: |
0.98kg |
Description

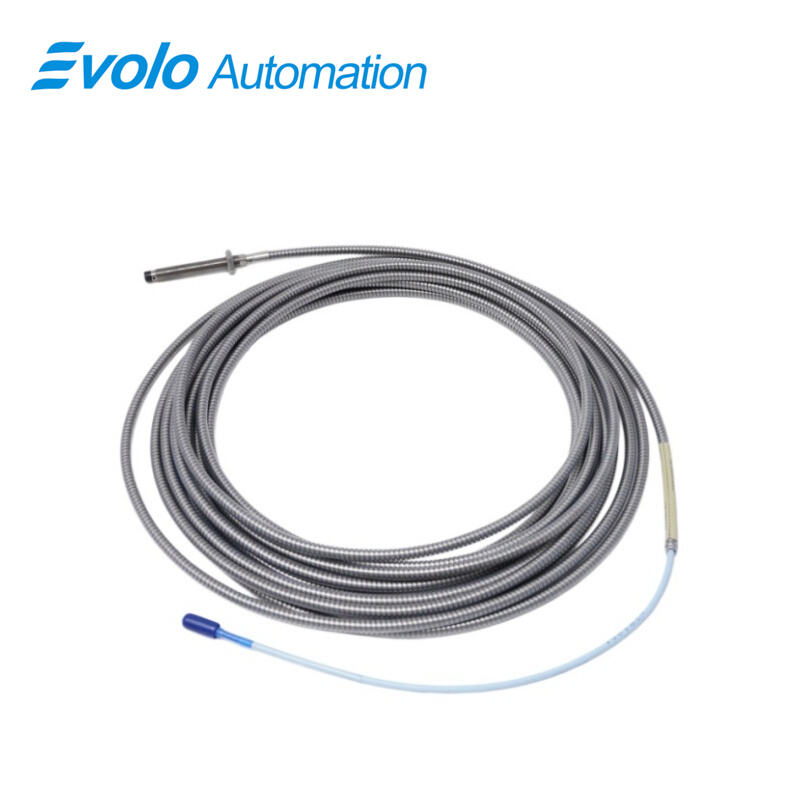

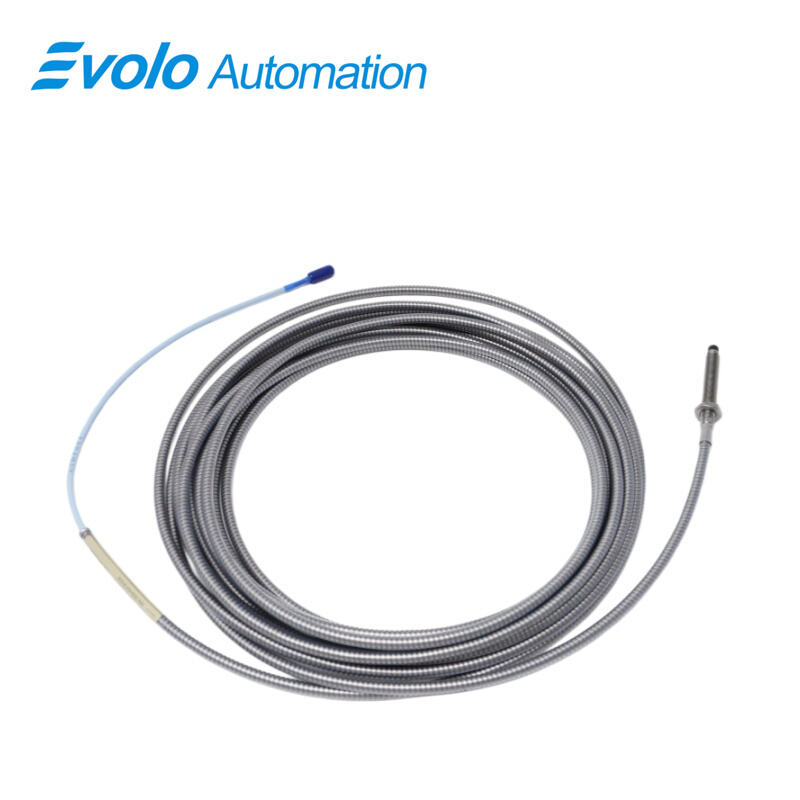

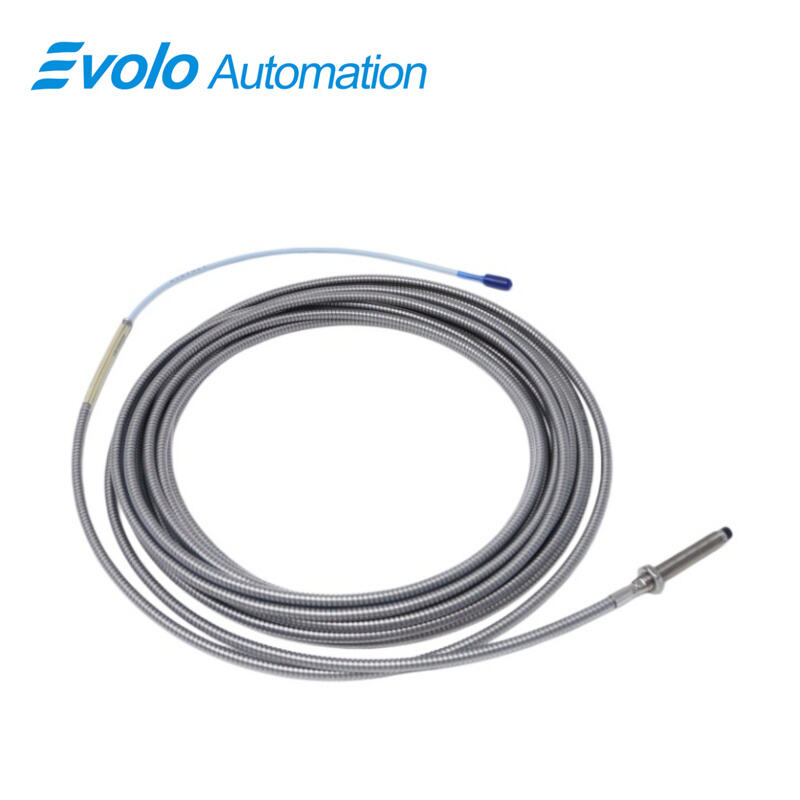

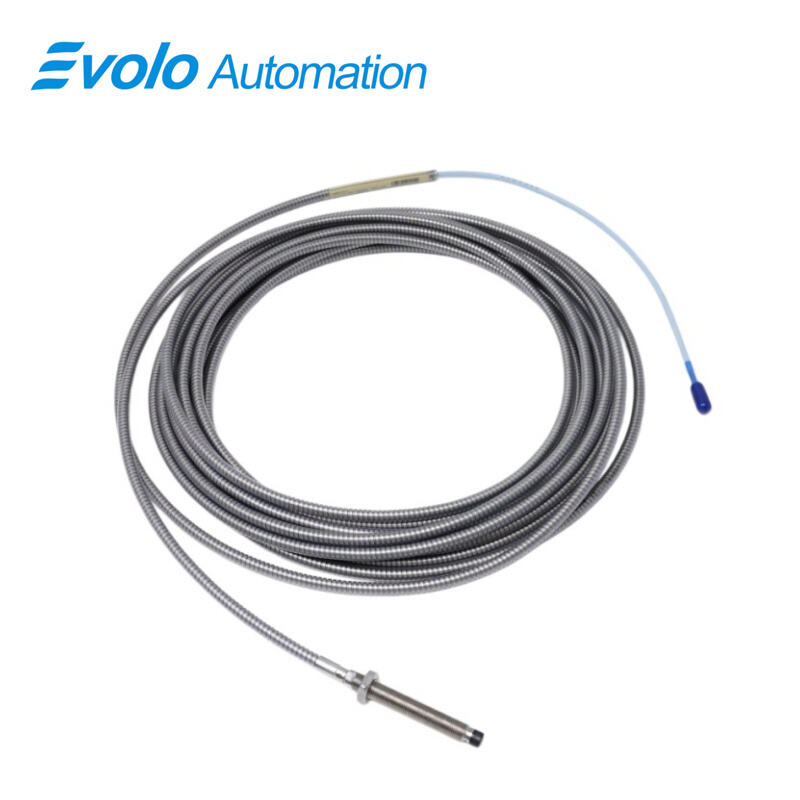

The 330104-00-07-90-02-00 3300 XL 8 mm Proximity Probes provide precise position and vibration measurement for automated machinery. With a 2 mm linear range, M10x1 threaded case, and 9.0-meter total cable length, the 330104-00-07-90-02-00 3300 XL 8 mm Proximity Probes connect via Miniature coaxial ClickLoc connectors. Operating from -52°C to +177°C, with 50 Ω output resistance and less than 2 mV supply sensitivity, the 330104-00-07-90-02-00 3300 XL 8 mm Proximity Probes deliver accurate distance-based voltage for Keyphasor, speed, and shaft vibration monitoring. Extension cables feature 69.9 pF/m capacitance and support 16–24 AWG wiring. Patented TipLoc and CableLoc designs secure probe-cable attachment, and optional FluidLoc cables prevent oil or fluid leakage. The 330104-00-07-90-02-00 3300 XL 8 mm Proximity Probes integrate seamlessly with 3300 series transducer systems for automated process monitoring and equipment diagnostics.
Applications
Measure Shaft Position in Fluid-Film Bearings
Use 330104-00-07-90-02-00 3300 XL 8 mm Proximity Probes to track shaft position in fluid-film bearing machines. The 2 mm linear range ensures that voltage output changes linearly with shaft displacement, and the 9.0-meter cable allows connection to remote automation systems. The M10x1 threaded case of 330104-00-07-90-02-00 3300 XL 8 mm Proximity Probes supports secure mounting and up to 15 mm thread engagement, enabling consistent position measurements.
Capture Turbine Vibration Signals
Install 330104-00-07-90-02-00 3300 XL 8 mm Proximity Probes on turbine shafts to measure vibration amplitude up to ±2 mm. Operating between -52°C and +177°C, the 330104-00-07-90-02-00 3300 XL 8 mm Proximity Probes maintain accurate dynamic signal capture, while the 50 Ω output resistance and <2 mV supply sensitivity provide stable readings for automated vibration monitoring.
Generate Keyphasor and Speed Signals
The 330104-00-07-90-02-00 3300 XL 8 mm Proximity Probes provide high-quality Keyphasor outputs for rotational speed measurement. Extension cables with 69.9 pF/m capacitance allow the 330104-00-07-90-02-00 3300 XL 8 mm Proximity Probes to deliver precise timing signals over distances up to 9.0 meters, supporting automated process control.
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Competitive Advantage
Install Probes Quickly Using M10x1 Thread
The 330104-00-07-90-02-00 3300 XL 8 mm Proximity Probes feature M10x1 threaded cases with 15 mm maximum thread engagement, enabling rapid installation. Miniature ClickLoc connectors simplify field wiring for 330104-00-07-90-02-00 3300 XL 8 mm Proximity Probes, reducing setup time in automated systems.
Secure Probe-Cable Connection Under High Pull Force
Patented TipLoc molding and CableLoc design allow the 330104-00-07-90-02-00 3300 XL 8 mm Proximity Probes to withstand 330 N pull force, preventing accidental cable detachment. The 330104-00-07-90-02-00 3300 XL 8 mm Proximity Probes maintain consistent signal output even under high mechanical stress.
Prevent Oil and Fluid Leaks in Machines
Optional FluidLoc extension cables for the 330104-00-07-90-02-00 3300 XL 8 mm Proximity Probes prevent fluids from escaping through cables. Using 330104-00-07-90-02-00 3300 XL 8 mm Proximity Probes in lubricated or wet industrial environments ensures safe automated operation and continuous monitoring without signal interference.
