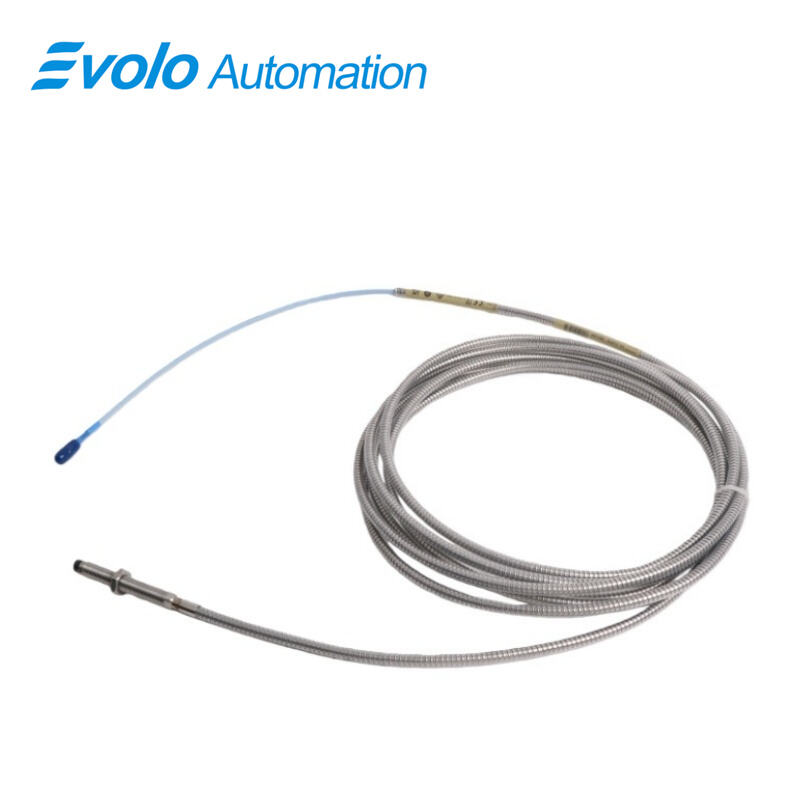

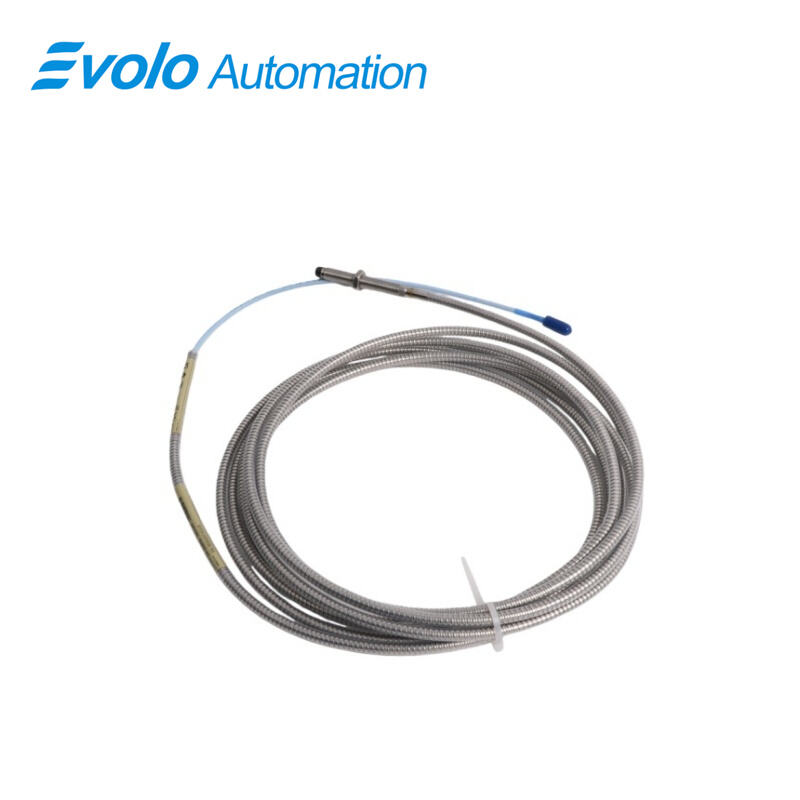

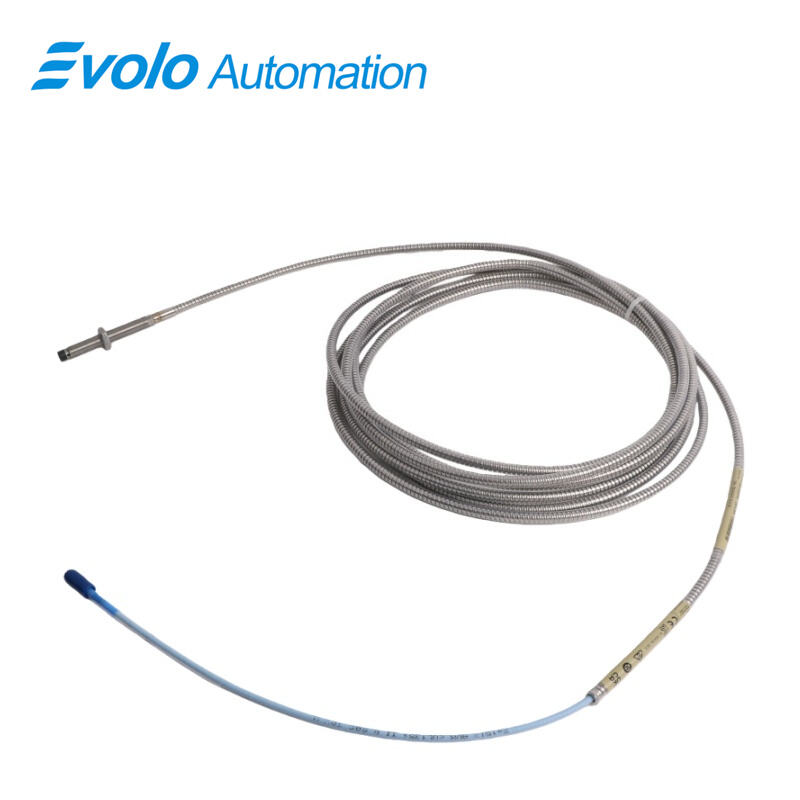

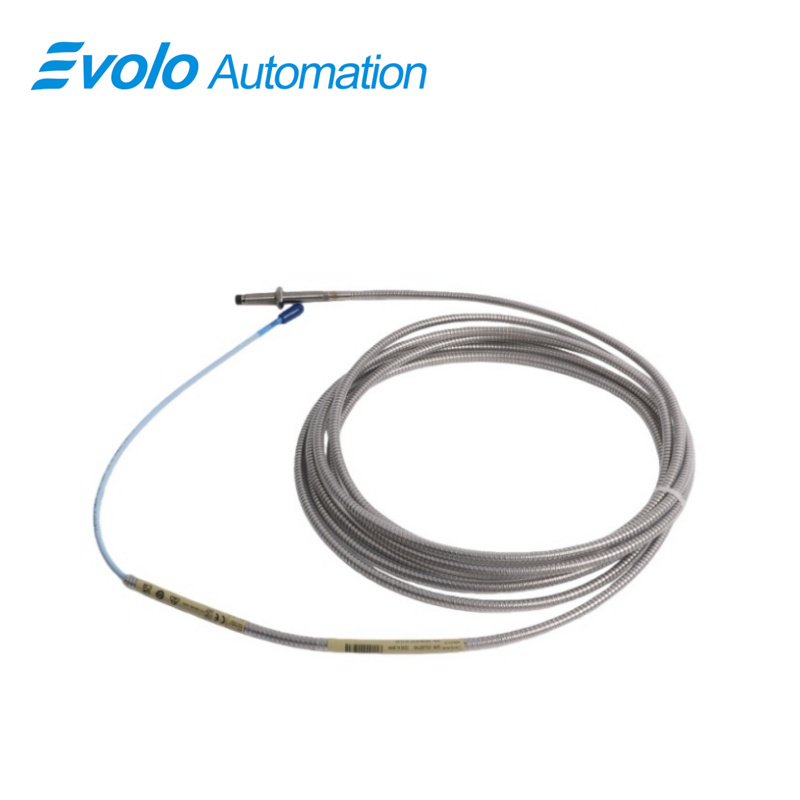

330104-00-07-50-02-00 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330104-00-07-50-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330104-00-07-50-02-00 3300 XL 8 mm Proximity Probe provides precise non-contact voltage output proportional to the distance between the probe tip and conductive surfaces. With a 2 mm linear range, 50 Ω output resistance, and 69.9 pF/m extension cable capacitance, the 330104-00-07-50-02-00 3300 XL 8 mm Proximity Probe measures both static position and dynamic vibration on fluid-film bearing machines. The probe supports 5.0-meter total length with M10x1 threaded case, miniature coaxial ClickLoc connector, and standard cable, operating from -52°C to +177°C (-62°F to +350°F).

The 330104-00-07-50-02-00 3300 XL 8 mm Proximity Probe fully meets API 670 standards and allows interchangeable use with other 5 mm and 8 mm 3300 series components. Patented TipLoc and CableLoc designs provide a secure bond between probe tip and cable with 330 N pull strength. Optional FluidLoc cables prevent oil or fluid ingress, making the 330104-00-07-50-02-00 3300 XL 8 mm Proximity Probe ideal for high-temperature and lubricated industrial environments, ensuring reliable monitoring of shaft vibration, displacement, and Keyphasor reference signals.

Applications

Monitor Shaft Vibration on Fluid-Film Bearings
The 330104-00-07-50-02-00 3300 XL 8 mm Proximity Probe provides an output directly proportional to shaft displacement, with a 2 mm linear range and 50 Ω output resistance. Its 1.0-meter probe length allows accurate vibration detection in high-speed rotating machinery.

Measure Axial Rod Position in Compressors
Use the 330104-00-07-50-02-00 3300 XL 8 mm Proximity Probe for rod drop and axial motion measurements in reciprocating compressors. The M10x1 threaded probe case and ClickLoc connector ensure secure mounting and repeatable readings.

Generate Keyphasor Signals for Rotors
The 330104-00-07-50-02-00 3300 XL 8 mm Proximity Probe delivers reliable phase reference signals, enabling rotor speed tracking and zero-speed detection, with extension cable capacitance of 69.9 pF/m ensuring signal integrity over distances up to 5 meters.

Track Linear Displacement in Turbines
The 330104-00-07-50-02-00 3300 XL 8 mm Proximity Probe captures linear motion of turbine shafts under operating temperatures ranging from -52°C to +177°C (-62°F to +350°F), supporting both static position and dynamic vibration measurements in industrial automation.

Specifications

Competitive Advantage

Robust Bonding and Cable Strength
The 330104-00-07-50-02-00 3300 XL 8 mm Proximity Probe features a patented TipLoc molding method and CableLoc design, providing 330 N pull strength. This prevents disconnections during operation and ensures secure signal transmission.

High-Temperature and Harsh Environment Operation
Operating range of -52°C to +177°C (-62°F to +350°F) allows the 330104-00-07-50-02-00 3300 XL 8 mm Proximity Probe to function reliably in extreme industrial environments, including high-temperature bearings and lubricated machines.

Interchangeable 3300 Series Components
All components of the 330104-00-07-50-02-00 3300 XL 8 mm Proximity Probe are fully interchangeable with 5 mm and 8 mm 3300 series probes, extension cables, and Proximitor sensors. This reduces installation time and eliminates the need for custom calibration.
