Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330104-00-07-10-02-05 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
00 mm |
|
Overall Case Length Option(Minimum case length): |
70 mm |
|
Total Length Option: |
1.0 meter (3.3 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option: |
CSA, ATEX, IECEx Approvals |
|
Probe Case Thread: |
M10x1 |
|
Maximum Length of Thread Engagement: |
15 mm |
|
Dimension: |
1.8x1.5x114cm |
|
Weight: |
0.14kg |
Description

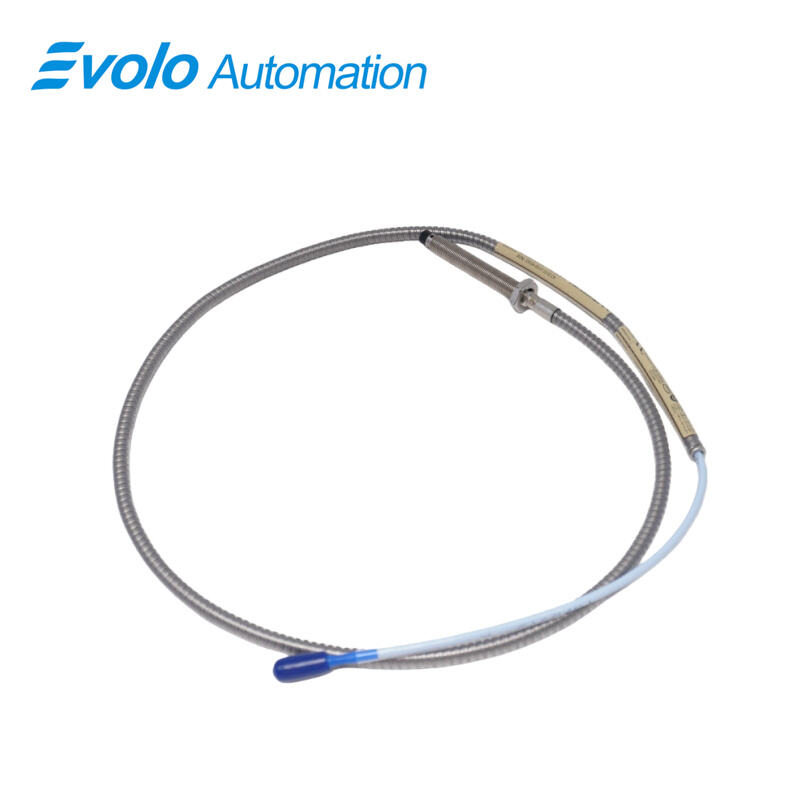

The 330104-00-07-10-02-05 3300 XL 8 mm Proximity Probe is engineered for high-precision position and vibration monitoring in automated industrial systems and critical rotating machinery. This 8 mm eddy-current probe provides an output voltage directly proportional to the gap between the probe tip and conductive targets, enabling accurate measurement of both static shaft displacement and dynamic vibration. Designed for fluid-film bearing machines, turbines, compressors, and high-speed motors, it supports extreme operating temperatures from −52°C to +177°C and is certified for hazardous locations with CSA, ATEX, and IECEx approvals. Featuring an M10×1 threaded housing, 1.0-meter cable, miniature ClickLoc connectors, and patented TipLoc and CableLoc designs, this probe delivers robust mechanical strength and 330 N pull retention. Optional FluidLoc cabling prevents oil or liquid ingress, ensuring reliable operation in lubrication-intensive environments. Fully backward compatible with previous 3300 series 5 mm and 8 mm probes, it enables seamless retrofits and maintenance in advanced industrial automation systems.
Applications
Precision Shaft Monitoring
The 330104-00-07-10-02-05 measures axial and radial shaft movement within a 2 mm linear range, detecting early signs of misalignment, imbalance, or wear in turbines, motors, and compressors.
Moderate Reach Installations
With a 1.0-meter cable and 70 mm case length, the 330104-00-07-10-02-05 is suitable for machinery layouts that require accurate measurements in medium-depth positions.
Extreme Environment Reliability
CSA, ATEX, and IECEx approvals and an operating range from -52°C to +177°C ensure that the 330104-00-07-10-02-05 performs reliably under harsh or hazardous conditions.
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Competitive Advantage
High Accuracy with 2 mm Linear Range
Ensures precise vibration and position measurement across critical machinery, maintaining compliance with API 670 standards for automation monitoring systems.
Wide Temperature Tolerance (−52°C to +177°C)
Maintains stable output in extreme environments, including high-temperature compressors and cold storage machinery.
Global Hazardous Location Certification
CSA, ATEX, and IECEx approvals allow safe deployment in flammable or explosive atmospheres, meeting international industrial automation standards.
Enhanced Mechanical Strength (TipLoc & CableLoc, 330 N)
Patented bonding and cable retention methods enhance probe durability and reliability, reducing maintenance frequency and operational risk.
