Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330104-00-07-10-02-00 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
00 mm |
|
Overall Case Length Option(Minimum case length): |
70 mm |
|
Total Length Option: |
1.0 meter (3.3 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option: |
Not required |
|
Probe Case Thread: |
M10x1 |
|
Maximum Length of Thread Engagement: |
15 mm |
|
Dimension: |
1.8x1.5x114cm |
|
Weight: |
0.14kg |
Description

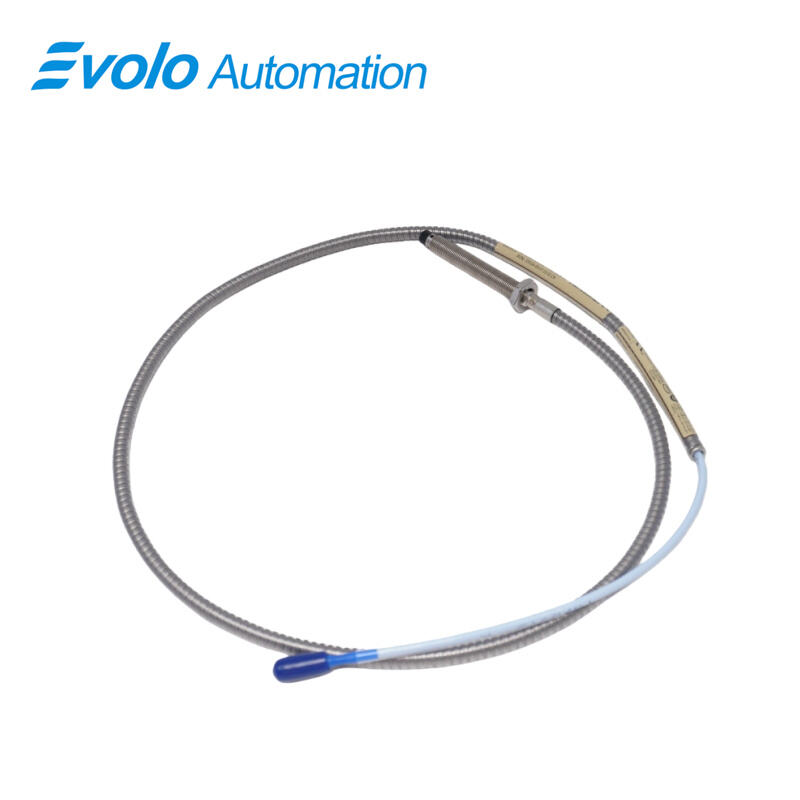

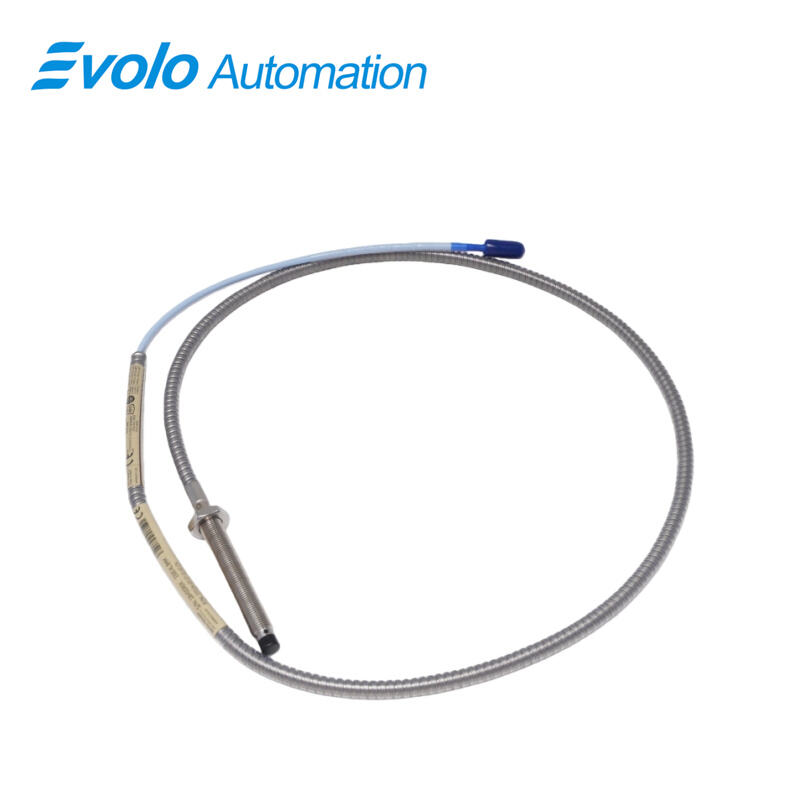

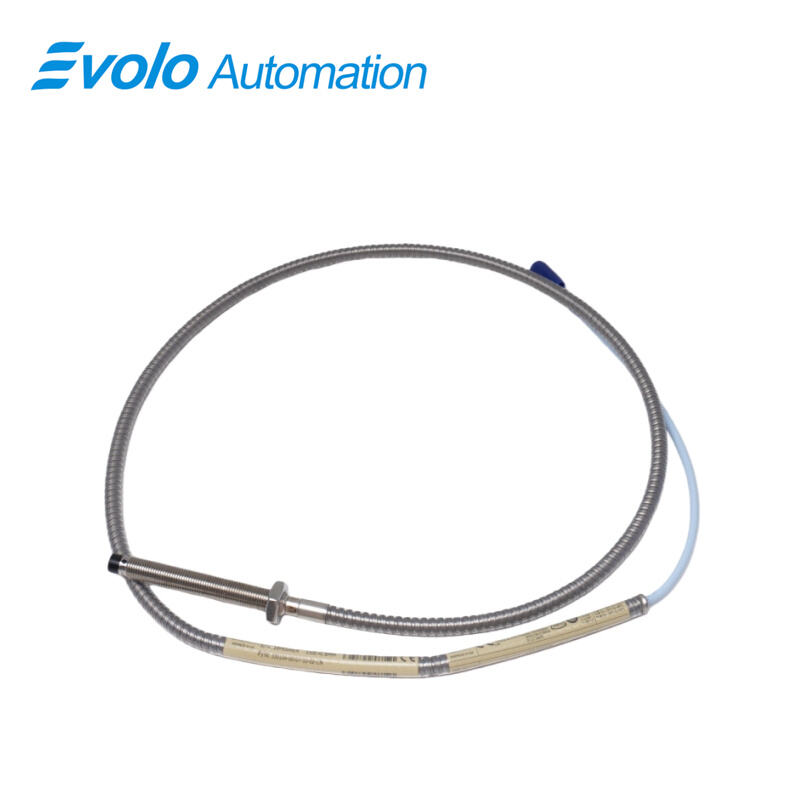

330104-00-07-10-02-00 3300 XL 8 mm Proximity Probe provides precise measurement of shaft position and vibration for automated fluid-film bearing machines. The 330104-00-07-10-02-00 3300 XL 8 mm Proximity Probe features a 1.0 m total length, 0 mm unthreaded length, 70 mm overall case length, M10x1 threads with 15 mm engagement, 2 mm linear range, PPS probe tip, and AISI 303/304 stainless steel case. Operating from -52°C to +177°C, the 330104-00-07-10-02-00 3300 XL 8 mm Proximity Probe uses a miniature ClickLoc coaxial connector with TipLoc and CableLoc designs, providing 330 N pull strength to secure the probe tip and cable while preventing fluid ingress. It supports Keyphasor reference, speed measurement, and integrates with extension cables and Proximitor sensors for efficient automated installation in tight spaces.
Applications
Monitor Shaft Vibration in Fluid-Film Bearings
The 330104-00-07-10-02-00 3300 XL 8 mm Proximity Probe accurately captures dynamic vibration on rotating shafts. Its 2 mm linear range and PPS probe tip provide reliable readings for automated monitoring systems.
Measure Radial and Axial Shaft Movement
Use the 330104-00-07-10-02-00 3300 XL 8 mm Proximity Probe to track both radial and axial displacements on shafts, including tight or confined areas. The M10x1 threaded case and 70 mm body length enable secure placement in automated machinery.
Provide Keyphasor Signals for Speed and Phase Detection
Integrate the 330104-00-07-10-02-00 3300 XL 8 mm Proximity Probe with Keyphasor or tachometer systems to obtain real-time speed and phase signals. The 1 m cable with ClickLoc connector supports quick connection and field installation.
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Competitive Advantage
Secure Probe and Cable Mounting
ClickLoc connectors combined with TipLoc and CableLoc designs on the 330104-00-07-10-02-00 3300 XL 8 mm Proximity Probe deliver 330 N pull strength, preventing the probe or cable from loosening and protecting against liquid ingress.
Operate Across Extreme Temperatures
Rated from -52°C to +177°C, the 330104-00-07-10-02-00 3300 XL 8 mm Proximity Probe continues to provide accurate position and vibration measurements in extreme industrial environments.
Fast Installation in Limited Spaces
The compact 70 mm case length, 0 mm unthreaded section, and 1 m cable of the 330104-00-07-10-02-00 3300 XL 8 mm Proximity Probe enable quick installation in constrained areas without special tools.
Simultaneous Position and Vibration Measurement
The 2 mm linear range allows the 330104-00-07-10-02-00 3300 XL 8 mm Proximity Probe to capture both static position and dynamic vibration in real time for automated monitoring applications.
