Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330104-00-06-90-02-00 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
00 mm |
|
Overall Case Length Option(Minimum case length): |
60 mm |
|
Total Length Option: |
9.0 meters (29.5 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option: |
Not required |
|
Probe Case Thread: |
M10x1 |
|
Maximum Length of Thread Engagement: |
15 mm |
|
Dimension: |
30x30x5cm |
|
Weight: |
0.95kg |
Description

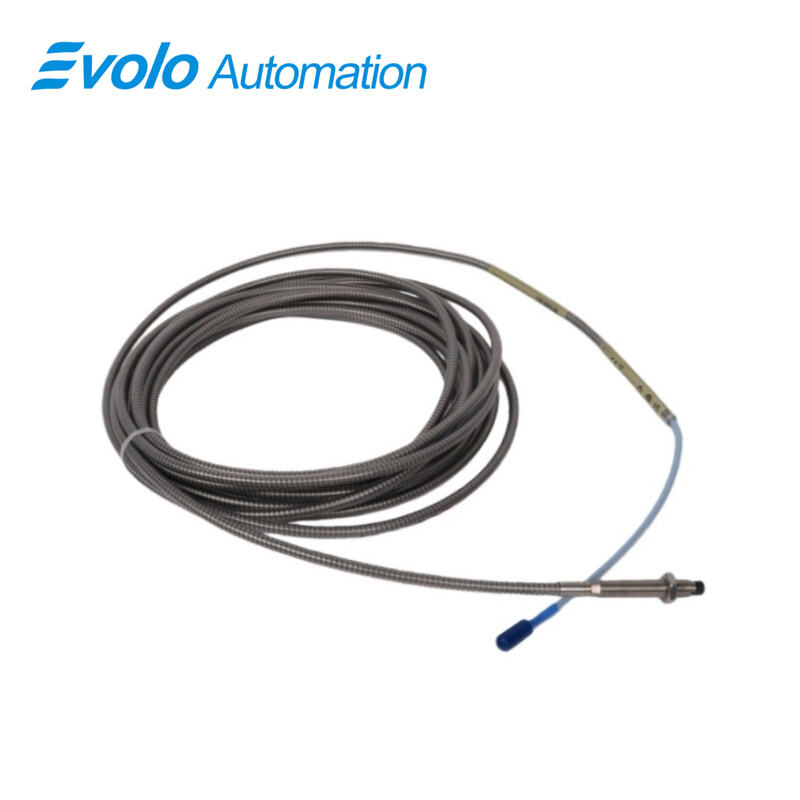

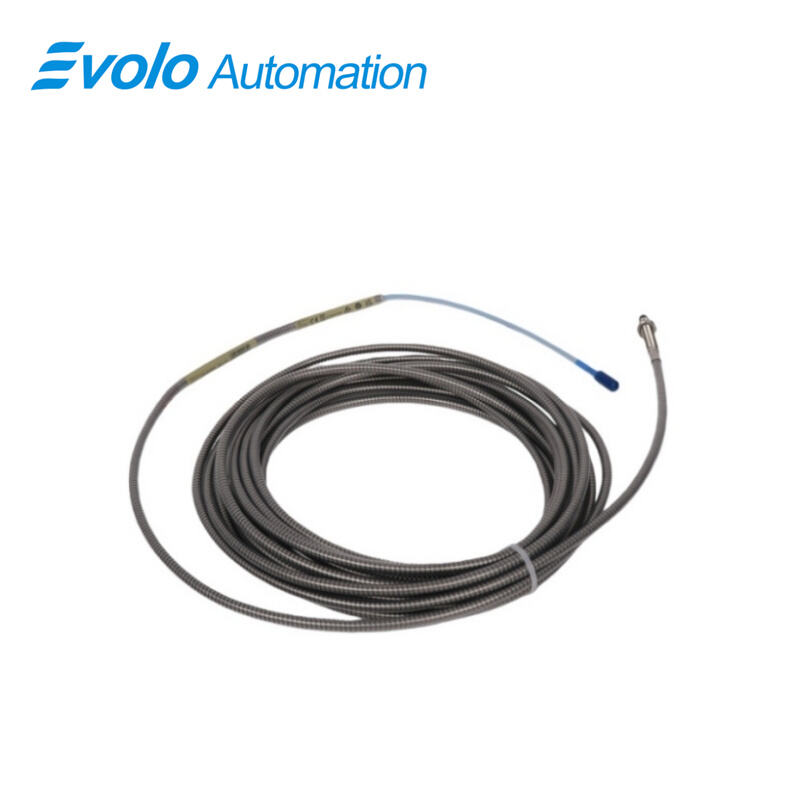

The 330104-00-06-90-02-00 3300 XL 8 mm Proximity Probe is an advanced eddy current transducer designed for precision automation measurement. With a linear range of 2 mm (80 mils) and a total cable length of 9.0 meters (29.5 feet), this probe delivers accurate static (position) and dynamic (vibration) readings for high-speed rotating machinery. The M10x1 threaded case with a maximum 15 mm thread engagement ensures secure mounting, while the miniature coaxial ClickLoc connector and standard cable provide robust signal transmission in automated monitoring systems. The 330104-00-06-90-02-00 3300 XL probe operates reliably in extreme conditions with an operating temperature from −52°C to +177°C, supply sensitivity of less than 2 mV per volt, and output resistance of 50 Ω, making it ideal for integration into automated industrial processes. Its extension cable capacitance of 69.9 pF/m (21.3 pF/ft) and field wiring of 0.2–1.5 mm² (16–24 AWG) support consistent and high-precision data acquisition across long distances. The 330104-00-06-90-02-00 3300 XL 8 mm probe also incorporates patented TipLoc and CableLoc designs, providing a 330 N (75 lbf) pull strength and optional FluidLoc protection to prevent fluid ingress, ensuring durability and reliability in automated machinery and process monitoring systems.
Applications
1. Vibration Monitoring on Fluid-Film Bearing Machines
The 330104-00-06-90-02-00 3300 XL 8 mm probe measures high-frequency vibration and dynamic displacement on fluid-film bearings. With a linear range of 2 mm (80 mils) and supply sensitivity of less than 2 mV/V, it provides precise, repeatable output voltage proportional to shaft displacement. The total cable length of 9.0 meters (29.5 feet) allows flexible placement for automated vibration data acquisition in large machinery.
2. Rotational Speed and Keyphasor Measurements
Using the 330104-00-06-90-02-00 3300 XL 8 mm probe with Keyphasor systems, it accurately captures rotor speed and phase information. The output resistance of 50 Ω and extension cable capacitance of 69.9 pF/m (21.3 pF/ft) ensure stable signals for automated speed monitoring and predictive maintenance systems.
3. Position Detection in Automated Processes
The 330104-00-06-90-02-00 3300 XL probe is ideal for monitoring the precise position of shafts or sliding components in automated production lines. Its operating range from −52°C to +177°C and robust M10x1 threaded mounting with 15 mm engagement support reliable operation in harsh industrial environments.
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Competitive Advantage
1. High Reliability in Extreme Conditions
The 330104-00-06-90-02-00 3300 XL probe operates from −52°C to +177°C with minimal sensitivity drift, ensuring continuous automation process monitoring under extreme temperatures.
2. Patented TipLoc and CableLoc Design
The probe incorporates TipLoc molding for a stronger bond between tip and body and CableLoc design providing 330 N (75 lbf) pull strength, ensuring secure connections even in automated systems with vibration or movement.
3. Fluid Protection with Optional FluidLoc
Optional FluidLoc cable prevents oil or liquid ingress, maintaining probe integrity and signal accuracy in automated machinery exposed to lubricants or cooling fluids.
4. Long Interchangeable Cabling
With a 9-meter extension cable and 69.9 pF/m capacitance, the 330104-00-06-90-02-00 3300 XL probe integrates easily into complex automation setups while maintaining linearity and precise output, supporting flexible industrial designs.
5. Backward Compatibility and Standard Compliance
The 330104-00-06-90-02-00 3300 XL probe is fully compatible with other 3300 XL and non-XL 5 mm and 8 mm probes, and meets API 670 mechanical configuration and linear range standards, simplifying upgrades and reducing installation costs in automated monitoring systems.
