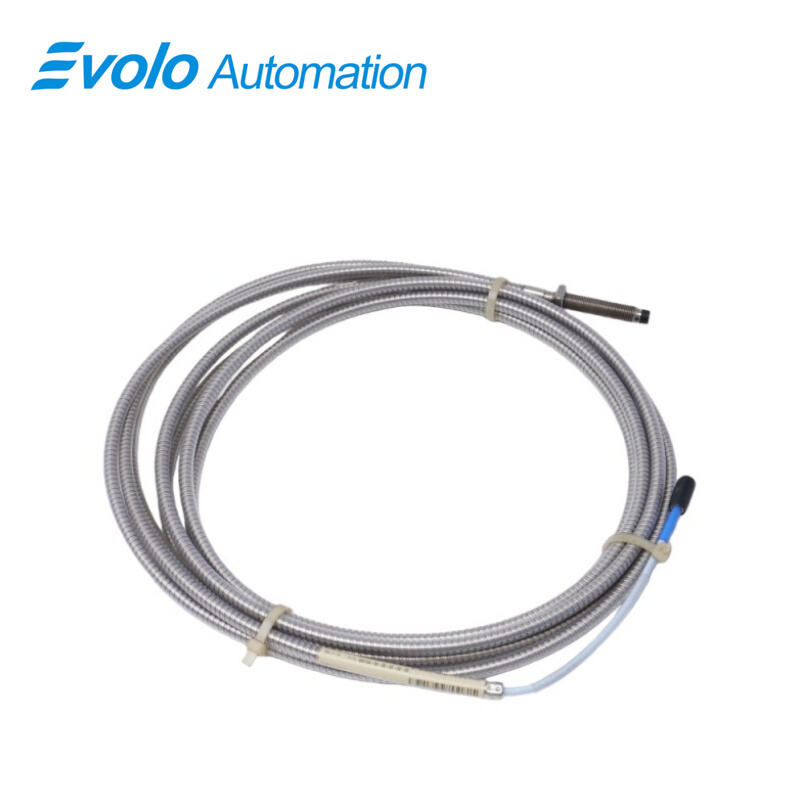

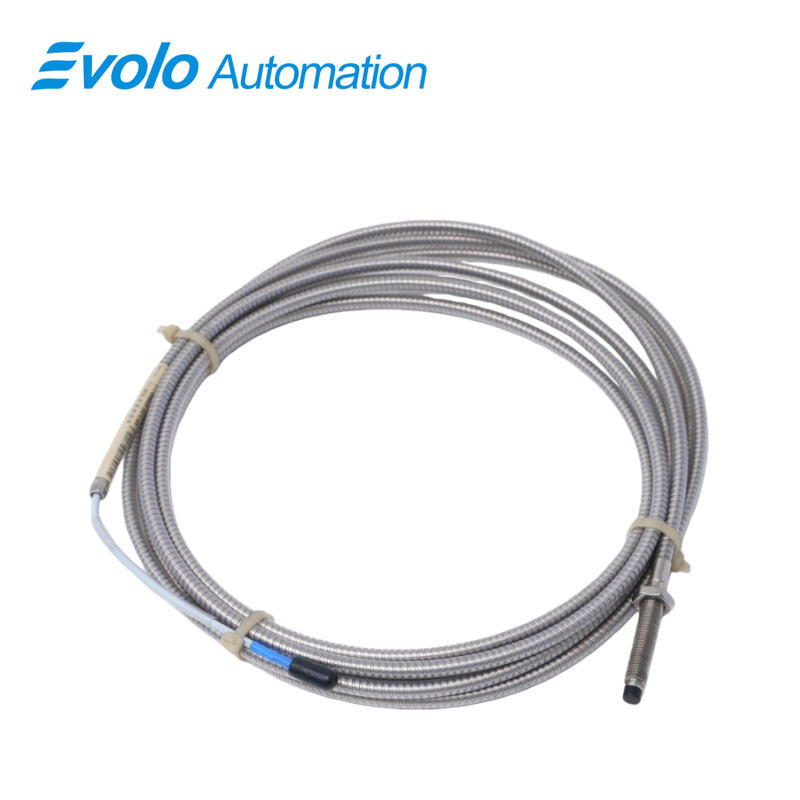

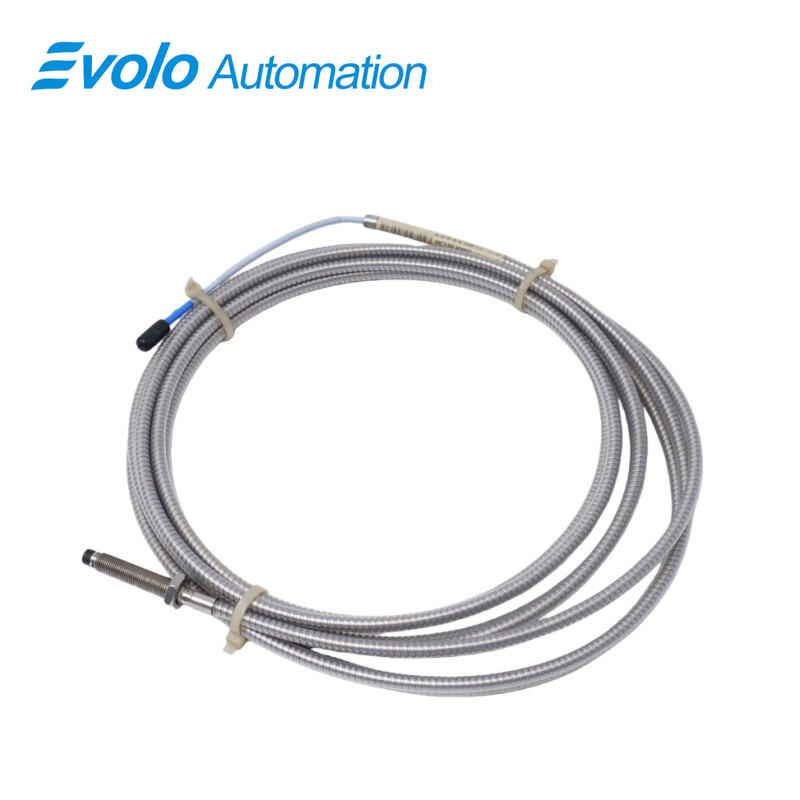

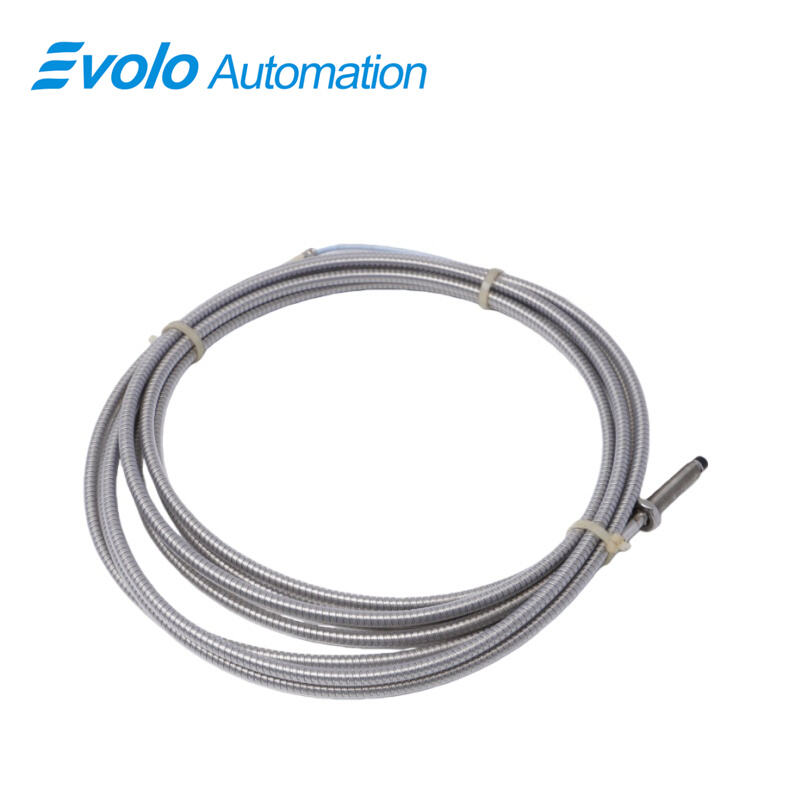

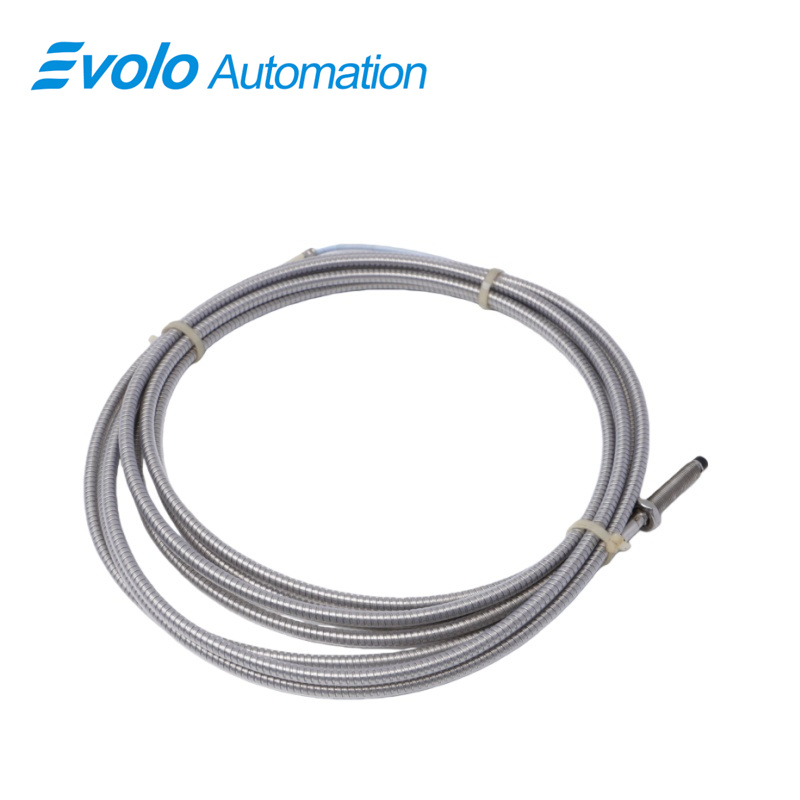

330104-00-05-90-02-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330104-00-05-90-02-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330104-00-05-90-02-05 3300 XL 8 mm Proximity Transducer delivers 3.94 V/mm output for precise non-contacting position and vibration measurements on fluid-film bearing machines. Its 2 mm linear range and 50 Ω output resistance allow the 330104-00-05-90-02-05 3300 XL 8 mm probe to capture both static and dynamic shaft movements, while supporting field wiring from 0.2 to 1.5 mm² (16–24 AWG). With a total length of 9 m (29.5 ft), M10×1 probe thread, and miniature coaxial ClickLoc connector, the 330104-00-05-90-02-05 3300 XL 8 mm integrates directly into automated monitoring systems without additional extensions. Operating from -52°C to +177°C, this probe maintains less than 2 mV output variation per volt input change, ensuring consistent signal for Keyphasor and tachometer measurements. The patented TipLoc molding bonds the probe tip to the body, and CableLoc design provides 330 N (75 lbf) pull strength. Optional FluidLoc cable prevents oil or liquid leakage, and connector protectors enhance environmental resistance, making the 330104-00-05-90-02-05 3300 XL 8 mm probe ideal for precise automation applications in turbines, compressors, and motors.

Applications

Axial Shaft Measurement on Turbines
The 330104-00-05-90-02-05 3300 XL 8 mm probe captures axial shaft displacement on steam and gas turbines. Its 2 mm linear range ensures precise automation feedback for rotational alignment and performance monitoring.

Rod Position Monitoring on Reciprocating Compressors
Install the 330104-00-05-90-02-05 3300 XL 8 mm probe to detect rod position and rod drop. The 50 Ω output and 69.9 pF/m cable capacitance provide accurate signal transmission for automated compressor control systems.

Keyphasor and Zero-Speed Signal Generation
The 330104-00-05-90-02-05 3300 XL 8 mm probe produces phase reference (Keyphasor) and zero-speed signals. Its miniature ClickLoc connector ensures reliable signal delivery for automated rotational monitoring.

Vibration Monitoring on Fluid-Film Bearings
Use the 330104-00-05-90-02-05 3300 XL 8 mm to measure dynamic shaft vibration. The probe’s supply sensitivity of <2 mV/V allows consistent readings, feeding automated condition monitoring systems for predictive maintenance.

Specifications

Competitive Advantage

Direct Connection for Automated Systems
The 330104-00-05-90-02-05 3300 XL 8 mm probe’s ClickLoc connector and 9 m cable eliminate extension requirements, allowing direct integration into automated monitoring platforms.

Extended Temperature Range Operation
Operating from -52°C to +177°C, the 330104-00-05-90-02-05 3300 XL 8 mm maintains signal accuracy in extreme industrial environments.

High Pull-Strength and Mechanical Security
The 330104-00-05-90-02-05 3300 XL 8 mm probe uses TipLoc and CableLoc designs providing 330 N pull strength, preventing disconnection during automated vibration monitoring.

Fluid Protection for Automated Environments
The 330104-00-05-90-02-05 3300 XL 8 mm probe with optional FluidLoc cable and connector protectors prevents fluid leakage, ensuring uninterrupted signal delivery in industrial automation.
