Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330104-00-05-50-02-00 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
00 mm |
|
Overall Case Length Option(Minimum case length): |
50 mm |
|
Total Length Option: |
5.0 meters (16.4 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option: |
Not required |
|
Probe Case Thread: |
M10x1 |
|
Maximum Length of Thread Engagement: |
15 mm |
|
Dimension: |
24x24x3cm |
|
Weight: |
0.56kg |
Description

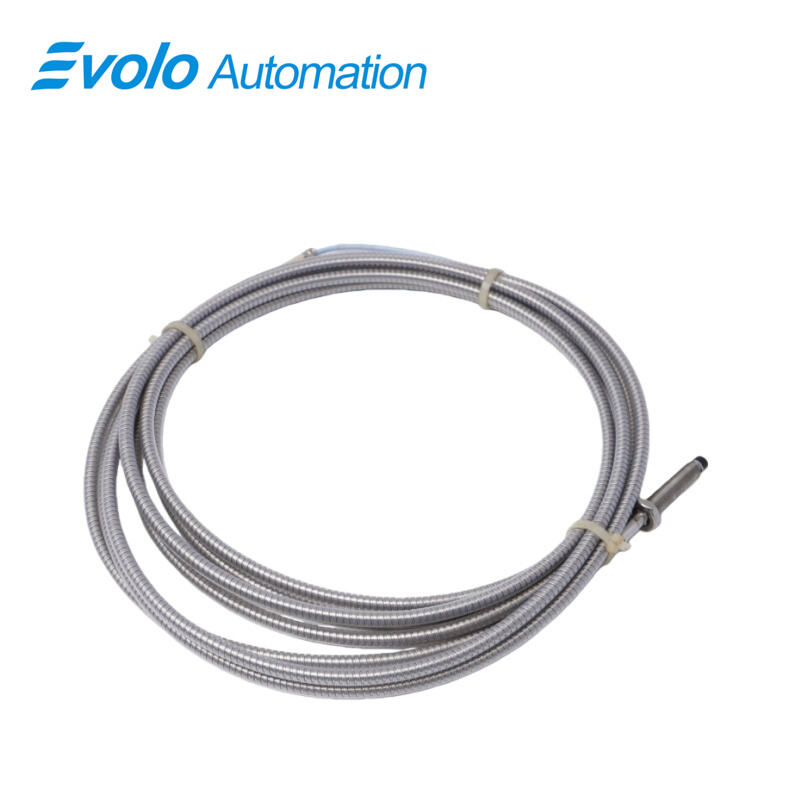

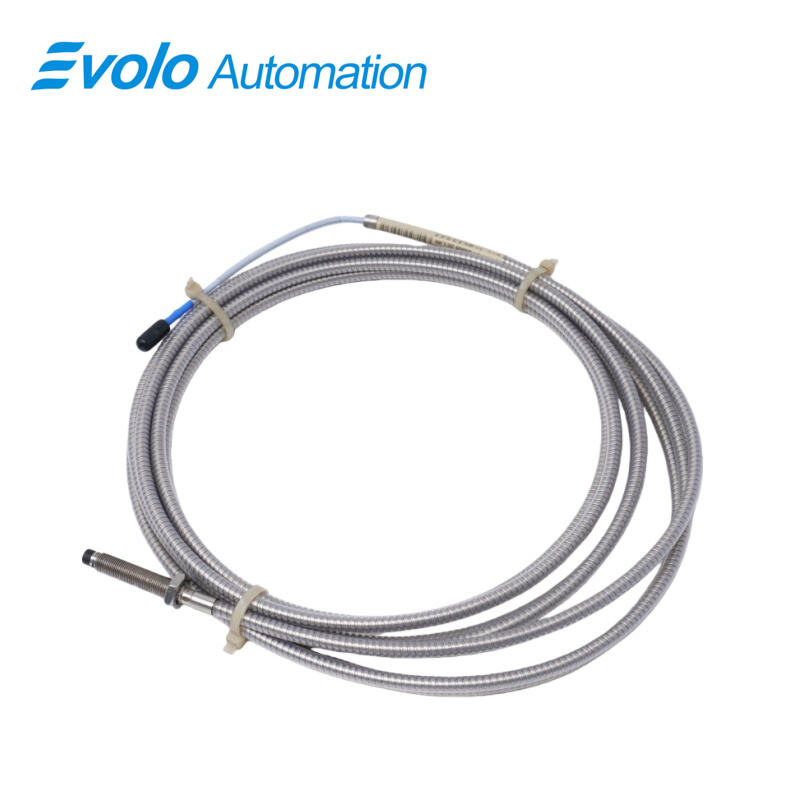

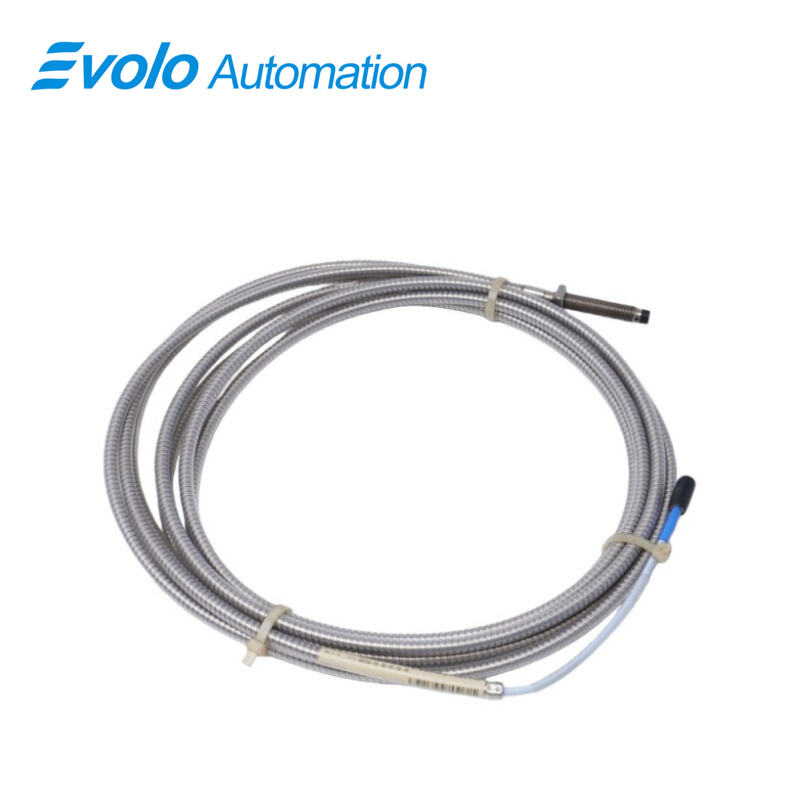

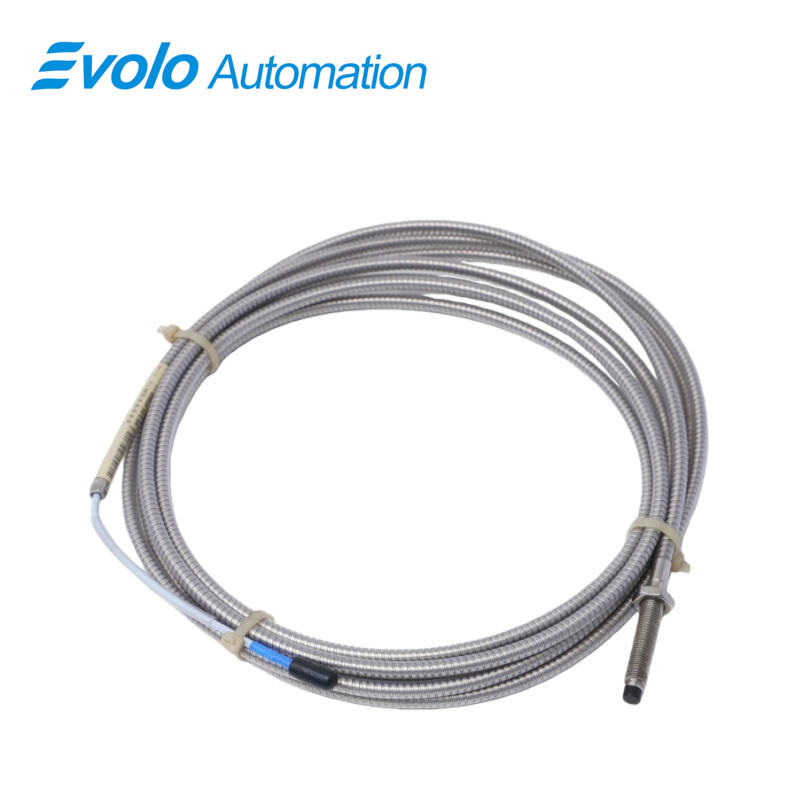

The 330104-00-05-50-02-00 3300 XL 8 mm Proximity Probe is a high-precision eddy current transducer designed for vibration and displacement monitoring in fluid-film bearing machines. With a 2 mm (80 mils) linear range and 50 Ω output resistance, this probe provides highly accurate measurements of both static positions and dynamic vibrations. The 8 mm probe tip, paired with a 5.0-meter (16.4 feet) standard extension cable, enables flexible installation even in tight or restricted spaces.
The probe features a robust M10x1 stainless steel case and a Polyphenylene Sulfide (PPS) tip, allowing continuous operation in temperatures from -52°C to +177°C (-62°F to +350°F). The ClickLoc miniature coaxial connector and patented CableLoc design ensure a secure 330 N (75 lb) pull strength connection, preventing cable loosening in high-vibration environments. Optional FluidLoc cable prevents process fluids from leaking, enhancing system reliability in industrial automation applications. Fully compliant with API 670 standards, the 3300 XL 8 mm system also supports backward compatibility with 3300 series 5 mm and 8 mm probes, enabling cost-effective retrofits and upgrades.
This system is ideal for Keyphasor speed reference, radial and axial vibration measurements, and position monitoring on compressors, turbines, and other critical rotating machinery, delivering consistent, high-fidelity signals for modern automated monitoring systems.
Applications
Rotating Machinery Monitoring
The 330104-00-05-50-02-00 monitors shaft displacement and vibration in turbines, motors, and pumps with a 2 mm linear range, enabling early detection of misalignment or rotor movement.
Long-Distance Installations
With a 5.0-meter total cable length and 50 mm case, the 330104-00-05-50-02-00 supports flexible mounting and stable signal transmission in large industrial layouts.
Harsh Environment Operation
Operating from -52°C to +177°C and with robust M10 × 1 mounting, the 330104-00-05-50-02-00 performs reliably in extreme temperatures and heavy-duty industrial settings.
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Competitive Advantage
Extended Linear Range
2 mm linear range provides reliable measurements in tight-tolerance industrial environments.
Robust Environmental Resistance
PPS probe tip and stainless steel housing resist high temperatures, oils, and chemicals, improving probe lifespan.
Secure Cable and Connector Design
ClickLoc and CableLoc provide 330 N pull strength, ensuring stable electrical connections in vibration-heavy applications.
API 670 Compliance
Meets standards for mechanical configuration, linearity, accuracy, and temperature stability, ensuring reliable integration in industrial automation systems.
