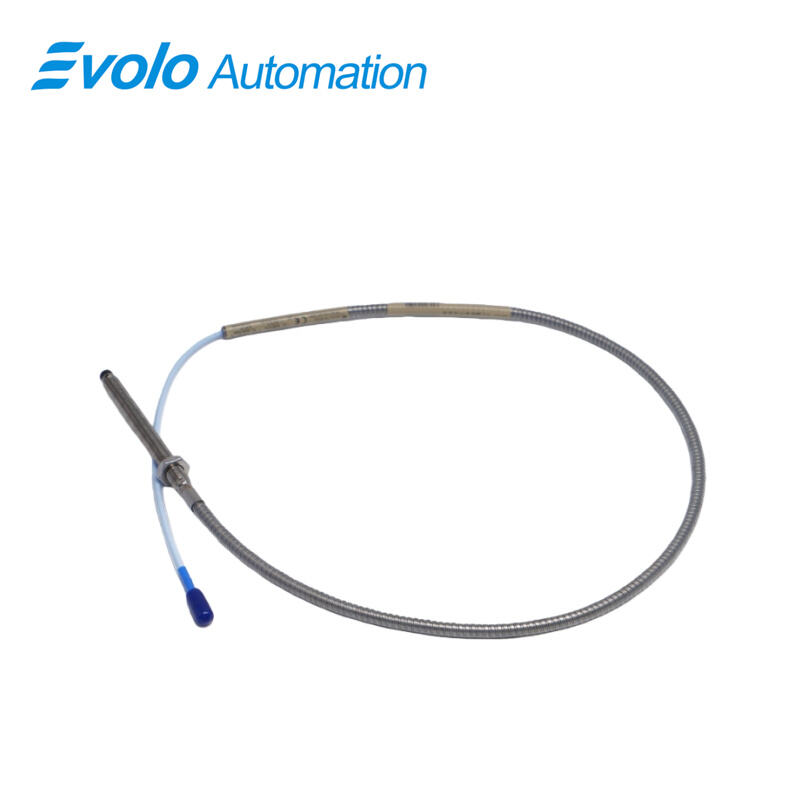

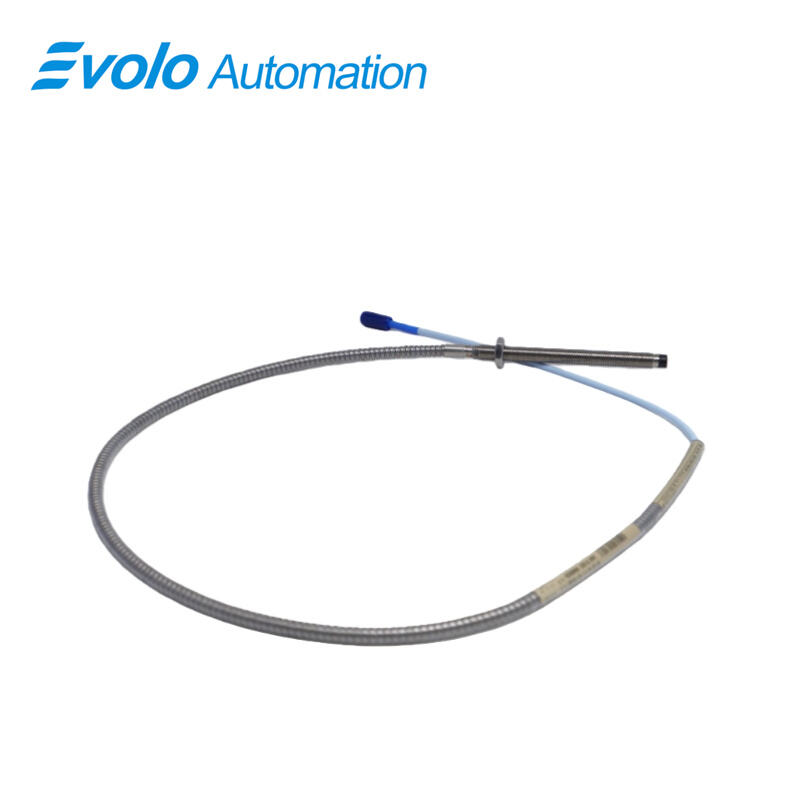

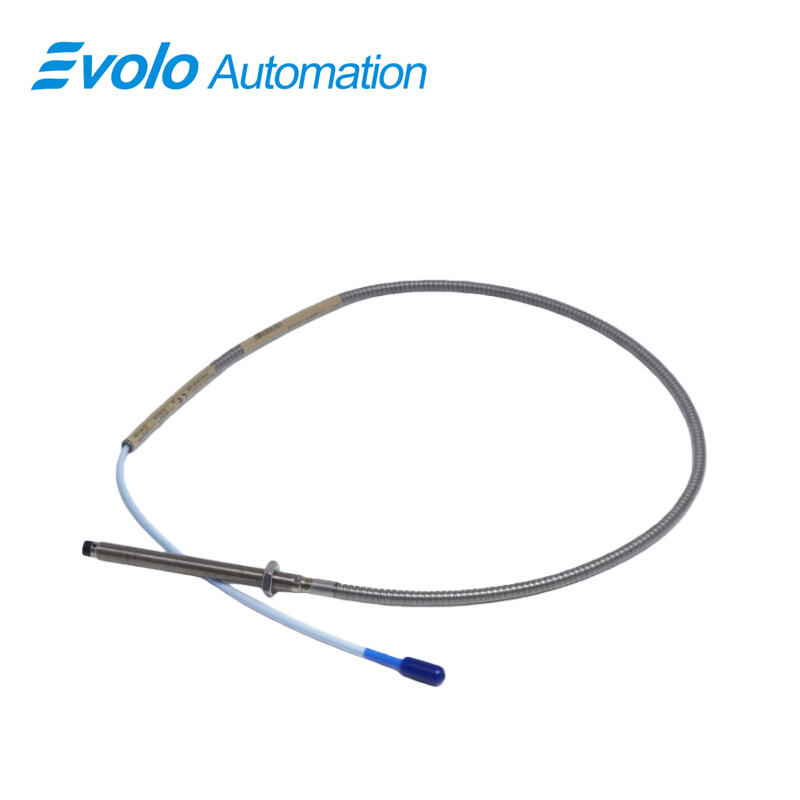

330104-00-05-10-12-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330104-00-05-10-12-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330104-00-05-10-12-05 3300 XL 8 mm Proximity Probe delivers high-precision distance measurements using eddy current / inductive principles, providing output voltage directly proportional to the gap between the probe tip and the conductive target. The 330104-00-05-10-12-05 supports both static position and dynamic vibration monitoring on fluid-film bearing machines. With a linear range of 2 mm (80 mils), total probe length of 1.0 meter (3.3 ft), and a Miniature coaxial ClickLoc connector with FluidLoc cable, this probe ensures reliable integration into automated monitoring systems. The probe operates across -52°C to +177°C (-62°F to +350°F) and maintains less than 2 mV supply sensitivity and 50 Ω output resistance for consistent signal output.

The 330104-00-05-10-12-05 fully complies with API 670 standards and allows interchangeability with other 3300 series 5 mm and 8 mm probes, enabling quick upgrades or replacements without recalibration. The TipLoc molded probe tip and CableLoc design supporting 330 N (75 lbf) pull strength improve mechanical attachment, while the optional FluidLoc cable prevents fluid ingress, ensuring uninterrupted operation in high-temperature, high-vibration industrial environments. The 330104-00-05-10-12-05 is ideal for vibration monitoring, axial and radial position sensing, and Keyphasor speed measurements in automated machinery.

Applications

Radial Vibration Measurement on Shafts
The 330104-00-05-10-12-05 3300 XL 8 mm Proximity Probe measures radial vibration on fluid-film bearing shafts with diameters down to small targets, using its linear range of 2 mm (80 mils) and high-frequency response. Its M10x1 probe thread and total probe length of 1.0 meter (3.3 ft) enable installation in tight clearances while maintaining accurate vibration detection.

Axial (Thrust) Position Sensing
Using the Miniature coaxial ClickLoc connector with FluidLoc cable, the 330104-00-05-10-12-05 provides precise axial displacement readings for monitoring thrust positions in pumps, compressors, and turbines. The less than 2 mV supply sensitivity ensures consistent readings even under fluctuating input voltage conditions.

Keyphasor and Speed Signal Generation
The 330104-00-05-10-12-05 3300 XL 8 mm Proximity Probe delivers signals compatible with Keyphasor inputs for rotor phase reference and speed measurements. Its 50 Ω output resistance and extension cable capacitance of 69.9 pF/m (21.3 pF/ft) support accurate timing and phase detection in automated control systems.

Vibration and Position Monitoring in Automated Systems
The 330104-00-05-10-12-05 integrates seamlessly into 3300 XL transducer systems, offering interchangeable probes and extension cables for automated vibration monitoring on fluid-film bearing machinery while maintaining CSA, ATEX, IECEx approvals.

Specifications

Competitive Advantage

Quick Installation with Robust Connection
The 330104-00-05-10-12-05 3300 XL 8 mm Proximity Probe features TipLoc molded probe tips and CableLoc design supporting 330 N (75 lbf) pull strength, reducing installation time and ensuring secure attachment in high-vibration environments.

Extended Measurement Range and High Accuracy
With a linear range of 2 mm (80 mils) and precise field wiring support (0.2–1.5 mm² / 16–24 AWG), the 330104-00-05-10-12-05 provides accurate displacement and vibration readings for tight clearance applications.

Fluid Protection for Industrial Environments
The optional FluidLoc cable of the 330104-00-05-10-12-05 prevents oil and fluid ingress, ensuring reliable operation in lubricated machines such as compressors, pumps, and turbines.

High-Temperature Operation
Operating across -52°C to +177°C (-62°F to +350°F), the 330104-00-05-10-12-05 is suitable for extreme temperature conditions typical of automated industrial machinery.
