330104-00-05-05-01-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330104-00-05-05-01-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

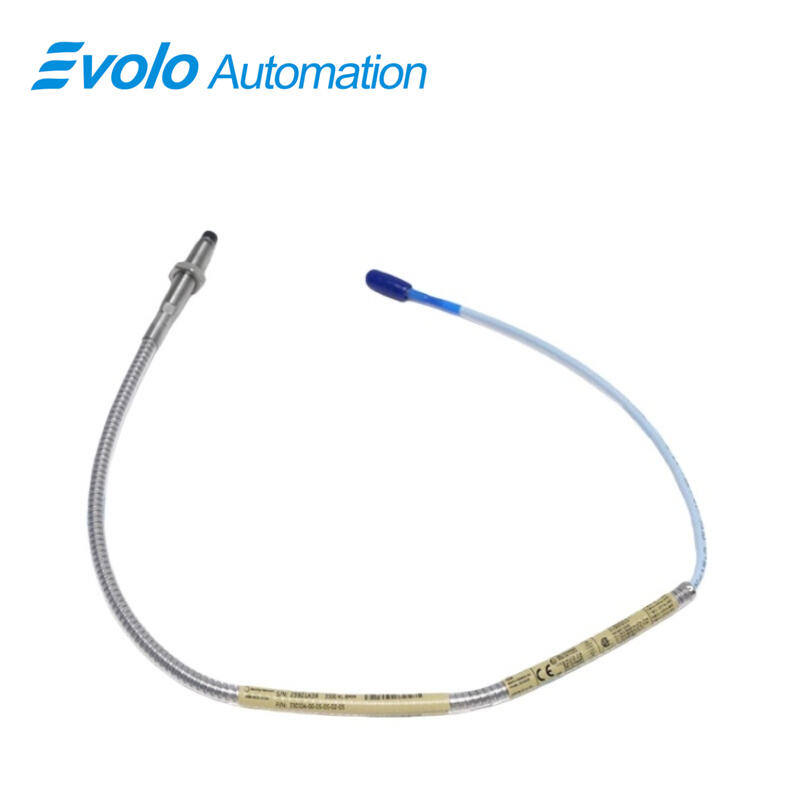

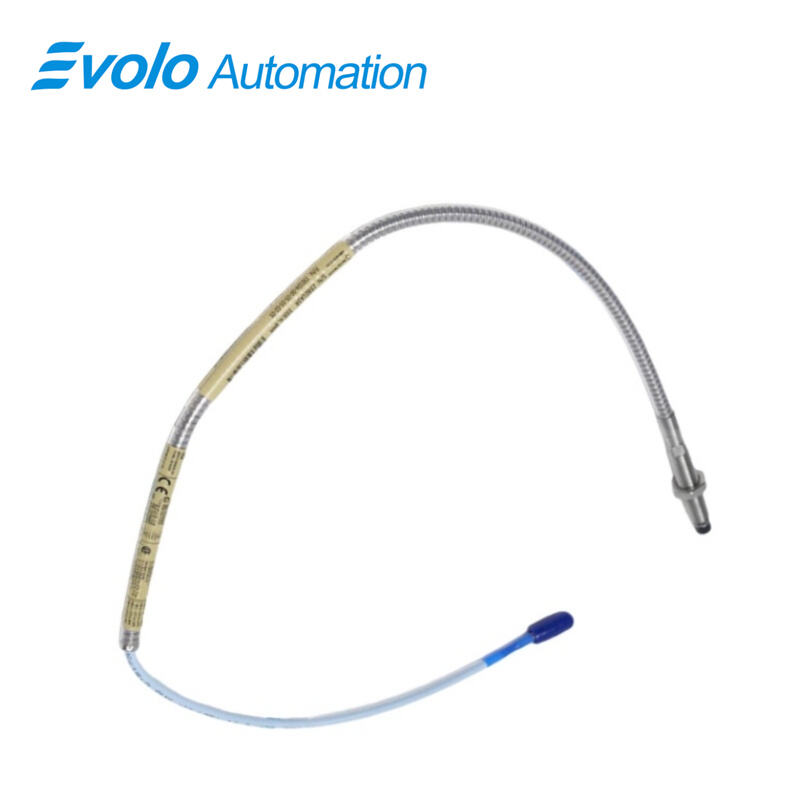

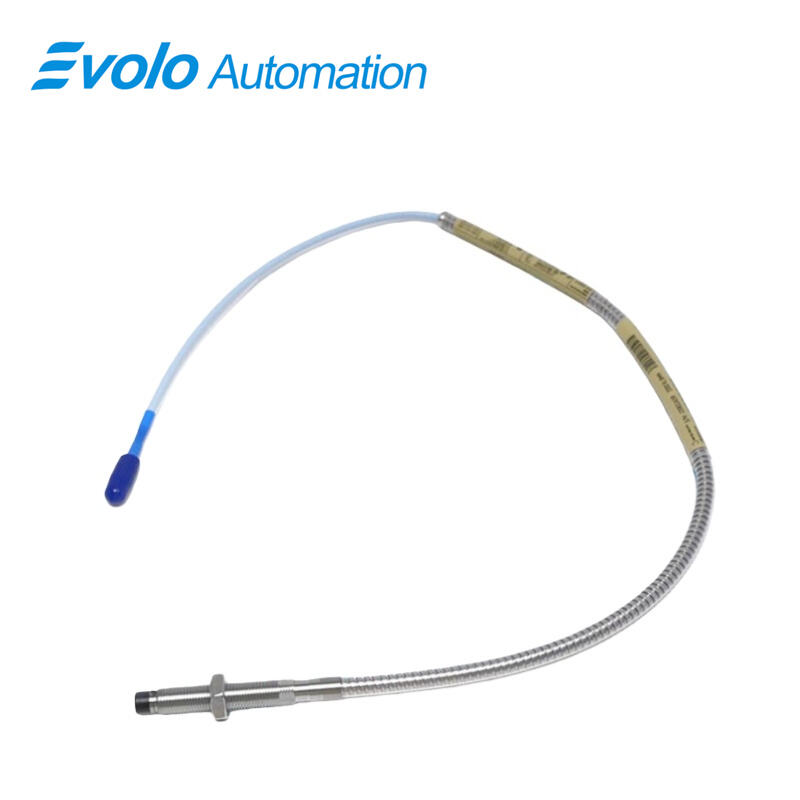

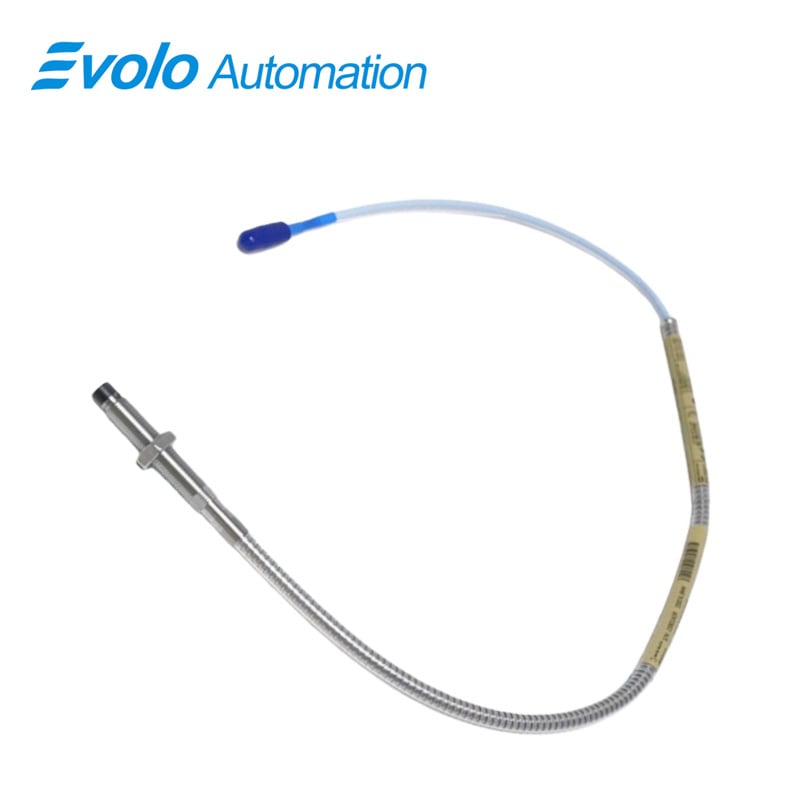

The 330104-00-05-05-01-05 3300 XL 8 mm Proximity Probe is a high-performance eddy current transducer designed for industrial automation, machinery condition monitoring, and predictive maintenance. It provides an output voltage directly proportional to the distance between the probe tip and the target conductive surface, enabling precise static (position) and dynamic (vibration) measurements.

With a linear range of 2 mm (80 mils) and a robust M10x1 threaded stainless steel housing, this probe is engineered for fluid-film bearing machines, high-speed rotors, and applications requiring compact probe installation. The miniature coaxial ClickLoc connector with connector protector and a 0.5-meter standard cable ensure secure electrical connections. The optional FluidLoc cable prevents oil or liquids from leaking through the cable interface, enhancing operational safety in lubricated or wet environments.

This probe incorporates Bently Nevada’s patented TipLoc molding method for a strong mechanical bond between probe tip and body, and a CableLoc design providing 330 N (75 lbf) pull strength to ensure reliable attachment between probe and cable. Certified to CSA, ATEX, and IECEx standards, it supports international industrial automation compliance. The 3300 XL 8 mm probe is fully interchangeable with other 3300 series probes and Proximitor sensors, reducing calibration effort and enabling flexible system upgrades.

Ideal for applications demanding precision, reliability, and environmental resilience, this probe ensures continuous monitoring and protection of rotating machinery.

Applications

Rotating Machinery Monitoring
The 330104-00-05-05-01-05 measures axial and radial shaft vibration in turbines, motors, and compressors with a 2 mm linear range, detecting misalignment or imbalance early to prevent mechanical failures.

Compact Industrial Installations
With a total length of 0.5 meter and 50 mm case, the 330104-00-05-05-01-05 is ideal for tight machinery spaces where short-range, high-precision monitoring is required.

Hazardous and Extreme Environment Operation
Operating from -52°C to +177°C and with CSA, ATEX, and IECEx approvals, the 330104-00-05-05-01-05 reliably performs in high-temperature, explosive, or heavy-duty industrial conditions.

Specifications

Competitive Advantage

Compact Size and Flexible Installation
The 330104-00-05-05-01-05 combines a 50 mm case with a 0.5-meter cable and M10 × 1 mounting, allowing installation in confined or complex machinery layouts.

High-Precision Measurement
With a 2 mm linear range, 50 Ω output resistance, and low supply sensitivity (<2 mV/V), the 330104-00-05-05-01-05 delivers accurate vibration and displacement readings.

Reliable Performance in Extreme Conditions
Operating from -52°C to +177°C, the 330104-00-05-05-01-05 maintains stable output under thermal stress, mechanical vibration, and electrical fluctuations.

Seamless Integration with Control Systems
Equipped with a Miniature coaxial ClickLoc connector with protector and field wiring support for 16–24 AWG, the 330104-00-05-05-01-05 integrates easily into condition monitoring and automated control systems.

Durable Construction
The 330104-00-05-05-01-05 features robust M10 × 1 mounting and low-capacitance cable (69.9 pF/m), ensuring long-term reliability in industrial operations.
