Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330104-00-03-10-01-05 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
00 mm |
|
Overall Case Length Option(Minimum case length): |
30 mm |
|
Total Length Option: |
1.0 meter (3.3 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector with connector protector, standard cable |
|
Agency Approval Option: |
CSA, ATEX, IECEx Approvals |
|
Probe Case Thread: |
M10x1 |
|
Maximum Length of Thread Engagement: |
15 mm |
|
Dimension: |
112.2x10.7x3cm |
|
Weight: |
0.3 kg |
Description

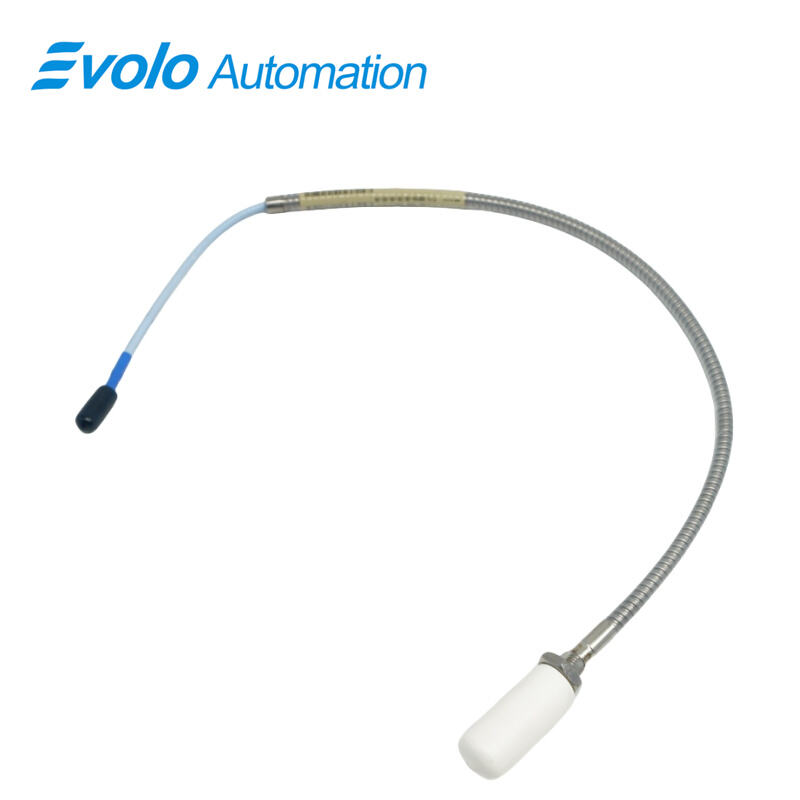

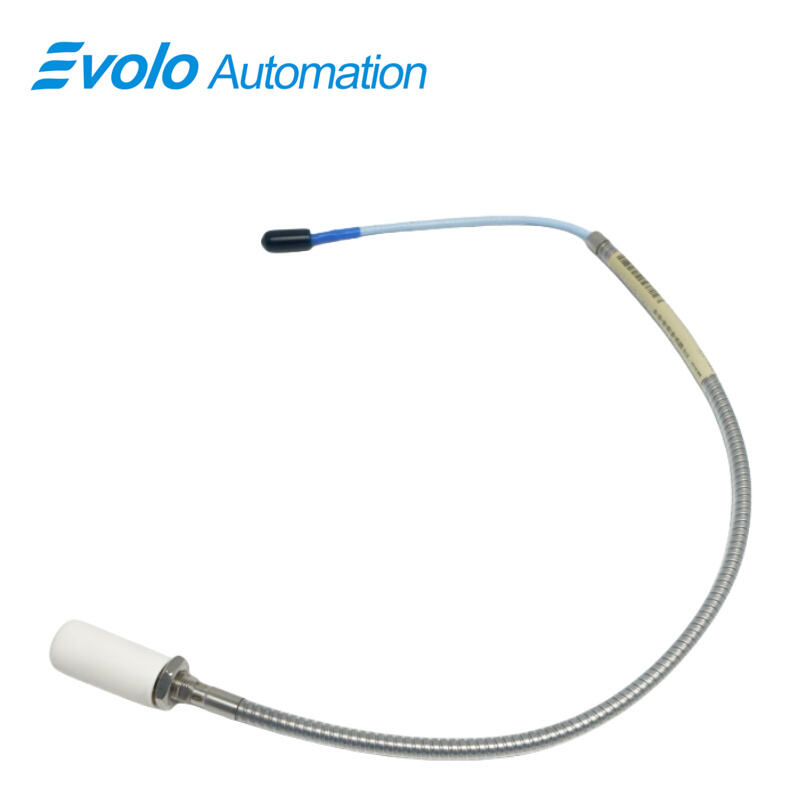

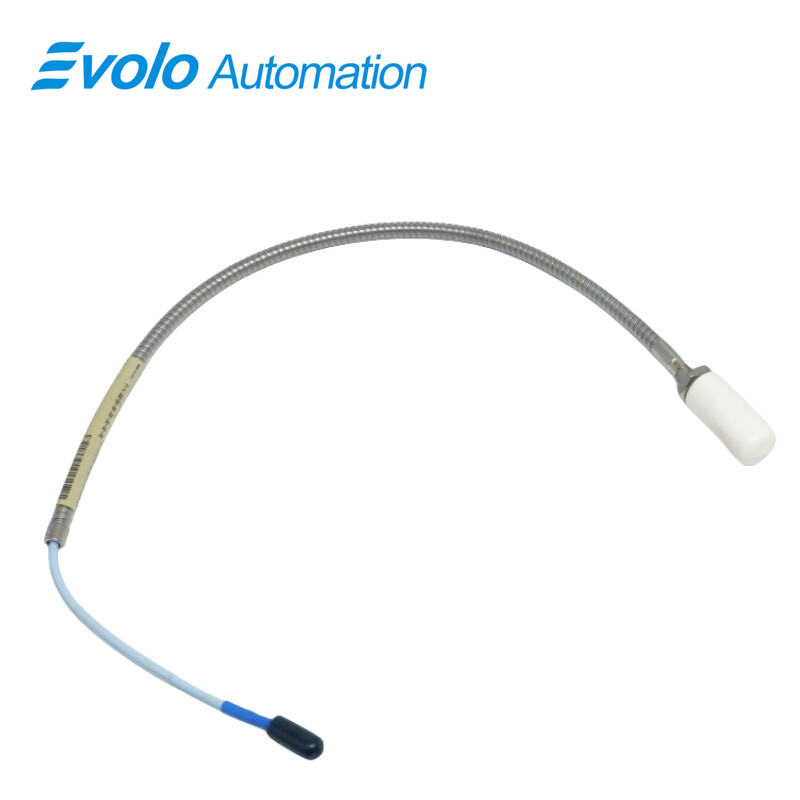

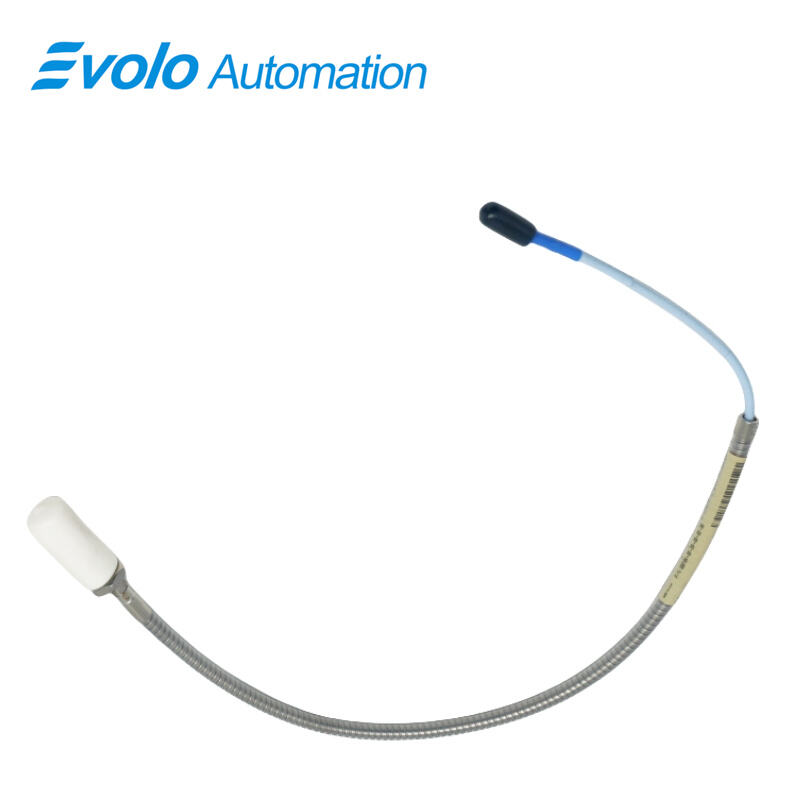

The 330104-00-03-10-01-05 3300 XL 8 mm Proximity Probe is a precision eddy-current sensor designed for industrial automation and condition monitoring applications. With a total length of 1.0 meter (3.3 feet) and a miniature coaxial ClickLoc connector with protector, it ensures secure, high-fidelity signal transmission to the 3300 XL Proximitor sensor. Its M10x1 threaded case allows robust mounting with a maximum engagement of 15 mm, and it operates reliably across a wide temperature range of -52°C to +177°C (-62°F to +350°F). The probe delivers a linear range of 2 mm (80 mils) with excellent sensitivity (less than 2 mV change per volt input variation), ideal for both static position and dynamic vibration measurements. Patented TipLoc and CableLoc designs enhance mechanical robustness, providing 330 N (75 lbf) pull strength to prevent disconnections. Optional FluidLoc cables prevent oil or liquid ingress, extending service life in harsh environments. Fully backward compatible with non-XL 3300 series probes and extension cables, this probe meets API 670 standards for mechanical configuration, linearity, and temperature stability.
Applications
1. Vibration Monitoring on Turbines and Compressors
Provides precise vibration measurements to detect misalignment or imbalance, protecting critical machinery.
2. Position Sensing for Rotating Shafts
Monitors shaft displacement with 2 mm linear range, supporting predictive maintenance and machinery control.
3. Remote Machinery Monitoring
With 1-meter cable and ClickLoc connector, ideal for installations with limited access or complex layouts.
4. High-Temperature Industrial Environments
Operates up to 177°C (350°F), suitable for high-temperature pumps, compressors, and motors.
5. Oil-Lubricated Bearings
Optional FluidLoc cable prevents fluid ingress, allowing reliable performance in oil-heavy machinery.
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Competitive Advantage
1. Robust Mechanical Design
Patented TipLoc and CableLoc ensure secure probe-cable connection, providing 330 N pull strength, reducing downtime from disconnections.
2. High Sensitivity and Accuracy
Maintains less than 2 mV change per volt of supply variation, delivering reliable measurements for automated control systems.
3. Wide Operating Temperature
Supports -52°C to +177°C, enabling use in extreme industrial environments without performance loss.
4. Backward Compatibility
Interchangeable with non-XL 3300 series probes and extension cables, simplifying upgrades and system integration.
5. Fluid-Resistant Cable Option
Optional FluidLoc cable prevents contamination from oil or liquids, extending the life of both the probe and monitored machinery.
