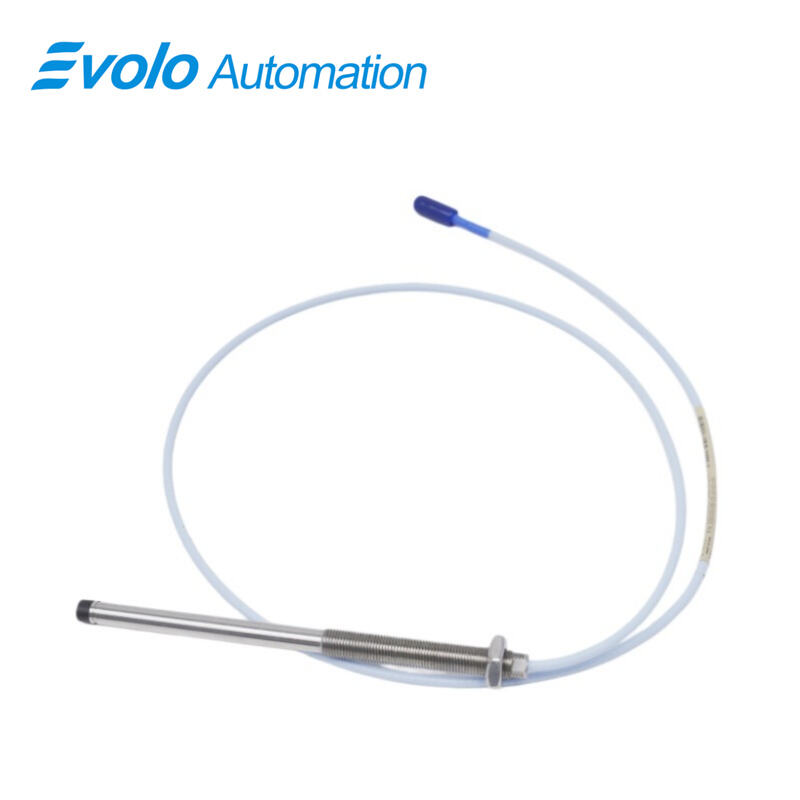

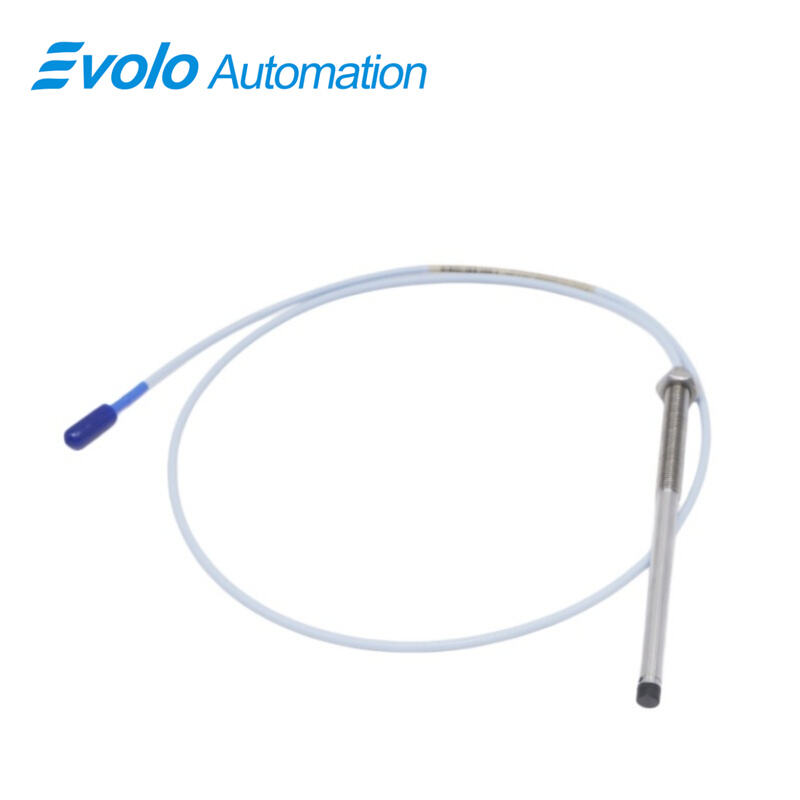

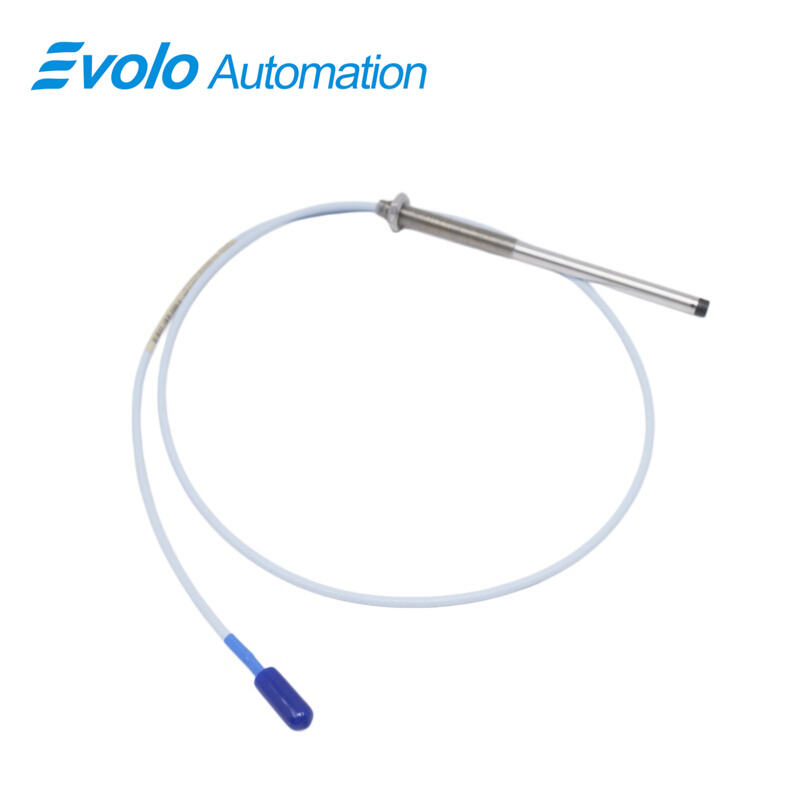

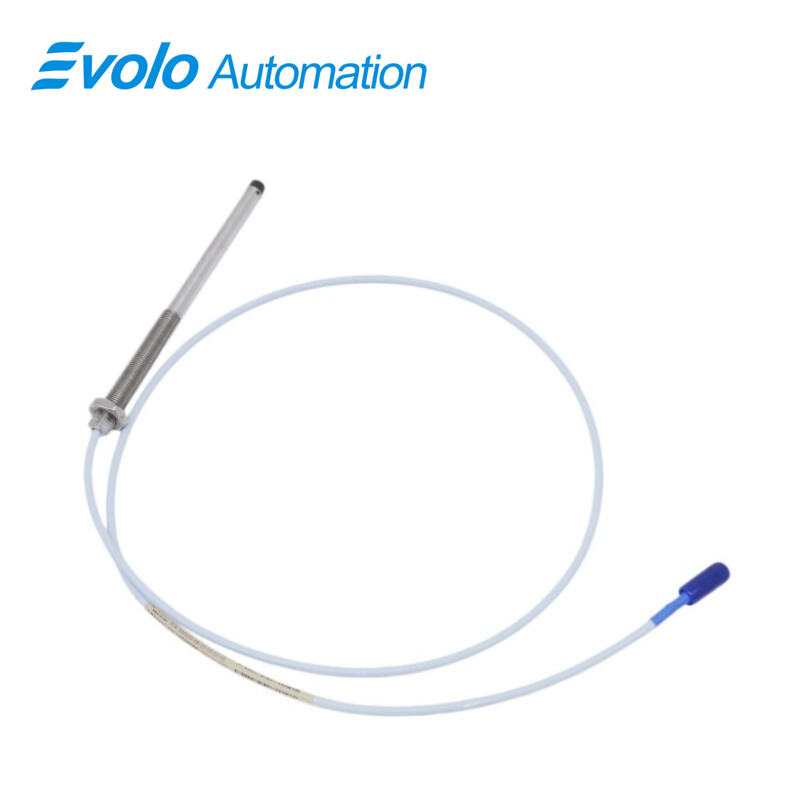

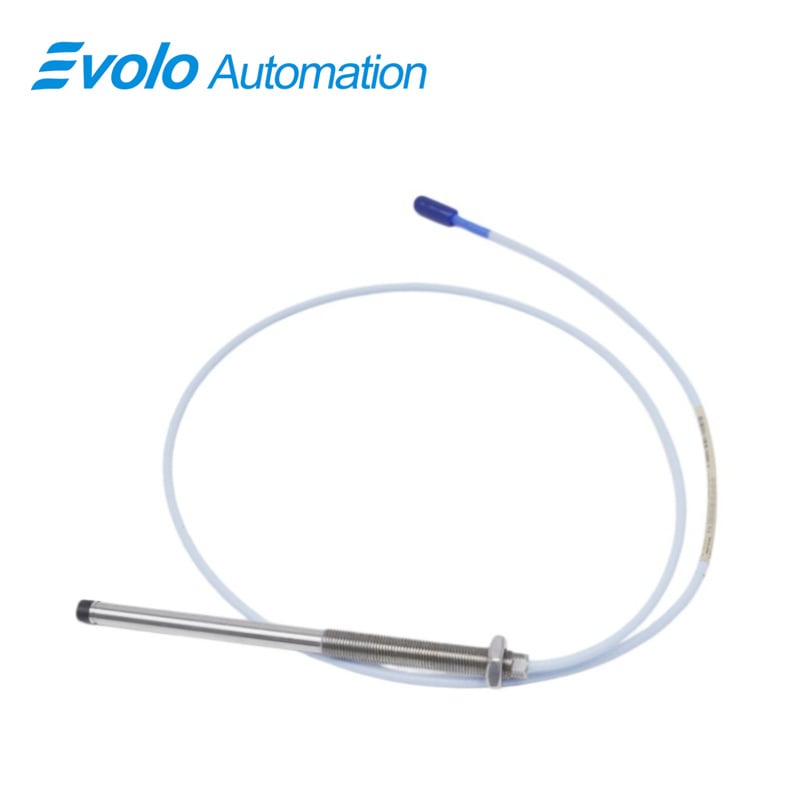

330103-08-15-10-02-00 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-08-15-10-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330103-08-15-10-02-00 3300 XL 8 mm Proximity Probe is designed for industrial automation systems requiring precise shaft displacement and vibration measurement. 330103-08-15-10-02-00 features an M10x1 threaded case with 80 mm unthreaded length, 150 mm minimum case length, and 1.0 meter standard cable with miniature coaxial ClickLoc connector for direct connection to PLCs, DCS, and vibration monitoring modules.

With a 2 mm linear range (80 mils), 50 Ω output resistance, and extension cable capacitance of 69.9 pF/m, 330103-08-15-10-02-00 converts shaft displacement into proportional voltage signals. Operating from -52°C to +177°C and with supply sensitivity less than 2 mV per volt input change, 330103-08-15-10-02-00 ensures reliable signal delivery for turbine, compressor, and pump automation applications.

330103-08-15-10-02-00 measures both static position and dynamic vibration, providing output suitable for Keyphasor speed reference generation, continuous DCS trend input, and automated trip or alarm logic when shaft movement exceeds thresholds. The probe’s TipLoc and CableLoc design secures the tip and cable with 330 N pull strength, and optional FluidLoc cables prevent oil leakage, making 330103-08-15-10-02-00 suitable for high-temperature, high-vibration industrial environments.

Applications

Measure shaft vibration for rotating machinery protection
330103-08-15-10-02-00 converts dynamic displacement up to 2 mm into proportional voltage signals. Signals exceeding 0.1 mm trigger automatic trips or alarms in automation control systems.

Monitor axial shaft position for thrust bearing control
330103-08-15-10-02-00 tracks axial displacement up to ±2 mm and provides real-time voltage input to control modules for corrective action when movement exceeds 1 mm.

Generate Keyphasor and speed reference signals
330103-08-15-10-02-00 detects once-per-revolution shaft events with ±0.01 mm positioning accuracy, producing pulses for speed calculation and phase monitoring in automated machinery.

Provide displacement input for DCS trending
With 0.2–1.5 mm² field wiring and low supply sensitivity, 330103-08-15-10-02-00 supplies consistent signals for trending shaft position and automated logic execution.

Specifications

Competitive Advantage

Direct M10x1 threaded mounting for precise installation
330103-08-15-10-02-00 engages threads up to 15 mm, enabling secure mounting on bearing housings without custom brackets.

Compact 1.0 meter cable with ClickLoc connector for fast panel wiring
330103-08-15-10-02-00 reduces installation time and supports extension cable capacitance of 69.9 pF/m for accurate signal transmission.

Extended temperature operation for high-heat environments
Rated -52°C to +177°C, 330103-08-15-10-02-00 maintains voltage output within ±2 mV in extreme thermal conditions.

Low supply sensitivity for predictable automation signals
330103-08-15-10-02-00 maintains output voltage change below 2 mV per volt input, ensuring accurate integration with PLC and DCS modules.

TipLoc and CableLoc design for mechanical security
330103-08-15-10-02-00 secures the probe tip and cable with 330 N pull strength, reducing risk of detachment in high-vibration machinery environments.
