330103-08-13-05-02-00 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-08-13-05-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

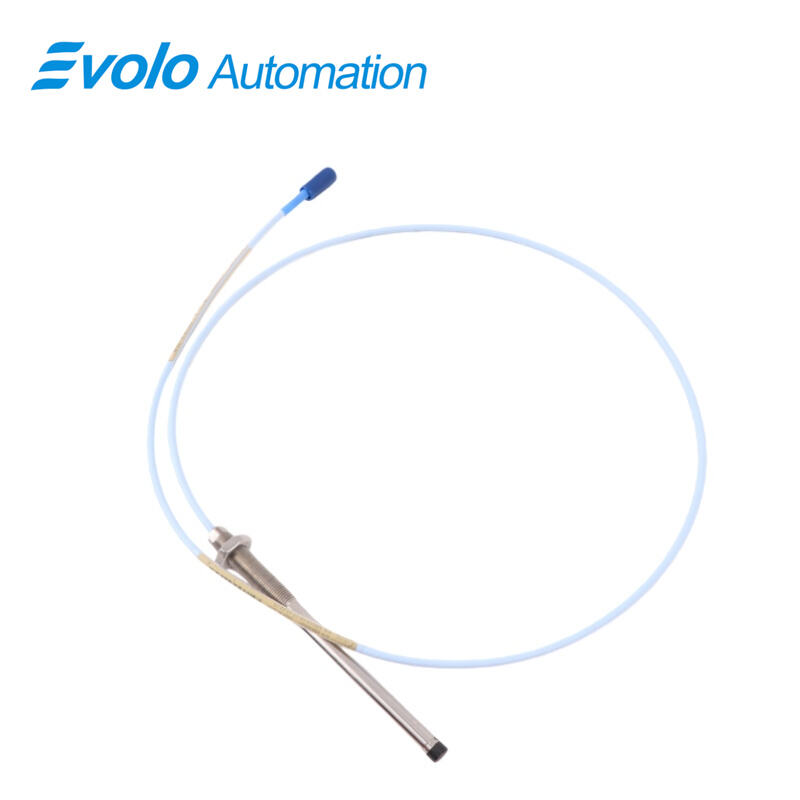

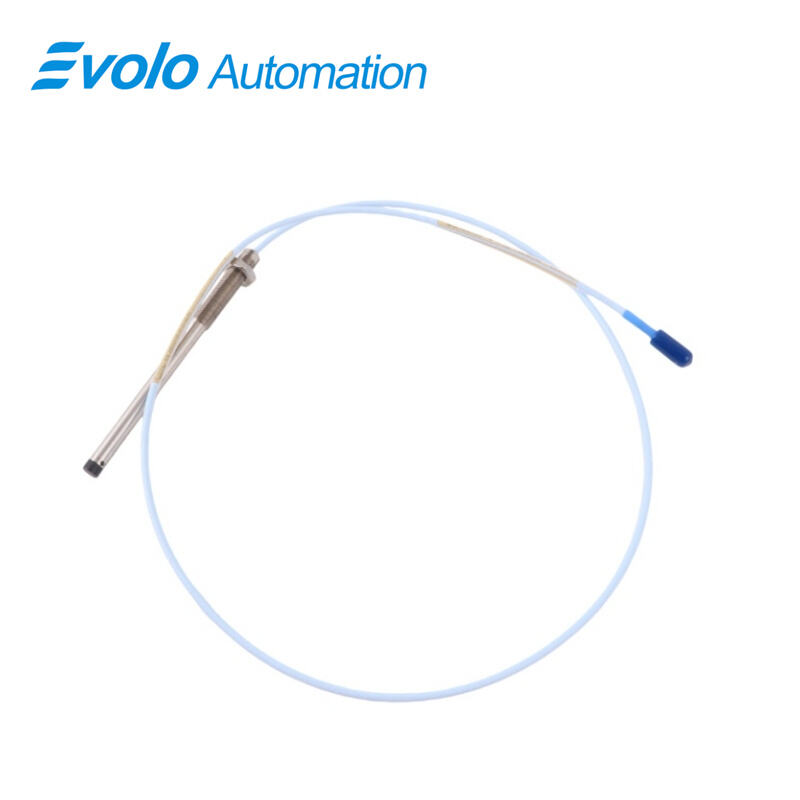

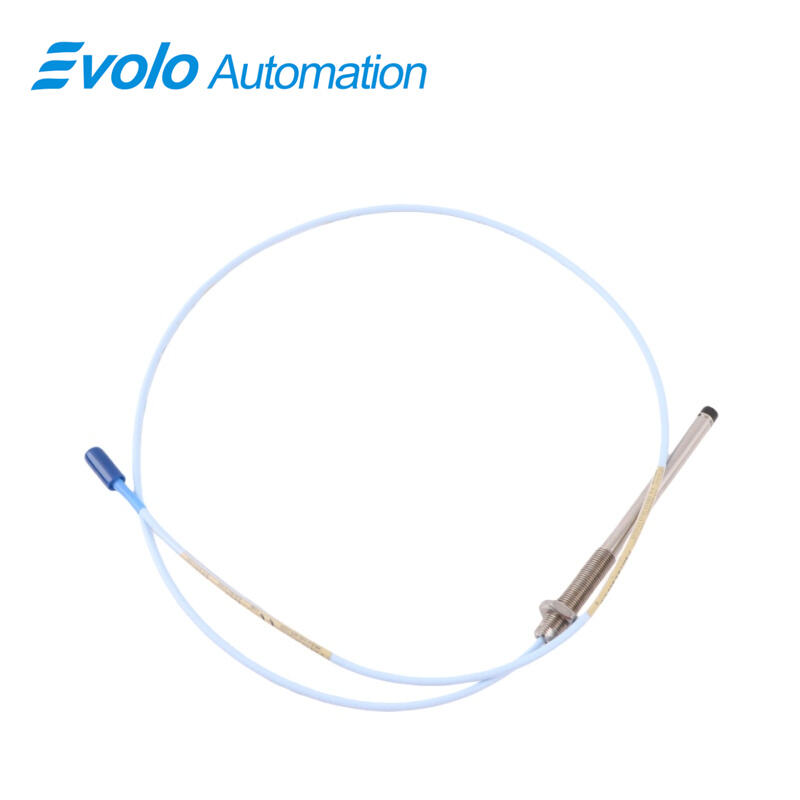

The 330103-08-13-05-02-00 3300 XL 8 mm Proximity Probe is designed for automated machinery monitoring, providing precise static and dynamic measurements of shaft position and vibration. The 330103-08-13-05-02-00 features an M10 x 1 probe thread with 15 mm maximum thread engagement, 80 mm unthreaded length, and overall case length of 130 mm. Its 0.5 meter standard cable with miniature coaxial ClickLoc connector supports complete interchangeability with other 3300 XL system components. Operating and storage temperatures range from -52°C to +177°C (-62°F to +350°F), while supply sensitivity is less than 2 mV change per volt of input, with output resistance of 50 Ω and extension cable capacitance of 69.9 pF/m (21.3 pF/ft). The 330103-08-13-05-02-00 3300 XL probe delivers a linear range of 2 mm (80 mils), enabling accurate vibration and position measurements on fluid-film bearing machines, turbines, and compressors. Its patented TipLoc molding and CableLoc cable design improve mechanical robustness and pull strength (330 N), while an optional FluidLoc cable prevents leakage, enhancing automated condition monitoring, predictive maintenance, and reliability in critical industrial applications.

Applications

Applications in Shaft Position and Vibration Monitoring
The 330103-08-13-05-02-00 3300 XL 8 mm Proximity Probe is applied in automated measurement of shaft position and vibration in turbines compressors and fluid-film bearing machines. With a linear range of 2 mm (80 mils) and calibrated output starting at 10 mils (0.25 mm) from the probe face, the 330103-08-13-05-02-00 provides precise static and dynamic distance measurements, enabling real-time monitoring in industrial control systems. Its 0.5 meter standard cable with miniature coaxial ClickLoc connector ensures seamless integration with 3300 XL transducer systems.

Applications in Predictive Maintenance
The 330103-08-13-05-02-00 operates reliably across -52°C to +177°C and supports supply sensitivity under 2 mV per volt, allowing automated vibration data acquisition for predictive maintenance programs. Maximum thread engagement of 15 mm and an M10 x 1 thread provide stable mounting, reducing measurement error in high-vibration environments.

Specifications

Competitive Advantage

Competitive Advantage in System Interchangeability
The 330103-08-13-05-02-00 is fully compatible with other 3300 XL probes extension cables and Proximitor sensors. This interchangeability, combined with the patented TipLoc molding and CableLoc designs, which provide 330 N pull strength, ensures robust mechanical integrity and reduces downtime in automated machinery systems. The 50 Ω output resistance guarantees reliable signal integration with control system inputs.
