330103-06-15-10-12-CN 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-06-15-10-12-CN
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

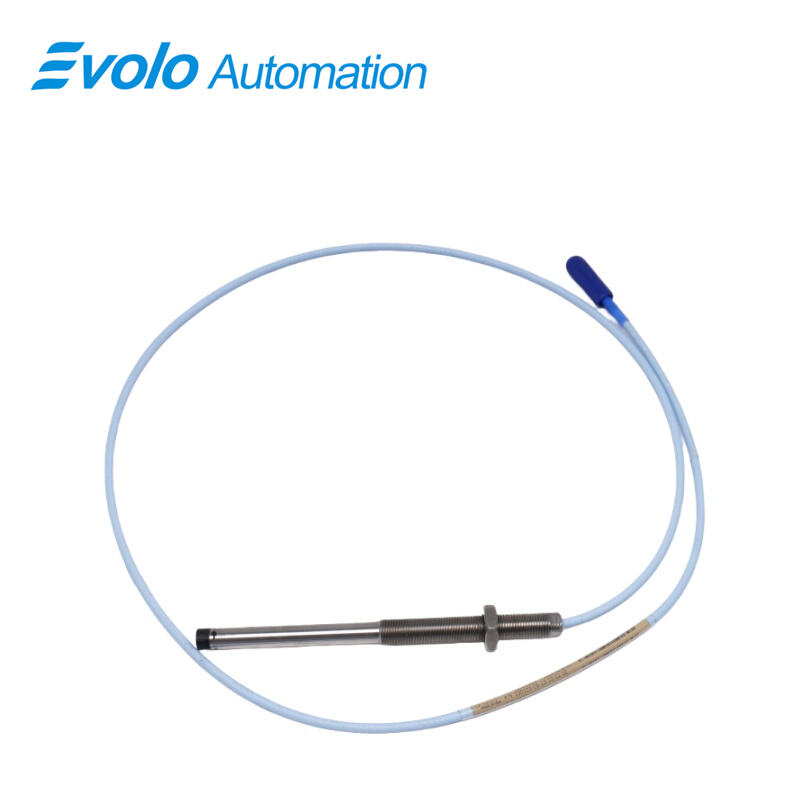

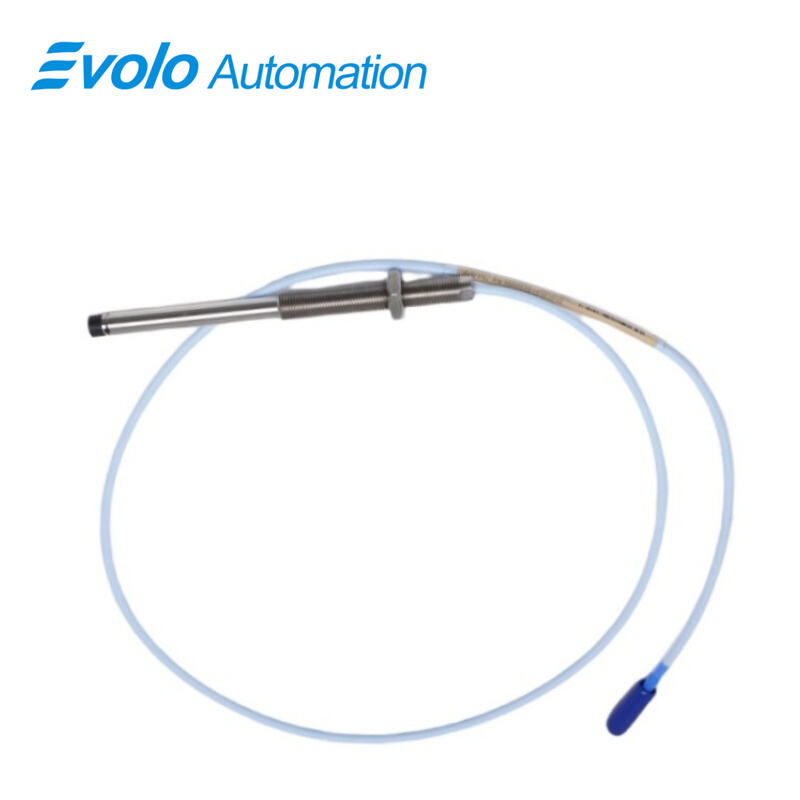

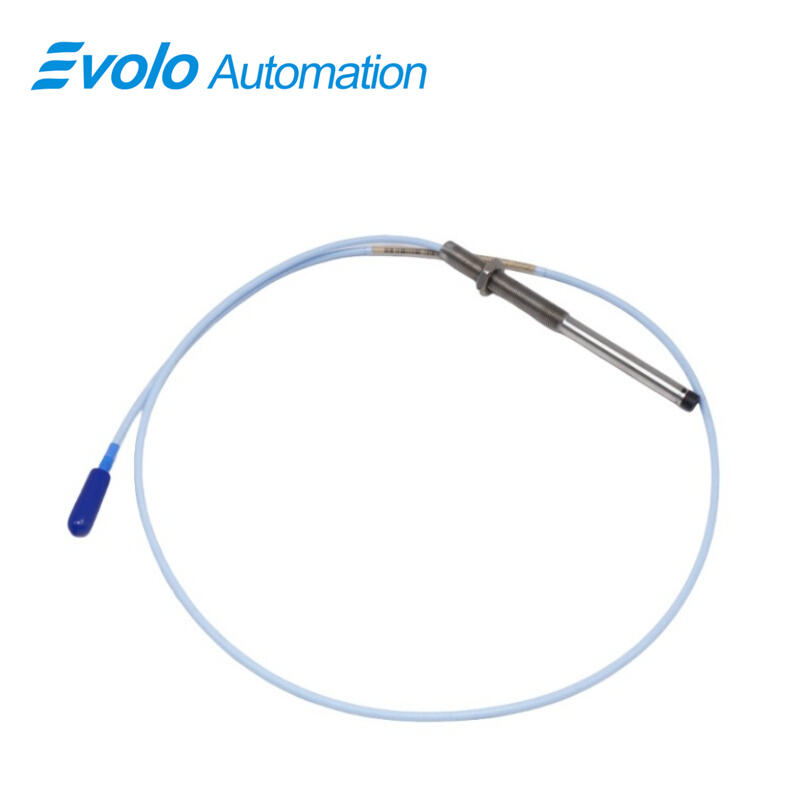

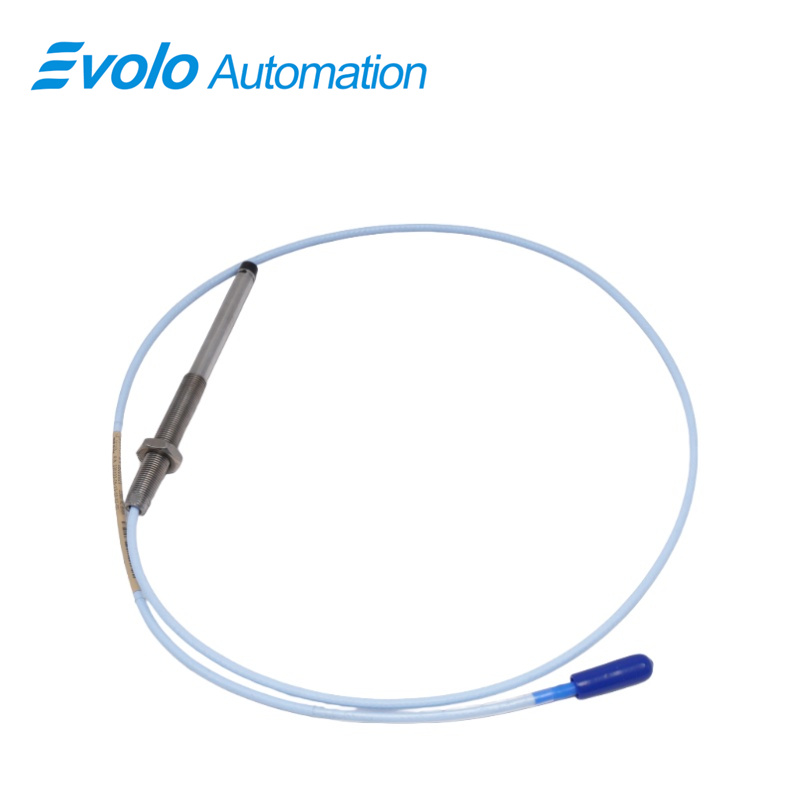

330103-06-15-10-12-CN 3300 XL 8 mm Proximity Probe is a precision eddy current transducer for industrial automation. The 330103-06-15-10-12-CN 3300 XL 8 mm probe outputs a voltage proportional to the distance between its tip and conductive surfaces, measuring static positions and dynamic vibrations with a 2 mm (80 mils) linear range and 50 Ω output resistance. It operates from -52°C to +177°C (-62°F to +350°F) with supply sensitivity below 2 mV per volt.

The 330103-06-15-10-12-CN 3300 XL 8 mm probe has a 60 mm unthreaded length, 150 mm case length, and 1.0-meter (3.3 ft) Miniature ClickLoc FluidLoc cable. M10x1 threading (max 15 mm engagement) and 0.2–1.5 mm² (16–24 AWG) field wiring support reliable installation. Extension cable capacitance is 69.9 pF/m (21.3 pF/ft).

API 670 compliant, the 330103-06-15-10-12-CN 3300 XL 8 mm probe is interchangeable with Proximitor sensors and all 3300 XL 8 mm components, and backward compatible with earlier 3300 series 5 mm and 8 mm probes. Patented TipLoc and CableLoc designs provide robust tip-body bonding and 330 N (75 lbf) cable pull strength. Optional FluidLoc prevents fluid leakage.

Applications

Vibration Monitoring on Fluid-Film Bearings
The 330103-06-15-10-12-CN 3300 XL 8 mm probe accurately measures dynamic vibrations on fluid-film bearing machines. With a linear range of 2 mm (80 mils), output resistance of 50 Ω, and operation from -52°C to +177°C (-62°F to +350°F), this probe ensures precise monitoring for automated industrial systems.

Position Sensing in Rotating Machinery
The 330103-06-15-10-12-CN 3300 XL 8 mm probe monitors static shaft displacement and alignment. Its M10x1 threaded stainless steel case with 15 mm max engagement, 150 mm case length, and 1.0-meter Miniature ClickLoc FluidLoc cable make it ideal for compact automation setups where accuracy is critical.

Keyphasor Speed Reference
The 330103-06-15-10-12-CN 3300 XL 8 mm probe supports Keyphasor systems to track rotational speed and phase. Extension cable capacitance of 69.9 pF/m (21.3 pF/ft) and field wiring support for 0.2–1.5 mm² (16–24 AWG) maintain reliable signal integrity in automated monitoring applications.

Specifications

Competitive Advantage

API 670 Compliance and Interchangeability
The 330103-06-15-10-12-CN 3300 XL 8 mm probe meets API 670 standards for linearity, temperature stability, and mechanical configuration. It is interchangeable with all 3300 XL 8 mm system components and backward compatible with earlier 3300 series 5 mm and 8 mm probes, eliminating the need for bench calibration during upgrades.

Durable Construction and Extreme Temperature Performance
The 330103-06-15-10-12-CN 3300 XL 8 mm probe has a polyphenylene sulfide tip and AISI 303/304 stainless steel case, operating reliably from -52°C to +177°C (-62°F to +350°F). Patented TipLoc molding strengthens the probe tip-body bond for long-term durability in harsh industrial environments.

Enhanced Cable Security and Leak Prevention
The 330103-06-15-10-12-CN 3300 XL 8 mm probe incorporates CableLoc design with 330 N (75 lbf) pull strength and optional FluidLoc cable, preventing fluid leakage and ensuring safe, uninterrupted operation in automated systems.

High-Precision Measurement Reliability
Low supply sensitivity (less than 2 mV per volt) and extension cable capacitance of 69.9 pF/m (21.3 pF/ft) ensure the 330103-06-15-10-12-CN 3300 XL 8 mm probe delivers consistent, accurate position and vibration measurements across automated industrial systems.
