Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330103-06-15-05-02-05 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
00 mm |
|
Overall Case Length Option(Minimum case length): |
60 mm |
|
Total Length Option: |
1.5 meter (4.9 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option: |
CSA, ATEX, IECEx Approvals |
|
Probe Case Thread: |
M10x1 |
|
Maximum Length of Thread Engagement: |
15 mm |
|
Dimension: |
30.5x33x4.5cm |
|
Weight: |
0.3 kg |
Description

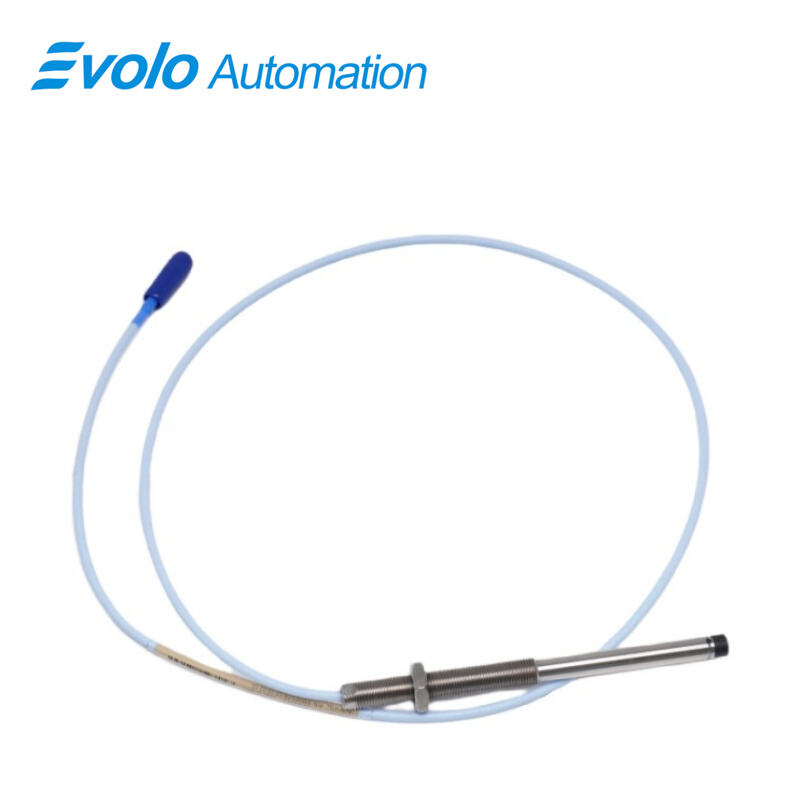

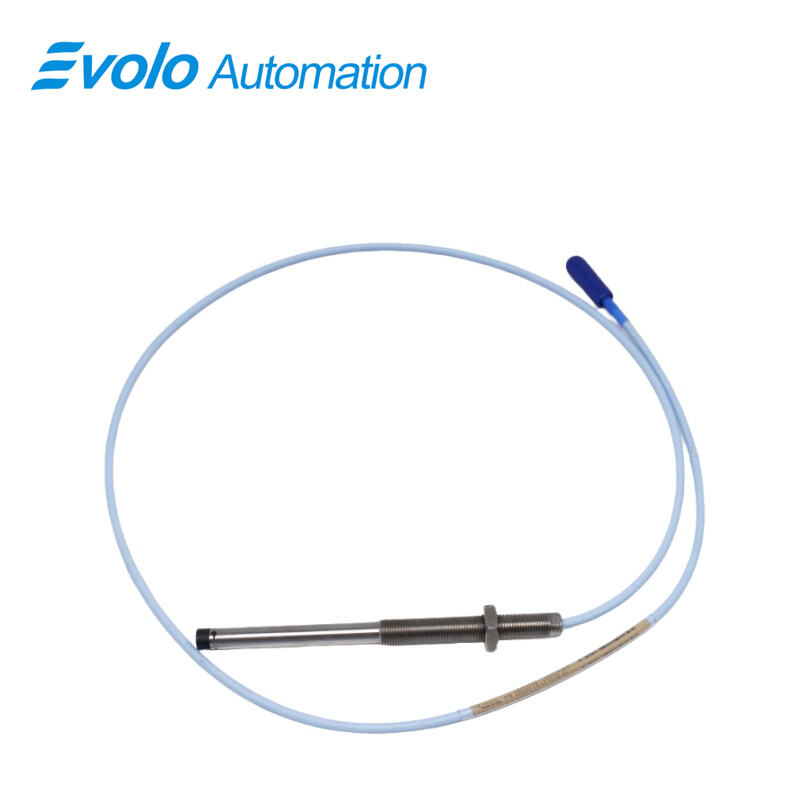

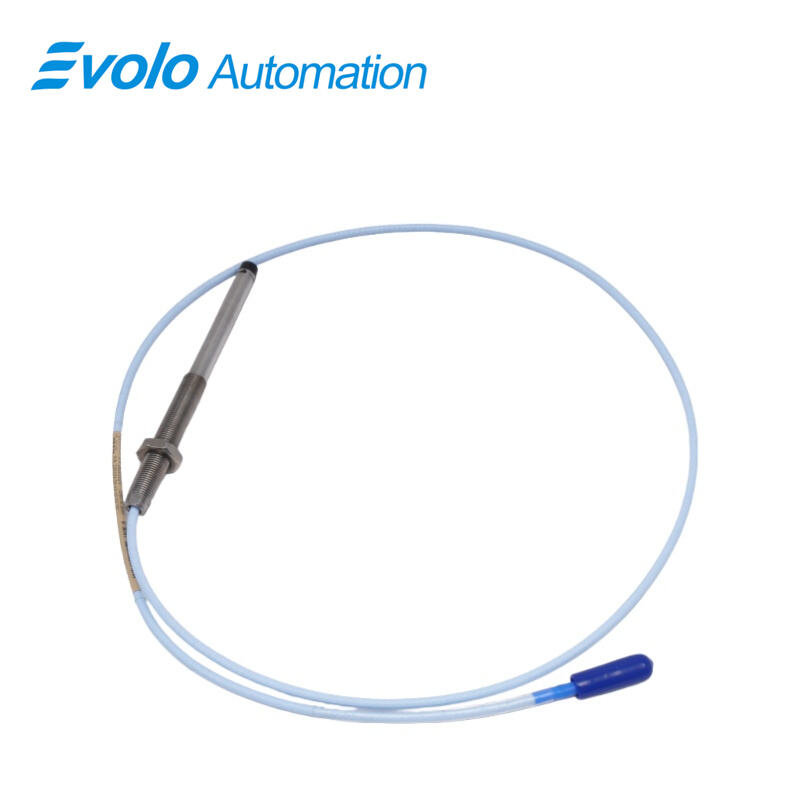

The 330103-06-15-05-02-05 3300 XL 8 mm Proximity Probe is designed for precise position sensing and vibration measurement in industrial automation and critical rotating equipment applications. As part of the 3300 XL eddy-current proximity transducer system, this 8 mm probe delivers output voltage directly proportional to the distance between the probe tip and a conductive target, enabling accurate monitoring of both static shaft displacement and dynamic vibration signals. Ideal for fluid-film bearing machines, centrifugal compressors, and turbines, the probe provides reliable performance under extreme temperatures ranging from −52°C to +177°C and supports hazardous location deployments with CSA, ATEX, and IECEx approvals. Equipped with M10×1 threaded housing, miniature ClickLoc connectors, and a 1.5-meter cable, it ensures robust installation, easy integration, and backward compatibility with previous 3300 series 5 mm and 8 mm probes. Patented TipLoc and CableLoc technologies enhance mechanical strength and cable retention up to 330 N, while the optional FluidLoc cable prevents fluid ingress, making this probe a dependable solution for real-time condition monitoring and predictive maintenance in automated industrial systems.
Applications
Shaft and Vibration Monitoring
The 330103-06-15-05-02-05 provides precise measurement of shaft displacement and vibration within its 2 mm linear range, helping identify misalignment, imbalance, or wear in turbines, motors, and compressors to prevent equipment failures.
Long-Reach Installations
Featuring a 1.5-meter cable, the 330103-06-15-05-02-05 is well-suited for setups where probe positioning requires extended reach without compromising measurement accuracy.
Reliable Use in Harsh Environments
With CSA, ATEX, and IECEx certifications and an operating temperature range from -52°C to +177°C, the 330103-06-15-05-02-05 performs dependably in extreme or hazardous industrial conditions.
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Competitive Advantage
High Measurement Accuracy (Linear Range 2 mm / 80 mils)
Provides reliable proximity and vibration readings for critical machinery, ensuring compliance with API 670 and reducing false alarms in automation systems.
Extreme Temperature Tolerance (−52°C to +177°C)
Operates stably in harsh industrial environments, including petrochemical plants and power generation facilities, without output drift or signal loss.
Global Hazardous Location Certification
CSA, ATEX, and IECEx approvals allow deployment in flammable or explosive atmospheres, supporting worldwide industrial automation standards.
Enhanced Mechanical Retention (TipLoc & CableLoc, 330 N Pull Strength)
Patented bonding and cable retention methods improve durability, minimize probe or cable failure, and enhance long-term system reliability.
