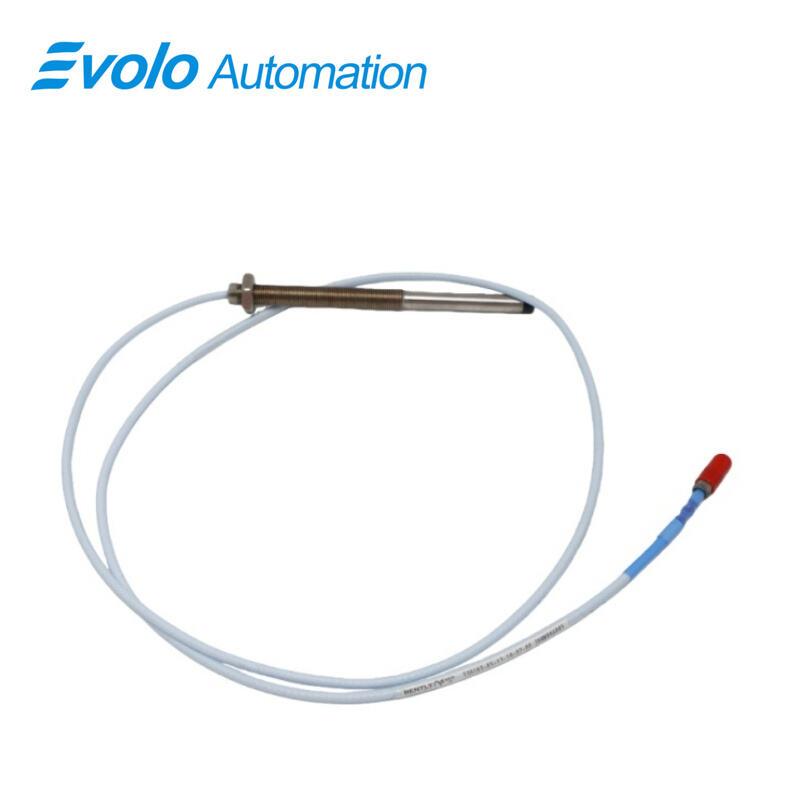

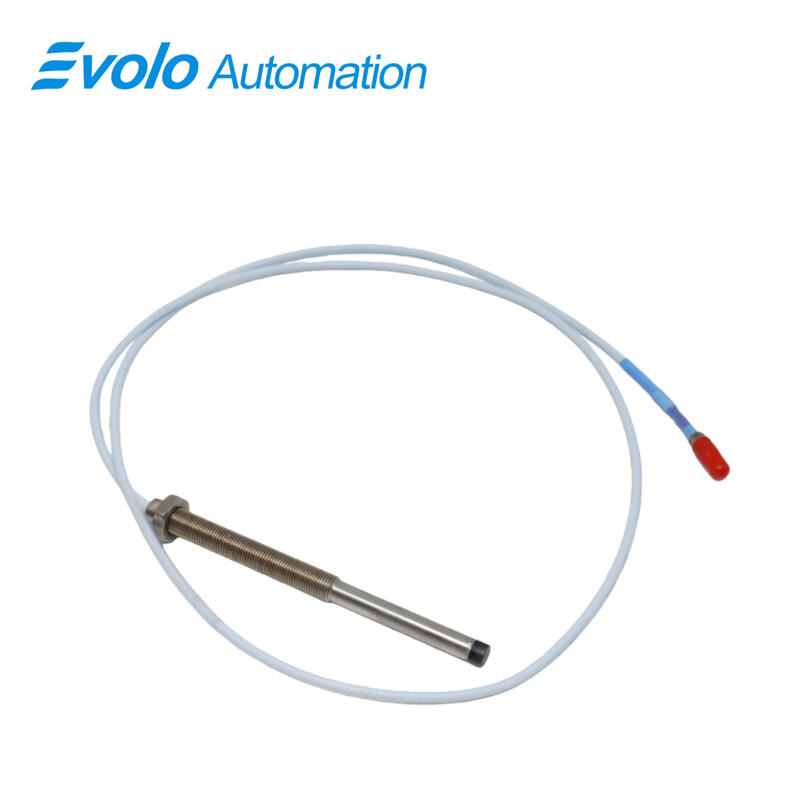

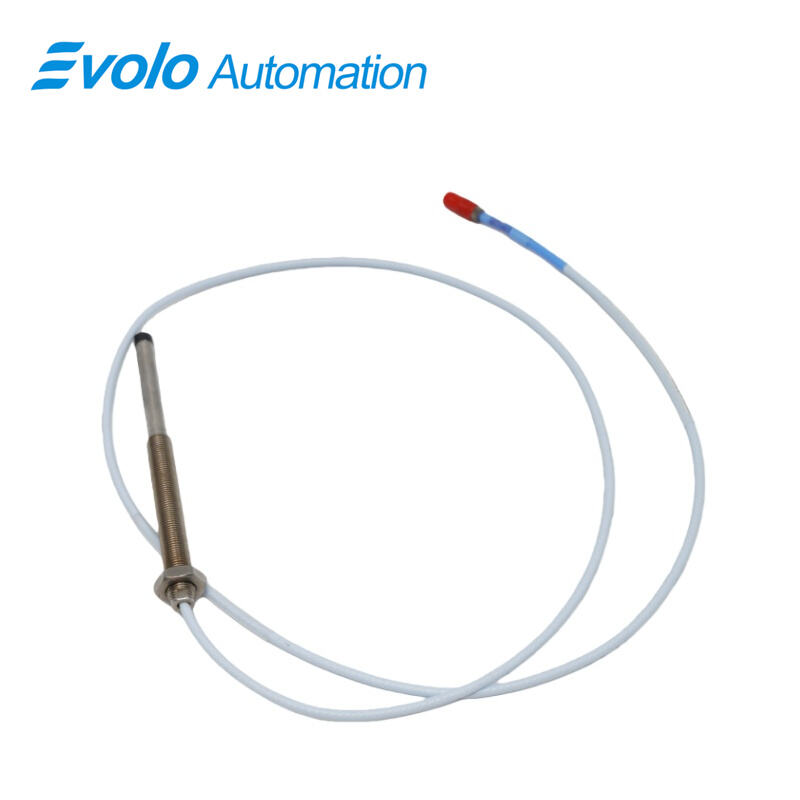

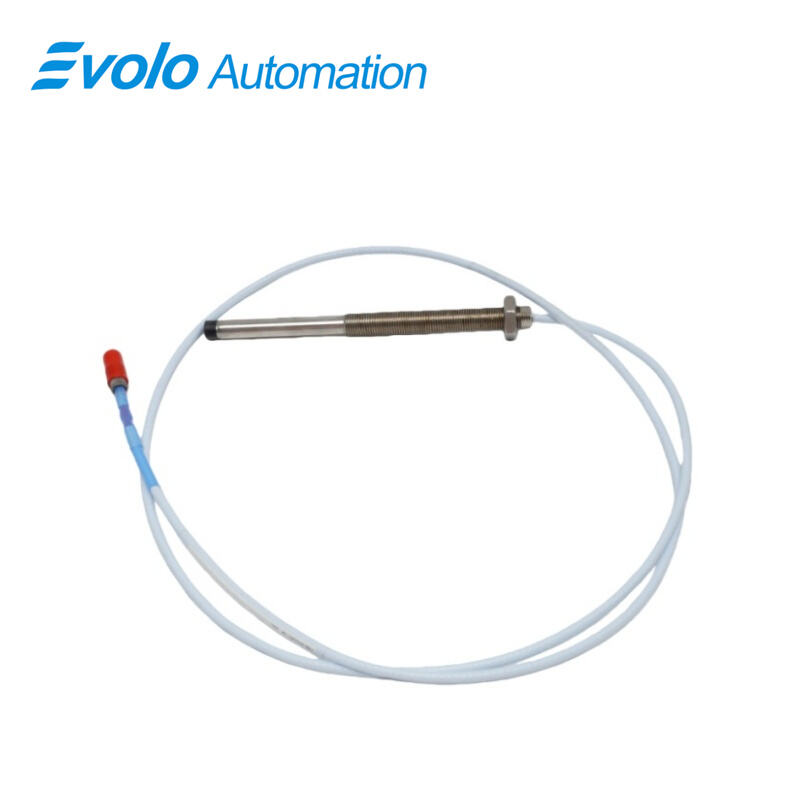

330103-05-13-10-02-00 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-05-13-10-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330103-05-13-10-02-00 3300 XL 8 mm Proximity Probe is a high-precision eddy current sensor engineered for industrial automation, predictive maintenance, and real-time condition monitoring. Designed with a 130 mm overall case length and 50 mm unthreaded section, it connects via a 1.0-meter miniature coaxial ClickLoc cable (standard type) to deliver accurate position and vibration measurements. Its 2 mm linear range and 50 Ω output resistance provide precise output voltage proportional to the gap between the probe tip and the conductive target. With operating temperatures from −52°C to +177°C and a supply sensitivity of less than 2 mV/V, this probe ensures reliable performance in extreme environments. The M10x1 threaded housing with a 15 mm maximum engagement enables secure mounting, while TipLoc and CableLoc patented designs provide 330 N pull strength for cable and probe tip reliability. Fully backward compatible with all 3300 series and 3300 XL components, this probe allows seamless upgrades and component interchangeability without bench calibration. Optional FluidLoc cable protection prevents oil or liquid ingress, extending probe service life in harsh industrial applications.

Applications

Application 1: Turbine and Compressor Monitoring
Provides accurate shaft vibration and displacement measurements on high-speed turbines and compressors, detecting misalignment or imbalance with ±0.1% gap accuracy, preventing costly downtime.

Application 2: Fluid-Film Bearing Clearance Analysis
Monitors dynamic shaft position in pumps and motors with fluid-film bearings, maintaining optimum clearance and reducing bearing wear by up to 15%, improving machine efficiency.

Application 3: Keyphasor Speed Reference
Generates Keyphasor signals for precise rotational speed and phase detection, supporting advanced predictive maintenance algorithms and enabling real-time diagnostics.

Application 4: Harsh Environment Monitoring
Operates reliably in extreme temperatures (−52°C to +177°C) and industrial atmospheres, allowing deployment in petrochemical, power generation, and offshore equipment monitoring.

Application 5: Automated Control Systems Integration
Integrates with PLC, DCS, or SCADA systems for real-time feedback on rotational machinery, supporting automated control adjustments and operational optimization.

Specifications

Competitive Advantage

Competitive Advantage 1: Mechanical and Thermal Robustness
TipLoc and CableLoc patented designs provide 330 N pull strength, ensuring the probe maintains stability and signal integrity under high vibration and temperature extremes.

Competitive Advantage 2: Optional FluidLoc Protection
FluidLoc cable option prevents oil or other liquid ingress, reducing contamination risk and maintenance frequency by up to 40%.

Competitive Advantage 3: High Measurement Accuracy
2 mm linear range and <2 mV/V supply sensitivity deliver precise static and dynamic measurements, improving vibration analysis and predictive maintenance reliability.

Competitive Advantage 4: Component Interchangeability
Fully backward compatible with 3300 and 3300 XL probes, extension cables, and Proximitor sensors, eliminating the need for recalibration and simplifying system upgrades.

Competitive Advantage 5: Flexible Industrial Deployment
M10x1 threaded housing, compact design, and 1.0-meter standard cable length allow versatile installation in tight or high-density machinery layouts without compromising performance.
