Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330103-03-10-10-11-00 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
30 mm |
|
Overall Case Length Option(Minimum case length): |
100 mm |
|
Total Length Option: |
1.0 meter (3.3 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector with connector protector, FluidLoc cable |
|
Agency Approval Option: |
Not required |
|
Probe Case Thread: |
M10x1 |
|
Maximum Length of Thread Engagement: |
15 mm |
|
Dimension: |
1.8x1.5x52cm |
|
Weight: |
0.06kg |
Description

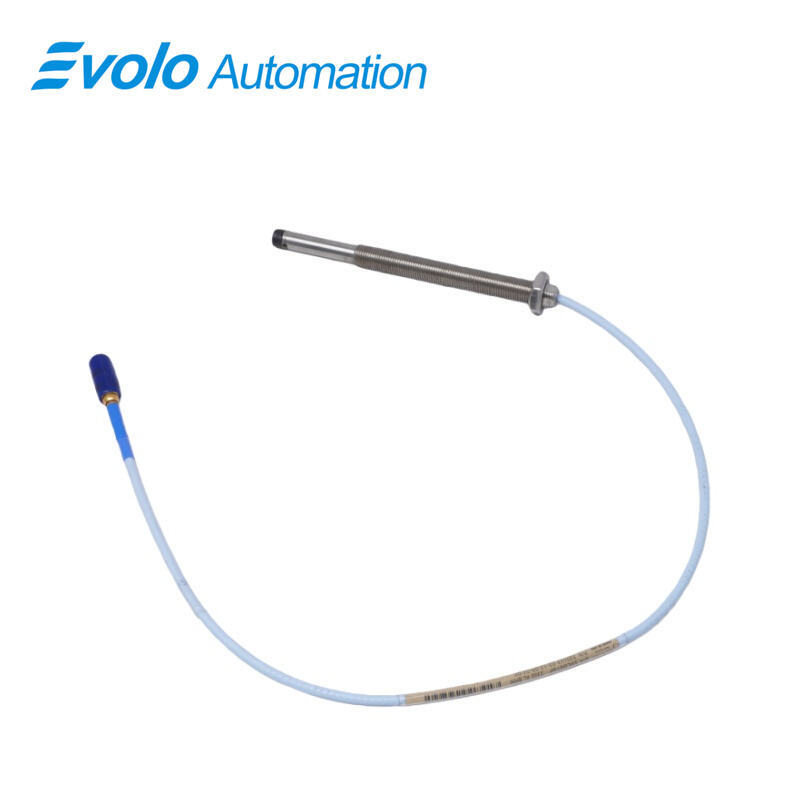

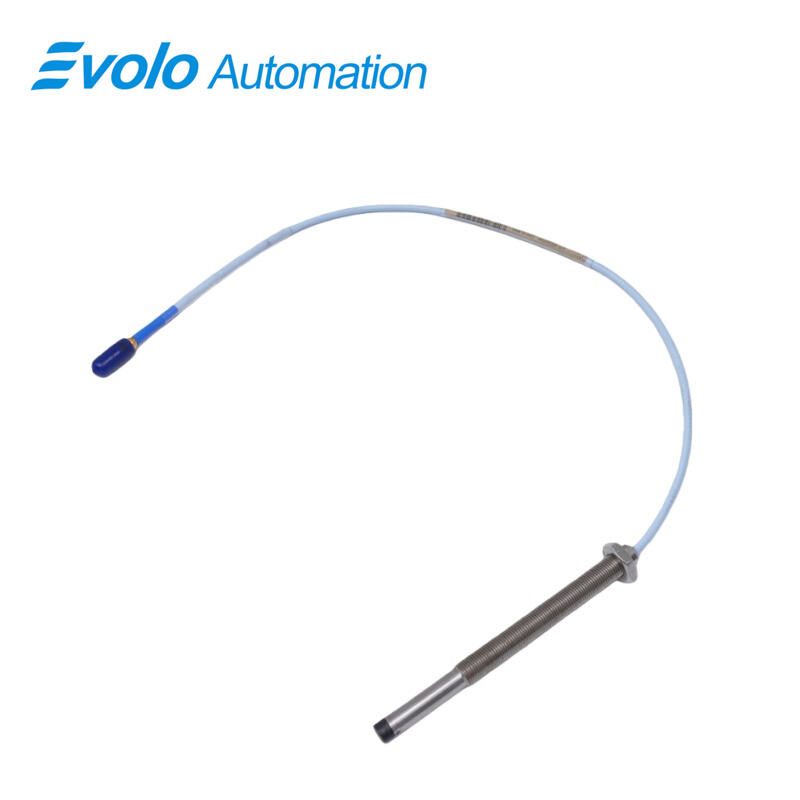

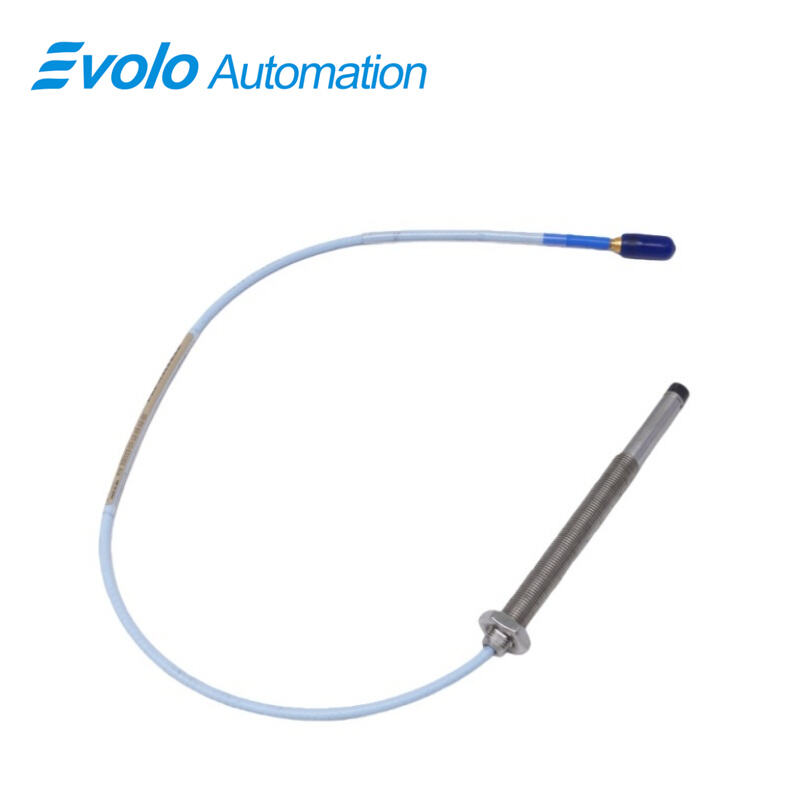

330103-03-10-10-11-00 3300 XL 8 mm Proximity Probe provides precise position and vibration measurements for fluid-film bearing machines in automation systems. The 3300 XL 8 mm features a 1.0 m total length, 2 mm linear range, M10x1 probe case thread with 15 mm maximum thread engagement, and operates from -52°C to +177°C. Its miniature coaxial ClickLoc connector with FluidLoc cable ensures secure attachment with 330 N pull strength and prevents oil leakage. The 330103-03-10-10-11-00 delivers less than 2 mV output change per volt of supply variation, 50 Ω output resistance, and extension cable capacitance of 69.9 pF/m. Fully compliant with API 670, the 330103-03-10-10-11-00 allows interchangeable probes, cables, and Proximitor sensors, enabling reliable vibration, shaft position, and speed measurements in compact or high-demand automation installations.
Applications
Measure Rotor Vibration in Fluid-Film Bearings
Use 330103-03-10-10-11-00 probes to monitor rotor vibration on pumps, turbines, and motors. The 2 mm linear range allows accurate detection of small dynamic movements in automated machinery.
Monitor Shaft Position in Rotating Equipment
Mount the 330103-03-10-10-11-00 on turbine or generator shafts. The 1.0 m cable length and M10x1 thread enable precise positioning for automated axial and radial shaft measurement.
Track Speed Using Keyphasor Signals
Integrate 330103-03-10-10-11-00 probes with Keyphasor systems to measure rotational speed. The miniature coaxial ClickLoc connector ensures secure connection and reliable signal transmission in high-speed automation setups.
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Competitive Advantage
Prevent Oil Leakage and Secure Cable Connection
The 330103-03-10-10-11-00 FluidLoc cable and ClickLoc connector provide 330 N pull strength, ensuring the probe cable remains attached while preventing oil or fluid escape from machinery.
Operate Across Wide Temperature Range
With operation from -52°C to +177°C, the 330103-03-10-10-11-00 supports automated machinery in extreme environments without modification.
Enable Quick Integration with Existing Systems
The 330103-03-10-10-11-00 allows interchangeable use with Proximitor sensors and extension cables, reducing installation time and supporting compact or high-demand automation setups.
Maintain Accurate Output under Voltage Variation
Supply sensitivity under 2 mV per volt and 50 Ω output resistance ensure 330103-03-10-10-11-00 delivers precise measurements even when input voltage fluctuates in automated systems.
