Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330103-02-08-10-02-RU |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
20 mm |
|
Overall Case Length Option(Minimum case length): |
80 mm |
|
Total Length Option: |
1.0 meter (3.3 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option: |
CSA, ATEX, IECEx Approvals |
|
Probe Case Thread: |
M10x1 |
|
Maximum Length of Thread Engagement: |
15 mm |
|
Dimension: |
1.8x1.6x113cm |
|
Weight: |
0.05kg |
Description

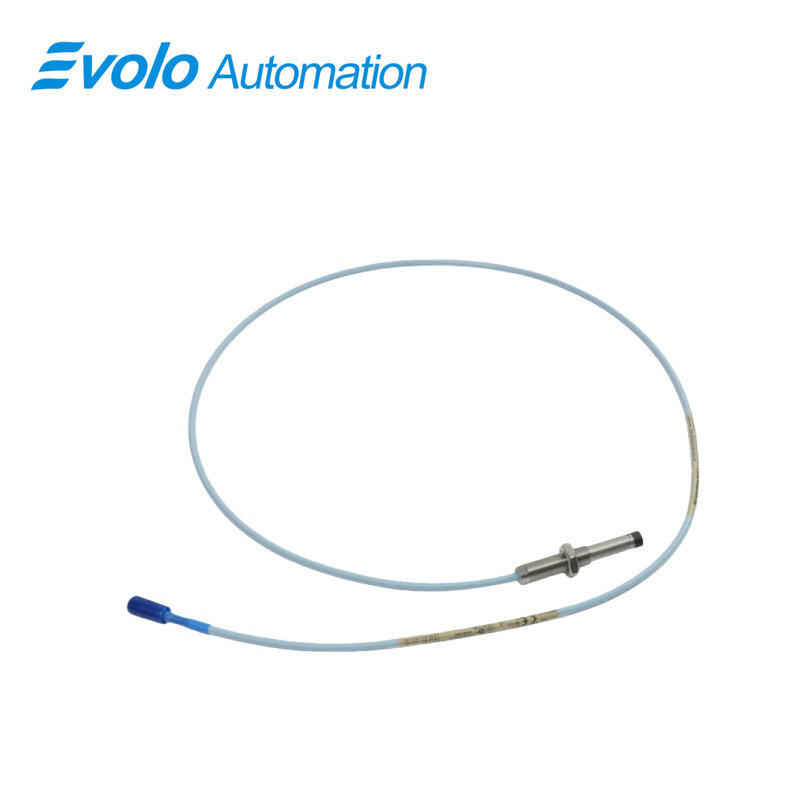

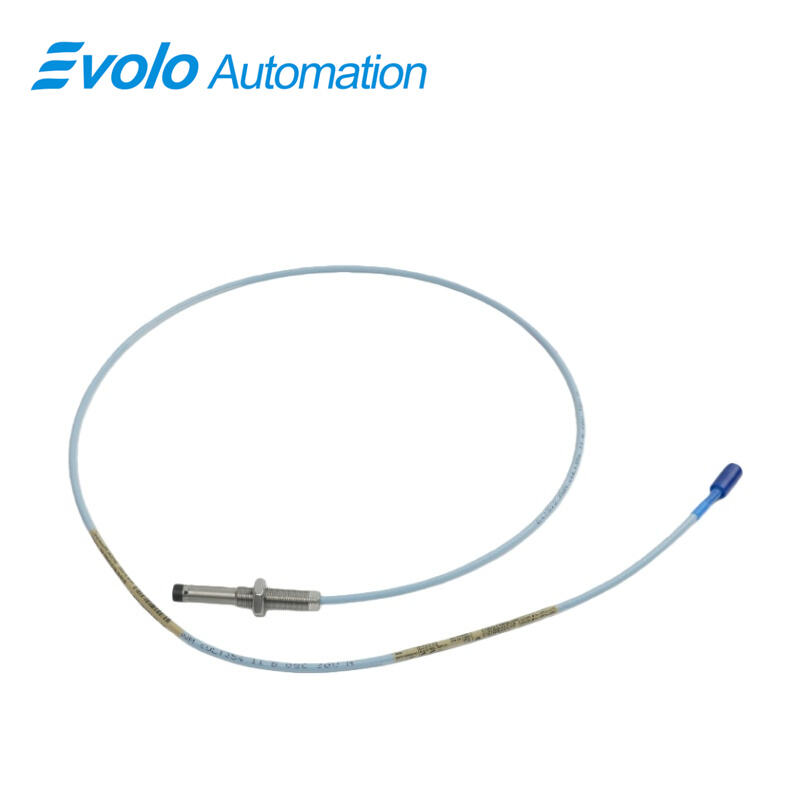

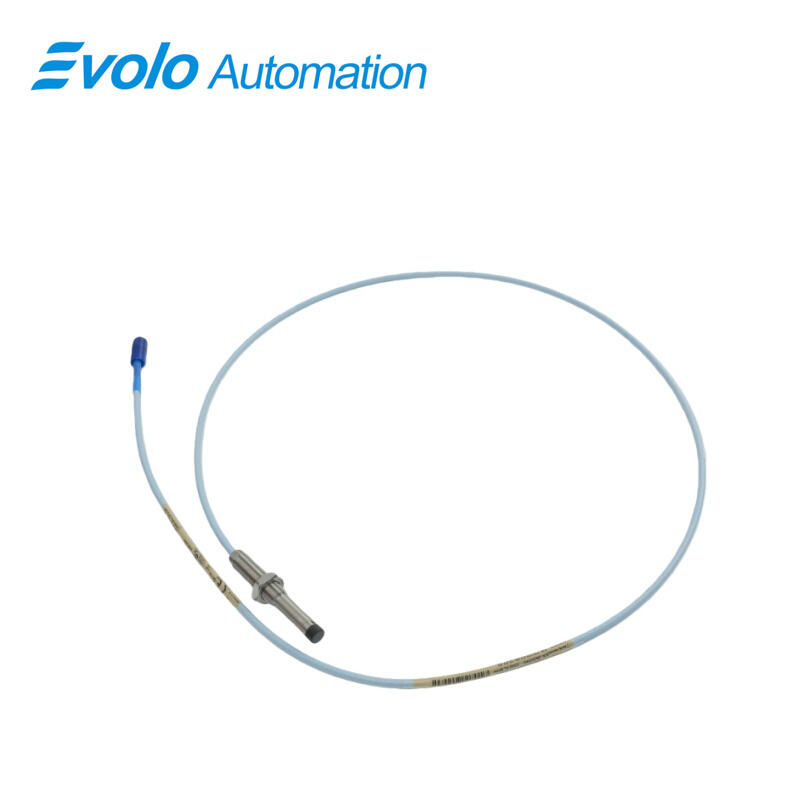

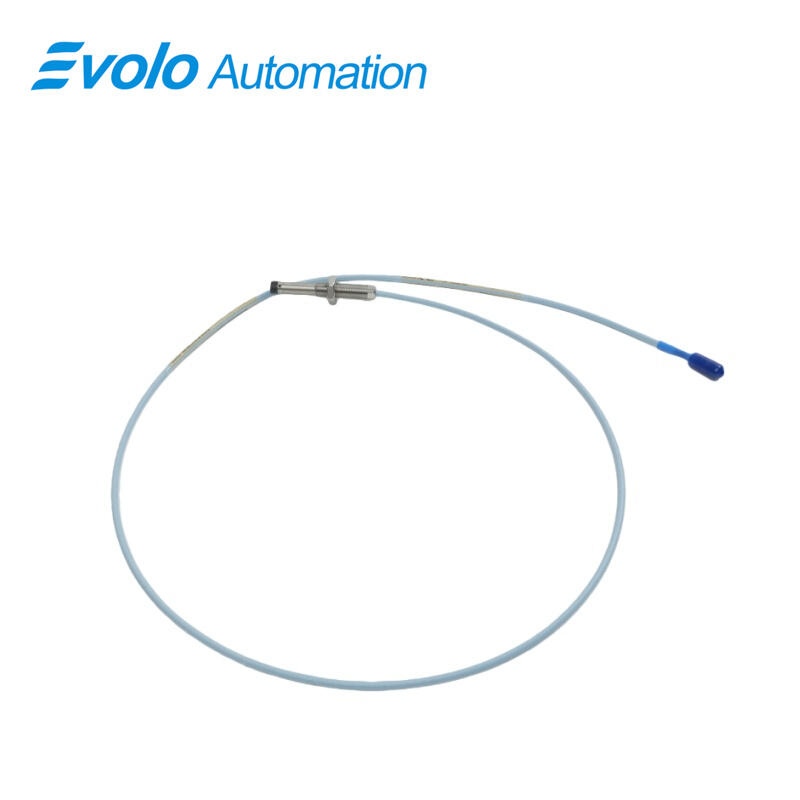

The 330103-02-08-10-02-RU 3300 XL 8 mm Proximity Probe is a high-precision eddy-current transducer designed for industrial automation applications requiring accurate vibration, position, and Keyphasor measurements. Equipped with a miniature coaxial ClickLoc connector and standard 1-meter cable, the probe provides linear output voltage directly proportional to the distance between the probe tip and the conductive surface. It operates reliably across extreme conditions from -52°C to +177°C (-62°F to +350°F) and supports a linear range of 2 mm (80 mils). The M10x1 threaded probe ensures secure installation with up to 15 mm of engagement, while the patented TipLoc molding and CableLoc designs enhance mechanical robustness and pull resistance up to 330 N (75 lbf). The optional FluidLoc cable prevents oil or liquid leakage, enabling safer and cleaner integration in fluid-film bearing machines, turbines, and other critical rotating equipment. Fully compliant with CSA, ATEX, and IECEx approvals, this probe is optimized for API 670-standard predictive maintenance systems and offers interchangeability with 3300 series 5 mm and 8 mm components, simplifying retrofits and upgrades.
Applications
1. Vibration Monitoring of Fluid-Film Bearings
Measures dynamic shaft vibration in pumps, compressors, and turbines to detect imbalance or misalignment, improving machinery reliability.
2. Position Measurement in Rotating Machinery
Accurately tracks shaft displacement to ensure alignment and clearance in high-speed rotors and critical machinery.
3. Keyphasor Reference for Rotational Speed
Provides precise trigger signals for speed measurement and phase reference in vibration analysis systems.
4. Predictive Maintenance Systems
Integrates with Proximitor and monitoring modules for early detection of bearing wear or rotor faults, reducing unplanned downtime.
5. Hazardous Area Equipment Monitoring
Certified for CSA, ATEX, and IECEx, enabling safe measurement in flammable or explosive industrial environments.
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Competitive Advantage
1. High Temperature Endurance
Operates from -52°C to +177°C, ensuring reliability under extreme thermal cycling in industrial machinery.
2. Exceptional Signal Stability
Less than 2 mV change per volt input maintains accurate distance and vibration readings, critical for predictive maintenance.
3. Robust Mechanical Design
Patented TipLoc and CableLoc systems provide 330 N pull strength, preventing accidental disconnections and extending service life.
4. Versatile Compatibility
Supports full interchangeability with 3300 series 5 mm and 8 mm transducers, allowing seamless upgrades and system integration.
5. Leak-Resistant Operation
Optional FluidLoc cable prevents fluid ingress or egress, protecting the probe and machine interior from oil or other liquids.
