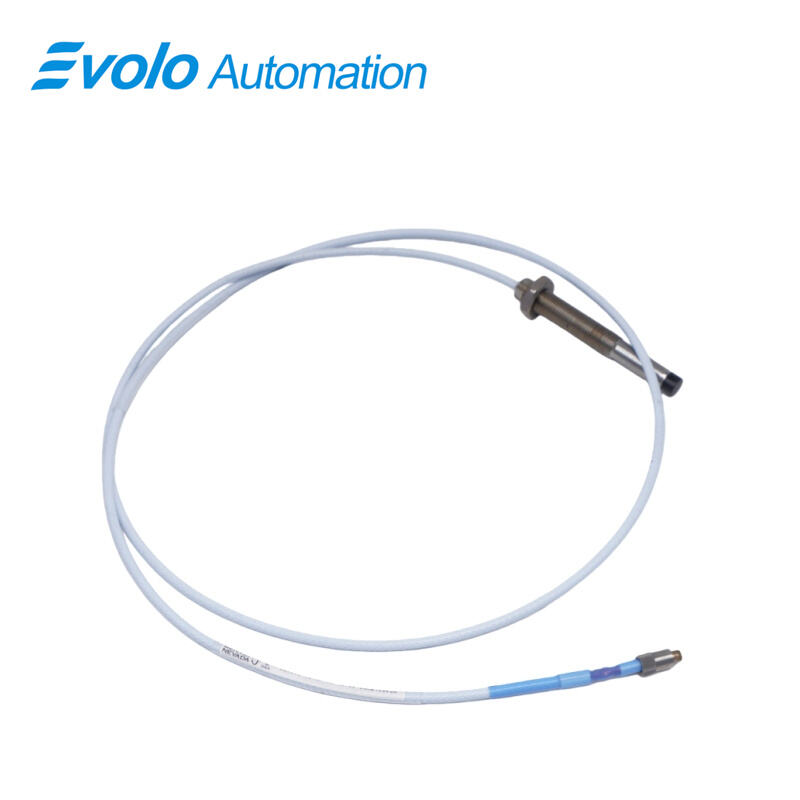

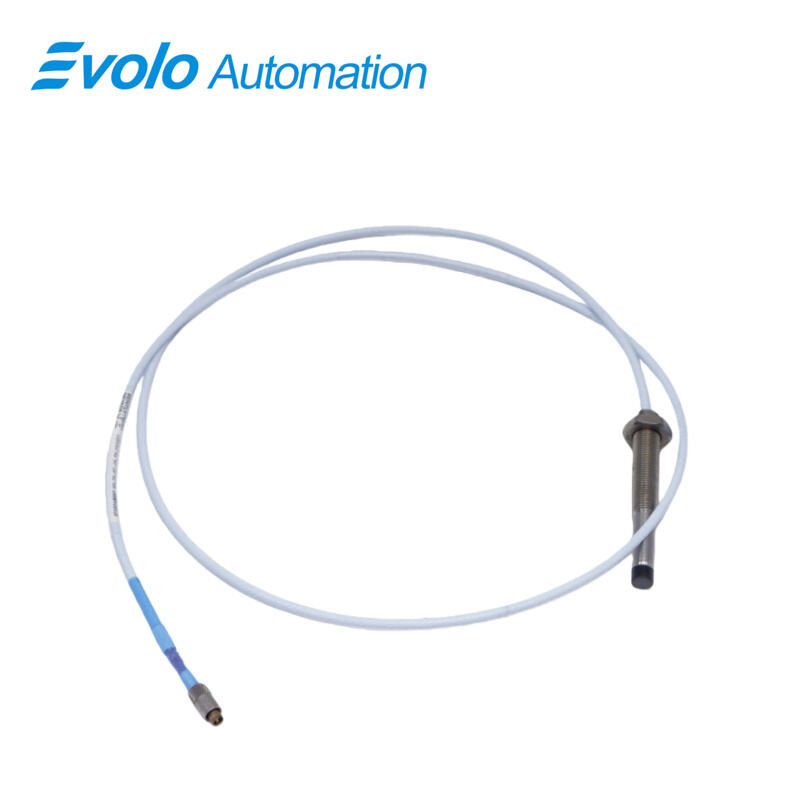

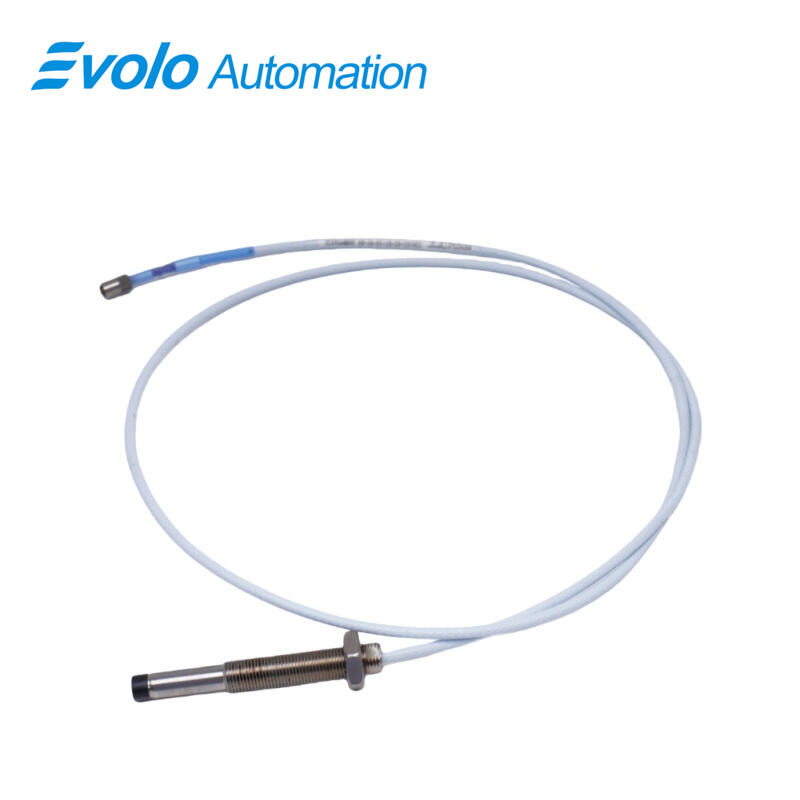

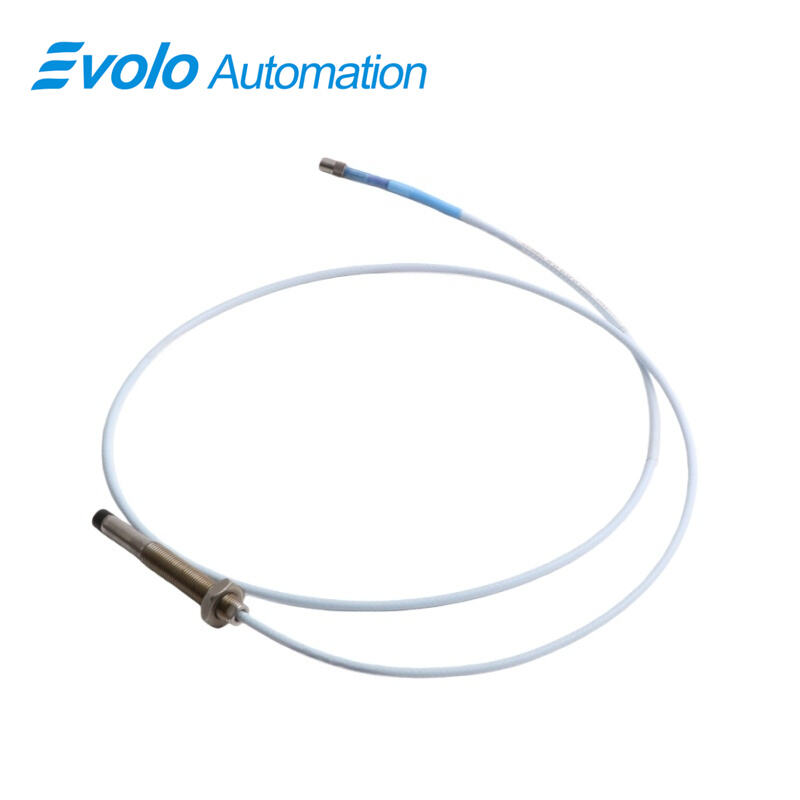

330103-02-08-10-02-00 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-02-08-10-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330103-02-08-10-02-00 3300 XL 8 mm Proximity Probe provides precise output voltage proportional to the distance between the probe tip and conductive surfaces. With a total length of 1.0 meter, overall case length of 80 mm, and M10x1 probe thread, the 330103-02-08-10-02-00 3300 XL Proximity Probe is ideal for automated measurement of radial vibration and axial position on fluid-film bearing machines. The probe features a linear range of 2 mm (80 mils), output resistance of 50 Ω, and less than 2 mV per volt supply sensitivity, ensuring accurate signals for control systems. The ClickLoc connector and standard extension cable support field wiring from 16 to 24 AWG (0.2–1.5 mm²), while optional FluidLoc cable prevents oil ingress. Operating temperatures from -52°C to +177°C allow the 330103-02-08-10-02-00 3300 XL Proximity Probe to function in demanding automation environments. Its robust TipLoc and CableLoc designs deliver 330 N pull strength, securing the probe cable for reliable automated monitoring. The 330103-02-08-10-02-00 3300 XL Proximity Probe is compatible with other 3300 series probes and extension cables, enabling easy system upgrades without recalibration.

Applications

Measure Radial Vibration on Small Shafts
The 330103-02-08-10-02-00 3300 XL Proximity Probe provides precise radial vibration measurements for shafts smaller than 50 mm. Its linear range of 2 mm and output resistance of 50 Ω ensure accurate signals for automated rotor monitoring.

Monitor Axial Position on Flat Targets
The 330103-02-08-10-02-00 3300 XL Proximity Probe measures axial displacement on targets up to 15 mm. Its overall case length of 80 mm and 1.0 meter total length support installation in tight spaces, feeding real-time position data to automation systems.

Generate Keyphasor Reference Signals
The 330103-02-08-10-02-00 3300 XL Proximity Probe delivers phase and speed signals to automated monitoring equipment, using less than 2 mV per volt supply sensitivity to maintain signal consistency under varying input voltages.

Specifications

Competitive Advantage

Chemical-Resistant Probe Material
The 330103-02-08-10-02-00 3300 XL Proximity Probe features a polyphenylene sulfide (PPS) tip and AISI 304 stainless steel case, allowing use in oil-exposed and high-temperature environments up to +177°C.

Secure Cable Connection with CableLoc
The 330103-02-08-10-02-00 3300 XL Proximity Probe incorporates CableLoc design providing 330 N pull strength, preventing probe cable loosening during vibration or automated operations.

Flexible Installation in Restricted Spaces
With a M10x1 probe thread and ClickLoc connector, the 330103-02-08-10-02-00 3300 XL Proximity Probe can be installed in counter bore or sideview restricted areas without affecting measurement accuracy.

Linear and Reliable Output
The 330103-02-08-10-02-00 3300 XL Proximity Probe maintains linear output over 2 mm and an average scale factor of 7.87 V/mm, ensuring consistent vibration and position data for automated monitoring and control systems.
