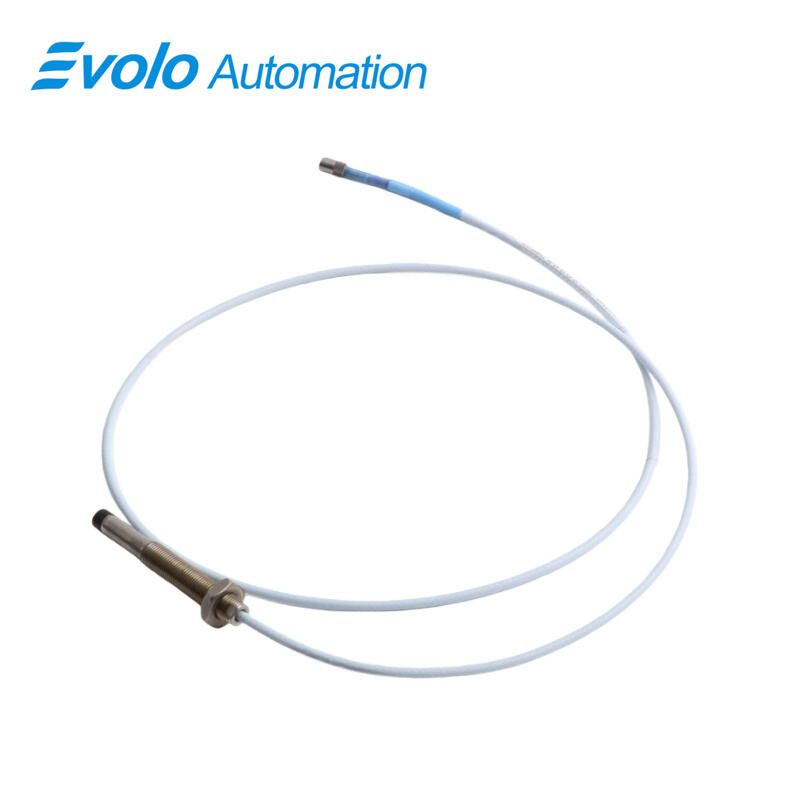

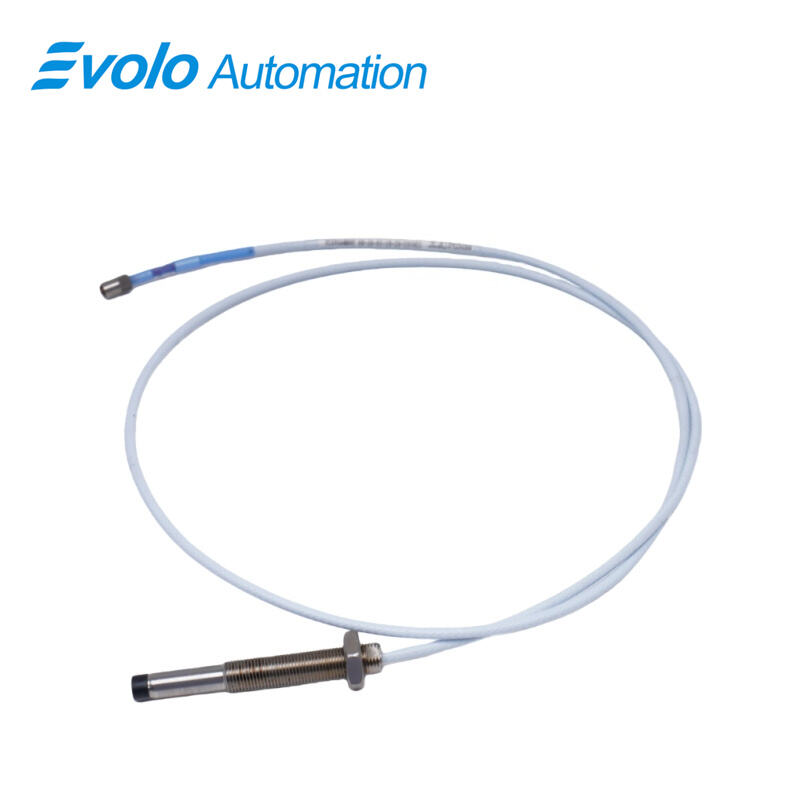

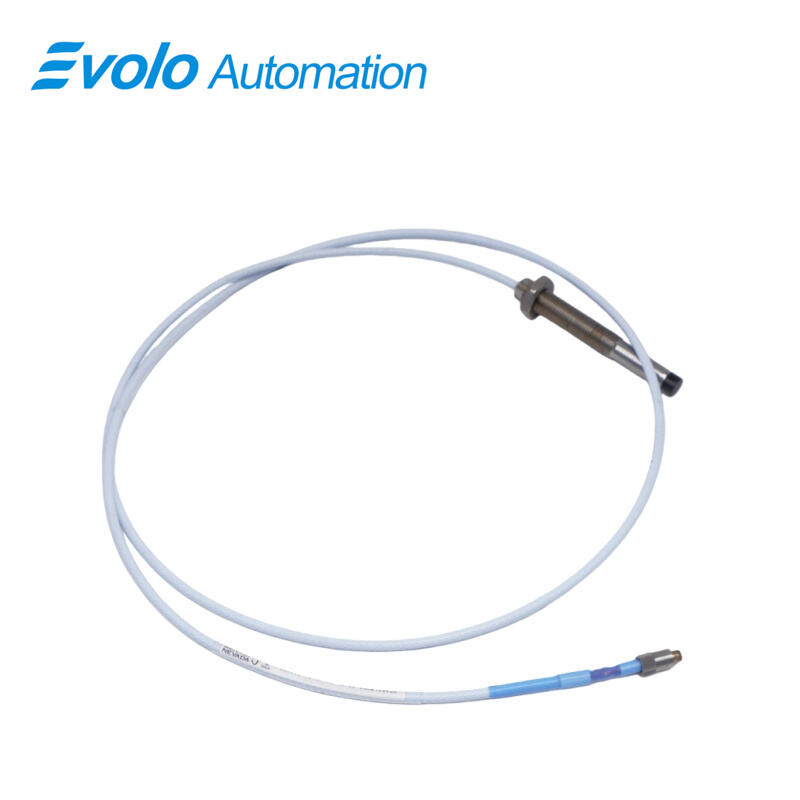

330103-02-07-50-02-00 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-02-07-50-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330103-02-07-50-02-00 3300 XL 8 mm Proximity Probe delivers output voltage proportional to the distance between the probe tip and the monitored conductive surface, enabling precise measurement of static position and dynamic vibration. The 330103-02-07-50-02-00 3300 XL 8 mm features a 20 mm unthreaded length, 70 mm overall case length, M10x1 probe thread, and a maximum thread engagement of 15 mm. Its 5.0-meter extension cable uses a miniature coaxial ClickLoc connector and supports field wiring from 0.2 to 1.5 mm² (16–24 AWG). The probe operates in temperatures from -52°C to +177°C and has a linear range of 2 mm with less than 2 mV output variation per volt input change. The 330103-02-07-50-02-00 3300 XL 8 mm incorporates the patented TipLoc and CableLoc designs, providing robust bonding between probe tip and body and 330 N pull strength for secure cable attachment. Optional FluidLoc cabling prevents leakage of oil or liquids through the probe cable. The 330103-02-07-50-02-00 3300 XL 8 mm Proximity Probe meets API 670 standards and supports backward compatibility with previous 3300 series components, ensuring direct integration in automation and machinery monitoring systems.

Applications

Measure Bearing Vibration with High Accuracy
Install the 330103-02-07-50-02-00 3300 XL 8 mm Proximity Probe on fluid-film bearings to capture vibration amplitudes up to its 2 mm linear range. The output voltage of the 3300 XL 8 mm directly reflects small shaft displacements, allowing precise identification of imbalance, misalignment, or wear in real time.

Monitor Shaft Radial Position for Alignment Checks
Use the 330103-02-07-50-02-00 3300 XL 8 mm Proximity Probe to measure the shaft radial movement. Its 50 Ω output resistance and 5-meter cable allow integration into remote monitoring systems, enabling accurate alignment checks without disassembling machinery.

Generate Keyphasor Reference Signals for Speed Control
The 3300 XL 8 mm functions as a Keyphasor reference sensor by detecting shaft rotation at the probe tip. The 330 N (75 lbf) CableLoc pull strength ensures the probe cable maintains secure signal integrity even in high-speed turbines and compressors, supporting precise speed measurement and phase synchronization.

Track Micro-Movements and Oscillations in Dynamic Machines
Deploy the 330103-02-07-50-02-00 3300 XL 8 mm Proximity Probe to monitor high-frequency oscillations in rotating equipment. Its supply sensitivity (<2 mV per volt) ensures that voltage variations do not distort displacement readings, providing accurate real-time data for operational adjustments.

Specifications

Competitive Advantage

Swap Components Without Calibration
All 3300 XL 8 mm system components, including the 330103-02-07-50-02-00 3300 XL 8 mm Proximity Probe, are backward compatible with 3300 non-XL series 5 mm and 8 mm probes and extension cables. This feature eliminates the need for bench calibration and allows maintenance teams to replace probes or cables quickly.

Secure Probe Tip and Cable Attachment
The 330103-02-07-50-02-00 3300 XL 8 mm Proximity Probe benefits from patented TipLoc and CableLoc designs. The TipLoc molding provides a robust bond between the probe tip and body, while the CableLoc ensures a 330 N (75 lbf) pull strength, reducing risk of accidental disconnection during installation or operation.

Prevent Fluid Leaks with Optional FluidLoc Cable
When equipped with FluidLoc cables, the 3300 XL 8 mm prevents oil or other liquids from leaking through the probe cable. This ensures safe installation in lubrication-rich environments or high-humidity conditions, maintaining consistent measurement accuracy.

Ensure Compliance with API 670 Standards
The 330103-02-07-50-02-00 3300 XL 8 mm Proximity Probe system meets API 670 requirements for linear range, accuracy, and operating temperature (-52°C to +177°C), supporting critical machinery monitoring and predictive maintenance programs.
