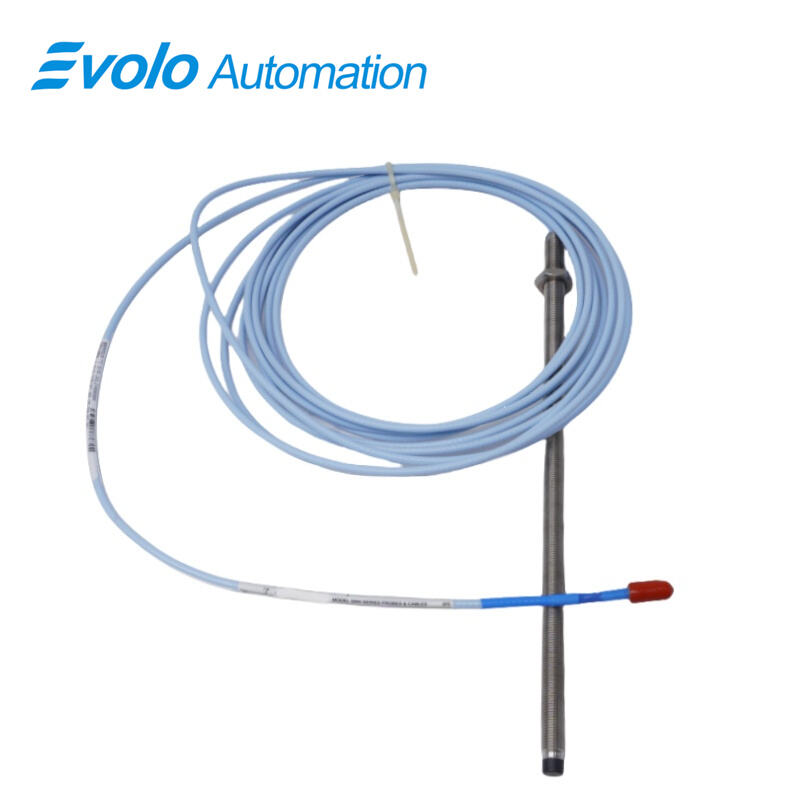

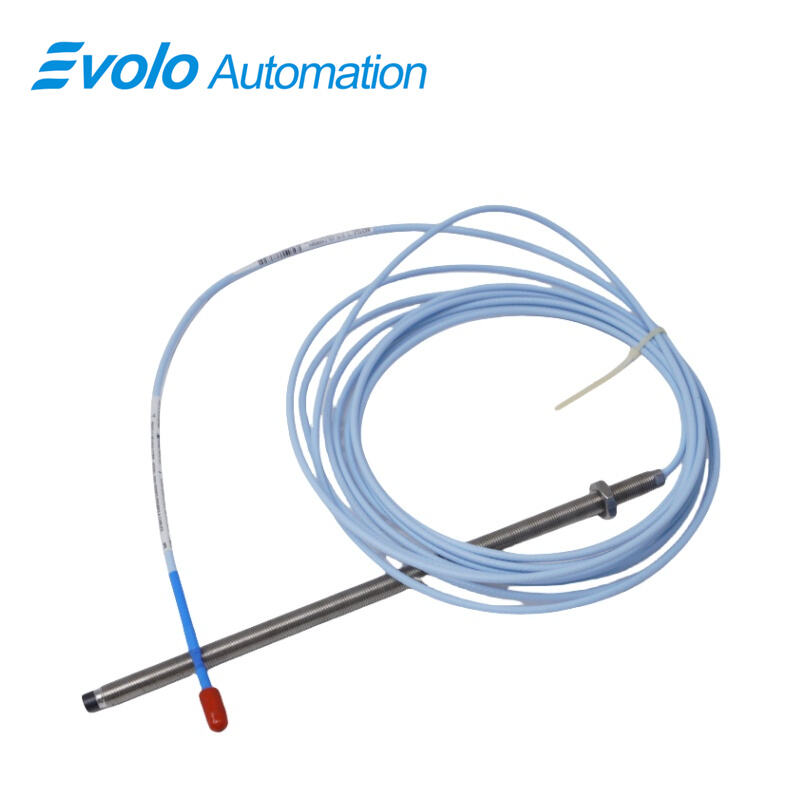

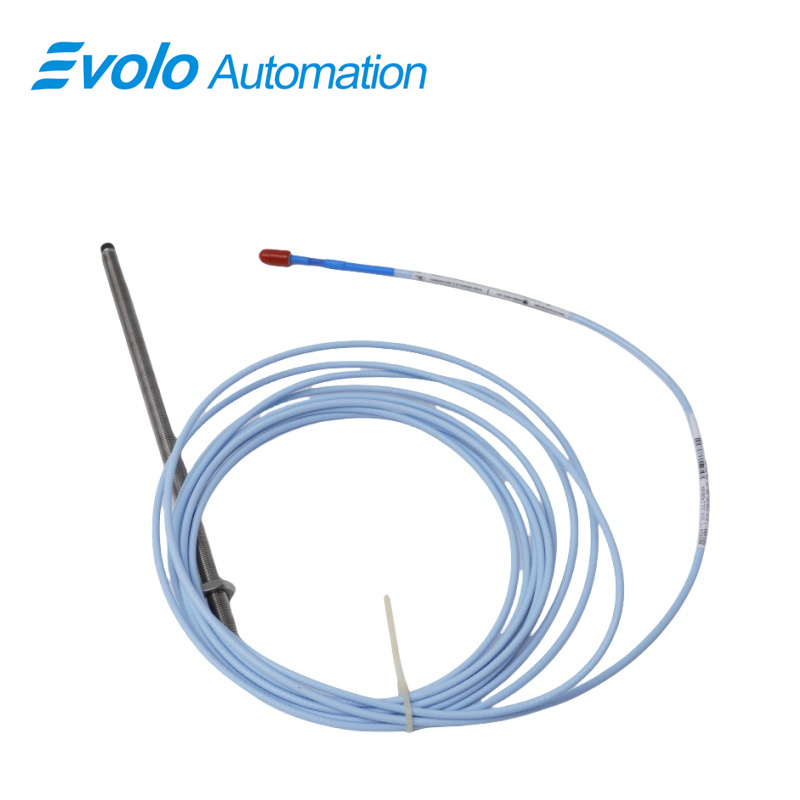

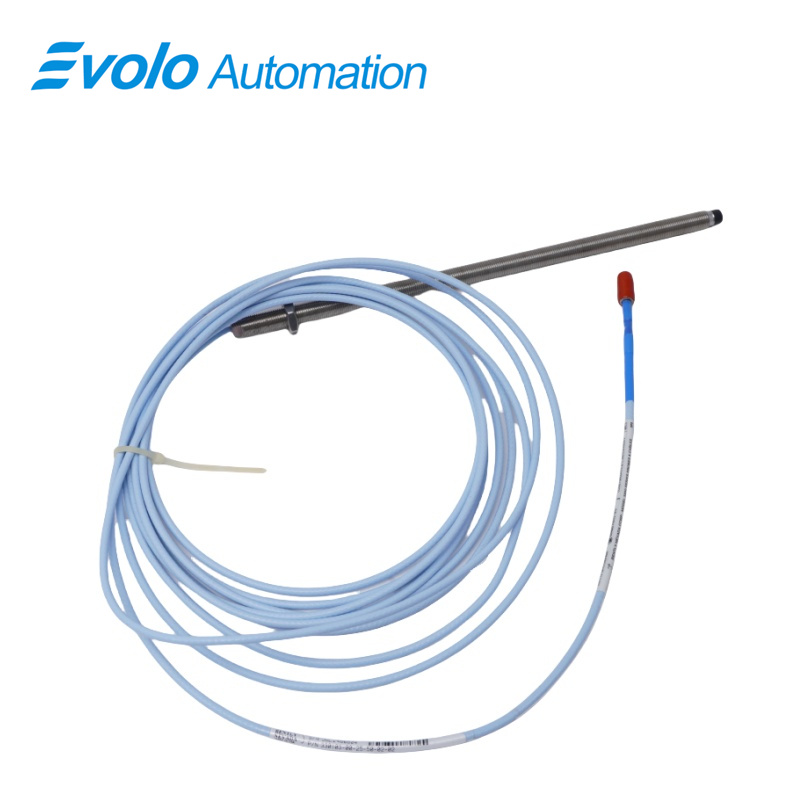

330103-00-25-10-02-00 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-00-25-10-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330103-00-25-10-02-00 3300 XL 8 mm Proximity Probe delivers precise non-contact measurement of shaft position and vibration for fluid-film bearing machines. With a 2 mm linear range and 3.94 V/mm output, the 330103-00-25-10-02-00 3300 XL 8 mm Proximity Probe provides accurate dynamic and static monitoring for Keyphasor reference and speed signals. Its M10x1 threaded probe case and 15 mm thread engagement allow secure mounting, while the 1.0-meter standard cable with miniature coaxial ClickLoc connector ensures reliable electrical connection. Rated for -52°C to +177°C operation, the 330103-00-25-10-02-00 3300 XL 8 mm Proximity Probe withstands harsh industrial environments and maintains signal integrity with less than 2 mV voltage variation per volt of input change. The probe’s 50 Ω output and 69.9 pF/m extension cable capacitance support seamless integration with 3300 XL Proximitor Sensor systems. Patented TipLoc and CableLoc designs provide 330 N pull strength, securing the probe tip and cable, while optional FluidLoc cables prevent leakage of oil or liquids into the sensor. The 330103-00-25-10-02-00 3300 XL 8 mm Proximity Probe is fully compatible with legacy 3300 series 5 mm and 8 mm transducers, enabling efficient upgrades and field replacements without recalibration.

Applications

Axial Position Measurement on Turbines
Use the 330103-00-25-10-02-00 3300 XL 8 mm Proximity Probe to monitor axial (thrust) movement in turbine rotors. Its 2 mm linear range and 3.94 V/mm output allow precise detection of shaft displacement, ensuring timely intervention and improved operational control.

Vibration Monitoring on Fluid-Film Bearings
Install the 330103-00-25-10-02-00 3300 XL 8 mm Proximity Probe on bearing housings to track vibration amplitude and frequency. With an extension cable capacitance of 69.9 pF/m and output resistance of 50 Ω, this probe enables accurate vibration diagnostics critical for predictive maintenance.

Keyphasor Signal Generation for Rotating Machinery
Deploy the 330103-00-25-10-02-00 3300 XL 8 mm Proximity Probe to generate phase reference (Keyphasor) signals. Its compatibility with 3300 XL Proximitor Sensor systems ensures high-resolution speed measurements, supporting rotor synchronization and speed monitoring.

Dynamic Rod Position Measurement in Compressors
The 330103-00-25-10-02-00 3300 XL 8 mm Proximity Probe measures rod drop or piston displacement in reciprocating compressors. Its 1.0-meter cable with miniature coaxial ClickLoc connector ensures consistent signal integrity for accurate performance evaluation.

Specifications

Competitive Advantage

High-Precision Linear Output
The 330103-00-25-10-02-00 3300 XL 8 mm Proximity Probe delivers 3.94 V/mm output across a 2 mm linear range, providing precise position and vibration readings in industrial environments.

Robust Probe-to-Cable Attachment
With patented TipLoc and CableLoc designs providing 330 N pull strength, the 330103-00-25-10-02-00 3300 XL 8 mm Proximity Probe maintains secure connections even under high-vibration conditions.

Seamless Integration with Existing Systems
The 330103-00-25-10-02-00 3300 XL 8 mm Proximity Probe supports backward compatibility with 3300 series 5 mm and 8 mm probes. It integrates with 3300 XL Proximitor Sensor systems, reducing downtime and eliminating recalibration needs during upgrades.

High-Temperature Operation
Operating from -52°C to +177°C, the 330103-00-25-10-02-00 3300 XL 8 mm Proximity Probe delivers reliable performance in extreme industrial conditions.
