Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330103-00-19-10-12-00 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
00 mm |
|
Overall Case Length Option(Minimum case length): |
190 mm |
|
Total Length Option: |
1.0 meter (3.3 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, FluidLoc cable |
|
Agency Approval Option: |
Not required |
|
Probe Case Thread: |
M10x1 |
|
Maximum Length of Thread Engagement: |
15 mm |
|
Dimension: |
20.5x22.4x3.3cm |
|
Weight: |
0.15 kg |
Description

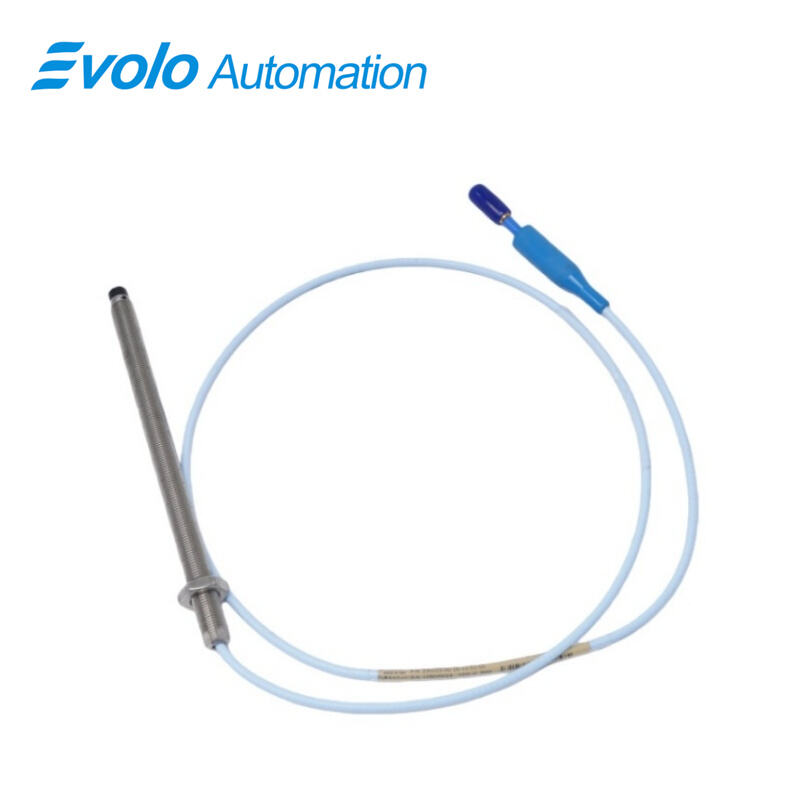

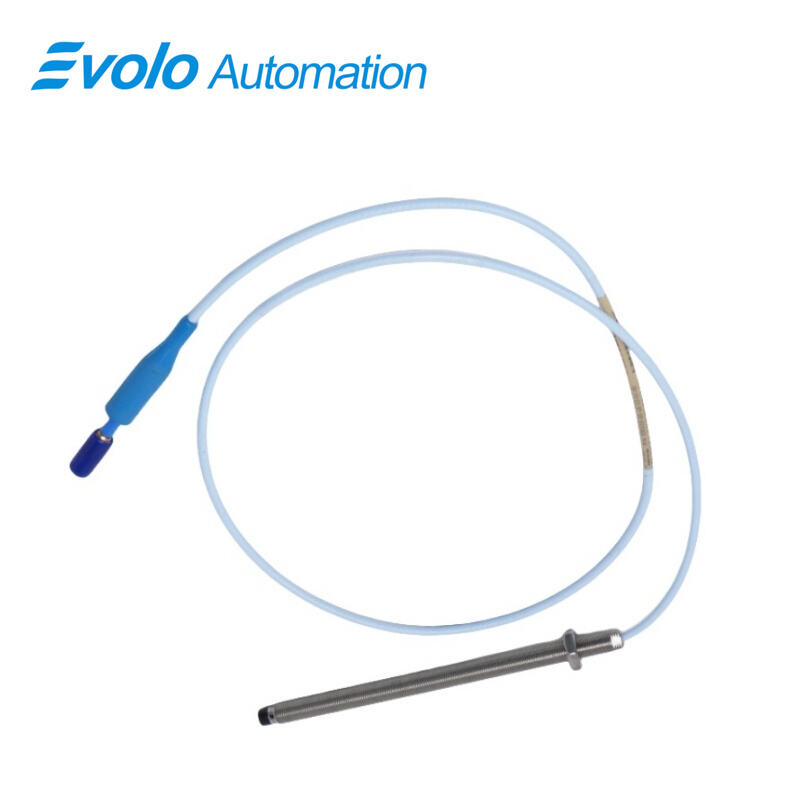

The 330103-00-19-10-12-00 3300 XL 8 mm Proximity Probe measures shaft displacement and vibration in fluid-film bearing machines. With a total length of 1.0 meter (3.3 feet), overall case length of 190 mm, M10x1 probe thread, linear range of 2 mm, and operating temperature from -52°C to +177°C, the 330103-00-19-10-12-00 3300 XL 8 mm probe provides precise static and dynamic measurements. Its miniature coaxial ClickLoc connector and optional FluidLoc cable prevent oil leakage and ensure secure signal transfer. The 330103-00-19-10-12-00 3300 XL 8 mm probe has 50 Ω output resistance, 69.9 pF/m extension cable capacitance, and supports full interchangeability with Proximitor sensors and extension cables, enabling accurate automated monitoring in compliance with API 670 standards.
Applications
Shaft Vibration Measurement on Pumps
Use the 330103-00-19-10-12-00 3300 XL 8 mm probe to capture dynamic shaft vibration signals in centrifugal and reciprocating pumps. Its 2 mm linear range and 50 Ω output resistance ensure precise vibration measurement. The 330103-00-19-10-12-00 3300 XL 8 mm probe’s 1.0 meter total length allows flexible installation in automated monitoring setups.
Axial (Thrust) Position Measurement
Measure axial displacement of rotating machinery shafts using the 330103-00-19-10-12-00 3300 XL 8 mm probe. Its M10x1 thread and 15 mm maximum thread engagement support secure mounting while providing accurate 4-20 mA thrust signals to control systems.
Keyphasor Reference Signal Generation
Install the 330103-00-19-10-12-00 3300 XL 8 mm probe on turbine shafts to generate Keyphasor signals. The probe’s miniature coaxial ClickLoc connector ensures high-quality signal transfer for speed and phase reference monitoring.
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Competitive Advantage
Secure Probe Connection
The 330103-00-19-10-12-00 3300 XL 8 mm probe features ClickLoc connectors and a patented CableLoc design providing 330 N pull strength. This ensures the probe remains firmly attached under vibration and dynamic loads, preventing signal loss.
Leak Prevention for Hydraulic Systems
With the optional FluidLoc cable, the 330103-00-19-10-12-00 3300 XL 8 mm probe prevents oil and liquid leakage. Combined with its 50 Ω output resistance, it delivers clean signals critical for automated monitoring systems.
Flexible Installation Options
330103-00-19-10-12-00 3300 XL 8 mm probe is fully interchangeable with standard Proximitor sensors and extension cables. Its 1.0 meter total length and 190 mm overall case length allow easy retrofitting in compact or existing systems.
High-Temperature and Wide-Range Measurement
The 330103-00-19-10-12-00 3300 XL 8 mm probe operates from -52°C to +177°C, supporting precise measurements in extreme environments. Its 2 mm linear range and 69.9 pF/m extension cable capacitance enable accurate detection of both small and large displacement changes.
