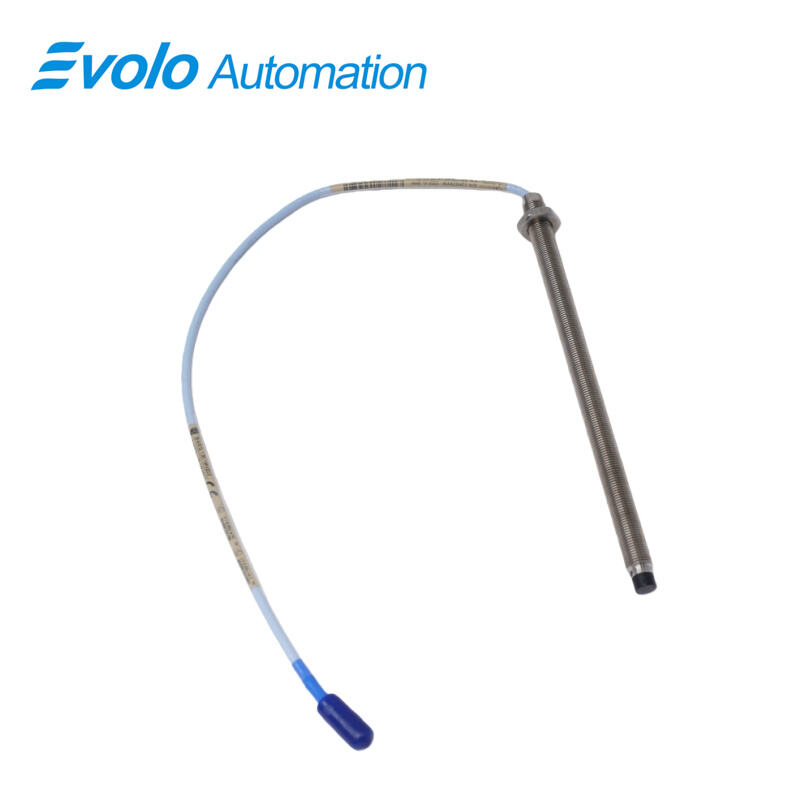

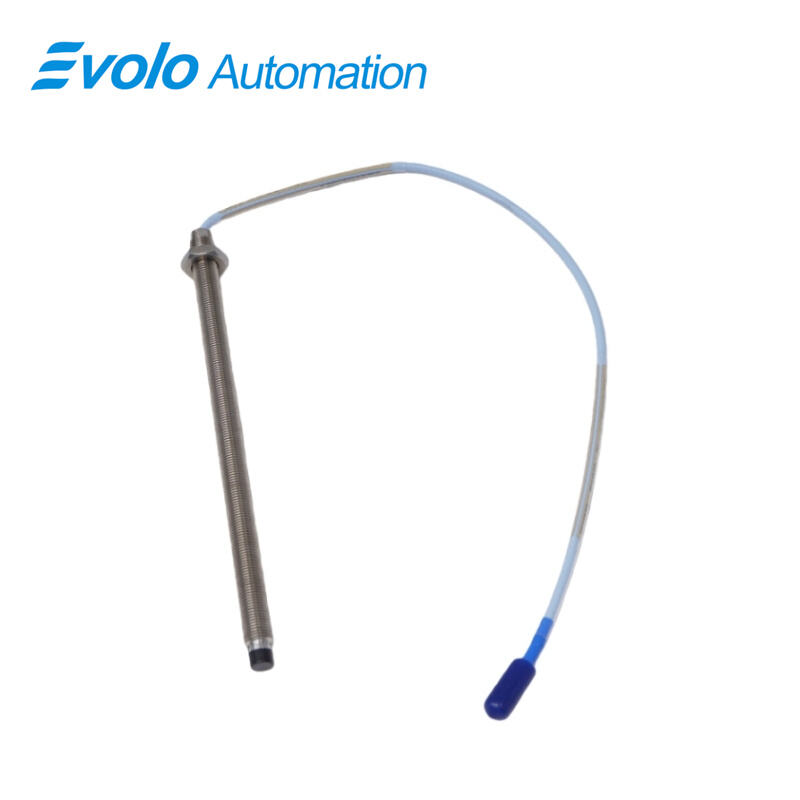

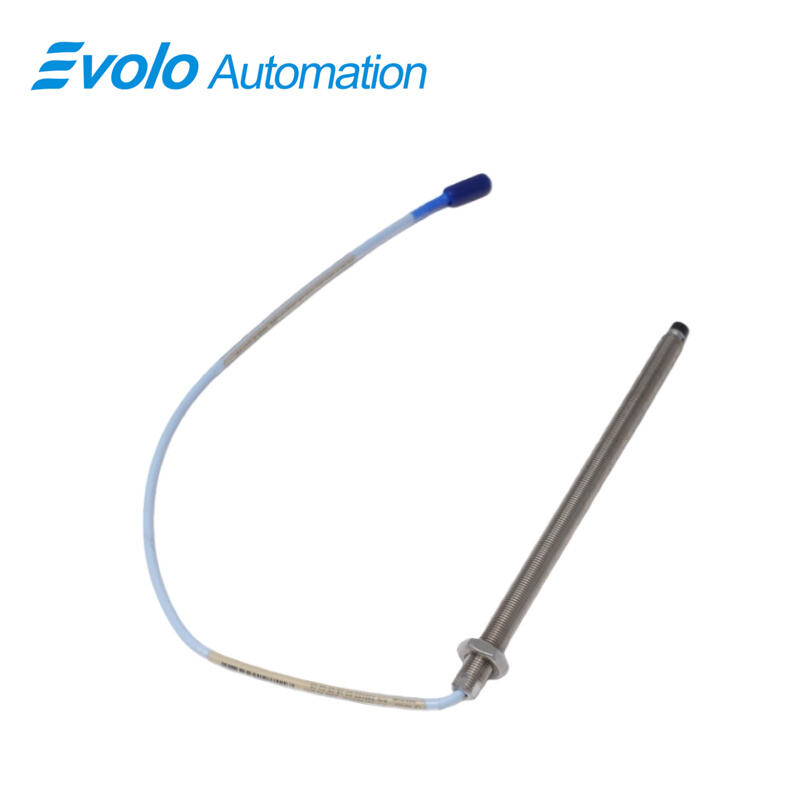

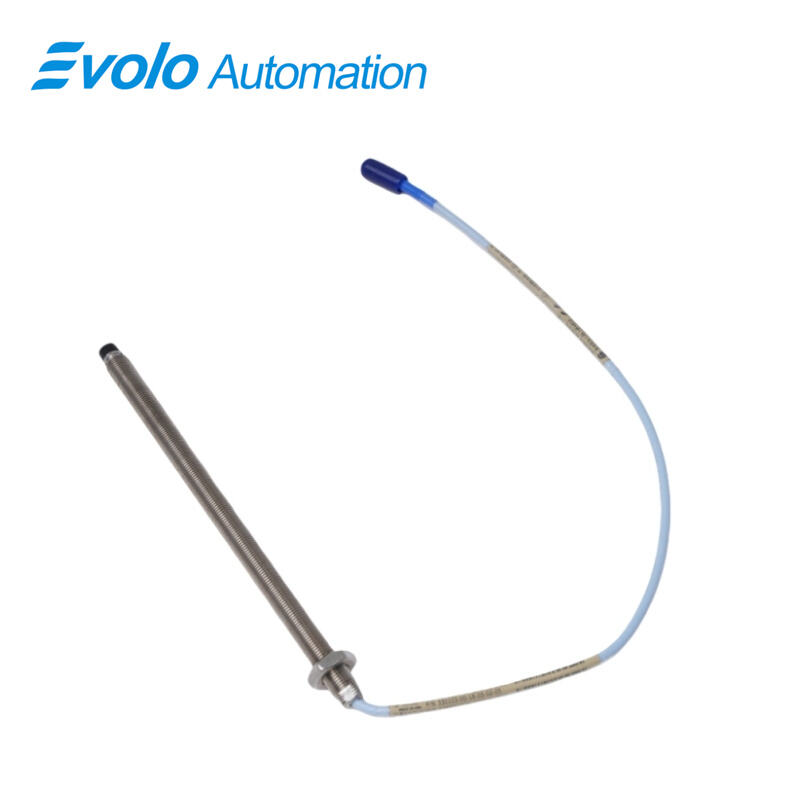

330103-00-18-10-12-00 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-00-18-10-12-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330103-00-18-10-12-00 3300 XL 8 mm Proximity Transducer provides an output voltage proportional to the distance between the probe tip and conductive surfaces, supporting static (position) and dynamic (vibration) measurements. This 1.0 meter total length probe with M10x1 threaded case and 15 mm engagement accurately measures shaft axial displacement, rotor vibration, and Keyphasor signals in fluid-film bearing machines. Its miniature coaxial ClickLoc connector and optional FluidLoc cable prevent oil and liquid leakage while maintaining secure attachment with 330 N pull strength. Operating from -52°C to +177°C (-62°F to +350°F) and handling field wiring from 16 to 24 AWG, the 330103-00-18-10-12-00 3300 XL 8 mm probe ensures precise signal transmission for automation systems. The 50 Ω output resistance, 2 mm linear range, and 69.9 pF/m extension cable capacitance provide reliable measurements for machinery condition monitoring. This probe integrates with existing 3300 series transducer systems without the need for bench calibration, delivering consistent, high-quality measurements for industrial control and monitoring applications.

Applications

Measure Shaft Vibration and Position
The 330103-00-18-10-12-00 3300 XL 8 mm probe monitors vibration and axial displacement of shafts in fluid-film bearing machines, providing precise output voltage proportional to the distance between the probe tip and the conductive surface. Its 2 mm linear range and 50 Ω output resistance allow accurate position tracking for control systems.

Keyphasor Reference and Speed Detection
With its miniature coaxial ClickLoc connector and 1.0 meter cable, the 330103-00-18-10-12-00 3300 XL 8 mm probe generates Keyphasor signals and speed measurements for rotors and turbines. The 69.9 pF/m extension cable capacitance ensures clean signal transmission to monitoring systems.

Axial Position Measurement in Tight Spaces
The M10x1 probe thread with 15 mm engagement, combined with FluidLoc cable options, allows installation in constrained areas while preventing oil leakage. The 330103-00-18-10-12-00 3300 XL 8 mm probe captures axial displacement in compressors, pumps, and motors for automation feedback.

Specifications

Competitive Advantage

Enhanced Probe and Cable Attachment
The 330103-00-18-10-12-00 3300 XL 8 mm probe uses a patented TipLoc molding method and CableLoc design, providing 330 N pull strength. This ensures the probe cable remains securely attached to the probe tip even during high-vibration operation, preventing disconnection and signal loss.

High Temperature Performance
Operating from -52°C to +177°C (-62°F to +350°F), the 330103-00-18-10-12-00 3300 XL 8 mm probe handles extreme thermal conditions, maintaining precise 2 mm linear range measurements without output drift.

Clean Signal Transmission
The 330103-00-18-10-12-00 3300 XL 8 mm probe, with 69.9 pF/m extension cable capacitance and 50 Ω output resistance, ensures accurate vibration and position signals to control systems, minimizing noise interference in industrial automation setups.
