330103-00-16-10-01-00 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-00-16-10-01-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

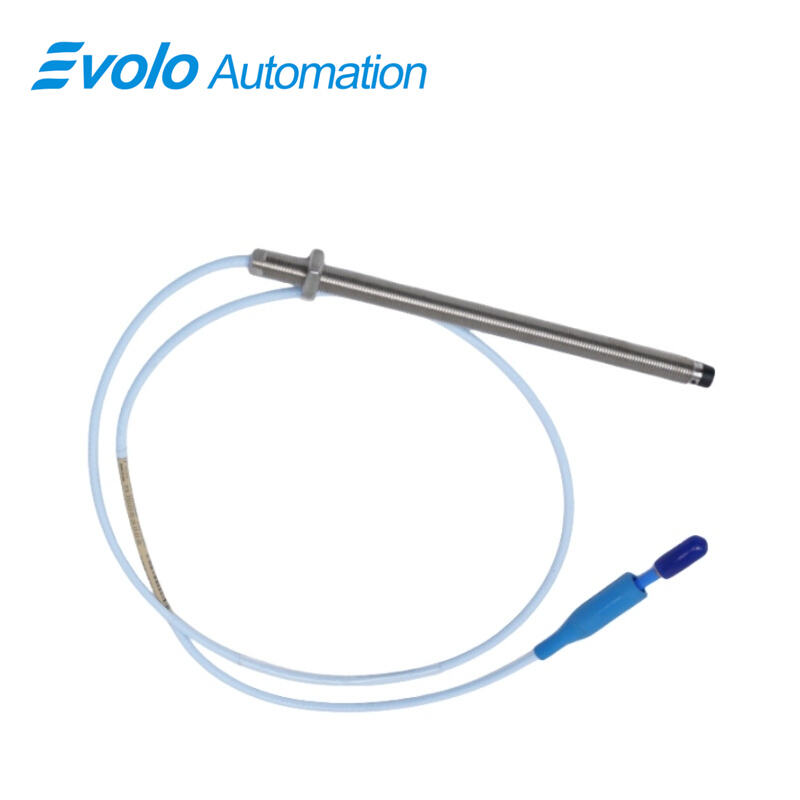

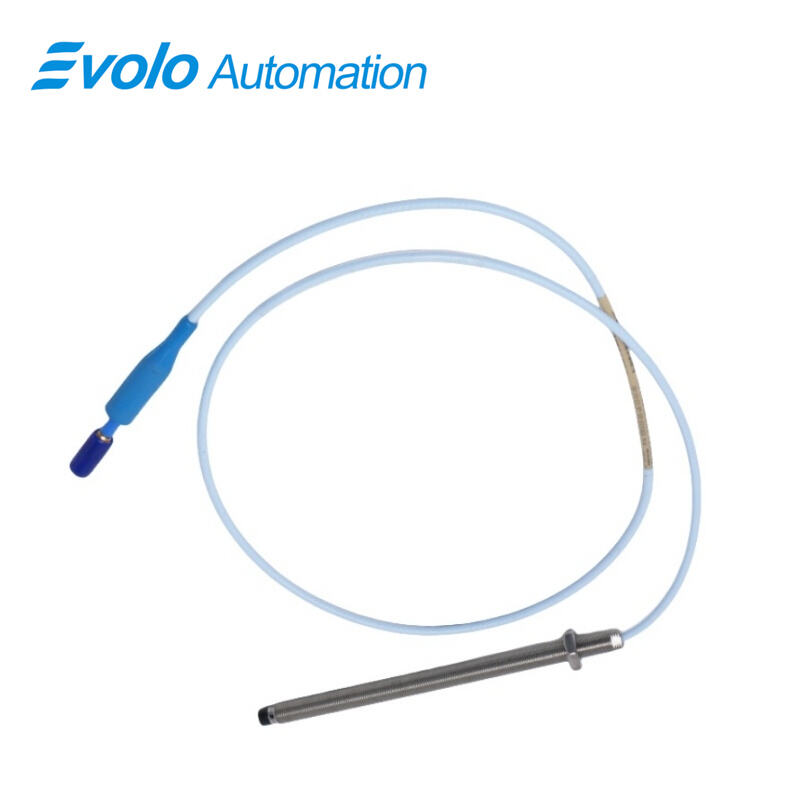

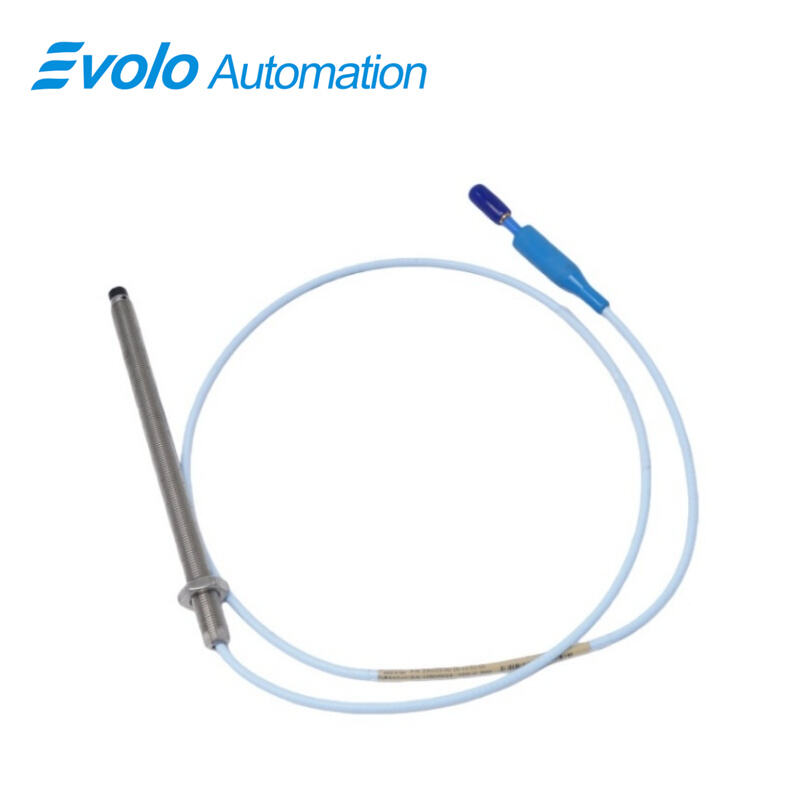

The 330103-00-16-10-01-00 3300 XL 8 mm Proximity Probe delivers output voltage directly proportional to the distance between its probe tip and the target conductive surface, enabling precise static position and dynamic vibration measurements. With a 2 mm (80 mils) linear range and M10x1 probe thread with 15 mm maximum engagement, the 330103-00-16-10-01-00 3300 XL 8 mm supports accurate monitoring on fluid-film bearing machines and Keyphasor reference applications. The probe features a miniature coaxial ClickLoc connector with protector and a standard 1.0-meter cable, providing secure connections with 330 N (75 lbf) pull strength. Extension cable capacitance is 69.9 pF/m (21.3 pF/ft), maintaining minimal signal distortion, while output resistance is 50 Ω and supply sensitivity remains below 2 mV per volt input change. Operating and storage temperatures range from -52°C to +177°C (-62°F to +350°F), allowing the 330103-00-16-10-01-00 3300 XL 8 mm Proximity Probe to perform reliably in extreme industrial environments. Fully compatible with 3300 series probes, extension cables, and Proximitor sensors, the 330103-00-16-10-01-00 3300 XL 8 mm enables easy interchangeability, secure installation, and automated monitoring of vibration and position in high-performance machinery.

Applications

Measure Bearing Vibration and Position
The 330103-00-16-10-01-00 3300 XL 8 mm Proximity Probe measures static position and dynamic vibration on fluid-film bearing machines. Its 2 mm (80 mils) linear range ensures accurate displacement readings for automated monitoring systems.

Monitor Keyphasor Reference and Machine Speed
Equipped with a miniature coaxial ClickLoc connector with protector and a standard 1.0-meter cable, the 330103-00-16-10-01-00 3300 XL 8 mm captures precise signals for Keyphasor reference and speed measurements, supporting automated condition monitoring.

Operate in Extreme Temperature Conditions
The 330103-00-16-10-01-00 3300 XL 8 mm Proximity Probe performs reliably in environments from -52°C to +177°C (-62°F to +350°F), maintaining output resistance of 50 Ω and supply sensitivity under 2 mV per volt, suitable for harsh industrial applications.

Specifications

Competitive Advantage

Secure Probe-Cable Bond
The patented TipLoc and CableLoc designs of the 330103-00-16-10-01-00 3300 XL 8 mm provide 330 N (75 lbf) pull strength, preventing cable detachment and ensuring continuous signal integrity in automated systems.

Interchangeable System Components
The 330103-00-16-10-01-00 3300 XL 8 mm is fully compatible with 3300 series 5 mm and 8 mm probes, extension cables, and Proximitor sensors, allowing plug-and-play replacement without recalibration.

Prevent Fluid Leakage with Optional FluidLoc Cable
Optional FluidLoc cable on the 330103-00-16-10-01-00 3300 XL 8 mm blocks oil and liquids from leaking through the cable interior, maintaining clean and safe operation in lubrication-intensive machinery.

Compact Threaded Installation
The M10x1 thread with 15 mm maximum engagement allows mounting in tight spaces, supporting precise automated vibration and position measurement in restricted machine housings.
