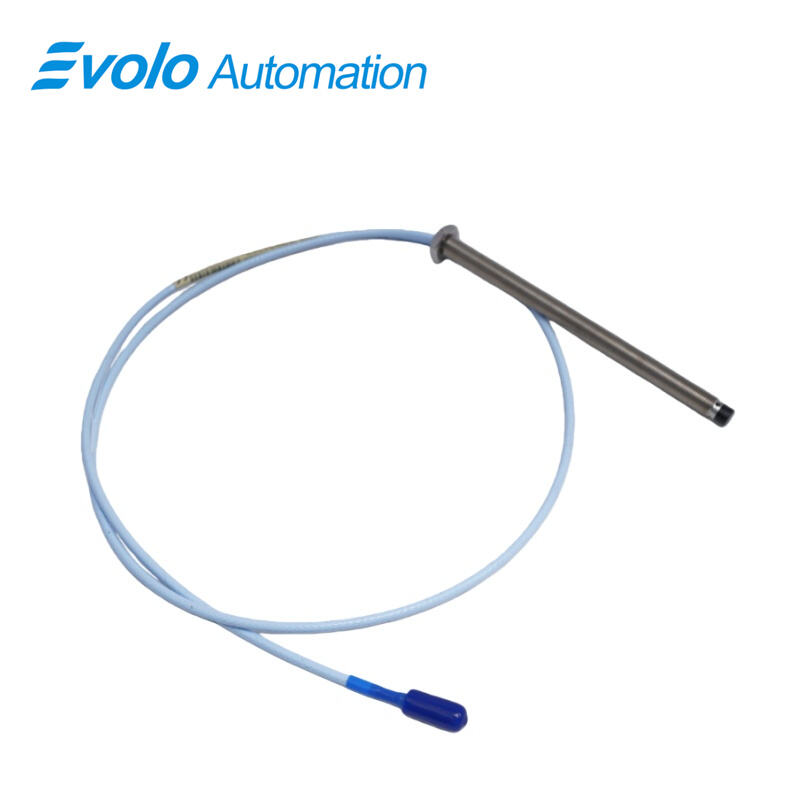

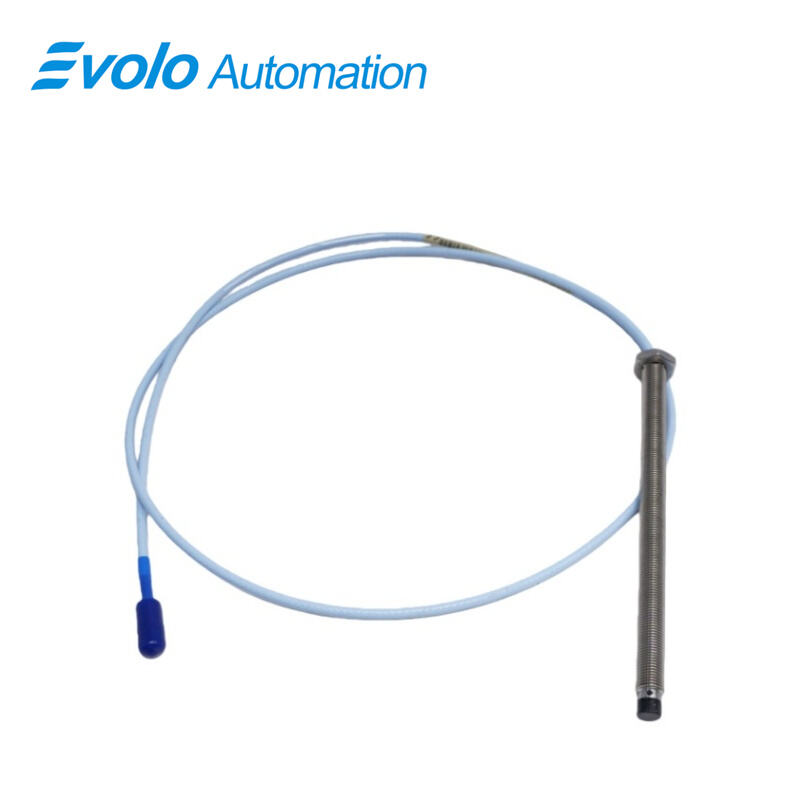

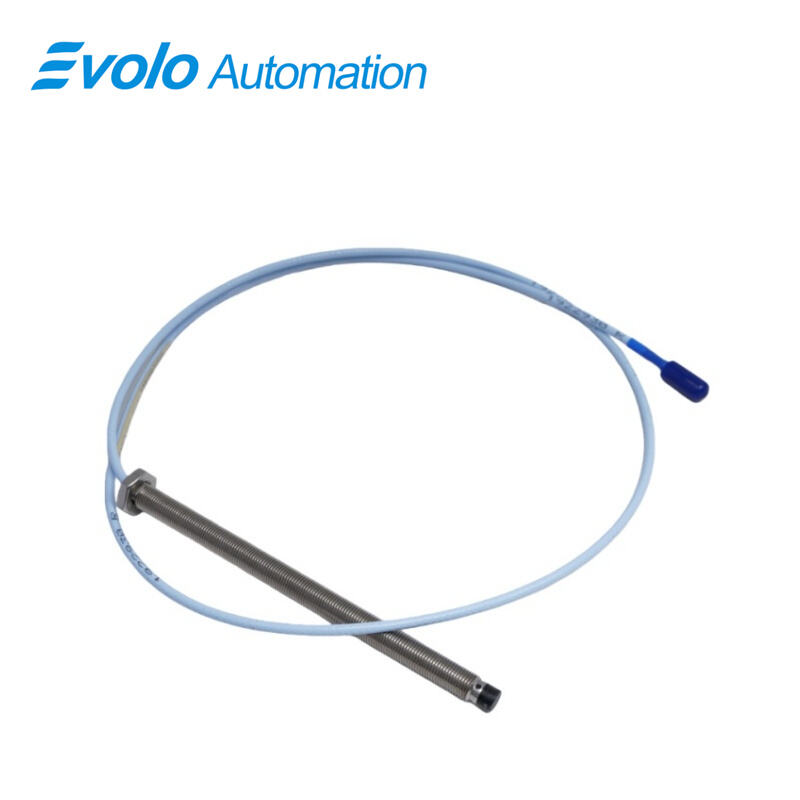

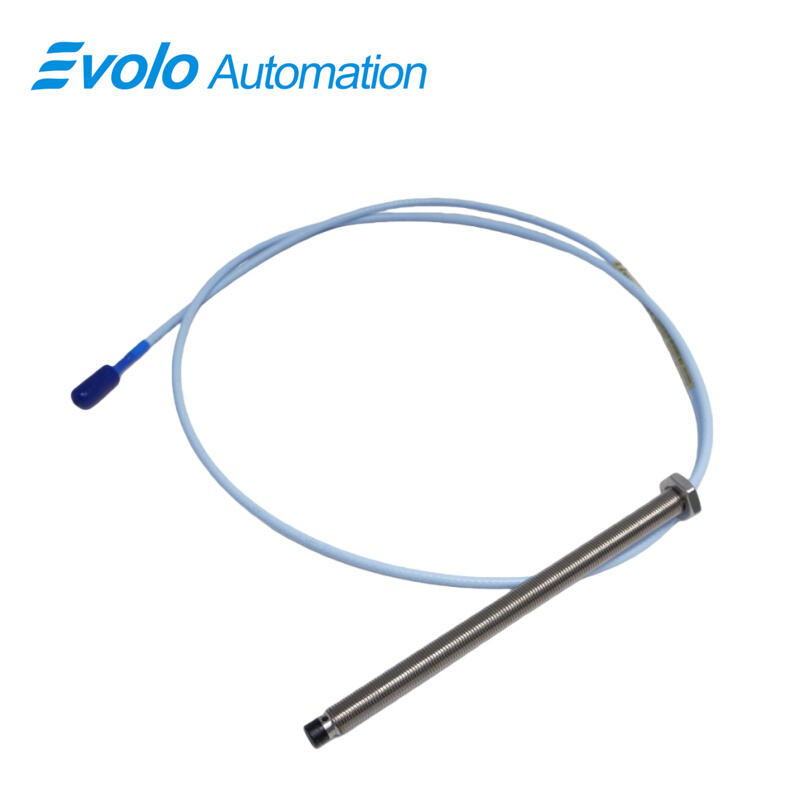

330103-00-15-10-02-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-00-15-10-02-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330103-00-15-10-02-05 3300 XL 8 mm Proximity Probe is a high-precision eddy current transducer designed for industrial automation and predictive maintenance applications. The 330103-00-15-10-02-05 3300 XL 8 mm Proximity Probe generates an output voltage directly proportional to the distance between the probe tip and the measured conductive surface, providing accurate static position and dynamic vibration measurements. With a linear range of 2 mm (80 mils), output resistance of 50 Ω, and supply sensitivity of less than 2 mV per volt change, the 330103-00-15-10-02-05 3300 XL 8 mm Proximity Probe ensures high-fidelity and repeatable data in automated monitoring systems. The probe features an M10x1 case thread with 15 mm maximum thread engagement, a 1.0-meter total length, and a miniature coaxial ClickLoc connector compatible with standard extension cables and Proximitor sensors. Operating and storage temperatures range from -52°C to +177°C (-62°F to +350°F), with field wiring support for 0.2–1.5 mm² (16–24 AWG) and extension cable capacitance of 69.9 pF/m (21.3 pF/ft), guaranteeing signal integrity under harsh industrial conditions. Fully compliant with API 670 standards, the 330103-00-15-10-02-05 3300 XL 8 mm Proximity Probe incorporates patented TipLoc molding for a stronger probe tip bond, CableLoc design providing 330 N (75 lbf) pull strength, and optional FluidLoc cable to prevent oil or fluid leakage, making it ideal for fluid-film bearing machines, Keyphasor reference, speed measurement, and automated condition monitoring in modern industrial automation systems.

Applications

Vibration Monitoring on Fluid-Film Bearing Machines
The 330103-00-15-10-02-05 3300 XL 8 mm Proximity Probe is ideal for measuring radial and axial vibration on fluid-film bearing machines. Its linear range of 2 mm (80 mils), output resistance of 50 Ω, and supply sensitivity of less than 2 mV per volt allow accurate, repeatable vibration amplitude measurements. Operating temperatures from -52°C to +177°C (-62°F to +350°F) ensure reliable performance in automated machinery condition monitoring systems.

Static Position Measurement and Keyphasor Signal Generation
The 330103-00-15-10-02-05 3300 XL 8 mm Proximity Probe provides precise static position readings and Keyphasor reference signals for rotational machinery. With an M10x1 probe thread and 15 mm maximum thread engagement, combined with a 1.0-meter total length and miniature coaxial ClickLoc connector, the 330103-00-15-10-02-05 3300 XL 8 mm Proximity Probe integrates seamlessly into Proximitor sensors and extension cable systems used in automated control and monitoring applications.

Rotational Speed and Automated Machinery Monitoring
The 330103-00-15-10-02-05 3300 XL 8 mm Proximity Probe measures rotational speed in compressors, pumps, and motors with high accuracy. Its extension cable capacitance of 69.9 pF/m (21.3 pF/ft) and support for field wiring from 0.2–1.5 mm² (16–24 AWG) allow low-noise, reliable data transmission for predictive maintenance and industrial automation systems.

Specifications

Competitive Advantage

High Accuracy and Linear Performance
The 330103-00-15-10-02-05 3300 XL 8 mm Proximity Probe delivers precise, repeatable measurements with a 2 mm linear range and supply sensitivity of less than 2 mV per volt, ensuring accurate monitoring of both static and dynamic conditions in automated industrial systems.

Durable Construction for Harsh Industrial Environments
CSA, ATEX, and IECEx certified, the 330103-00-15-10-02-05 3300 XL 8 mm Proximity Probe withstands extreme temperatures (-52°C to +177°C) and challenging conditions. The patented TipLoc molding method ensures a robust probe tip bond, while CableLoc design provides 330 N (75 lbf) pull strength, securing the probe cable for long-term automated system operation.
