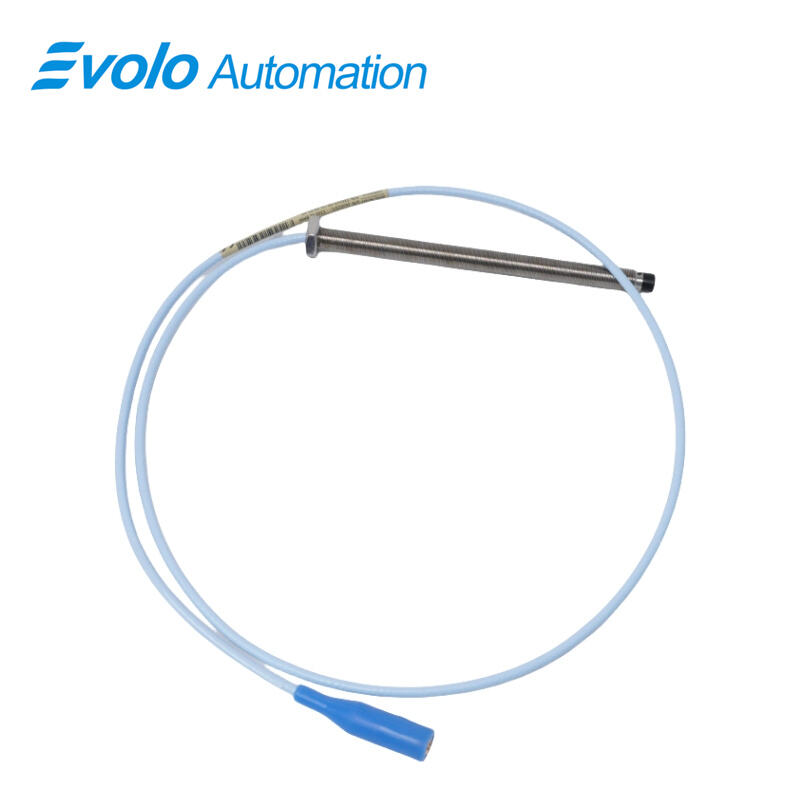

330103-00-14-10-02-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-00-14-10-02-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330103-00-14-10-02-05 3300 XL 8 mm Proximity Probe is a high-precision eddy current transducer specifically engineered for industrial automation and predictive maintenance applications. The 330103-00-14-10-02-05 3300 XL 8 mm Proximity Probe provides an output voltage directly proportional to the distance between the probe tip and the measured conductive surface, allowing accurate measurement of both static position and dynamic vibration. With a linear range of 2 mm (80 mils), output resistance of 50 Ω, and supply sensitivity of less than 2 mV per volt change, the 330103-00-14-10-02-05 3300 XL 8 mm Proximity Probe delivers highly reliable, repeatable performance. The probe’s M10x1 threaded case with a 15 mm maximum thread engagement, 1.0-meter total length, and miniature coaxial ClickLoc connector ensure seamless integration with extension cables and Proximitor sensors. Operating and storage temperatures range from -52°C to +177°C (-62°F to +350°F), while field wiring from 0.2 to 1.5 mm² (16–24 AWG) and extension cable capacitance of 69.9 pF/m (21.3 pF/ft) maintain signal integrity in harsh industrial environments. The 330103-00-14-10-02-05 3300 XL 8 mm Proximity Probe fully complies with API 670 standards for mechanical configuration, linear range, accuracy, and temperature stability. Enhanced features include patented TipLoc molding for a strong probe tip bond, CableLoc design providing 330 N (75 lbf) pull strength, and optional FluidLoc cables to prevent oil or fluid leakage. The 330103-00-14-10-02-05 3300 XL 8 mm Proximity Probe is ideal for fluid-film bearing machines, Keyphasor reference, speed measurement, and automated condition monitoring systems in modern industrial automation setups.

Applications

Vibration Monitoring on Fluid-Film Bearing Machines
The 330103-00-14-10-02-05 3300 XL 8 mm Proximity Probe is ideal for radial and axial vibration monitoring on fluid-film bearing machines. Its linear range of 2 mm (80 mils) and output resistance of 50 Ω allow precise vibration amplitude measurement. Operating reliably from -52°C to +177°C (-62°F to +350°F), the 330103-00-14-10-02-05 3300 XL 8 mm Proximity Probe provides high-fidelity vibration data for automated condition monitoring and predictive maintenance systems.

Position Measurement and Keyphasor Reference
The 330103-00-14-10-02-05 3300 XL 8 mm Proximity Probe delivers accurate static position measurements and Keyphasor signals for phase and speed reference in rotating machinery. Featuring an M10x1 probe thread with 15 mm maximum engagement, 1.0-meter total length, and miniature coaxial ClickLoc connector, the 330103-00-14-10-02-05 3300 XL 8 mm Proximity Probe integrates easily with extension cables and Proximitor sensors in automated control systems.

Rotational Speed and Automated Machinery Monitoring
The 330103-00-14-10-02-05 3300 XL 8 mm Proximity Probe is designed for high-accuracy speed measurement in motors, compressors, and pumps. Its extension cable capacitance of 69.9 pF/m (21.3 pF/ft) and field wiring support from 0.2–1.5 mm² (16–24 AWG) ensure low-noise signal transmission for automated industrial systems.

Specifications

Competitive Advantage

High Accuracy and Linear Range
The 330103-00-14-10-02-05 3300 XL 8 mm Proximity Probe provides precise measurements with a 2 mm linear range and supply sensitivity of less than 2 mV per volt, ensuring consistent data output for automation and predictive maintenance.

Durable Construction for Harsh Industrial Environments
Certified to CSA, ATEX, and IECEx standards, the 330103-00-14-10-02-05 3300 XL 8 mm Proximity Probe withstands extreme temperatures (-52°C to +177°C) and harsh operating conditions. Its patented TipLoc molding method and CableLoc design provide 330 N (75 lbf) pull strength, ensuring secure mechanical attachment in automated machinery applications.

Backward Compatibility and System Integration
The 330103-00-14-10-02-05 3300 XL 8 mm Proximity Probe is backward compatible with 3300 series 5 mm and 8 mm transducer systems. This enables easy integration or upgrades without replacing extension cables or Proximitor sensors, reducing downtime and simplifying automated system deployment.
