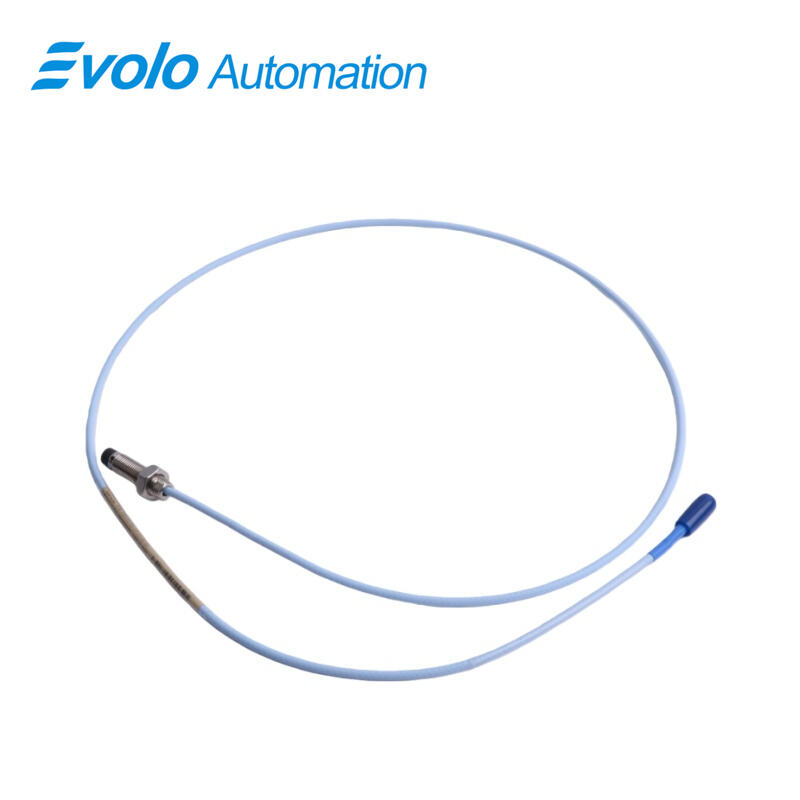

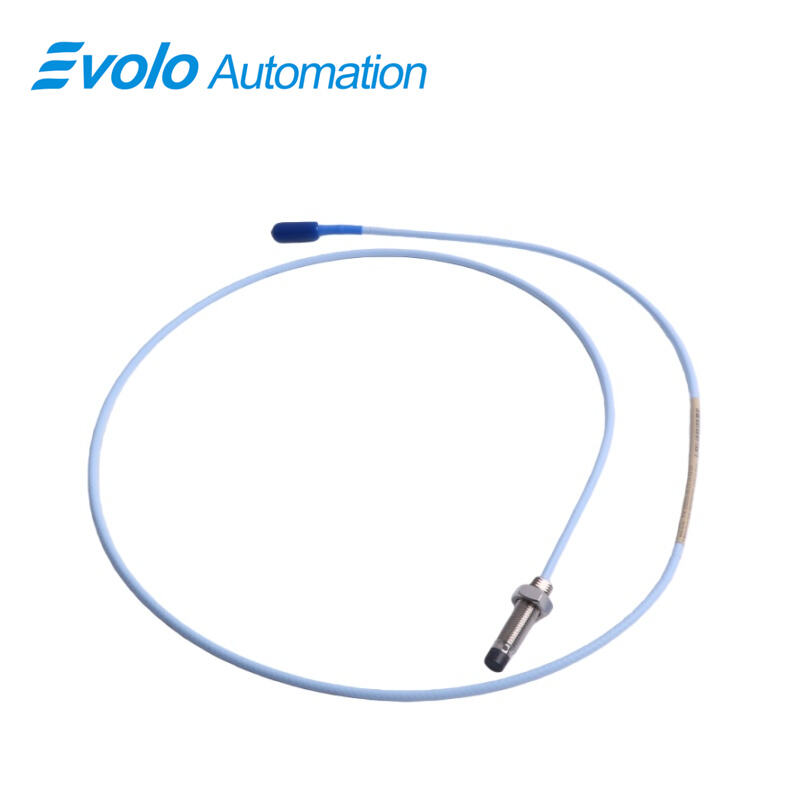

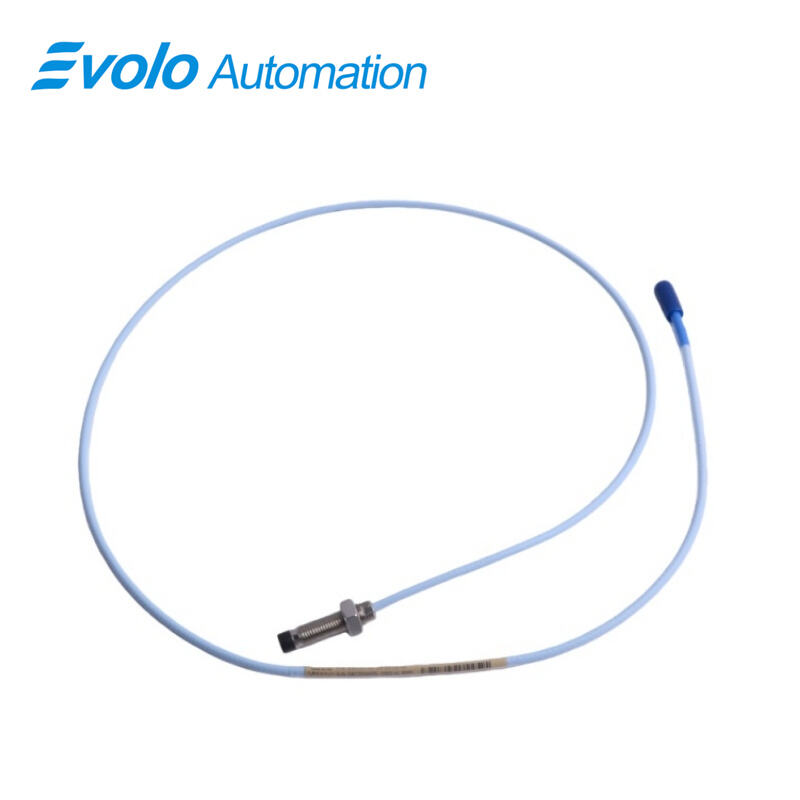

330103-00-13-10-12-00 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-00-13-10-12-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330103-00-13-10-12-00 3300 XL 8 mm Proximity Probe is a high-performance eddy current transducer designed for advanced industrial automation applications. This 3300 XL 8 mm probe provides an output voltage directly proportional to the distance between the probe tip and the conductive target surface, accurately measuring both static positions and dynamic vibration signals. With a linear range of 2 mm (80 mils), operating temperatures from −52°C to +177°C (−62°F to +350°F), and supply sensitivity below 2 mV per volt input change, the 330103-00-13-10-12-00 3300 XL 8 mm probe delivers precise measurements even in extreme environments. Its M10x1 threaded case with 15 mm maximum thread engagement ensures secure mounting in automation systems, while the FluidLoc miniature coaxial ClickLoc connector enhances reliability by preventing fluid ingress. The probe supports extension cable capacitance of 69.9 pF/m (21.3 pF/ft) and field wiring of 0.2–1.5 mm² (16–24 AWG), allowing seamless integration with Proximitor sensors and automated monitoring systems. Designed for interchangeability, the 330103-00-13-10-12-00 3300 XL 8 mm probe is compatible with other 3300 series components, eliminating the need for bench calibration and ensuring consistent automation performance across vibration, position, and speed measurement applications. Its patented TipLoc and CableLoc designs, providing 330 N (75 lbf) pull strength, further secure the probe in automated plant environments, and optional FluidLoc cabling prevents oil or fluid leakage, enhancing reliability in industrial monitoring.

Applications

Vibration Monitoring on Fluid-Film Bearings
The 330103-00-13-10-12-00 3300 XL 8 mm probe is ideal for vibration monitoring on fluid-film bearing machines. With a linear range of 2 mm (80 mils) and high temperature tolerance from −52°C to +177°C, this probe provides precise vibration measurements, enabling real-time detection of imbalance, misalignment, or wear in automated industrial machinery.

Position Sensing for Rotating Equipment
This 330103-00-13-10-12-00 3300 XL probe accurately measures shaft position and displacement in turbines, compressors, and pumps. The M10x1 threaded case with 15 mm maximum thread engagement ensures stable and repeatable positioning, critical for automated speed and position control in modern manufacturing and energy systems.

Keyphasor Signal Generation
The 330103-00-13-10-12-00 3300 XL 8 mm probe can provide Keyphasor reference signals for advanced condition monitoring. Coupled with the FluidLoc miniature coaxial ClickLoc connector, it transmits high-fidelity signals with output resistance of 50 Ω and extension cable capacitance of 69.9 pF/m, supporting precise speed and phase measurements in automated processes.

Automated System Integration
With field wiring of 0.2–1.5 mm² (16–24 AWG) and 1.0-meter total length, the 330103-00-13-10-12-00 3300 XL probe integrates seamlessly into automated monitoring networks. Its robust supply sensitivity of less than 2 mV per volt ensures consistent data accuracy, even in fluctuating power environments.

Specifications

Competitive Advantage

Enhanced Reliability
The 330103-00-13-10-12-00 3300 XL probe features patented TipLoc and CableLoc designs, providing 330 N (75 lbf) pull strength, ensuring secure attachment in high-vibration and automated plant environments.

Wide Operating Conditions
Capable of operating between −52°C to +177°C, the 330103-00-13-10-12-00 3300 XL probe performs reliably in extreme industrial environments, supporting automation in energy, petrochemical, and heavy manufacturing applications.

Precision in Automation
The linear range of 2 mm and high sensitivity ensure that the 330103-00-13-10-12-00 3300 XL probe delivers highly accurate vibration, position, and speed data, enhancing process control and predictive maintenance strategies.
